High-Efficiency SH Series 3D Motion Powder Mixer

The SH-series is easy to operate, energy-efficient, and safe for daily use in pharmaceutical and food mixing.

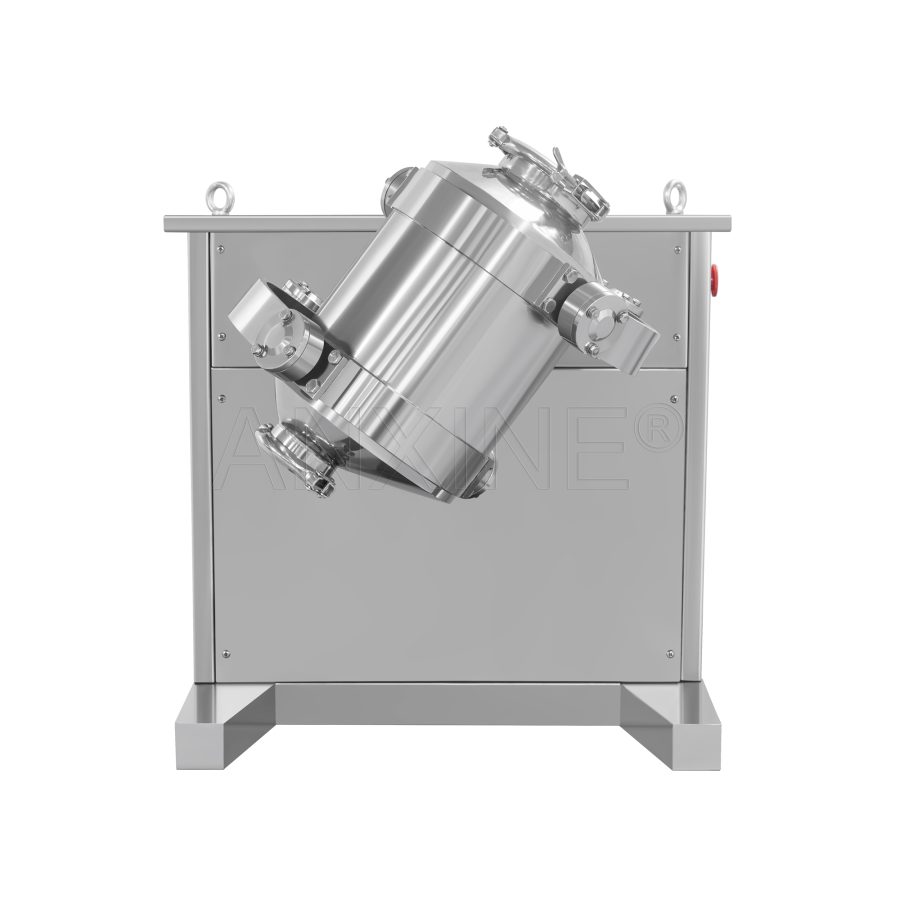

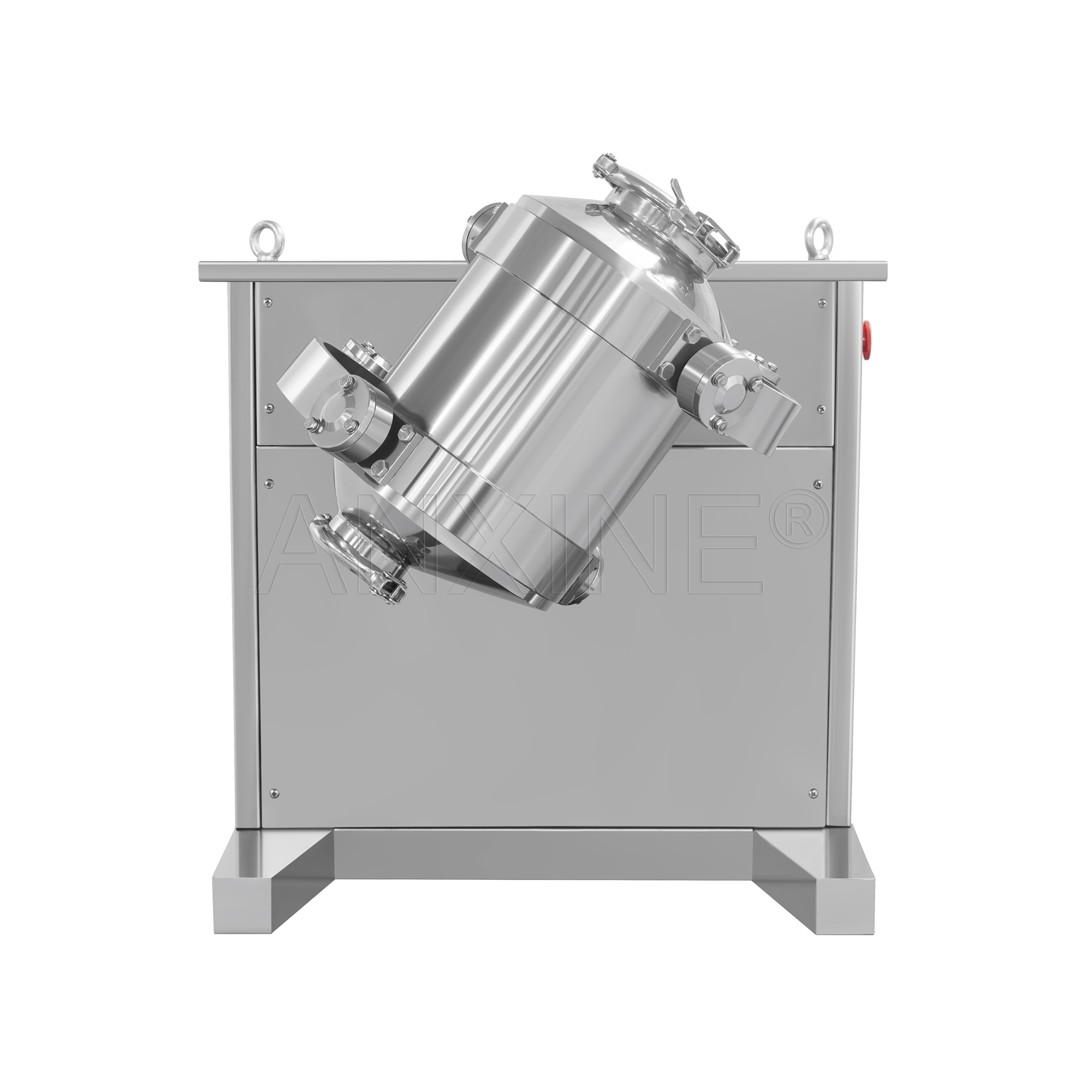

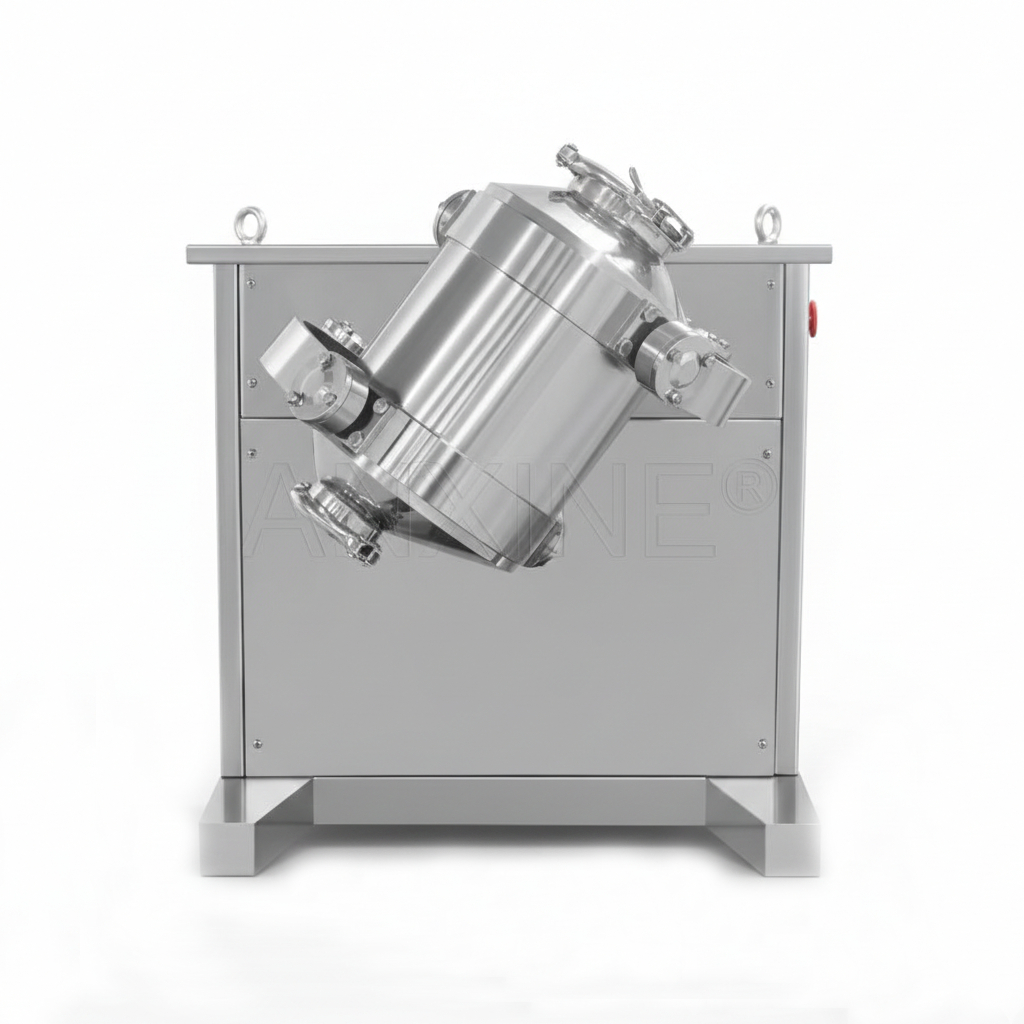

3D Powder Mixing Machines for Small Batch Mixers | SH10-50

The SH series 3D mixing equipment uses a multi-directional motion to achieve highly uniform blending. Compared to traditional mixers, it avoids layering or segregation caused by centrifugal force. It leads to the thorough distribution of different materials. This mixing equipment is also ideal for blending sensitive or uneven particle sizes. It is always used in the pharmaceutical, food, and chemical industries.

This series is available in small-capacity models like SH-10, SH-20, and SH-50. It is perfect for laboratory, research, or small-batch production. The mixer combines compact design with precision motion. It features a stable structure and fine barrel polishing for keeping materials pure.

Request for Quote

Description

The SH three-dimensional mixer offers great control for different processing requirements. It supports a smooth start-up and controlled shutdown to make sure operational safety.

Highlighted Features

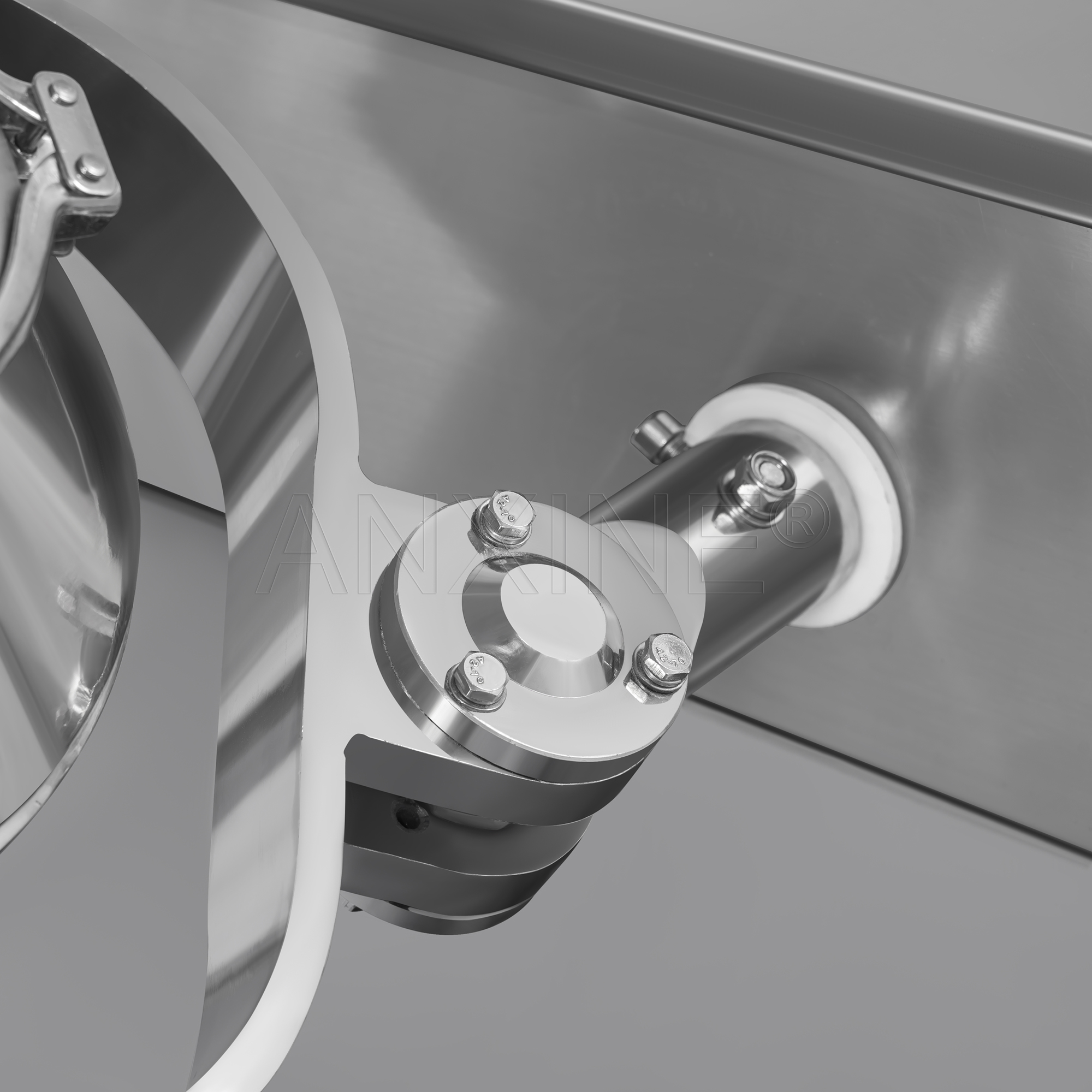

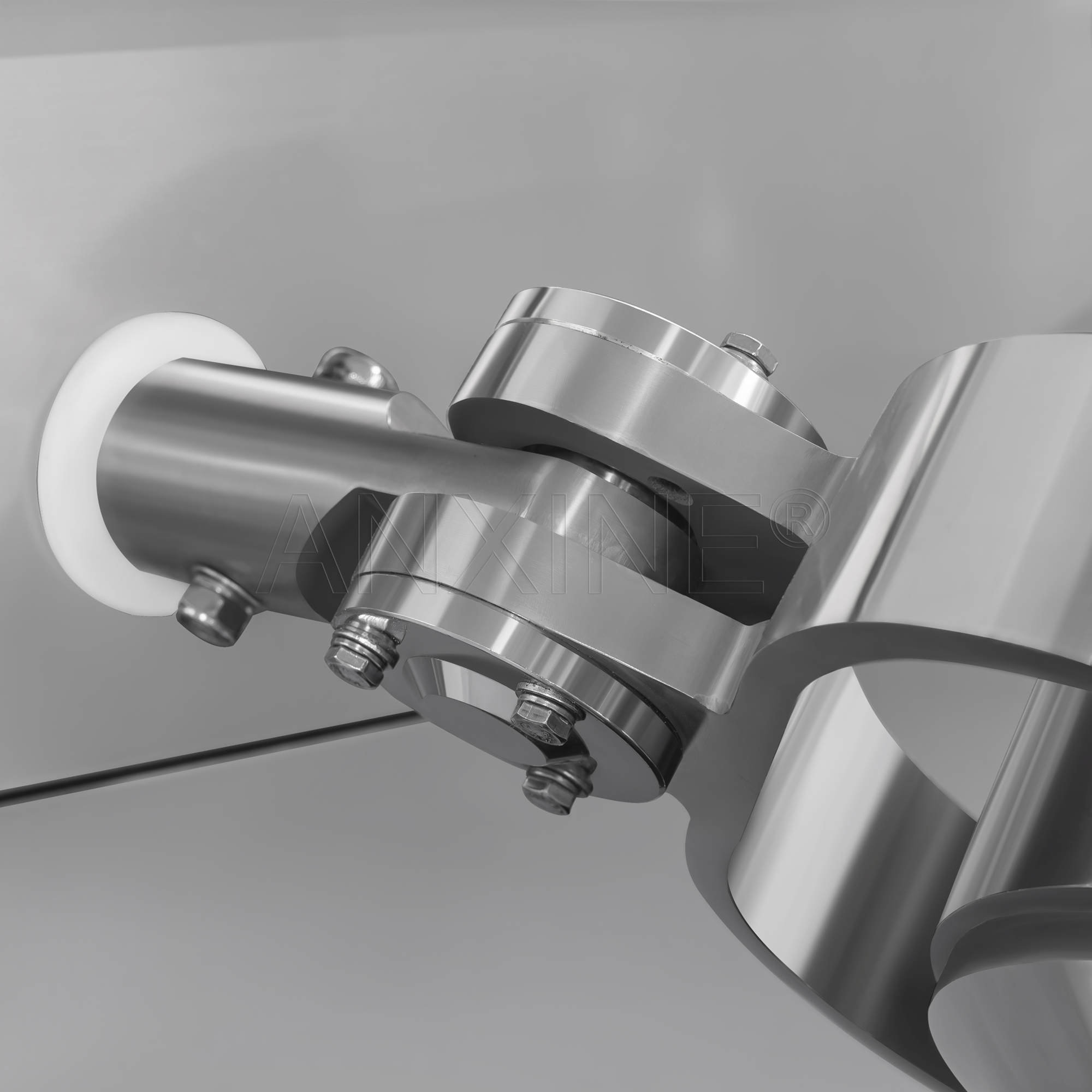

  • Multi-angle motion. The mixing barrel rotates in all directions. The movement improves flow, diffusion, and uniformity.

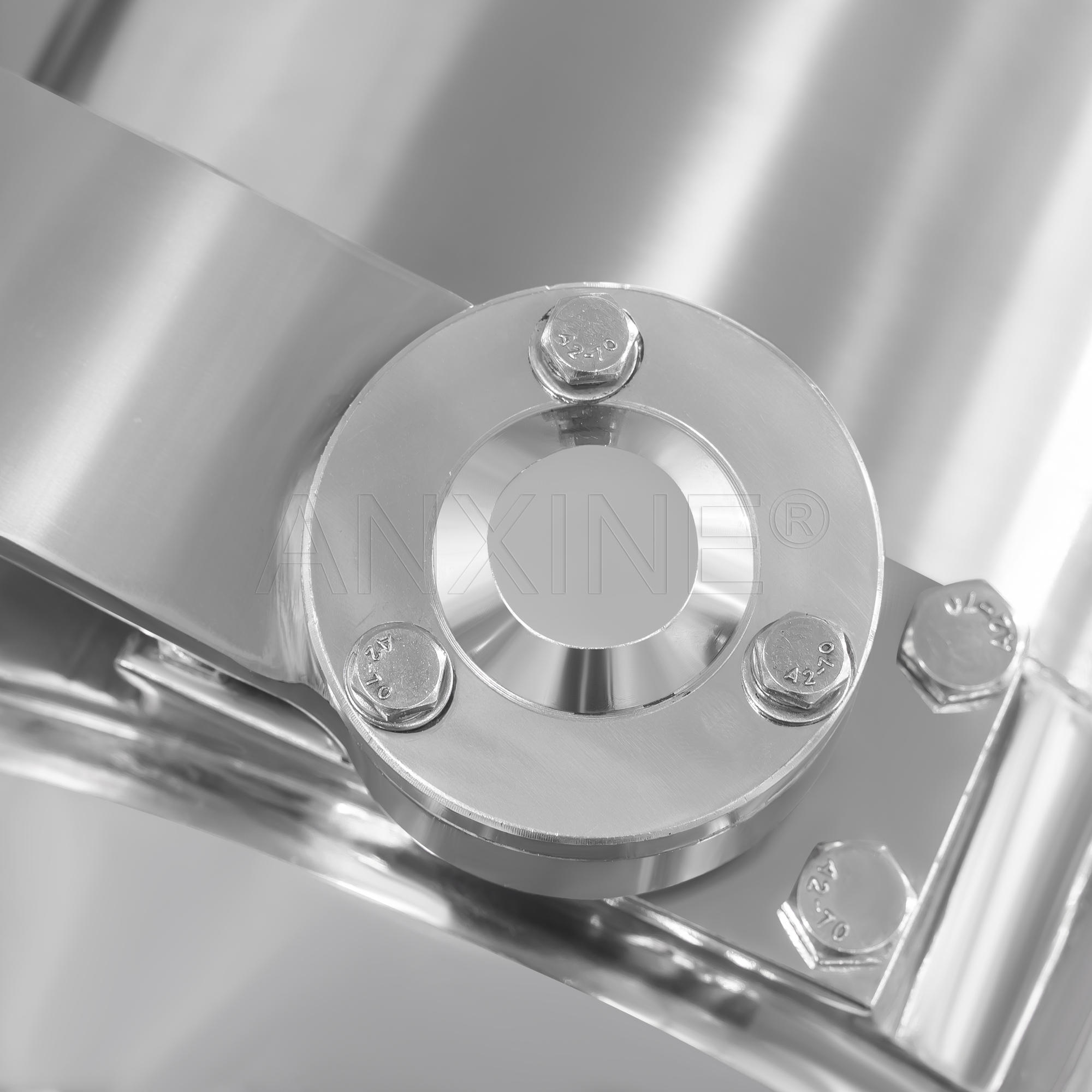

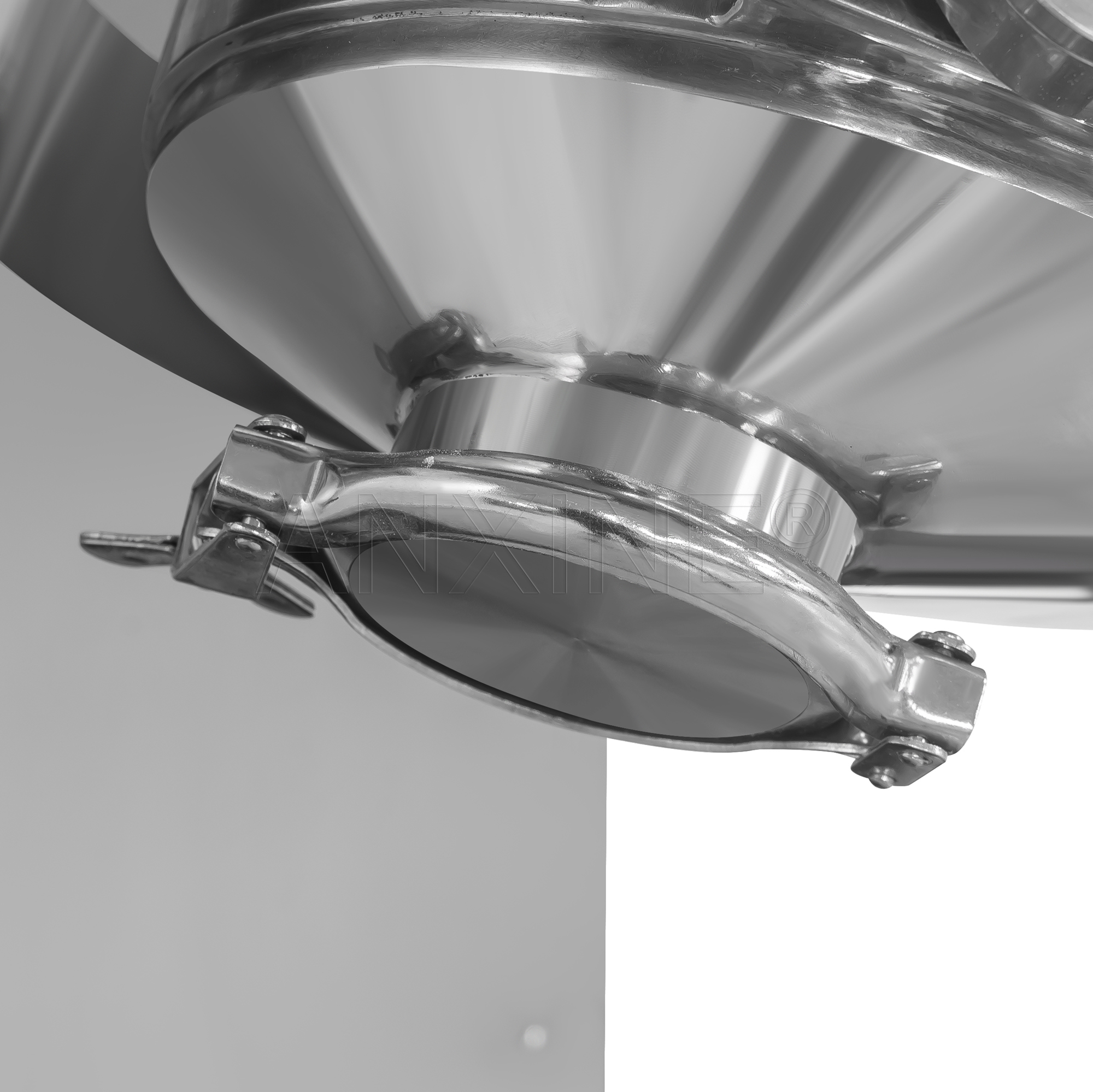

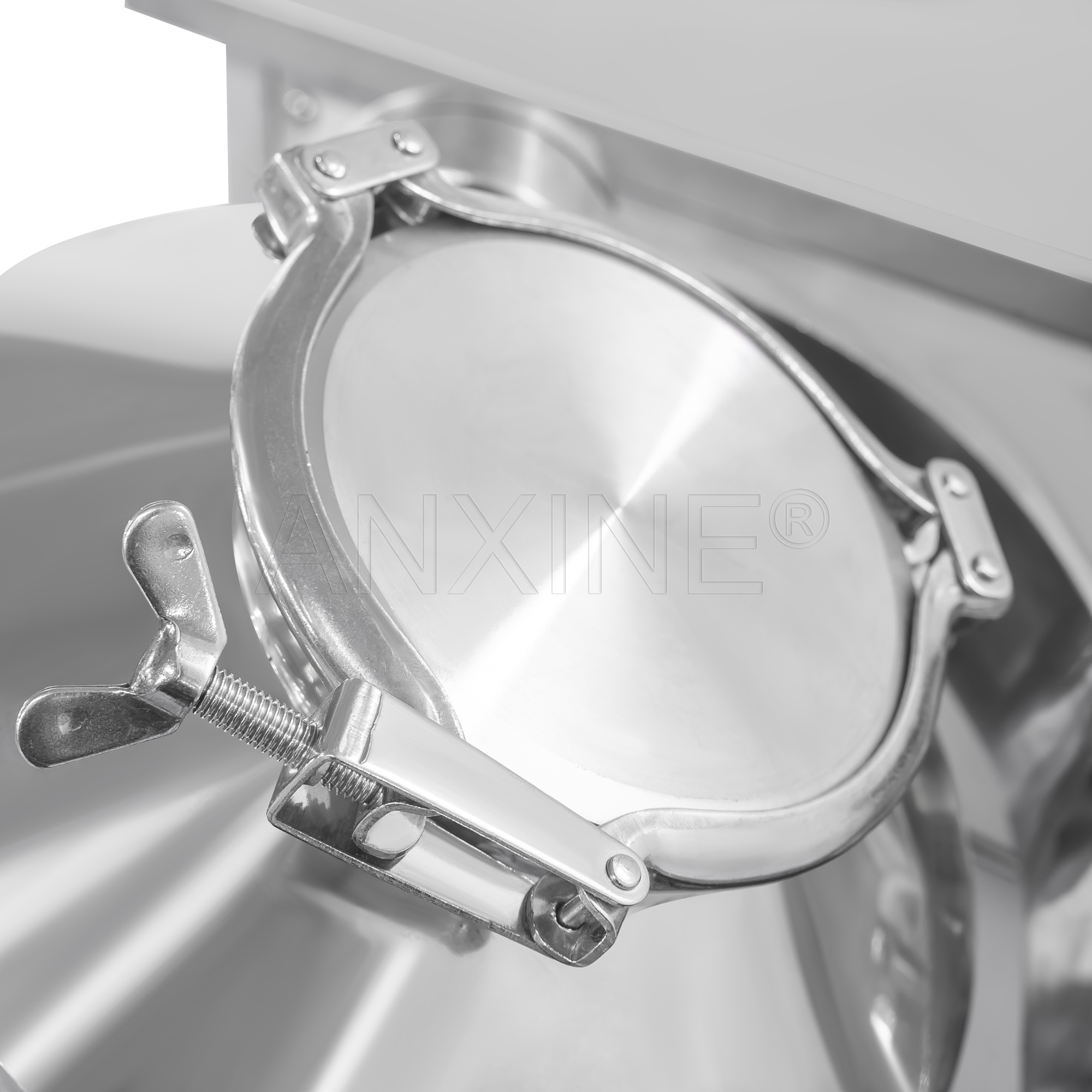

  • Polished stainless steel barrel. It leads to clean mixing and prevents material residue or cross-contamination among batches.
  • Small working area. Compact design suits limited spaces, ideal for small-scale businesses.
  • Speed control. You can adjust the speed to meet your various production needs.
  • Easy to operate. It is equipped with a simple interface and buttons for efficient handling.
  • Safety measures. It includes overload protection to reduce accident risks.
  • Low maintenance. It requires lubrication and inspection monthly or quarterly.

Specifications

Model SH-10 SH-20 SH-50
Vat Volume 10 L 20 L 50 L
Max. Filling Volume 8 L 16 L 40 L
Rotational Speed 0-15 r/min 0-15 r/min 0-15 r/min
Power 0.75 KW 0.75 KW 1.1 KW
Weight 100 kg 100 kg 300 kg
