What is a Liquid Filling Machine?
This liquid filling machine is a kind of machine to fill different liquids or creams into containers such as bottles, jars, or pouches. It controls the amount of liquid that goes into each container accurately. This is much faster and precise compared to filling by hand. The cream and liquid filler machine can handle many products, such as juice, oil, shampoo, lotions, medicine syrups, ointments, etc.
Different Types of Liquid Filling Machine
Semi-automatic filling machine
This type of liquid filling machine requires some manual work. It includes placing bottles under the nozzles and pressing a button or pedal to start filling. A semi-automatic liquid filling system is slower than a fully automatic system. But it offers much cheaper, suitable for small to medium production.
Fully automatic filling machine

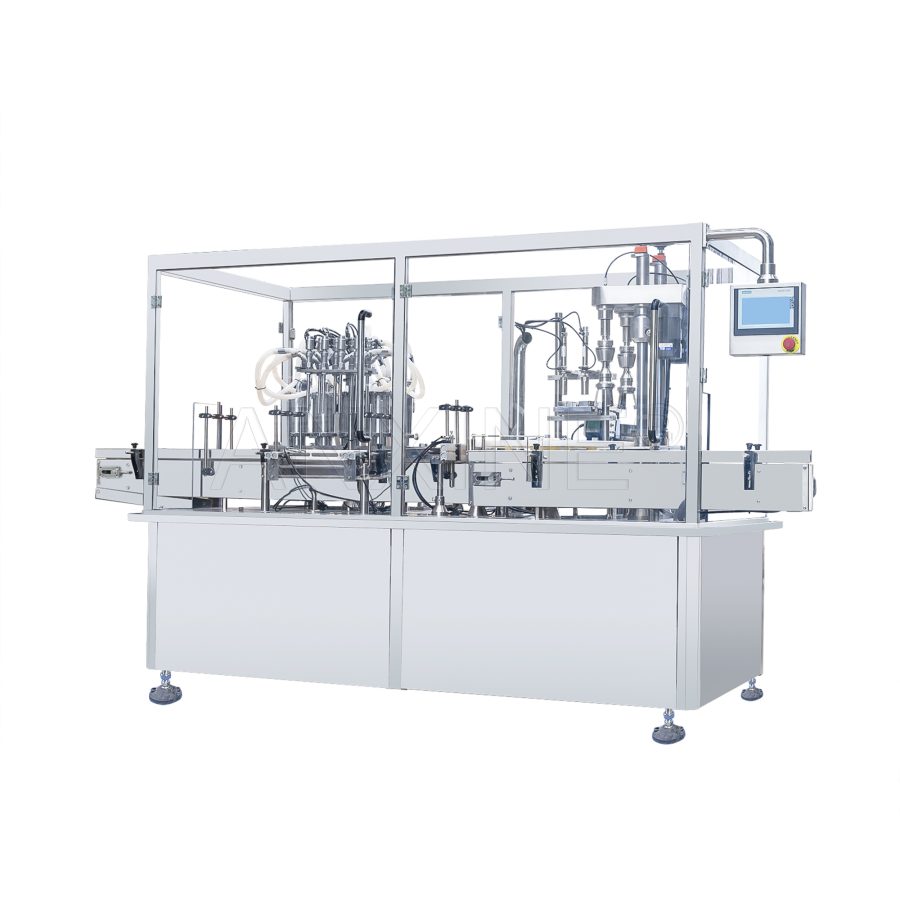

An automatic filling machine includes many parts, such as conveyor belts, sensors, etc. Bottles move automatically to the filling station, get filled, and then move on for further processing. The liquid filler machine is designed for high-speed, large-scale production with consistent accuracy and efficiency.
Gravity filling machine
A gravity liquid filler machine makes liquid flow naturally from a tank into containers through nozzles. It is best for thin and free-flowing liquids such as water, juice, or oils. Since it relies on gravity, the liquid bottle filling machine is simple and easy to operate. It also features a good price and easy maintenance.
Piston filling equipment
A piston filling machine for liquid uses a piston and cylinder system to measure and push the contents into containers. It can handle both thin and thick products, suitable for sauces, creams, and lotions. This liquid fill machine provides high accuracy and efficiency.
Pump filling machine
The pump liquid bottle filling machine uses different types of pumps, such as gear, lobe, or peristaltic pumps. It is used to move products into containers. They can handle a wide range of viscosities. This liquid bottle filling machine is often used in products that have a high requirement for precision.
Overflow filling machine
An overflow liquid fill machine ensures that all containers are filled to the same visual level, even if their volume is slightly different. It is generally used for transparent or semi-transparent bottles. This keeps the liquid level consistent across all containers. It makes them look neat and attractive. This cream filling machine is commonly used for liquids like shampoos, mouthwash, and cleaning products where appearance and uniform levels are important.
Vacuum filling machine
A vacuum liquid bottle filler creates negative pressure inside the container. The liquid is drawn in until it reaches the set level, then the vacuum stops. This method keeps liquid levels consistent and reduces bubbles or foam. This liquid filler machine works well for thick liquids like syrups, creams, and pastes. This type is widely used in the pharmaceutical and cosmetic industries to maintain product quality.
Cream & Liquid Filling Machine Main Parts
Take a fully automatic cream & liquid filling machine for example. A machine needs different parts to work together for smooth operation. Each part has its own function to ensure the machine runs efficiently and fills accurately. The table below shows the main parts and their roles.
| Part | Description |

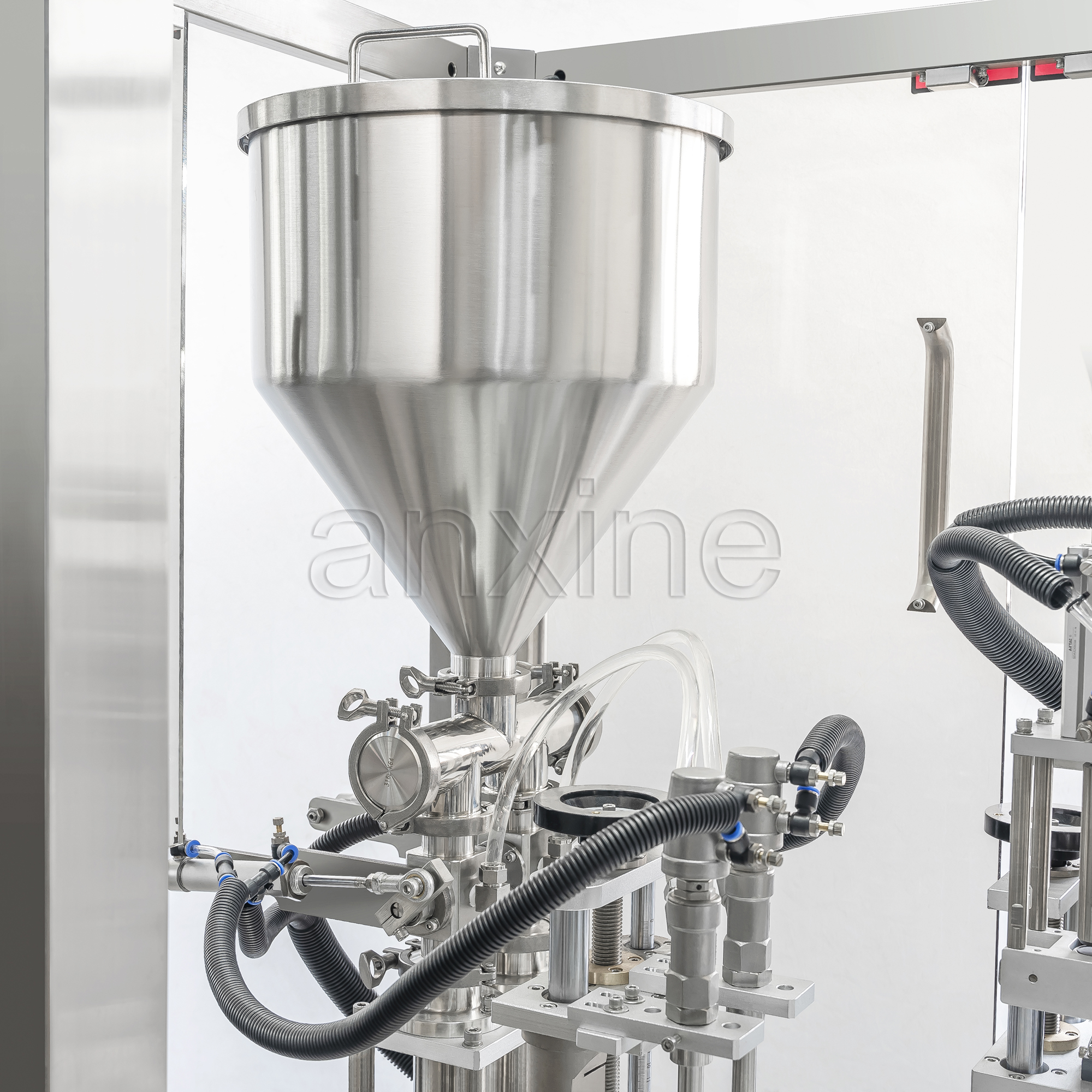

| Hopper | Hoppre stores liquid or cream before it enters the filling system. It can be heated or stirred for thicker products. |

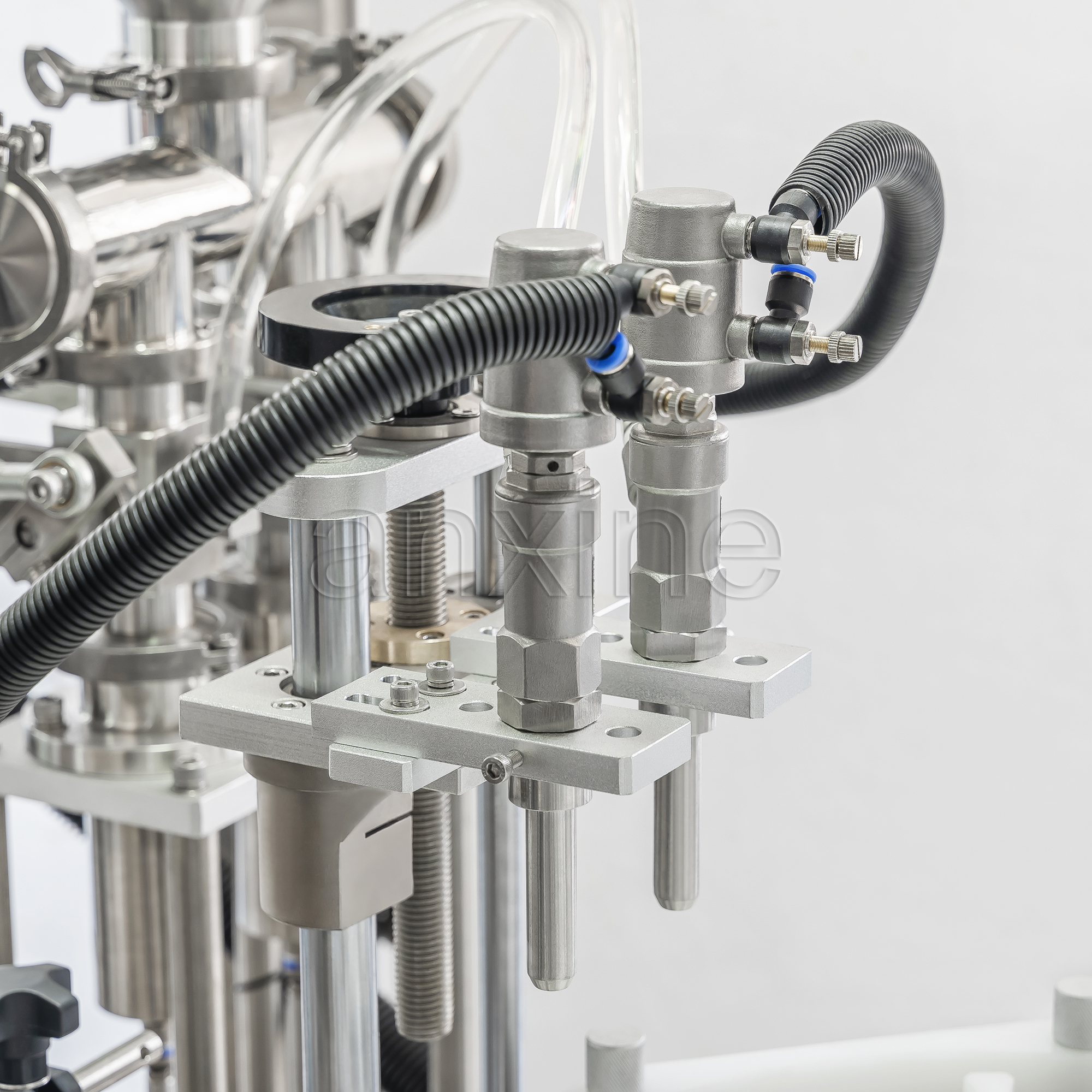

| Filling nozzles | It controls the flow of liquid into containers, designed to reduce splashing or dripping. |
| Pump/piston system | It moves the product from the tank to the nozzles and finishes filling. |
| Conveyor belt | It transports containers through filling, capping, and labeling stations automatically. |
| Sensors | It detects the position of bottles or jars to ensure correct filling. |
| Control panel | It allows operators to set parameters like fill volume, speed, and nozzle operation. |
| Safety guards | It provides a machine structure and protects operators during operation. |
Together, these parts create a system that can handle large-scale production with speed and precision. A clear understanding helps you better operate the machine, maintain it, and choose the right model for your production needs.
Cream & liquid filling machine working principle
The machine draws liquid or cream from a tank or hopper at first. Then it transfers the liquid into containers like bottles. A liquid filling system controls the flow. This makes sure each container gets the right and same amount. Sensors or nozzles guide the filling process to prevent spills and keep the work area clean. Once the container is filled, it moves to the next stage, such as capping or labeling. The process can be fully automatic, or assisted with human effort. It depends on the machine type and production needs.
Cream & liquid filling machine Applications:
Liquid and cream filling equipment are used in many industries. Here are some examples.
- The pharmaceutical industry. They are used to fill syrups, suspensions, ointments, and gels.
- Food and beverage area. These machines fill sauces, oils, honey, syrups, juices, and dairy products into bottles, jars, or pouches.
- Cosmetics and personal care industry. Products such as lotions, shampoos, conditioners, and perfumes are filled with precision.
- Nutraceutical and health products. Vitamins, liquid supplements, and herbal extracts are often filled into bottles or sachets. The machines support both small-scale and large-scale production.
- The chemical industry. Cleaning liquids, detergents, lubricants, and other household or industrial chemicals are packaged with these machines.
Why Choose Anxine Cream & Liquid Filling Machine?
As a leading Chinese manufacturer, Anxine offers different models of liquid and cream filling machine. Whether you own a start-up or a large factory, there is one to meet your needs.
Quality assurance
Before leaving our factory, every Anxine liquid filling machine goes through a strict inspection to guarantee performance. Each unit is carefully checked part by part, from electrical components to mechanical structures. Besides, we would conduct full test runs. It mainly checks filling accuracy, speed, and stability under real working conditions. Only machines that pass all quality tests are cleared for delivery.
1-year warranty
After your purchase, we offer a comprehensive service. It includes
- Free replacement parts. If any part needs replacement within the warranty period, we’ll provide it at no cost.
- Free shipping. We’ll also cover all shipping fees for replacement parts, so you won’t pay any extra expenses.
- Free on-site check. This is an optional service. For extra support, our technicians can visit your factory to keep your machine running at its best.
If you have any problems with your machine, feel free to contact us.
