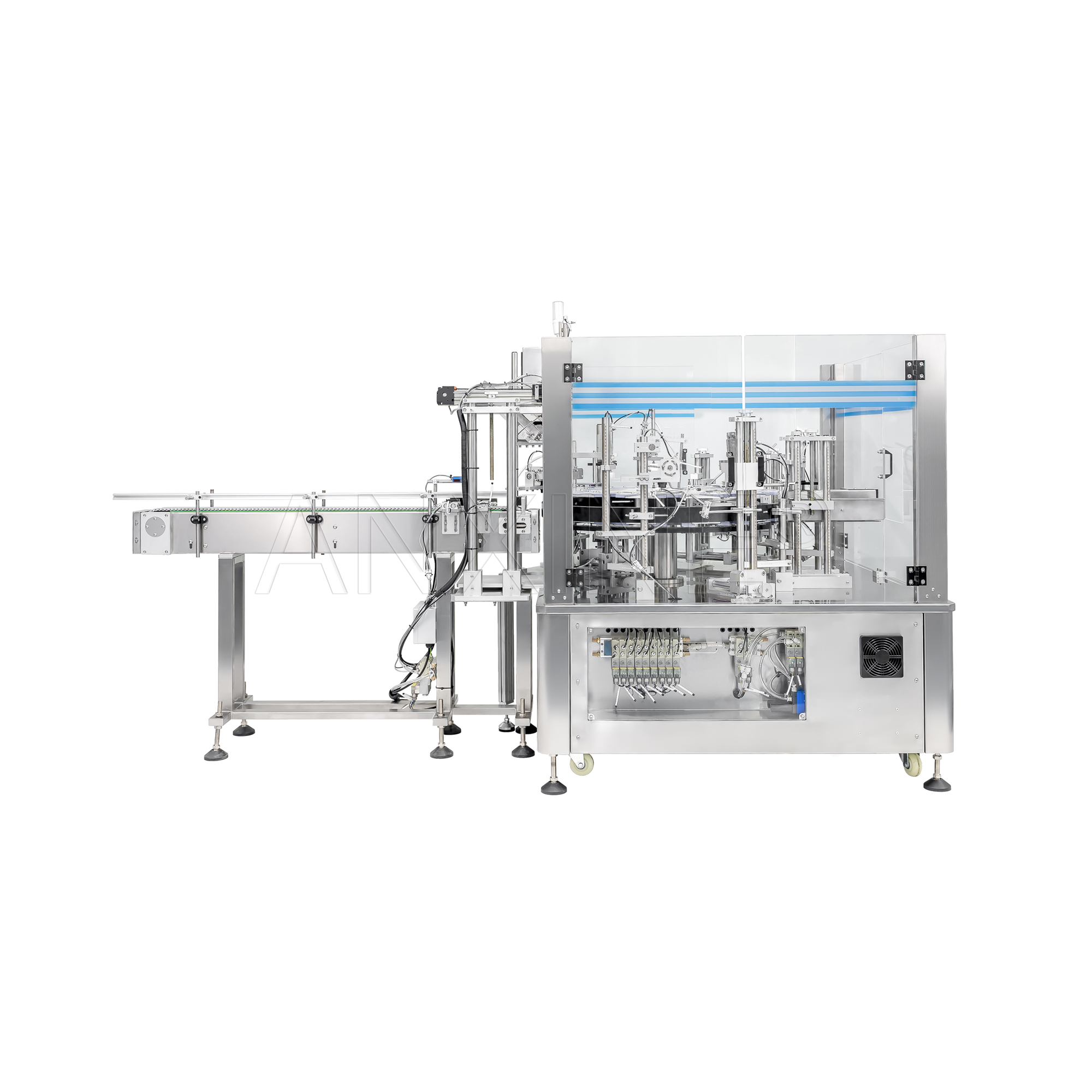

Turntable Cartoning Machine DZH-50S
Vertical Cartoner Machine
Anxine’s vertical cartoning machines are built for precise product handling and exceptional carton presentation, which is vital for the pharmaceutical industry. They erect cartons with precision, then load sensitive items like bottles, vials, blister packs, sachets, and leaflets from the top. Our vertical cartoners meet strict regulatory requirements. They ensure secure sealing, tamper-evident features, and a professional finish. This elevates product protection and market appeal for your products.
Description

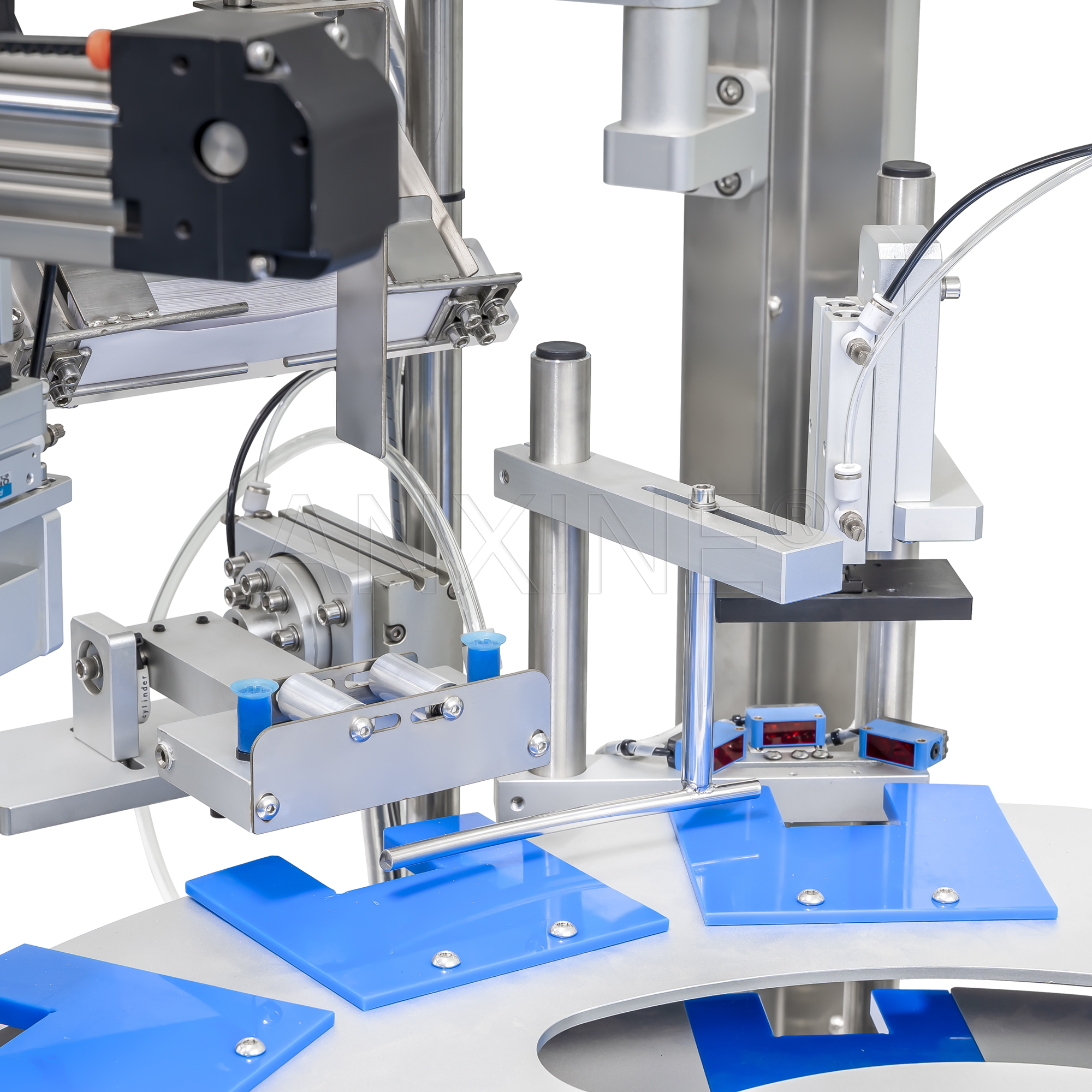

The DZH-50S cartoning machine is an advanced cartoning solution, engineered to streamline packaging processes quickly and precisely. Utilizing vacuum suction cups for carton feeding into its star wheel system, it offers seamless workflow from carton loading through delivery of product.

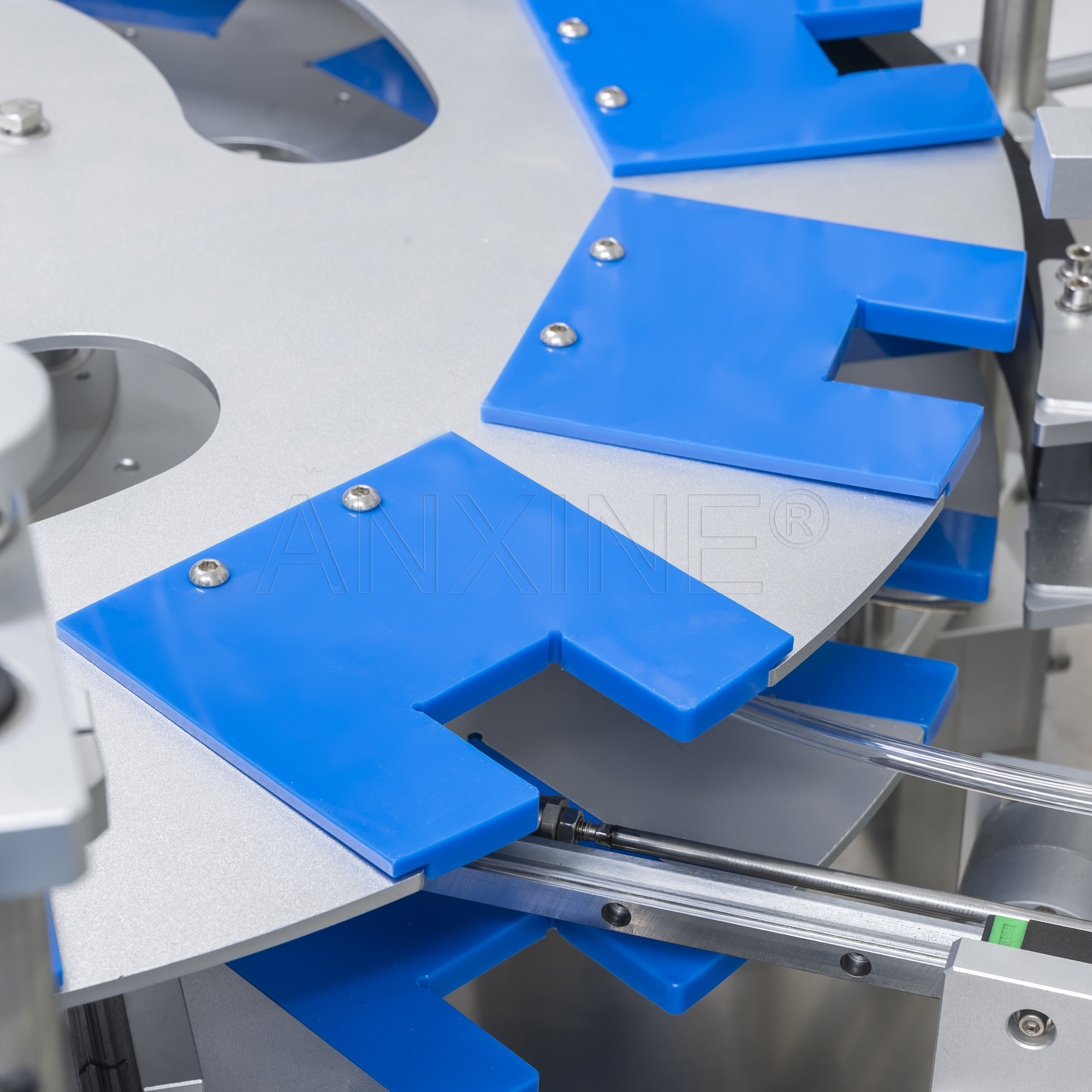

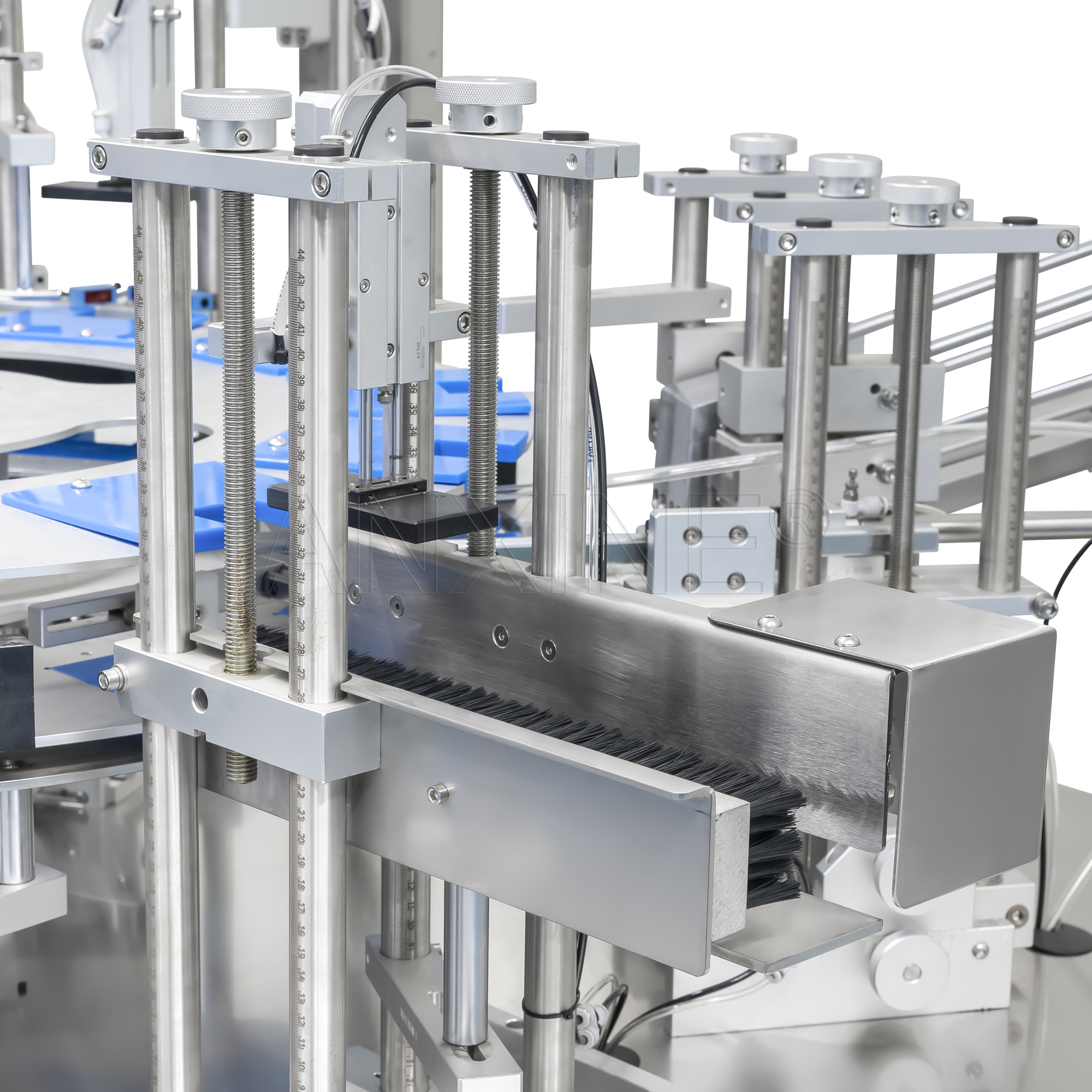

This machine uses vacuum suction cups to guide cartons into its star wheel. Once inside, this star wheel rotates them towards folding mechanisms for bottom sealing before finally moving them onto top sealing mechanisms for top seal and then out for delivery.
Highlighted Features
- Fully Automated Operation: From collecting cartons to the transportation and placement of finished products, every aspect of this process runs without manual intervention and is entirely autonomous.
- Effective Production Capacity: Production speeds may reach 20-60 cartons/minute, dramatically improving work efficiency.
- Flexible to meet different specifications: supports carton sizes from 60x20x20mm up to 200x80x80mm for product packaging needs of various products.
- Safety Protection Measures: For operator safety, an emergency stop button and protective door have been included to guarantee machine operation safely.
- User-Friendly Touch Screen Interface: Provides an intuitive and straightforward user-interface panel, helping with parameter setup and troubleshooting.

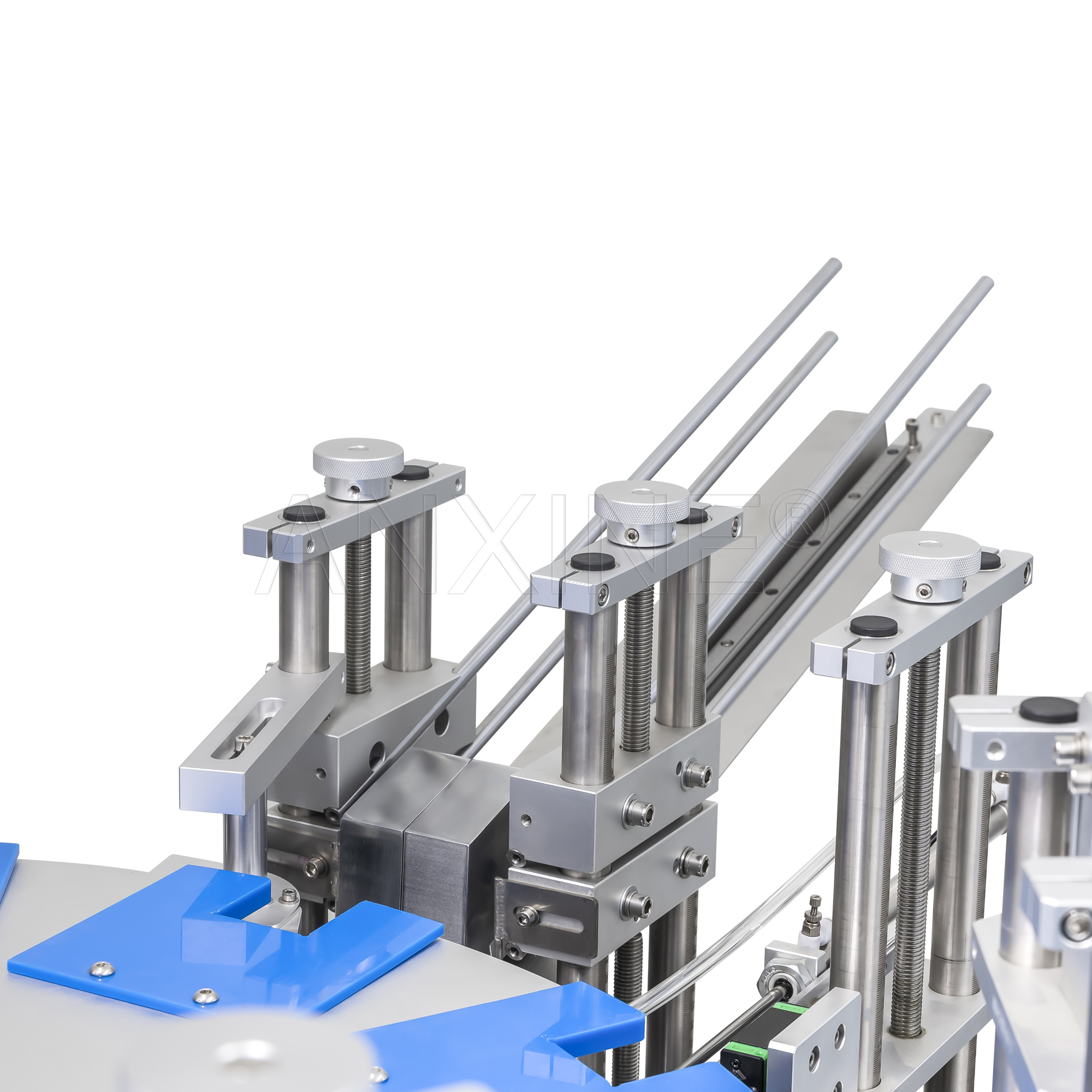

- Fine mechanical adjustment: Each key part such as the carton feeding mechanism or ear folding mechanism can be fine-tuned based on specific circumstances to guarantee optimal working condition.
Specifications
| Model | DZH-50S |
|---|---|
| Carton Dimensions | Minimum: 60x20x20 mm Maximum: 200x80x80 mm |
| Production Speed | 20-60 cartons/min |
| Power Supply | 220V single phase; 50/60Hz |
| Motor Horsepower | 1/4HP 15:1 |
| Air Pressure Consumption | 150L/min |
| Dimensions | 1,750 x 1,200 x 1,500 mm |
| Weight | 950 kg |
