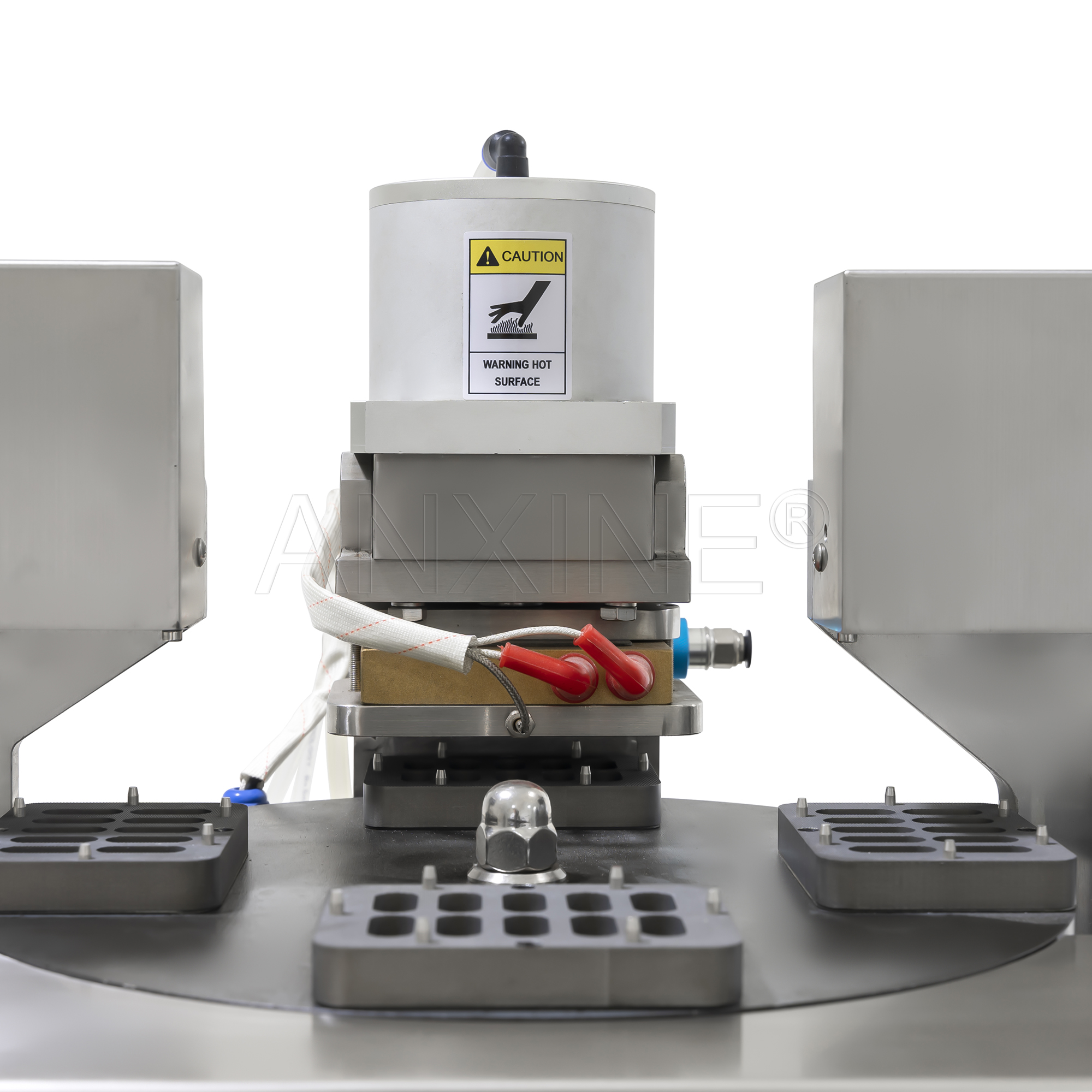

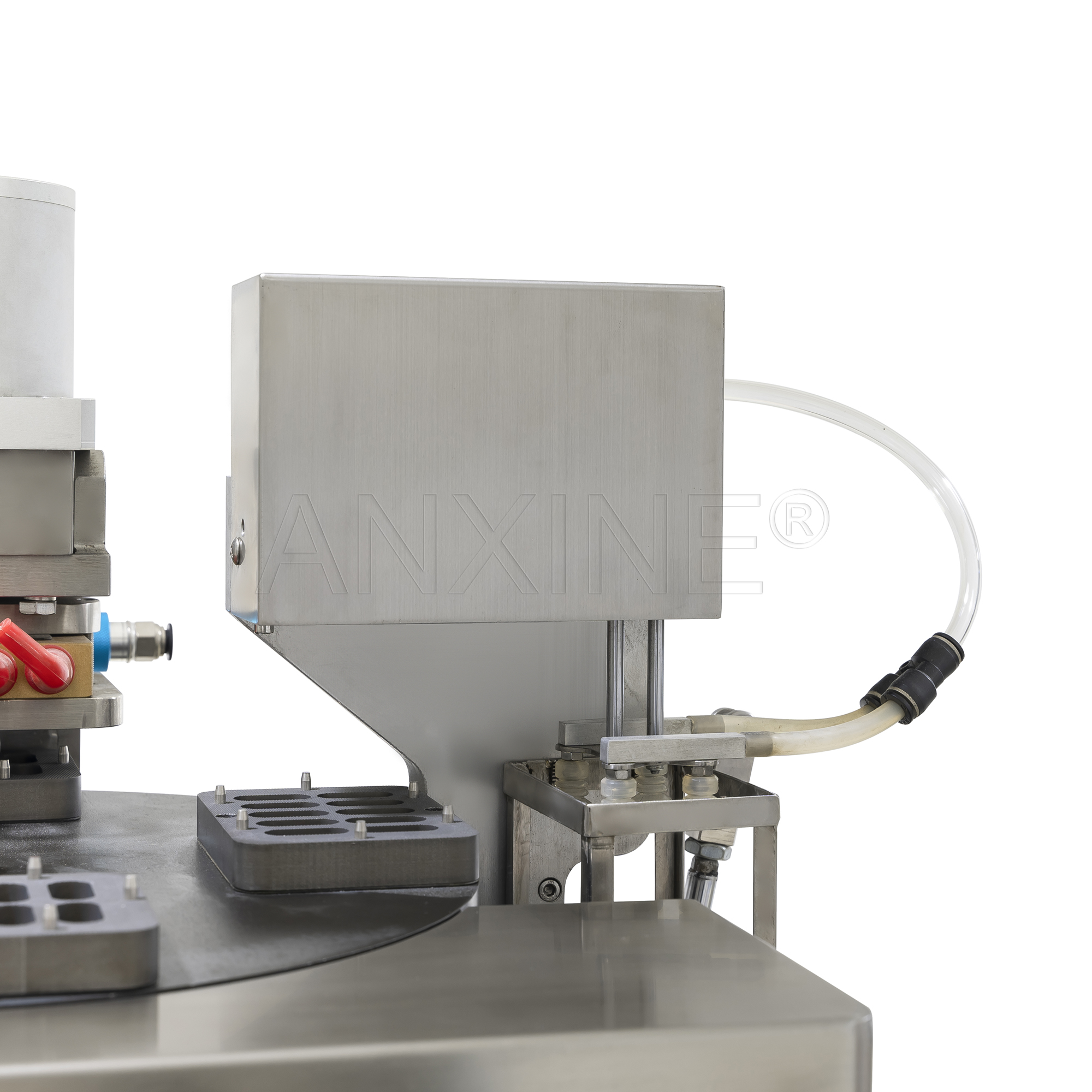

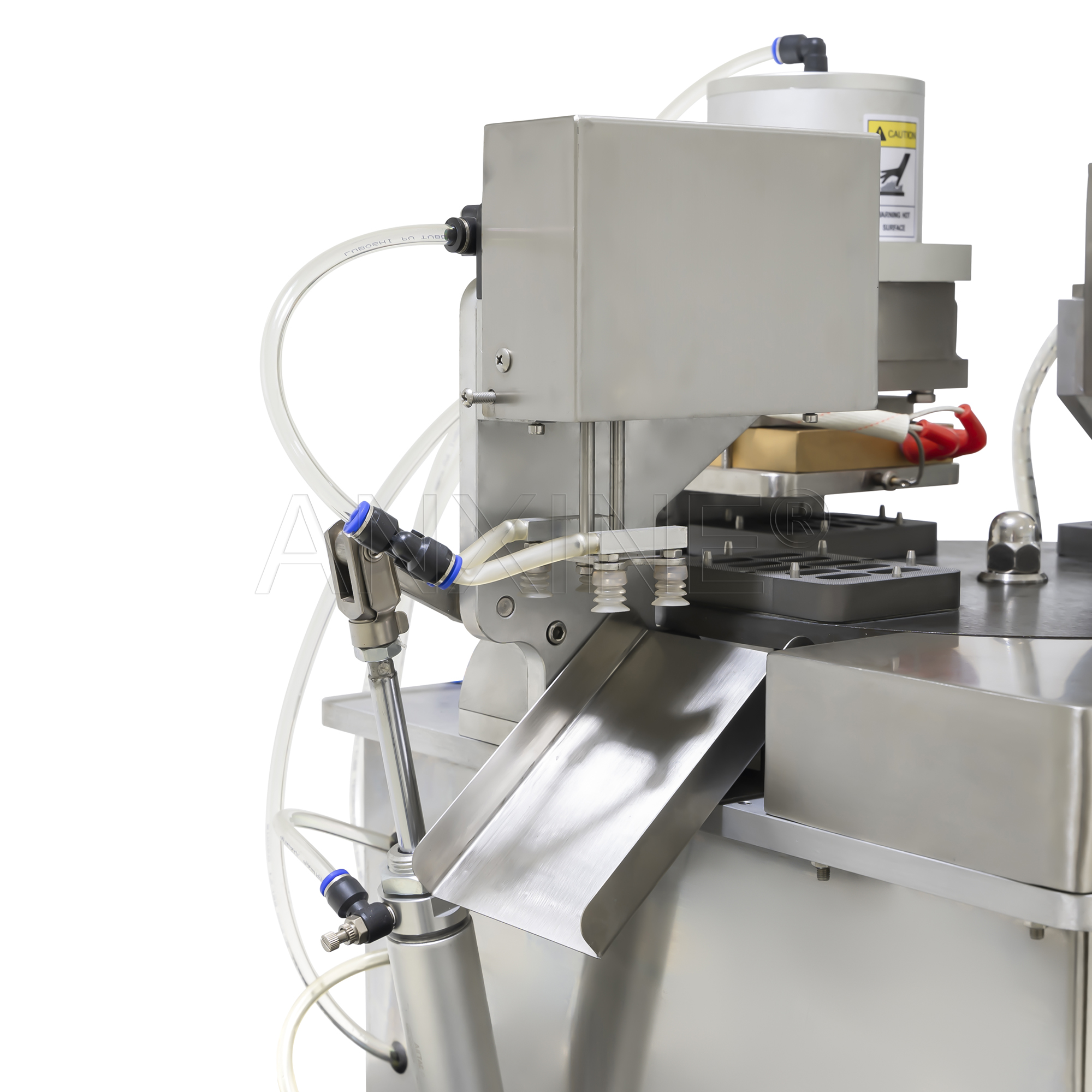

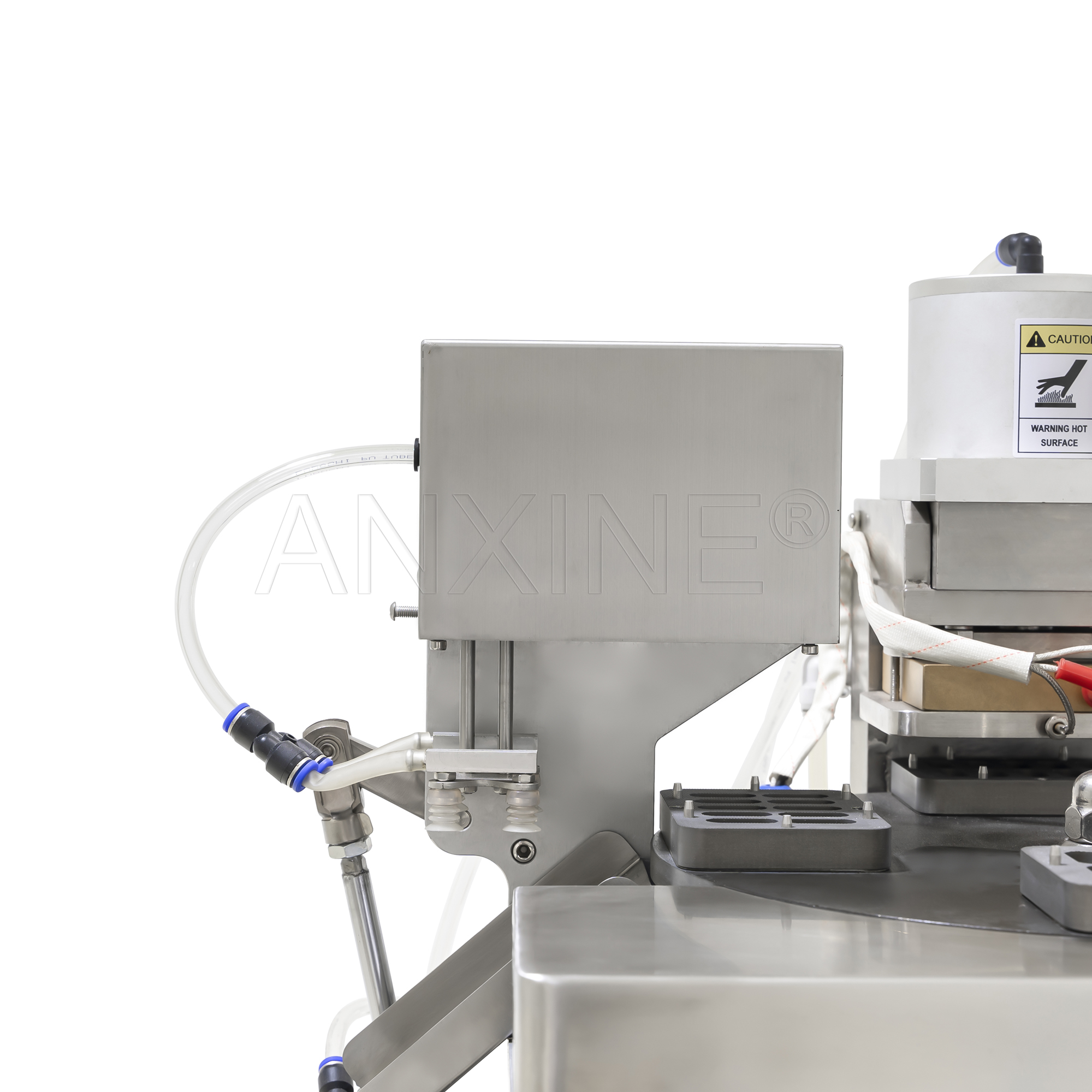

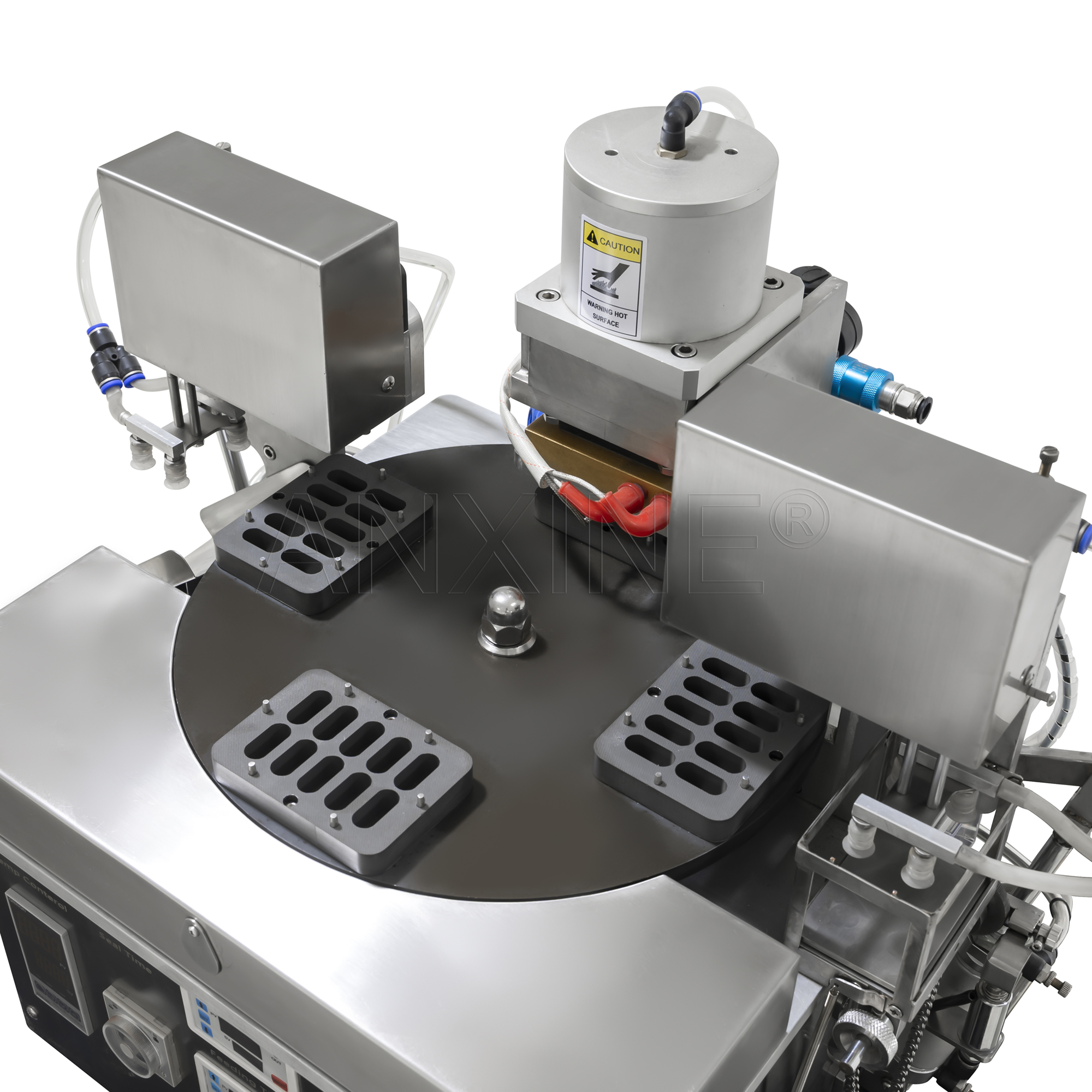

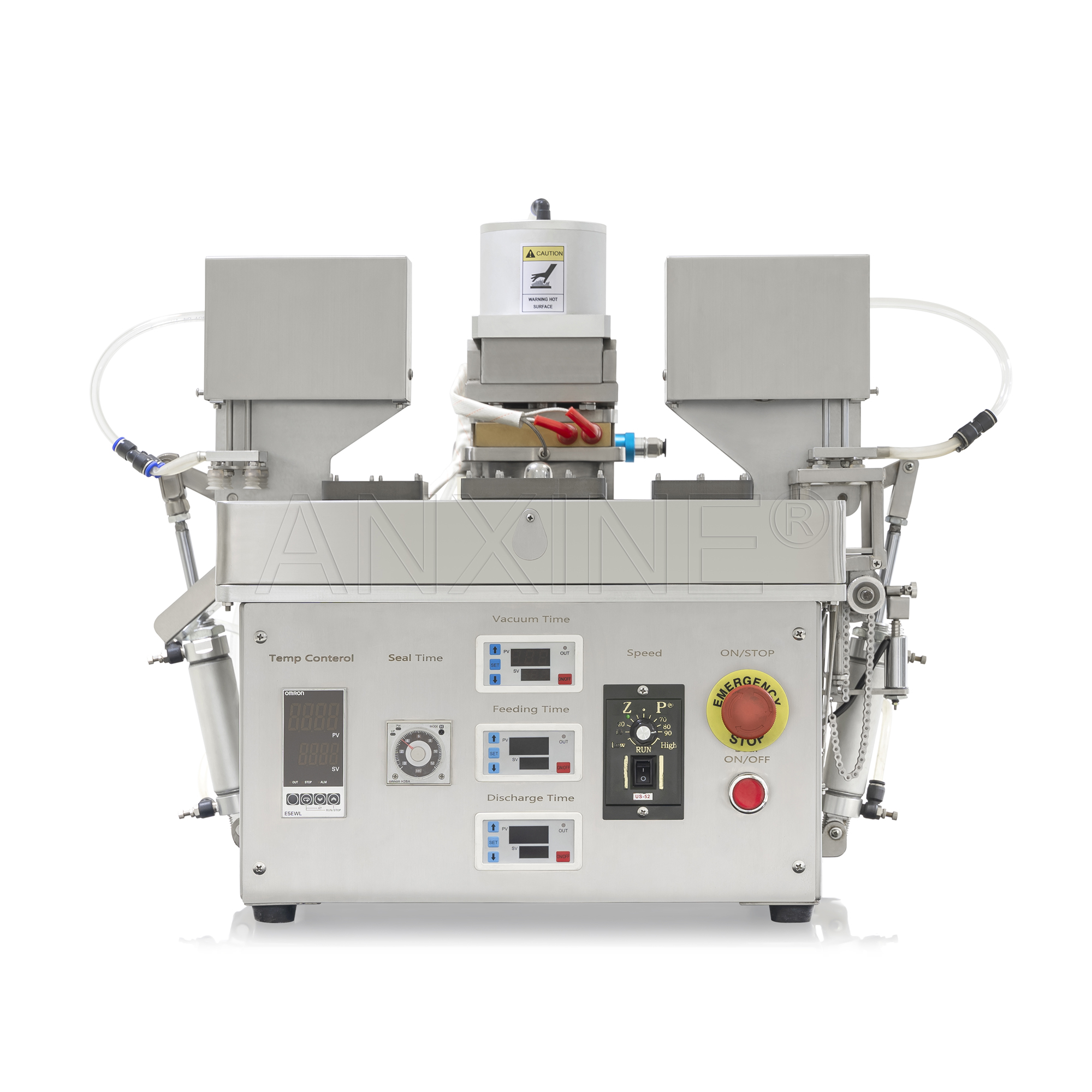

Rotary Blister Pneumatic Sealing Machine ABM-720

Improve how efficiently you package products with the ABM-720. This strong system uses air pressure to pack blisters tightly. It combines automated steps with operator control, making it useful for different production needs.

Semi-Automatic Rotary Blister Packing Machine ABM-720

This machine uses air pressure to make sure that the pressure during the packaging process is always the same and reliable. Its rotary design makes operations more efficient. Operators load products into formed blisters (or load pre-formed blisters), and the machine handles the sealing, perforating, and cutting steps in an indexed, semi-automated flow. The ABM-720 is perfect for medium to high-volume production. It provides excellent precision and high-quality, tamper-evident blister packs for pharmaceuticals, nutraceuticals, and medical devices. It balances automation with operator control.

Description

The ABM-720 Rotary Blister Pneumatic Sealing Machine is perfect for small businesses that need good packaging. Its spinning (rotary) design makes it very precise and productive, easily handling all the important steps for sealing blisters.

Highlighted Features

  • Super Easy to Use: The machine’s controls are clear and simple, so operators can quickly learn how to use it.
  • Precise Heat Control: A smart temperature controller makes sure the heat is always just right for creating perfect seals.
  • Light & Portable: It’s made of lightweight, durable materials that are easy to move.
  • Smooth Workflow: After you fill the blisters manually, the machine does the rest. It efficiently transfers the foil, seals it, and neatly discharges it with air pressure.
  • Safe & Reliable: It is built with safety measures to ensure that it works consistently and safely.

Specifications

Model ABM-720
Heating Temperature 100-120°C
Heat Sealing Time 4-5 seconds
Air Pressure 0.6-0.8 MPa
Air Displacement 0.12 m³/min
Air Pressure Caliber 10 mm
Power 300W + 25W
Power Supply AC 110~220V 50/60Hz
Weight 50 kg
