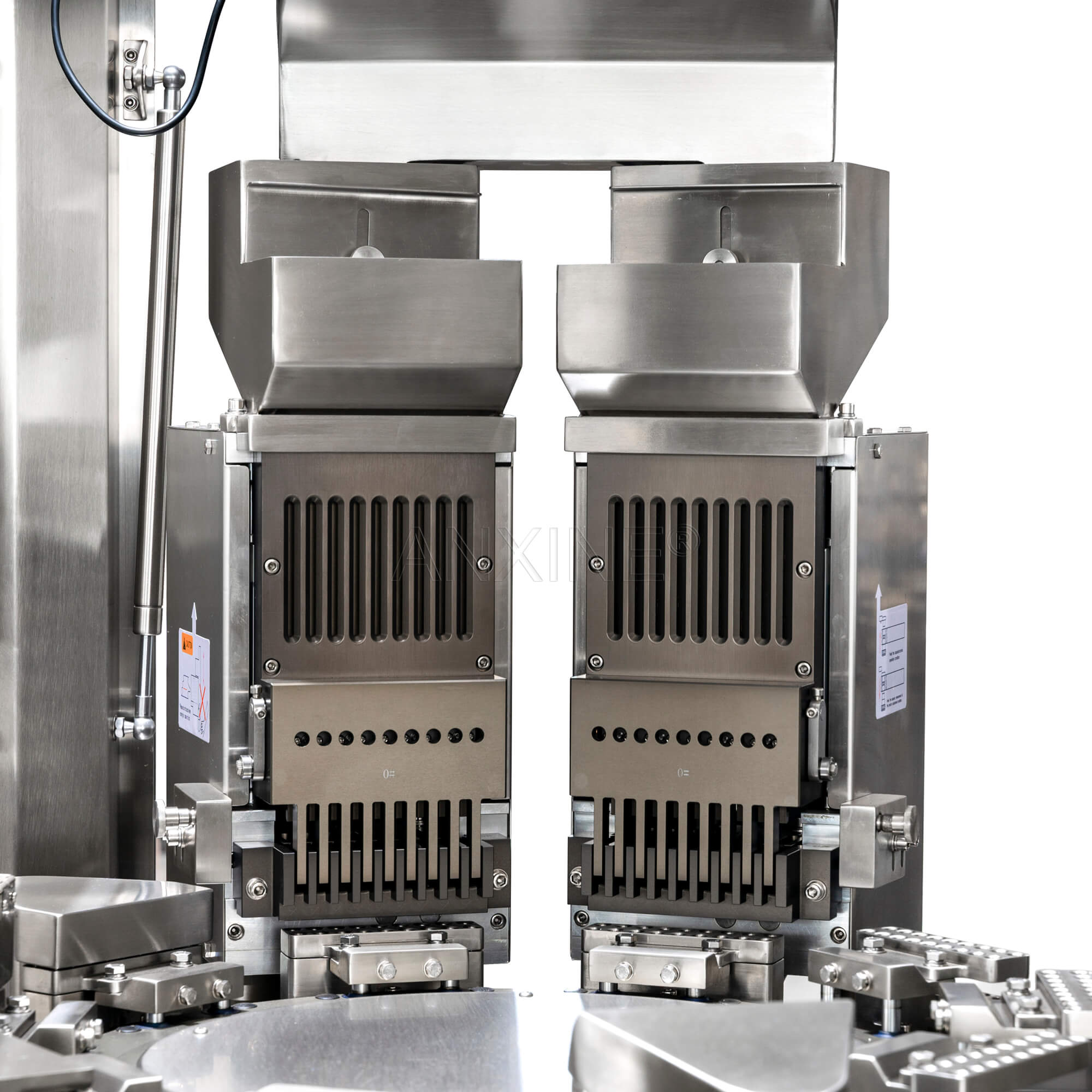

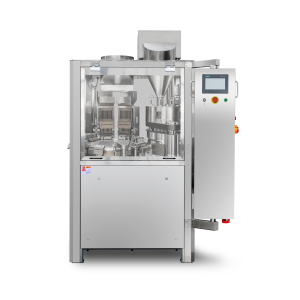

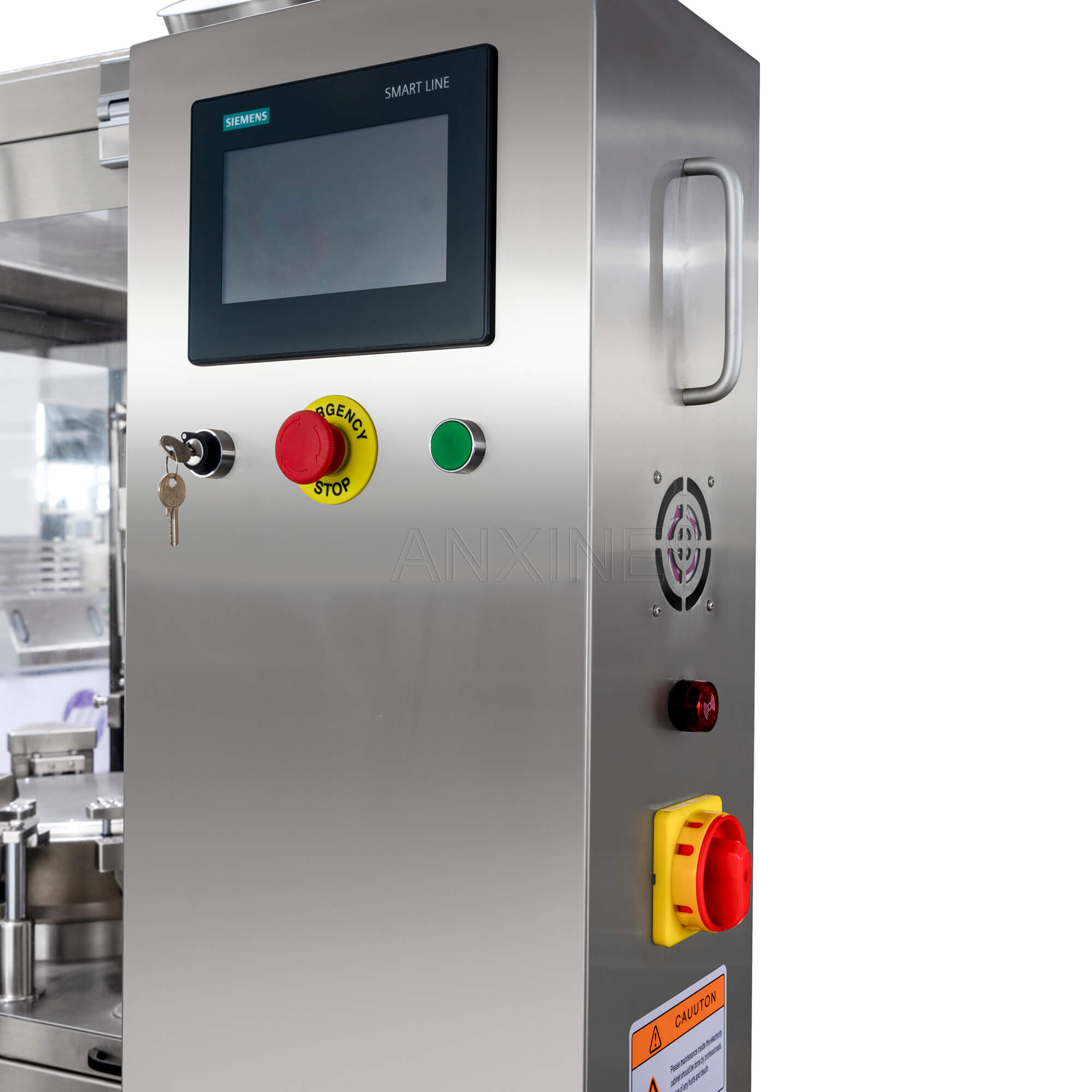

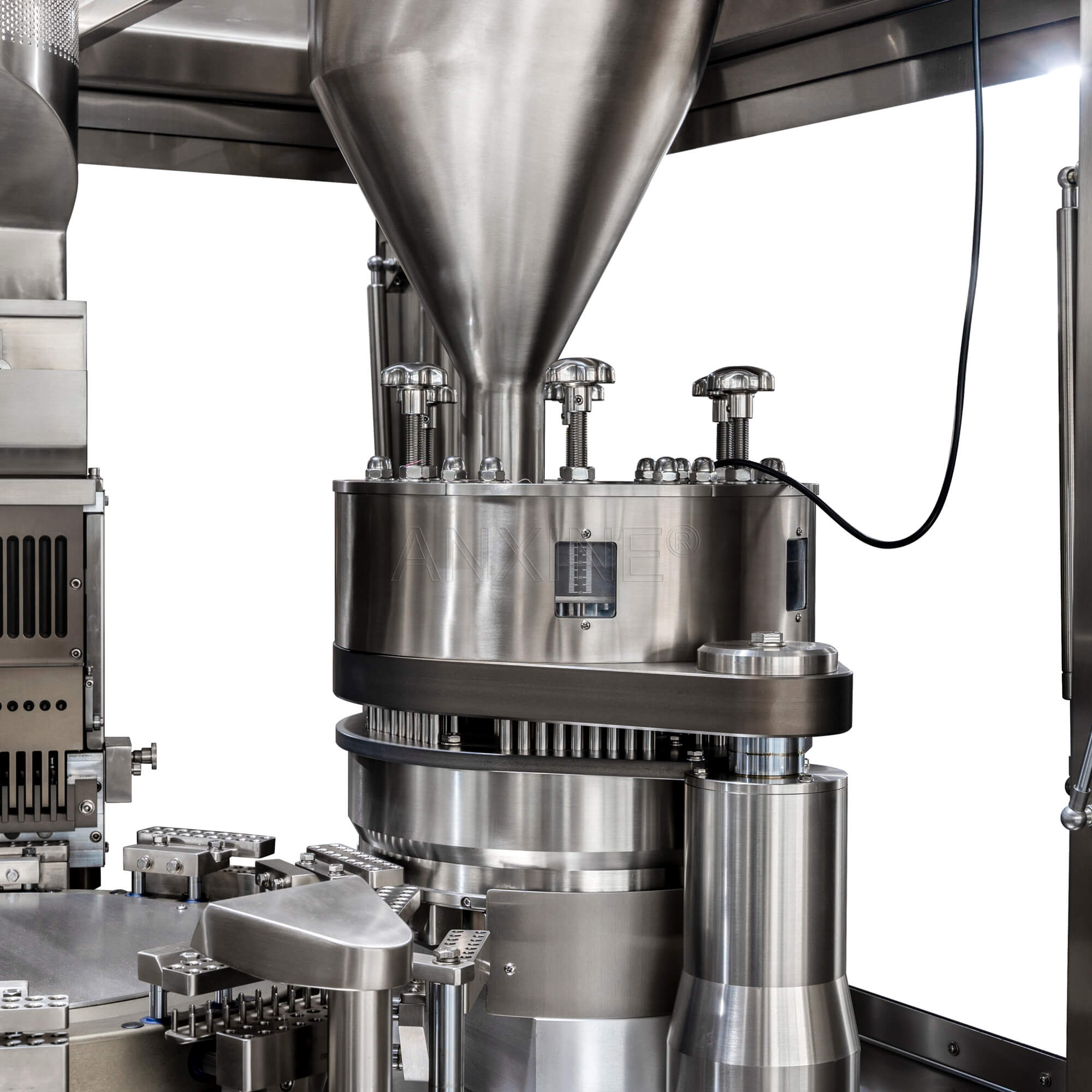

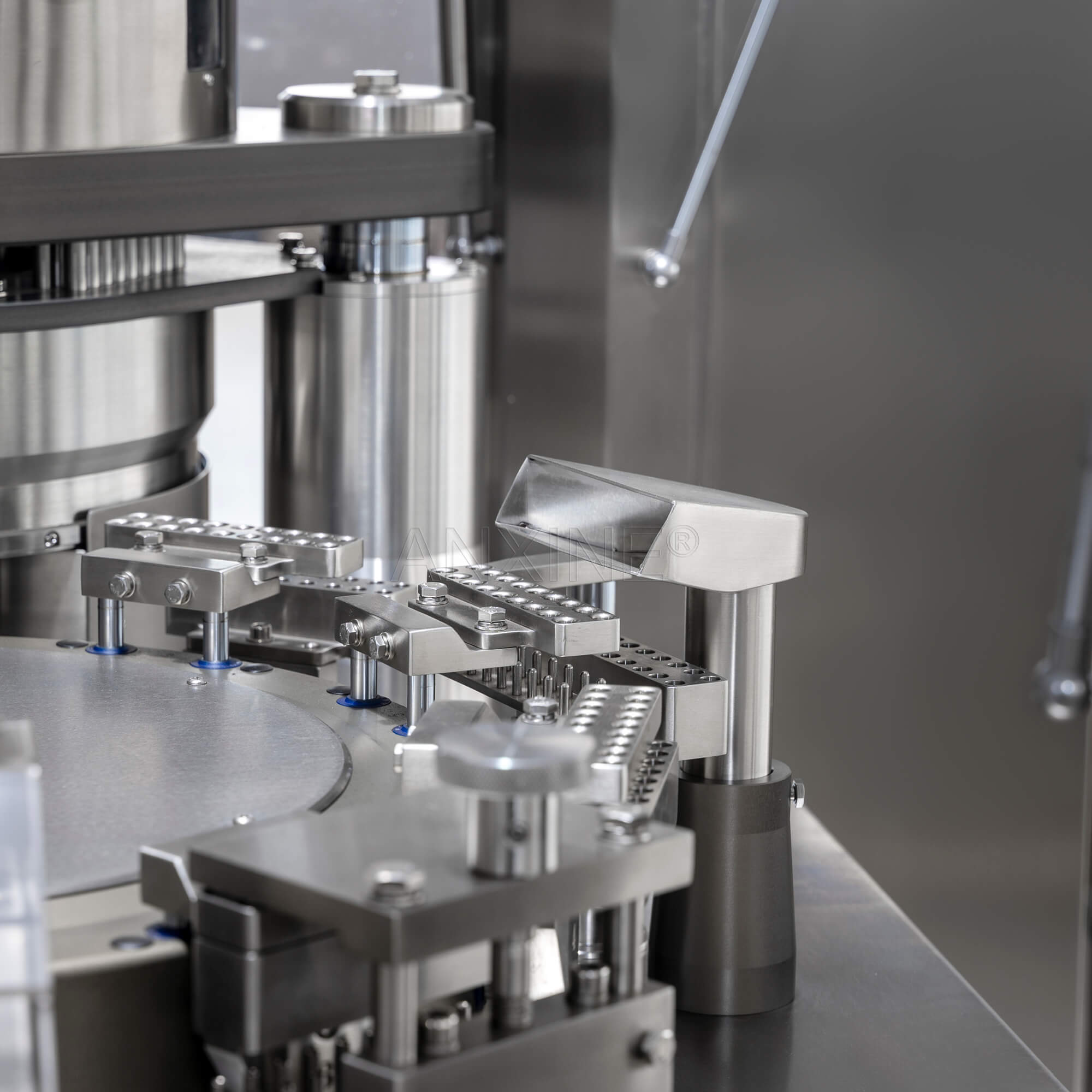

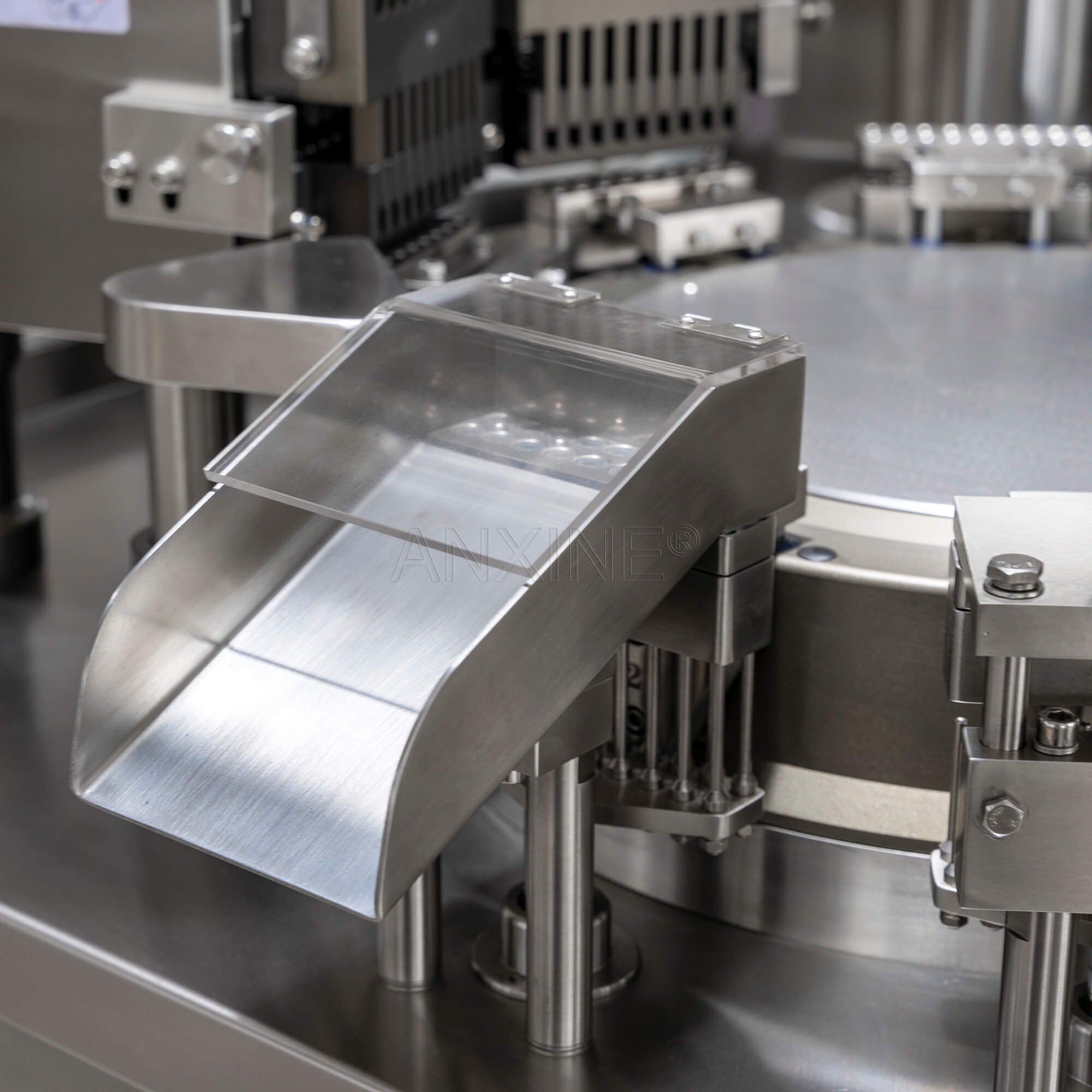

Automatic Capsule Filling Machine NJP-2000C
GMP-certified NJP-2000C Fully Automatic Capsule Filling Machine
As a high-output automatic capsule filler, the NJP-2000C fills up to 150,000 capsules per hour. It works with capsule sizes 00# to 4#. This machine fills powders, granules, and pellets into different types of capsules. It supports stable operation, automatic capsule rejection, and easy cleaning without removing molds. This automatic filling model is for large-scale pharmaceutical production, offering quality and efficiency for capsule packaging.
Description
The NJP-2000C is preferred by large factories in the medical and supplement industries. It supports automating the entire process from powder filling to capsule locking. It requires little human effort and improves production efficiency greatly.
Highlighted Features
- Fast output speed. The machine fills up to 120,000–150,000 capsules per hour, suitable for high-volume production.
- Supports various materials. It can fill powders, granules, and pellets, offering flexibility for different formulas and doses.
- Wide capsule size range. It handles capsule sizes from 00# to 4#, including standard gelatin capsules.
- Easy mold alignment and cleaning. The enclosed station structure allows cleaning without removing the molds.
- Accurate powder dosing. A 5-stage tamping system and adjustable powder level sensor help deliver consistent fill weights.
- Vacuum capsule separation. The cap and body of capsules are separated gently with a liquid-ring vacuum system.
Specifications
| Model | NJP-2000C |
|---|---|
| Maximum Output | 120,000 capsules per hour |
| Capsule size range | 00#, 0#, 1#, 2#, 3#, 4# |
| Electrical Supply | AC3 ~ 380/220 V, 50/60 Hz (customizable) |
| Total Power | 9 kW |
| Vacuum | 0.04 ~ 0.08 MPa |
| Compressed Air | NLT 5 Kpa |
| Ambient Temperature | 21 ± 3℃ |
| Relative Humidity | 45-50% |
| Overall Dimensions | Length: 1,180mm Width: 1,340mm Height: 2,100mm Weight: 1,200kg |
