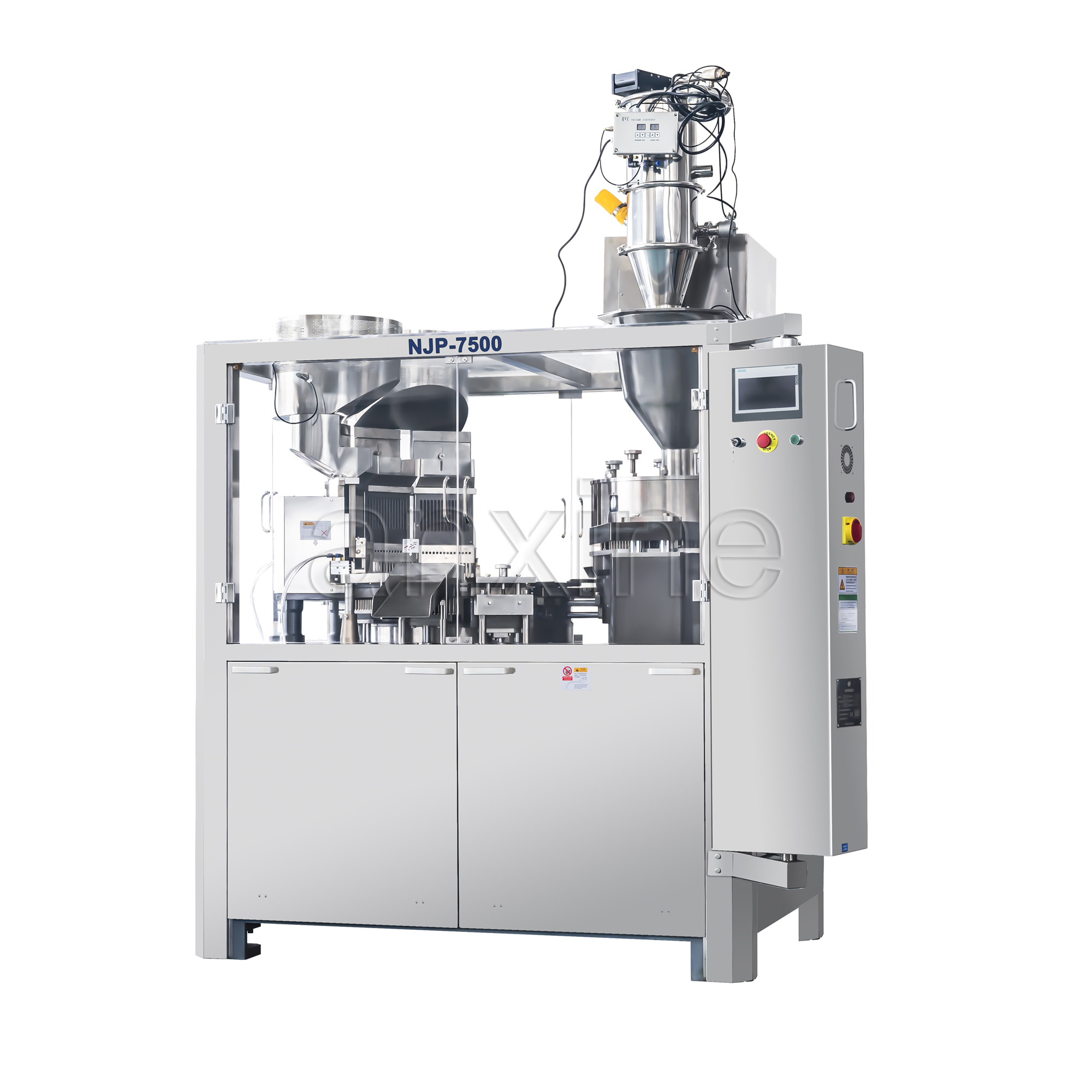

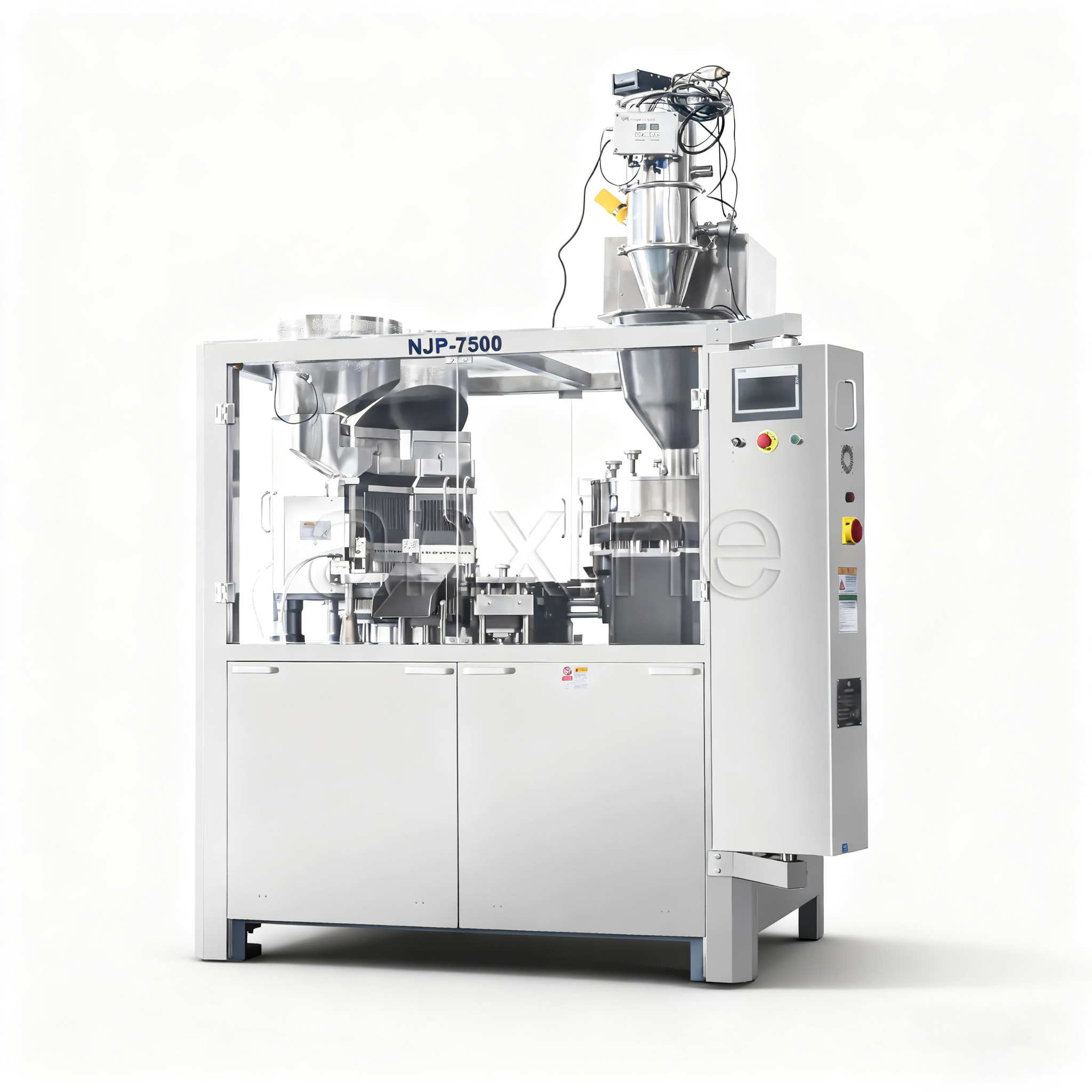

Automatic Capsule Filling Machine NJP-7500C
Automatic Capsule Filling Machine NJP-7500C
The NJP-7500C fully automatic capsule filling machine launched by Anxine Machinery is designed for efficient pharmaceutical production. It can accurately fill capsules of various specifications (00# to 4#) at a speed of 180,000 capsules per hour, ensuring the perfect combination of high speed and high precision. The machine adopts a twenty-station turntable structure and an advanced automatic control system.
Through precise mechanical transmission and electronic control systems, it realizes automatic separation, filling, compaction and discharge of capsules, ensuring that the whole process is efficient and error-free. Equipped with a user-friendly touch screen interface, it simplifies operation and supports real-time monitoring. All operations comply with GMP standards to ensure the compliance and safety of drug production.
In addition, the NJP-7500C has a flexible parts replacement system that can quickly adapt to different types of capsule production needs and minimize downtime. It is an ideal choice for modern pharmaceutical companies to improve production efficiency.
The NJP-7500C is a high-speed capsule filling machine capable of processing up to 7,500 capsules per minute. It features low-maintenance operation, minimal downtime, and reliable production.
Highlighted Features
- High Efficiency: Processes up to 450,000 capsules per hour.
- Precision Dosing: Utilizes 5-stage tamping technology for enhanced accuracy, with pellet filling capability.
- Advanced Design: Capsules are automatically transferred, oriented, separated, filled, and rejoined.
- Compliance: Fully meets CGMP and FDA specifications.
- cGMP Focus: Emphasizes powder dust handling with an enclosed main turntable to prevent dust contamination in mechanical parts.
- Automation: Automatic control of capsule and powder supply.
- User-Friendly Controls: PLC control with a touch screen HMI, featuring production counters, various operation modes, and alarms.
- Precision Engineering: Features precision capsule segments and dosing disk for minimal adjustments during part changeover.
- Robust Construction: Built with SS 304 stainless steel frames and transparent safety interlock guards.
| Model | NJP-7500C |
|---|---|
| Maximum Output | 450,000 capsules per hour |
| Electrical Supply | 380V/50Hz, three-phase five-wire |
| Total Power | 13.5 kW |
| Vacuum | 0.04 ~ 0.08 MPa |
| Noise | <75dB |
| Ambient Temperature | 21 ± 3℃ |
| Relative Humidity | 45-50% |
| Overall Dimensions | Length: 1,700mm Width: 1,220mm Height: 2,150mm Weight: 3,800kg |
