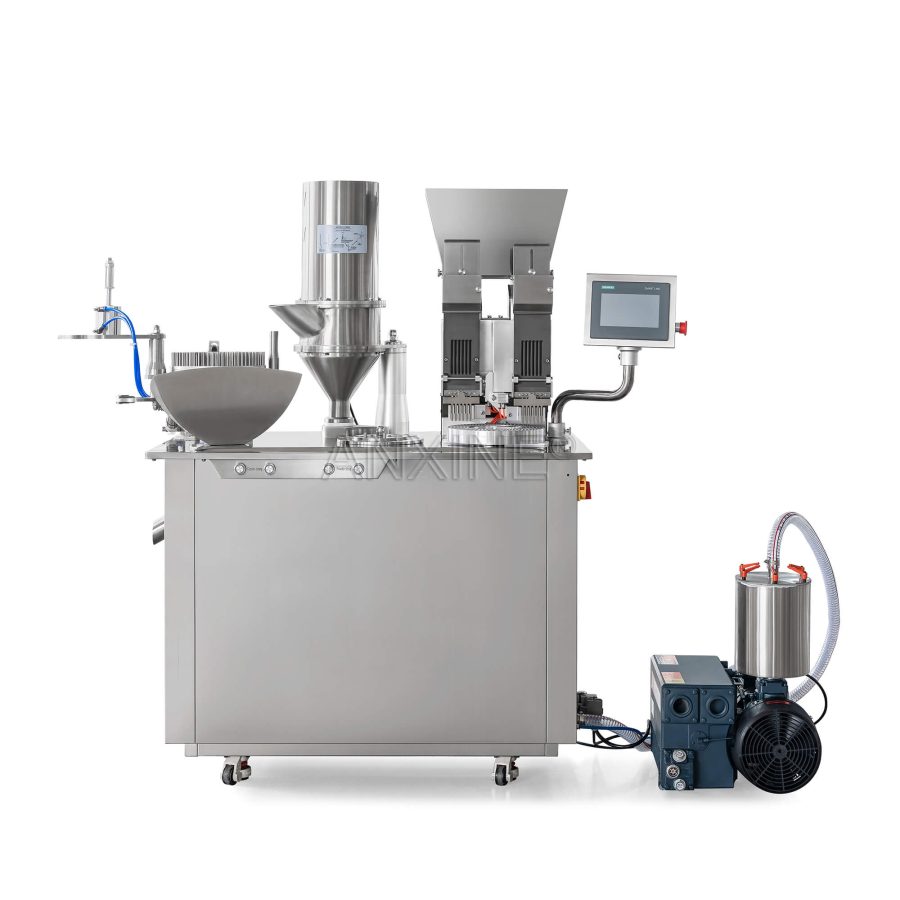

Semi-Automatic Capsule Filling Machine JTJ-V Pro+

Semi-automatic capsule filling made easy with JTJ-V Pro+. Dual capsule loader and smart turntable design increase output and precision.

JTJ-V Pro+ Semi-Automatic Capsule Filling Equipment for Powder & Granules

The JTJ-V Pro+ is designed for small to medium batch production. It fills powder or tiny granules into different types of capsules. The equipment handles capsule sizes from 00# to 4# and fills up to 42,000 capsules per hour. It features PLC control, variable speed motors, and an easy-to-clean design. This capsule filler suits pharmaceutical, health supplement, and lab-scale production.

Request for Quote

Description

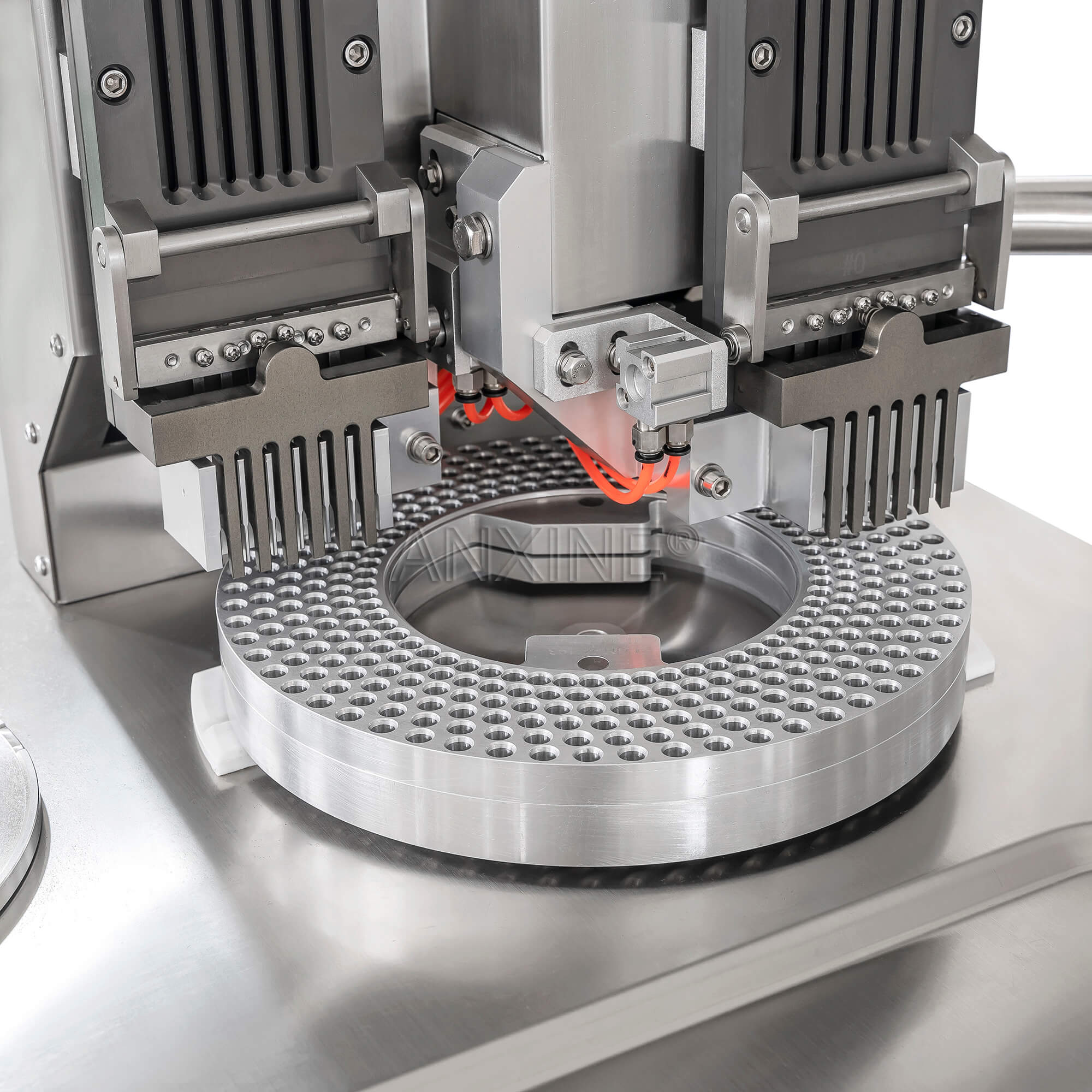

The JTJ-V Pro+ features a dual-loading system, allowing users to install two sets of capsule loading components. This setup enables quick changeover between capsule sizes with minimal downtime. Moreover, the machine is equipped with an automatic turntable. The turntable rotates precisely during capsule dispensing, filling, and locking processes. This ensures accurate positioning and smooth workflow throughout the operation. It also has many other advantages.

Highlighted Features

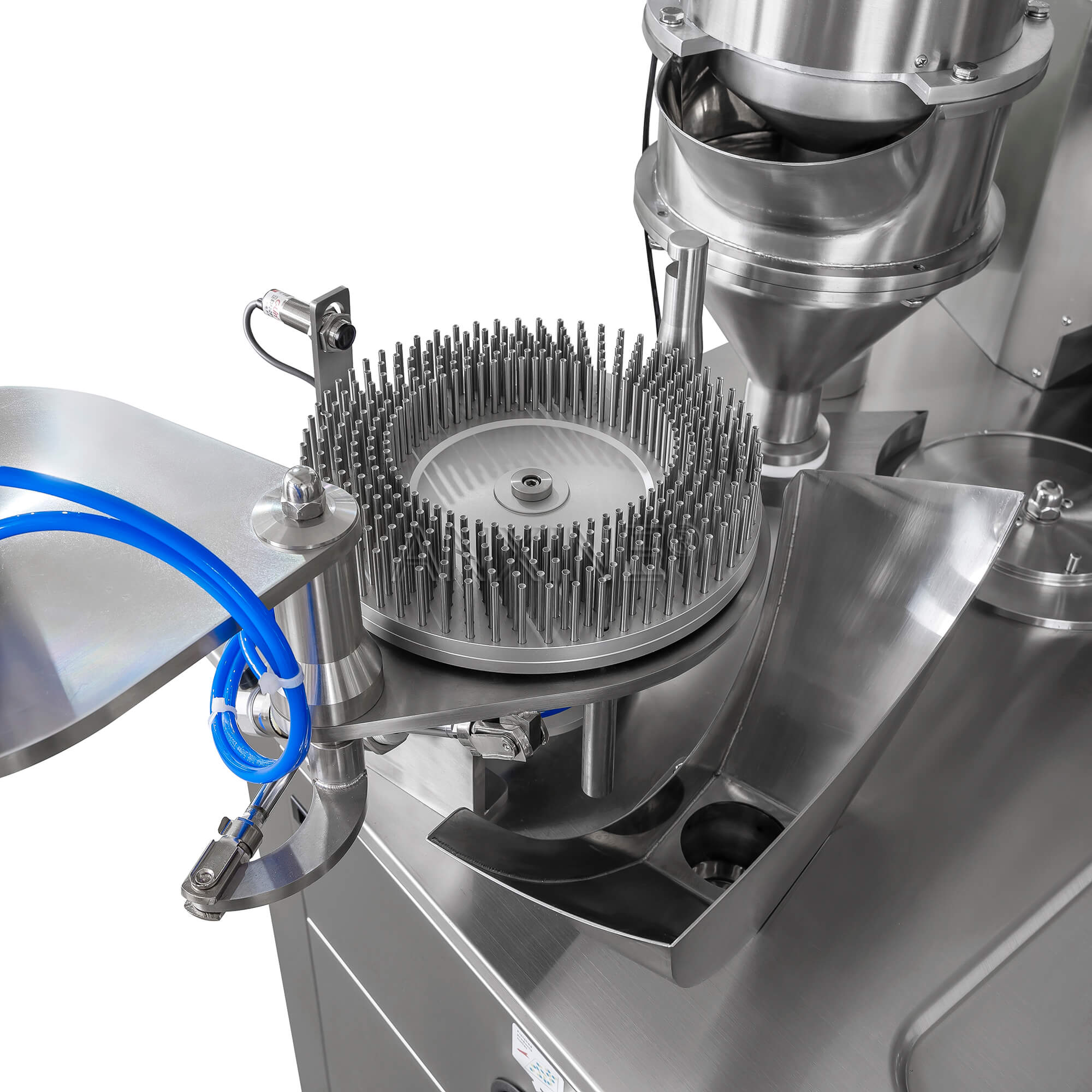

  • Flexible capsule handling system. Three-stage capsule processing is involved, including loading, orienting, and separation. The machine uses a vacuum suction to ensure accurate capsule body-cap separation. In addition, the automatic stop function is activated once the mold plate is full.
  • Precise filling mechanism. This semi-automatic capsule filler is equipped with a crew-driven hopper for precise powder dosing. The filling speed could be adjusted for the turntable and hopper motor.

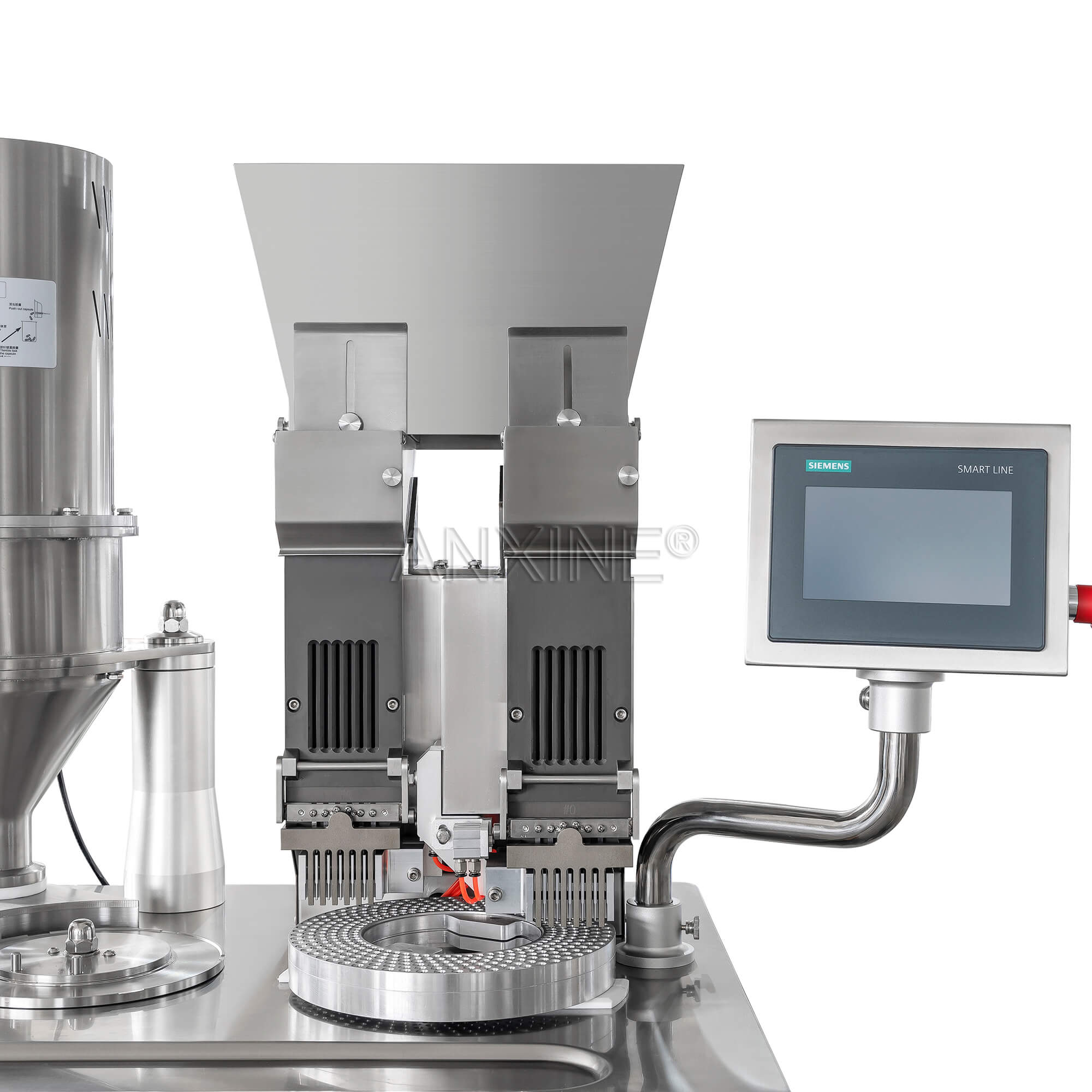

  • Smart control system. The machine is controlled via Siemens PLC and touchscreen. It also features a servo motor and three frequency converters for operation.
  • Flexible power configuration. It is available in single or three-phase with multiple voltage options, equipped with ground protection and safe circuit control

Specifications

Model JTJ-V Pro+
Control Panel Siemens
Capsule Size 000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#, 4#
Capacity 30,000 to 50,000 per hour
Electrical Supply AC-3P 110V/220V 50Hz/60Hz
Vacuum Pump 40m3/h
Compressed Air 0.03m³/min, 0.7mPa
Overall Dimensions Length: 1,140mm
Width: 700mm
Height: 1,630mm
Weight: 380kg
Package Size Length: 1,650mm
Width: 800mm
Height: 1,750mm
Weight: 500kg
