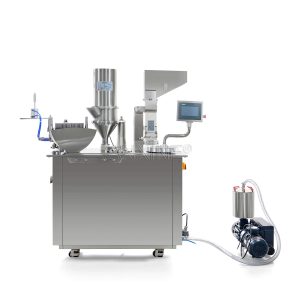

Semi-Automatic Capsule Filling Machine JTJ-V
Semi-Automatic Capsule Filling Machine JTJ-V
The JTJ-V Horizontal Type capsule filling machine is our latest design, offering ultra-quiet operation by eliminating the need for noisy portable compressors. This advancement leads to faster production, precise filling, and enhanced safety while complying with cGMP standards. It features simple maintenance, low noise levels, easy cleaning, and requires less labor.
The machine’s electric and pneumatic control systems, paired with an automatic counting device, enable seamless execution from capsule positioning to locking filled capsules. It can handle capsule sizes from 00# to 5#, including safety capsules, with adjustable filling amounts controlled by the dosing disk rotations. The inclusion of an auger feeder ensures consistent powder filling.
Discover the cutting-edge JTJ-V Horizontal Type, our latest innovation in capsule filling technology. This machine features ultra-quiet operation, eliminating the need for noisy portable air compressors common in the industry. It’s engineered for faster production, ensures compliance with cGMP requirements, and delivers precise filling with enhanced safety. Enjoy simpler maintenance, super low noise levels, easy cleaning, and reduced labor demands.
Highlighted Features
- PLC Control System: Allows easy input of filling parameters for precision control.
- Filling Auger: Regulates filling speed for efficient handling of pellets and powders.
- Loading System: Automatically positions filling material and empty capsules accurately.
- Caps and Body Tray: Efficiently separates caps from the bodies of capsules.
- Pneumatic System: Utilizes air compression to assist in filling capsules effectively.
- Filling Table: Adjusts speed continuously for more accurate dosing.
- Capsule Closing: U-shaped locking pins ensure secure closure of capsule bottoms.
- Electrical Unit: Supplies sufficient power for seamless operation.
| Model | JTJ-V |
|---|---|
| Control Panel | Siemens |
| Capsule Size | 000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#, 4# |
| Capacity | 10,000 to 15,000 capsules per hour |
| Electrical Supply | Customizable per country specifications |
| Vacuum Pump | 40m3/h |
| Compressed Air | 0.03m³/min, 0.7mPa |
| Overall Dimensions | Length: 1,140mm Width: 700mm Height: 1,630mm Weight: 380kg |
| Package Size | Length: 1,650mm Width: 800mm Height: 1,750mm Weight: 500kg |
