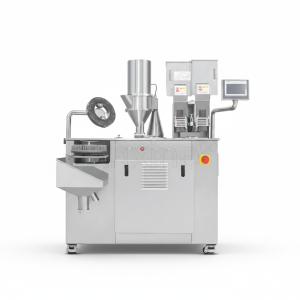

Semi-Automatic Capsule Filling Machine JTJ-V Pro 5
Semi-automatic Capsule Filling Machine Double Head (Drawer Type) JTJ-V Pro 5
The JTJ-V Pro 5 semi-automatic drawer-type capsule filling machine is designed for small to medium batch production, filling powders or fine granules into different types of capsules. It can handle capsule sizes from 00# to 4#, with a filling capacity of up to 42,000 capsules per hour (depending on operator skill and capsule type). It features PLC control, a variable speed motor, and an easy-to-clean design. This capsule filling machine is suitable for pharmaceutical, health supplement, and laboratory-scale production.
Description
The JTJ-V Pro 5 semi-automatic capsule filling machine is a highly efficient and precise capsule filling device designed specifically for filling capsules containing powder and granular materials. It is widely applicable to the small and medium batch production needs of industries such as pharmaceuticals and health products, combining practicality and ease of operation. It is the preferred equipment to replace manual filling and improve production efficiency.
Highlighted Features
- Wide Application Range: Suitable for filling powder and granular materials, compatible with multiple capsule sizes including 00, 0, 1, 2, 3 and 4.
- High Production Efficiency: Equipped with a frequency conversion speed regulation mechanism and matched with a double capsule feeding mechanism, which enables faster capsule feeding and higher output. The maximum output can reach 42,000 capsules per hour (depending on operator proficiency and capsule model).
- Mature and Stable Structure: Integrates capsule feeding, turning, separating, material filling, locking, pneumatic and electrical control systems, combined with vacuum pump and air pump accessories, ensuring stable and reliable operation.
- Reliable Safety Design: Adopts a two-hand confirmation safety device to ensure safer operation and reduce the risk of misoperation.
- Convenient and Comfortable to Use: Drawer-type structure with ergonomic workflow, making operation more smooth and labor-saving.
- Easy to Clean and Maintain: Full stainless steel operation table with a tabletop cleaning port, complying with hygiene standards and facilitating daily cleaning.
Specifications
| Model | JTJ-V Pro 5 |
|---|---|
| Output | Up to 42,000 capsules per hour |
| Capsule Size | 00#, 0#, 1#, 2#, 3#, 4# |
| Filling Materials | Powder and tiny granules without viscosity and water |
| Total Power | 3.2 kW |
| Compressed Air | 0.03m³/min, 0.7MPa |
| Vacuum Pump | 40 m³/h |
| Machine Dimension(L*W*H) | 1130 mm*700 mm*1600 mm |
| Packing Size | 1650 mm*720 mm*1800 mm |
Documents
| Name | Size | Download |
|---|---|---|
| Semi-Automatic-Capsule-Filling-Machine-JTJ-V-Pro-5.pdf | 395 KB | Download |
