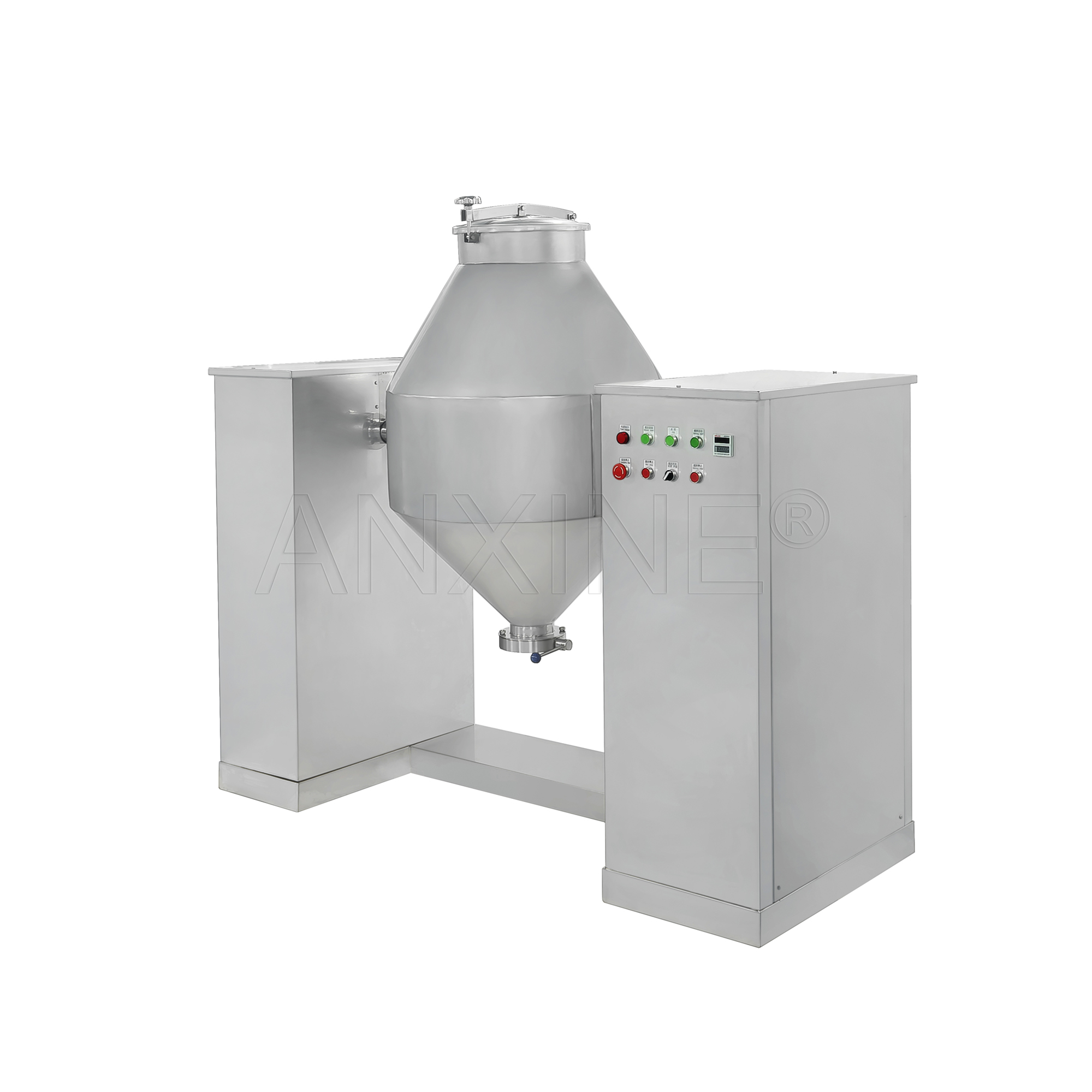

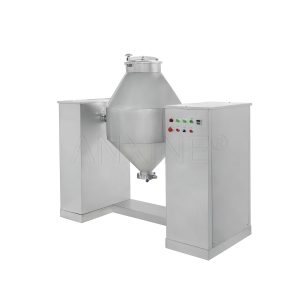

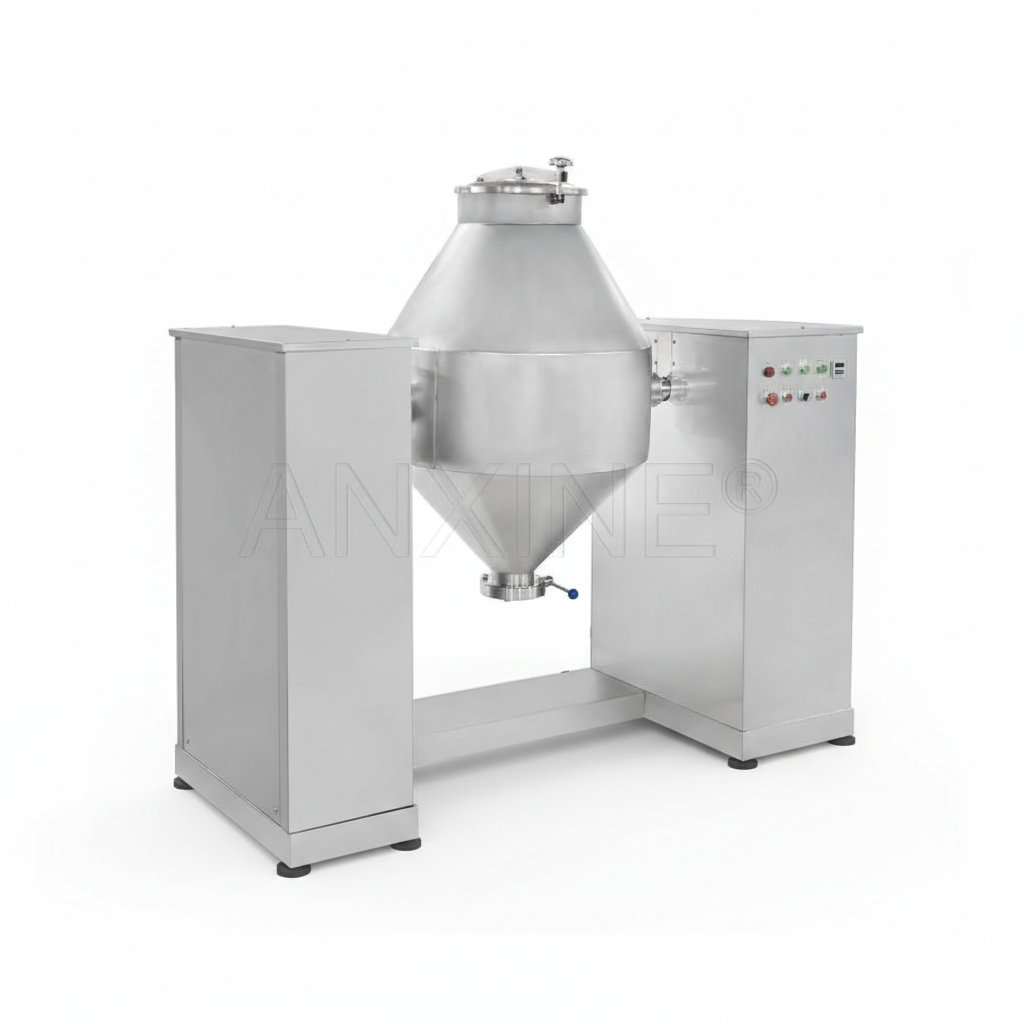

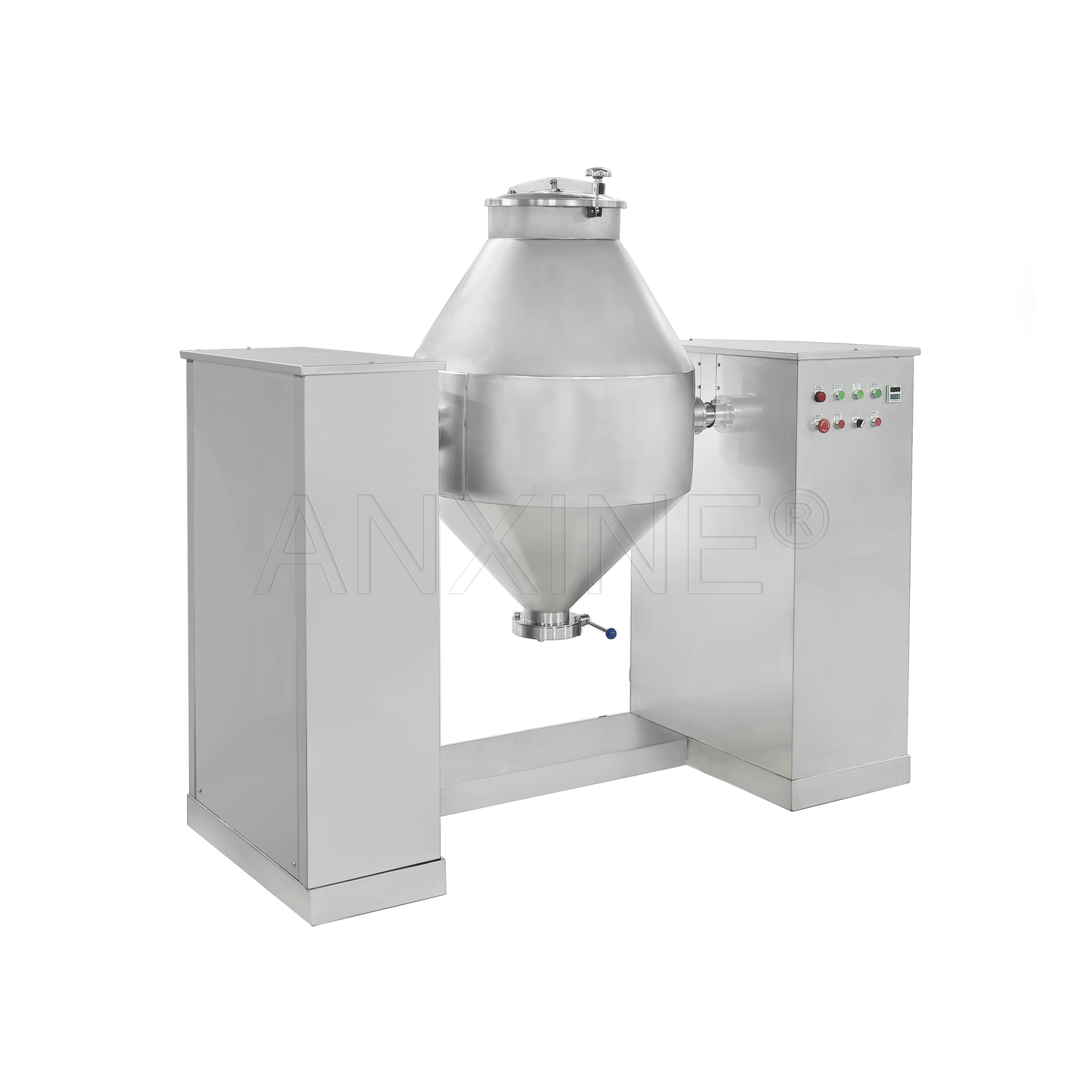

High Efficiency Double Cone Rotary Powder Mixer CW Series
High Efficiency Double Cone Rotary Powder Mixer CW 300/500/1000/2000
CW double cone mixer is a kind of mixing equipment specially used for dry powder or small granular materials, which is widely used in pharmaceutical, chemical, food and agricultural industries. This series of mixers are famous for their unique structural design, efficient mixing performance and highly uniform mixing effect, and the maximum loading factor can reach 0.7.

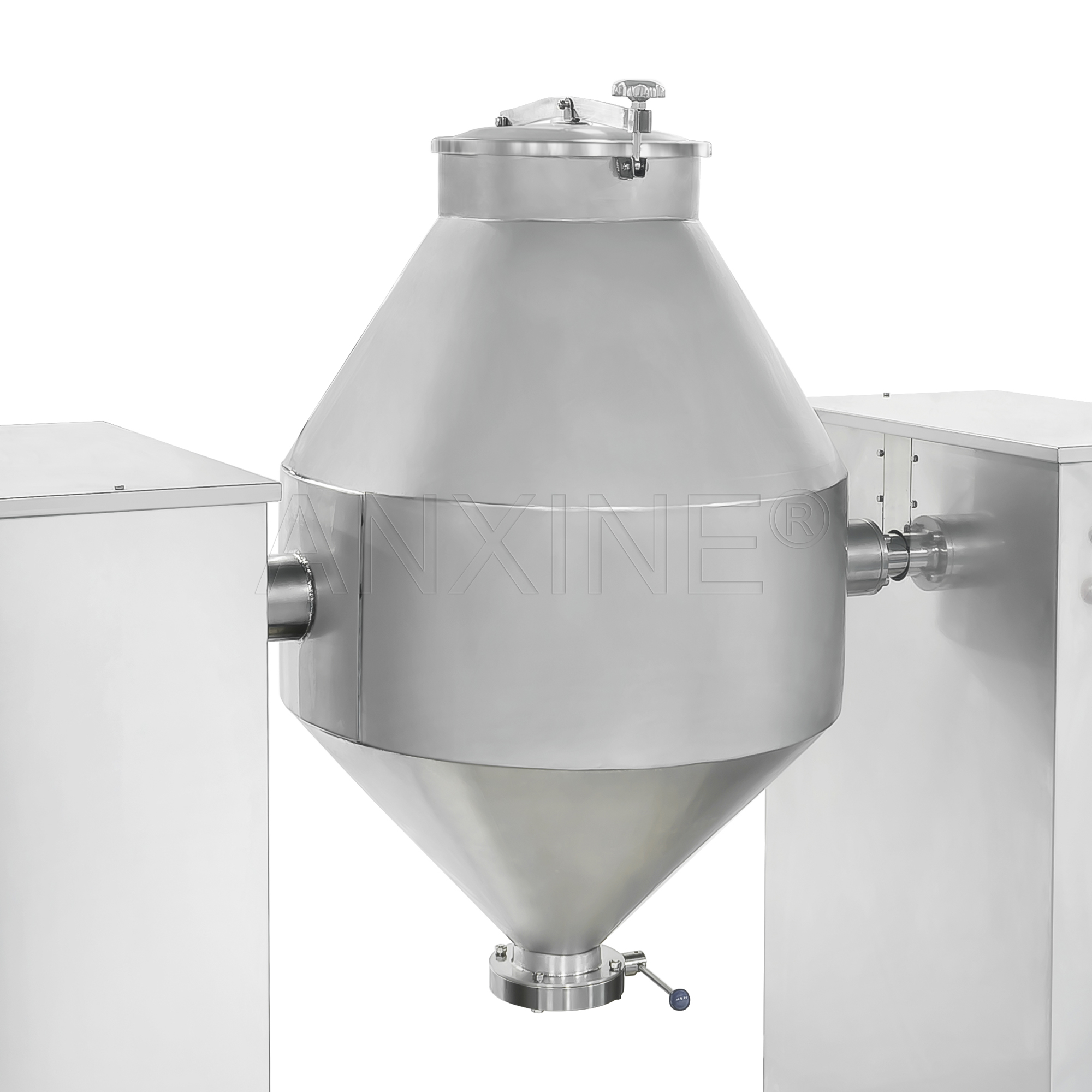

The working principle of CW double cone mixer is to drive the double cone mixing container to move in multiple directions through the inclined rotating shaft. The material changes position frequently and quickly during the diffusion, flow and tangential movement in the container, thus achieving the ideal mixing effect. This multi-dimensional mixing method can effectively avoid the problems of specific gravity stratification and accumulation caused by centrifugal force in general mixers.
The Double Cone Mixer is an efficient solution for mixing dry powder or granular materials, ideal for industries such as pharmaceuticals, chemicals, food, and agriculture. Its unique design ensures high mixing uniformity and effectiveness.
Highlighted Features
- Efficient and uniform mixing effect: The unique double-conical structure allows the material to be fully mixed in multiple directions, avoiding the material stratification phenomenon common in traditional mixers, and ensuring the high uniformity and consistency of the mixture.
- Compact design, space saving: The compact structure is suitable for working environments with limited space and helps to optimize the production layout.

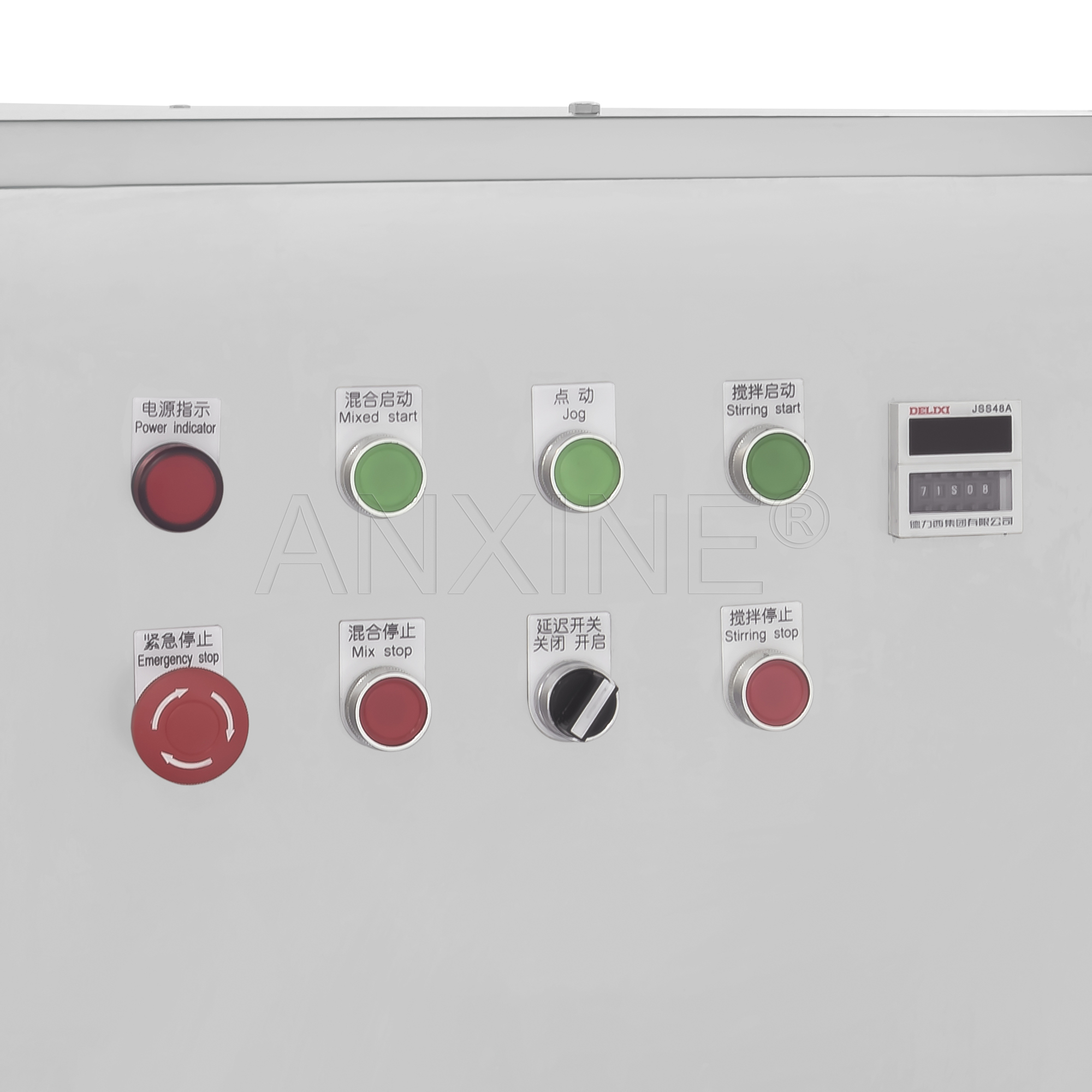

- Intelligent control system, simplified operation: Equipped with an intelligent control panel, users can preset parameters such as speed, mixing time and tilt angle to achieve automatic operation.
- Safe and reliable, easy maintenance: With built-in overload protection mechanism and other safety features, daily maintenance only requires regular inspection and cleaning to ensure long-term stable operation.
- Environmental protection and energy saving: The low-energy motor configuration and efficient energy conversion efficiency reduce long-term operating costs while reducing the impact on the environment.
- Personalized customization service: Anxine provides services to customize mixers according to different customer needs, such as different capacity options, application of special materials, additional functions (such as automatic feeding/discharging systems), etc.
| Model | SH-100 | SH-200 | SH-400 | SH-600 |
|---|---|---|---|---|
| Vat Volume | 100 L | 200 L | 400 L | 600 L |
| Max. Filling Volume | 80 L | 150 L | 300 L | 450 L |
| Speed of Main Shaft | 15 r/min | 12 r/min | 10 r/min | 10 r/min |
| Power | 2.2 KW | 3 KW | 4 KW | 5.5 KW |
| Weight | 500 kg | 750 kg | 1,200 kg | 1,500 kg |
Also Offer
Explore cutting-edge pharmaceutical and packaging machinery with Anxine. Our offerings include state-of-the-art equipment for capsule filling and blister packing, supported by expert custom solutions and a robust global service network.
