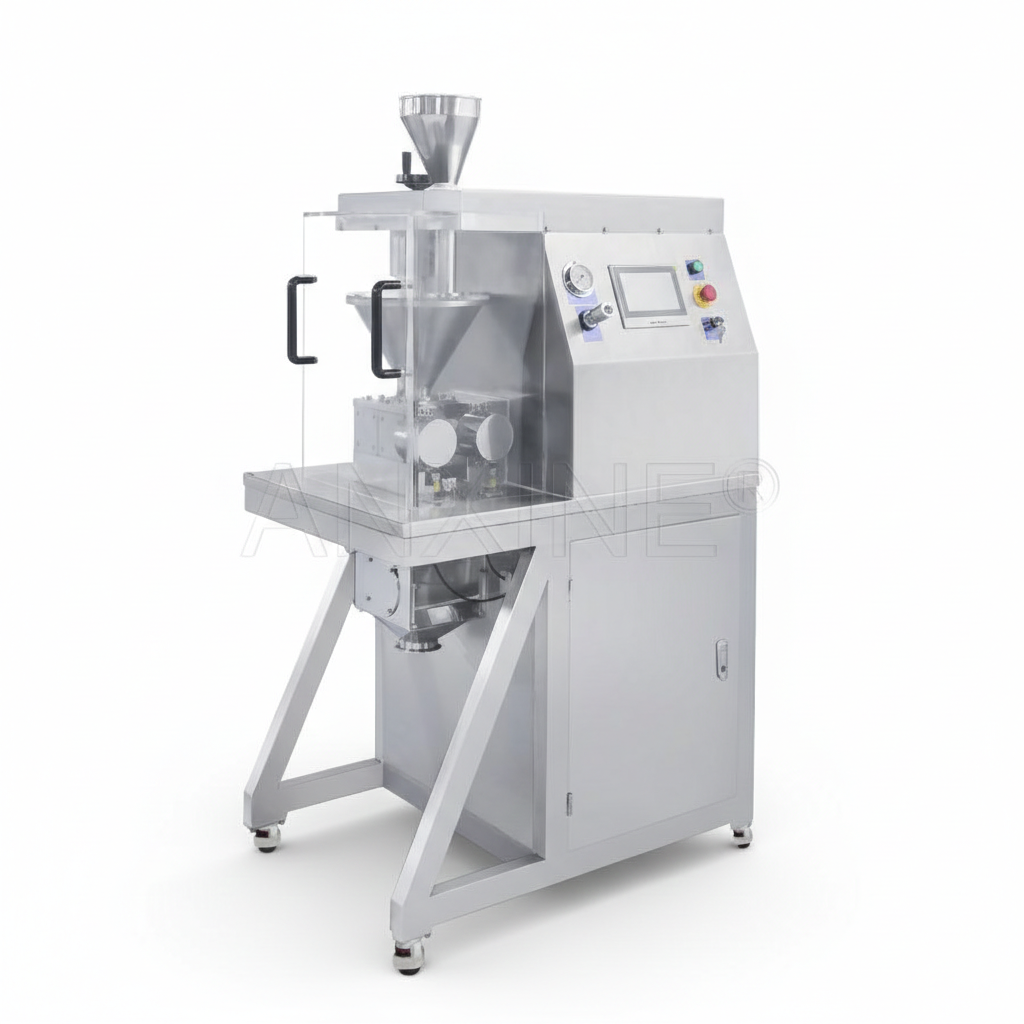

Roller Compactor Dry Granulator CZK
Roller Compactor Dry Granulator CZK for Efficient Granulation

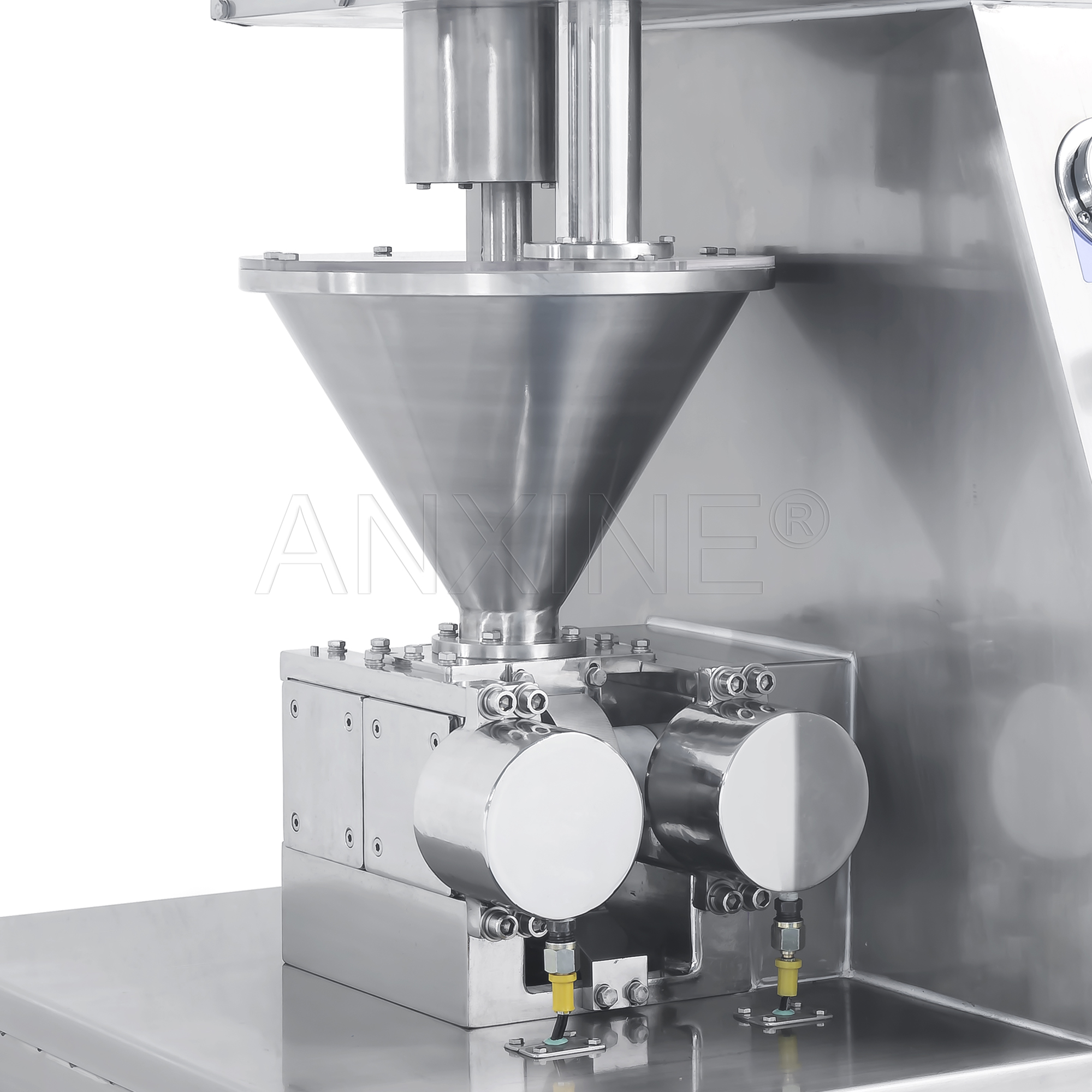

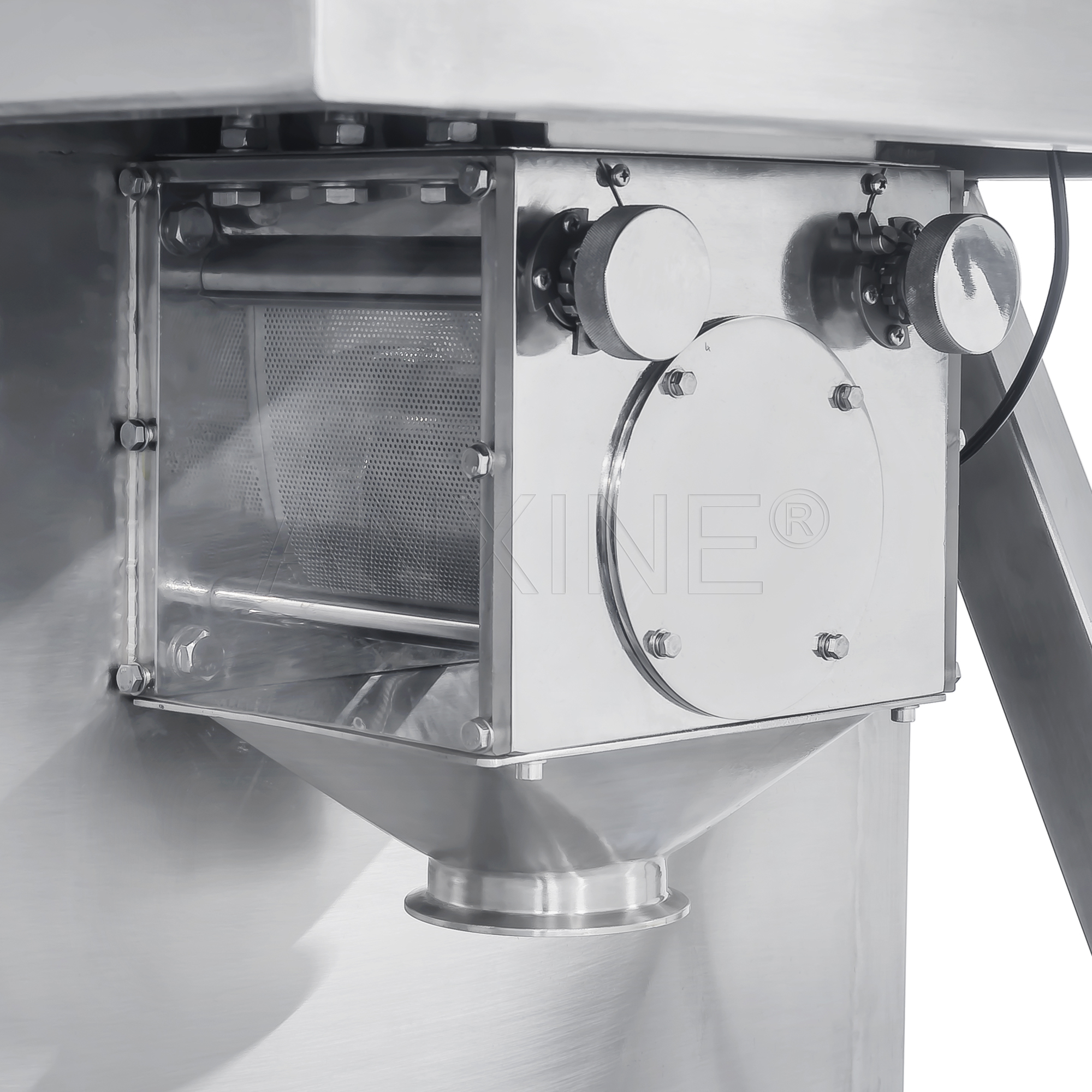

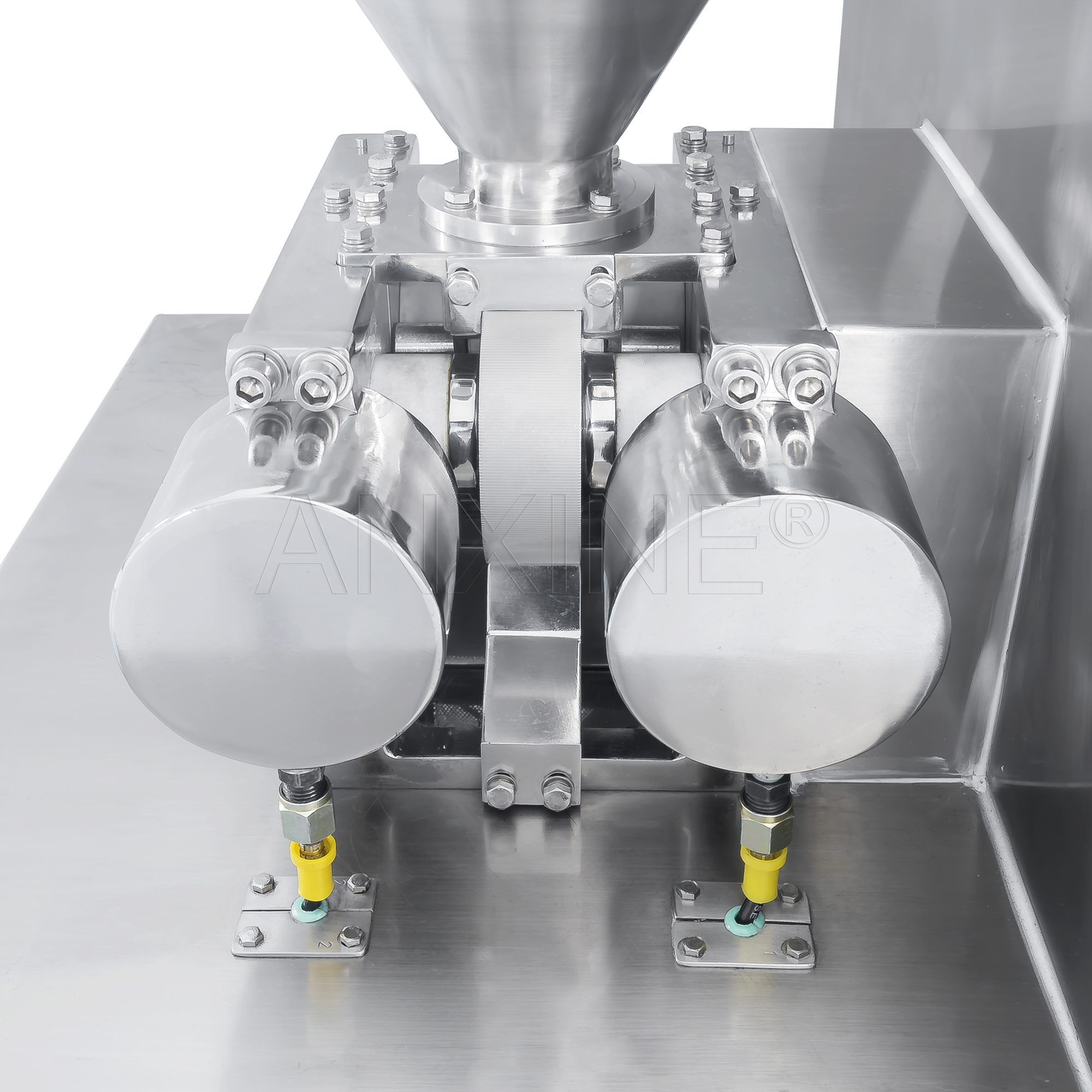

CZK series high-efficiency dry granulator is an advanced equipment designed for pharmaceutical, food and chemical industries. It adopts advanced tableting technology and unique structure to ensure high-quality granule output and efficient production, while complying with GMP standards. The machine compresses dry materials into flakes through two relatively rotating rollers, and breaks them into particles of the required size through a crushing device.
The whole process does not require the addition of solvents, which is environmentally friendly and avoids changes in material properties that may be caused by wet granulation. Equipped with an automatic control system, it can accurately adjust the roller gap and pressure to adapt to different material characteristics and particle specifications. It is also equipped with an efficient dust removal system to reduce dust pollution and improve the quality of the working environment.
The Roller Compactor Dry Granulator is a vital technology in the pharmaceutical industry, offering an efficient solution for granule production through dry granulation. This method supports lean manufacturing by reducing R&D and manufacturing costs, making it ideal for moisture and heat-sensitive products.
Highlighted Features
- High-quality granules: uniform particle size, reduced fine powder ratio.
- Easy operation: user-friendly interface simplifies the setup process and facilitates operation.
- Safe and reliable: multiple protection mechanisms ensure the safety of the equipment during operation.
- Easy maintenance: easy-to-disassemble design facilitates regular maintenance and cleaning.
- GMP-compliant: meets the requirements of pharmaceutical production quality management specifications.
- Environmentally friendly granulation: no solvent is required, reducing environmental pollution.
- Wide applicability: suitable for granulation needs of a variety of dry materials.
| Model | CZK-10D | CZK-100D |
|---|---|---|
| Production Capacity | 1 -10 kg/h | 50-100 kg/h |
| Granularity | 0.2-2 mm | 0.2-2 mm |
| Roller Size | φ100*35 mm | φ180*60 mm |
| Maximal Pressure Force | 120 Bar | 120 Bar |
| Screw Feeder Rotating Speed | 10-60 Rpm | 20-120 Rpm |
| PoMaximal Granulating Rotating Speedwer | 200 Rpm | 200 Rpm |
| Maximal Roller Speed | 10 Rpm | 16 Rpm |
| Power | 3 kw | 8 kw |
| Weight | 350 kg | 1,500 kg |
| Dimensions | 760x800x1,650 mm | 1,500×1,100×1,980 mm |
