Looking to produce vitamin capsules? You’re in the right place! With demand for easy-to-take vitamins growing fast, many wonder exactly how they’re made.
This guide will answer your questions, covering everything from ingredients and methods to capsule types and their benefits.
What are Vitamin Capsules?
A healthy life requires vitamins, minerals, and proteins. If we don’t get enough of these building blocks, our bodies can’t function properly. Vitamin capsules are made from nutrients found in food, put into a small shell. They help make up for missing essential nutrients. Some common examples include vitamin E, vitamin C, and vitamin D capsules.
These capsules do more than just fill a nutritional gap. They also play a significant role in improving health and replenishing energy lost due to illness or poor diet. They’re also very easy to take. You can take them without water, and they won’t taste bitter.
What are the Ingredients of Vitamin Capsules?
Making vitamin capsules requires a few key components. Here’s what they typically contain:

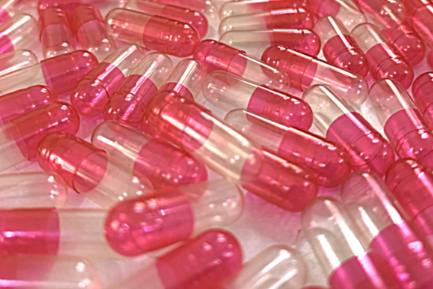

The Capsule Casing
This is the main container for your vitamins. Capsule shells come in two parts – a cap and a body. You’ll find different types on the market, such as gelatin capsules (animal-derived) or HPMC and Pullulan capsules (plant-based).
Capsules also come in a range of sizes to suit various dosages. For human use, common sizes include 000, 00, 0, and smaller options down to size 5.
The Capsule’s Contents
Inside the casing, you’ll find a mix of:
- Active Ingredients – These are the vitamins and nutrients that provide the health benefits. They often come from natural sources, such as elderberry or wheatgrass.
- Excipients (additives) – These are helper ingredients. They make sure the capsule is stable, is absorbed properly, or helps during manufacturing. Think of binders (to hold powders together) or disintegrants (to help it break apart).
This inner mix can take a few forms:
- Dry Solids – Most common forms are powders, granules, or tiny pellets, usually in hard capsules.
- Semi-Solids – Thicker mixtures, like suspensions or pastes.
- Liquids – Free-flowing liquids, often in soft capsules (like fish oil), are not water-based.
How To Make Your Own Vitamin Capsules?
You can make your own vitamin capsules in two main ways: at home for small batches or industrially with high-tech machines. Here’s a quick look at both.
The Home Way
If you’re making your own vitamin capsules at home, it’s quite simple. Here’s how to do it:
1. Prepare Your Mix
Gather and carefully blend your vitamin ingredients, capsule shells, and additives.
2. Open Empty Capsules
Separate empty capsule caps from their bodies.
3. Place Bodies
Load the capsule bodies into your capsule maker’s frame.
4. Fill Capsules
Pour your mix over the frame. Use a spreader card to fill all the capsules. Gently tamp down the powder for a compact fill.
5. Close Capsules
Place the capping plate and press firmly to seal the capsules. They’re now ready!
The Industrial Way
Large-scale capsule production uses automated processes:
1. Mixture Preparation
It is similar to the home method. First, gather and prepare all the ingredients needed to create your vitamin formula.
2. Load Materials
The vitamin mix goes into one machine hopper, empty capsules into another.
3. Align and Separate Capsules
The machine automatically aligns capsules, then separates caps from bodies using vacuum.
4. Fill Mix
It precisely measures and dispenses the mix into each open capsule body.
5. Lock Capsules
The machine securely locks the filled capsule bodies and caps together.
6. Eject Capsules
Finally, a push rod releases the finished, locked capsules. Then, the capsules are collected in a container. This process is ready for the next stage of packaging.
What Equipment Is Used to Manufacture Vitamin Capsules?
To make vitamin capsules, you need the right equipment. This is true whether you’re making them in a large factory or a small home. Here are the key machines involved:

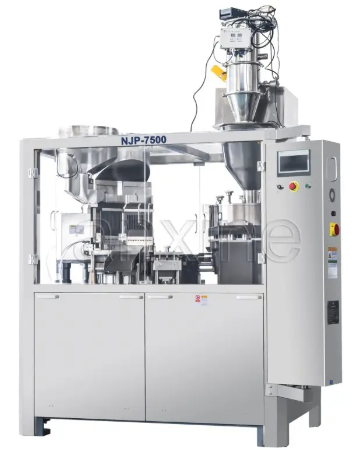

Capsule Filling Machine (for Hard Gel)
A capsule filling machine fills hard gelatin capsules with powders or granules. It automates the entire process, from separating capsule halves to accurate filling, secure locking, and ejecting the finished product.

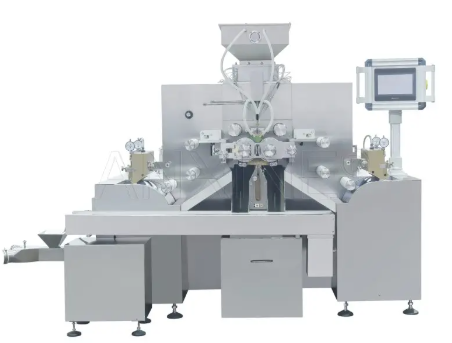

Softgel Maker
This softgel encapsulation machine works with molten gelatin to make vitamin capsules (like Omega-3). It accurately encloses liquid vitamin formulas within soft shells, which are then sealed, often with the help of cooling and forming systems.
Manual Capsule Filler
Ideal for home production or very small batches, this compact tool lets you manually fill capsules. It requires no electricity or complex upkeep.
Ingredient Scale
This tool is necessary to measure ingredients precisely so you can ensure consistent vitamin formulas.

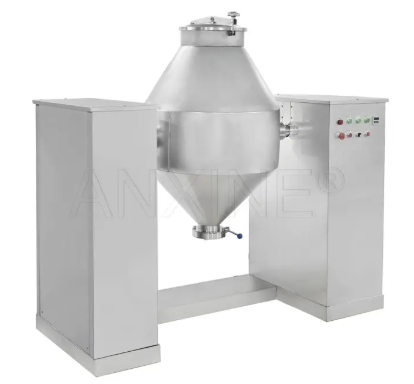

Powder Mixing Machine
A powder mixing equipment is important for mixing powders or granules. It mixes the ingredients well, making a smooth, even mixture for each capsule. Some common ones are cone mixers.

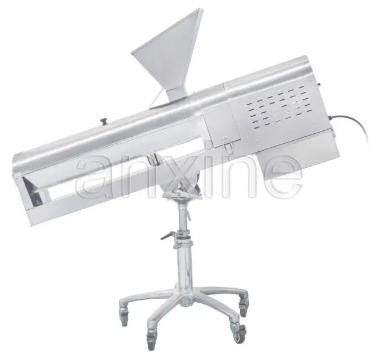

Capsule Polisher
After filling, the capsule polisher cleans and sorts them. It gently removes any powder residue for a professional look and helps identify imperfections, ensuring hygienic and safe handling of the final product.
What Should You Consider When Creating Vitamin Capsules?
When making vitamin capsules, there are a few key things to keep in mind for success. Here are some things to think about:
Production Setting
The place where you make vitamin capsules is very important. It needs to be clean, dry, and cool. Vitamin capsules can be delicate and easily contaminated by the environment. This makes a controlled setting essential for their safe manufacturing.
Product Standards
Follow the rules set by your country and the world (like ISO and FDA). Check the capsules regularly to make sure they break down, are the right weight, and are strong enough.
Ingredient Proportions
It’s crucial to have the right measurements for each part when we’re making them. It’s also important to make sure that all the ingredients can be used together safely and won’t cause problems over time.
The Bottom Line
We hope this guide has answered your questions on how to make vitamin capsules! To make something successfully, you need to understand the essential ingredients, know the right equipment, and follow proper methods.
If you want to know more about vitamin capsules or the machines involved, Anxine invites you to learn more. You can also visit our website to learn more.
