Continuous Induction Sealing Machine LGYF-1500A/2000AX

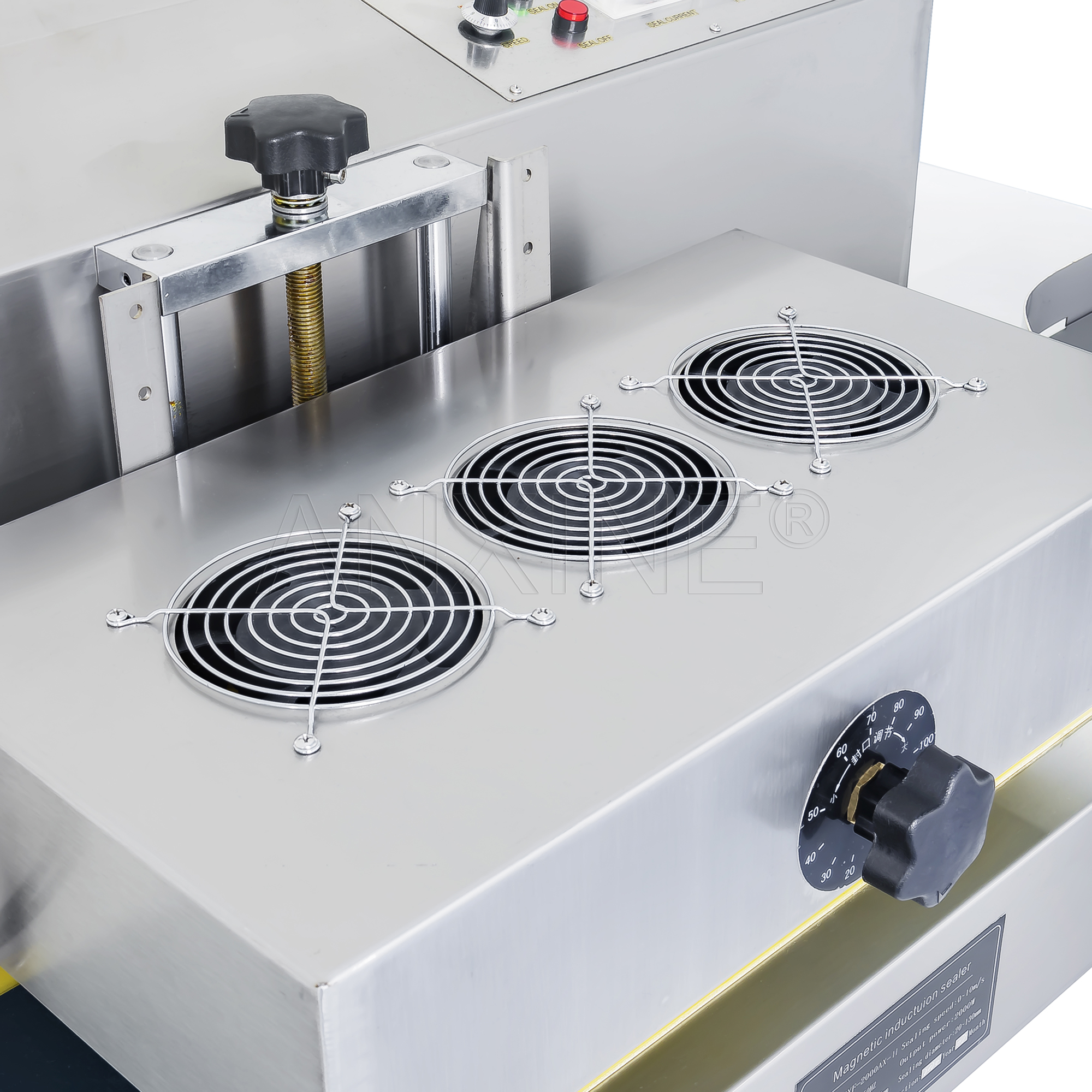

Air-cooled cap sealing machine using electromagnetic induction. Fast sealing speed and adjustable conveyor make it perfect for bottle lines of all sizes.

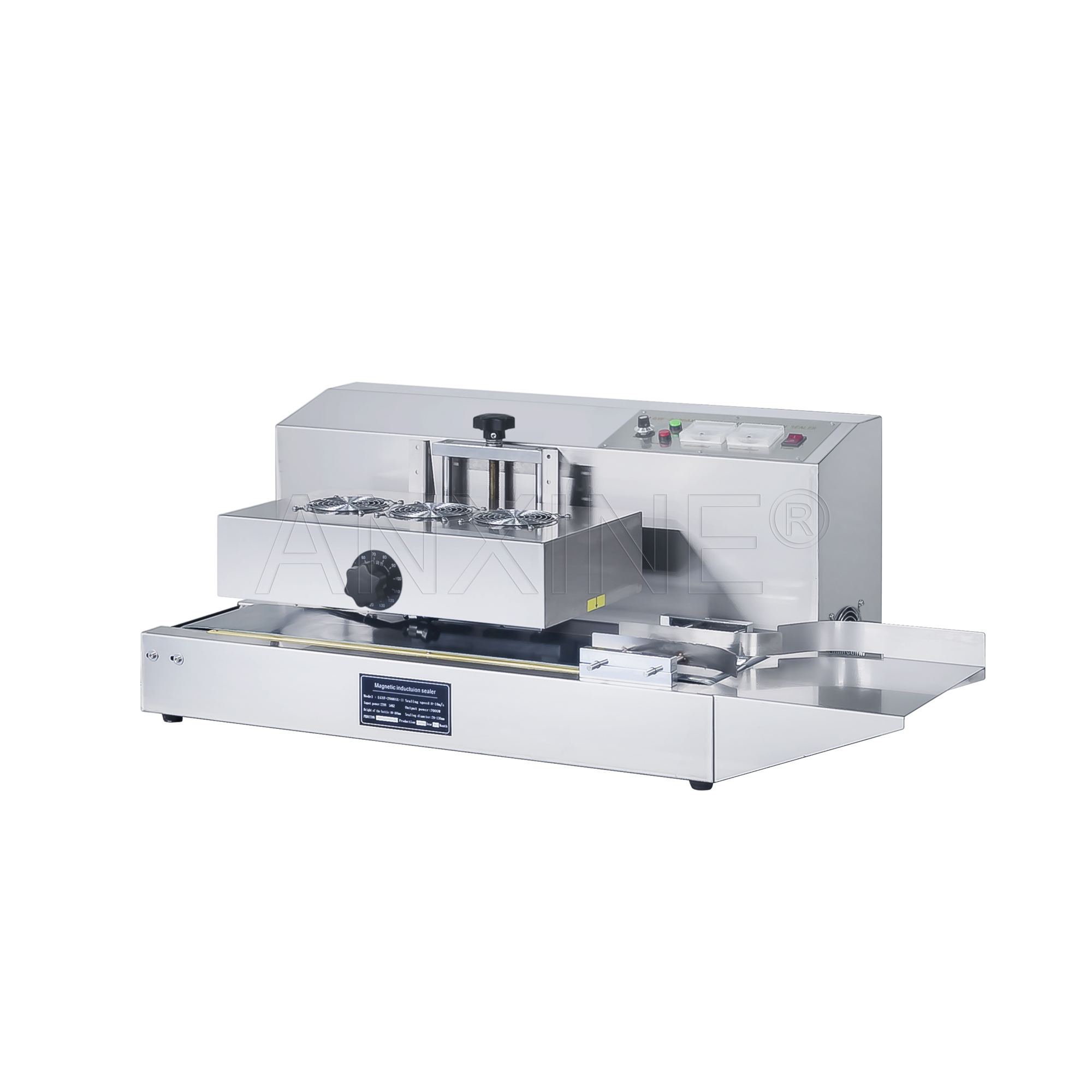

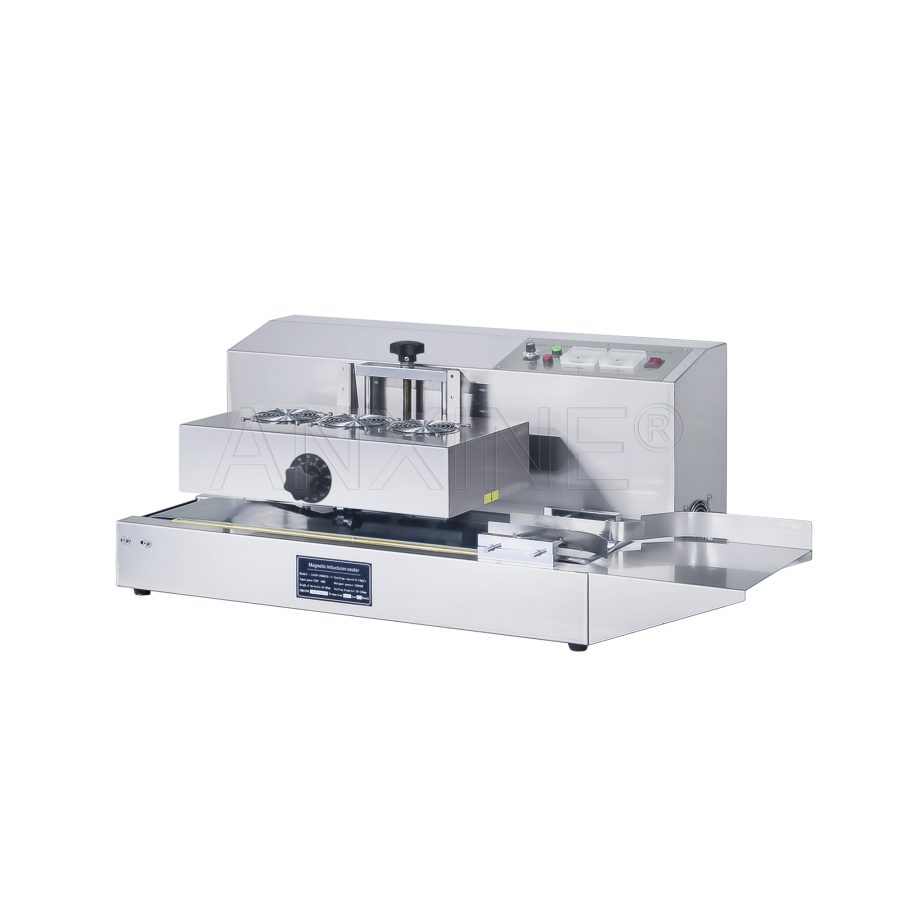

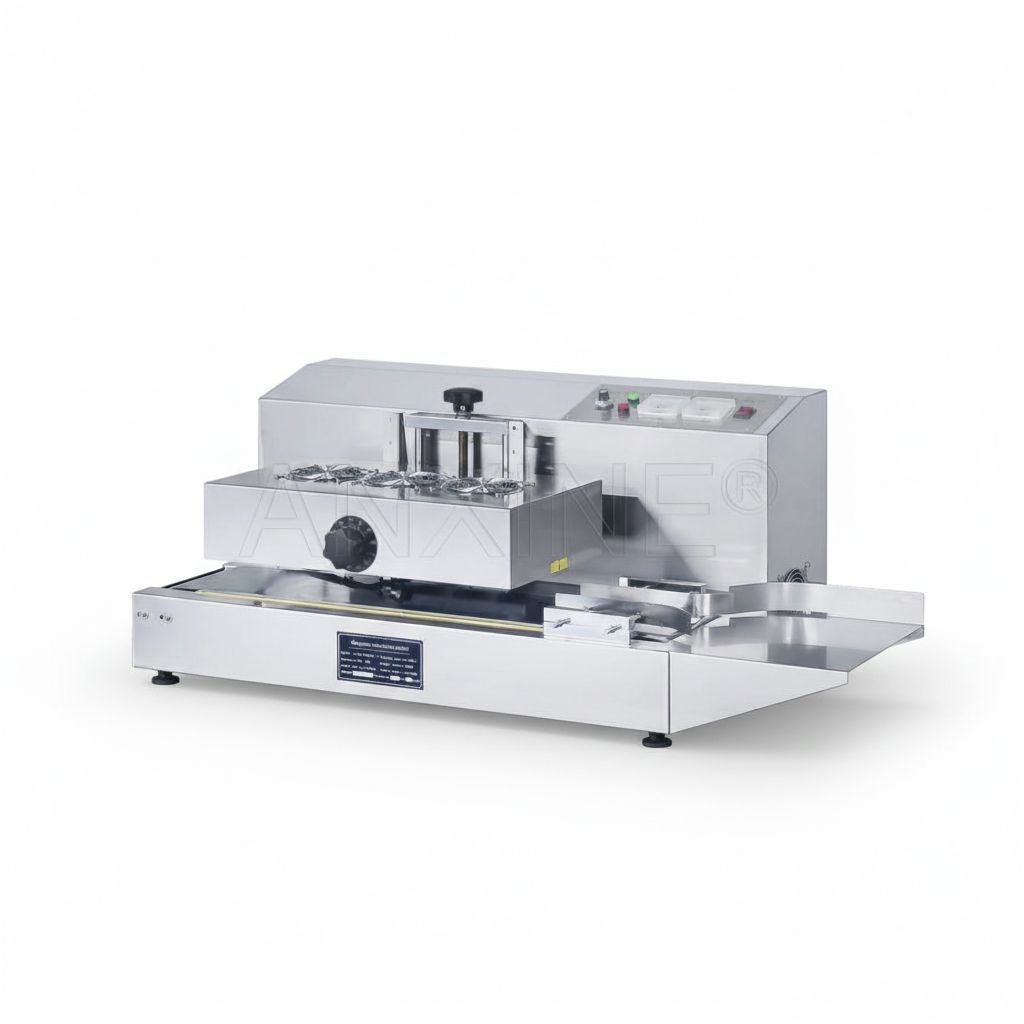

LGYF-1500A/2000AX Automatic Induction Sealing Machine with Integrated Conveyor

This model is a compact benchtop induction sealer built for continuous non-contact sealing. The LGYF-1500A/2000AX uses advanced electromagnetic induction to bond foil seals onto plastic and glass containers. This continuous induction sealing machine is perfect for small-run pharma, food, health products, and cosmetic packaging.

Thanks to upgraded heating modules, smooth conveyor integration, and imported electronic components, this induction cap sealer offers extended sealing range and more stable performance across diverse production environments. What’s even better? The LGYF-1500A/2000AX won’t break your budget!

Request for Quote

Description

Highlighted Features

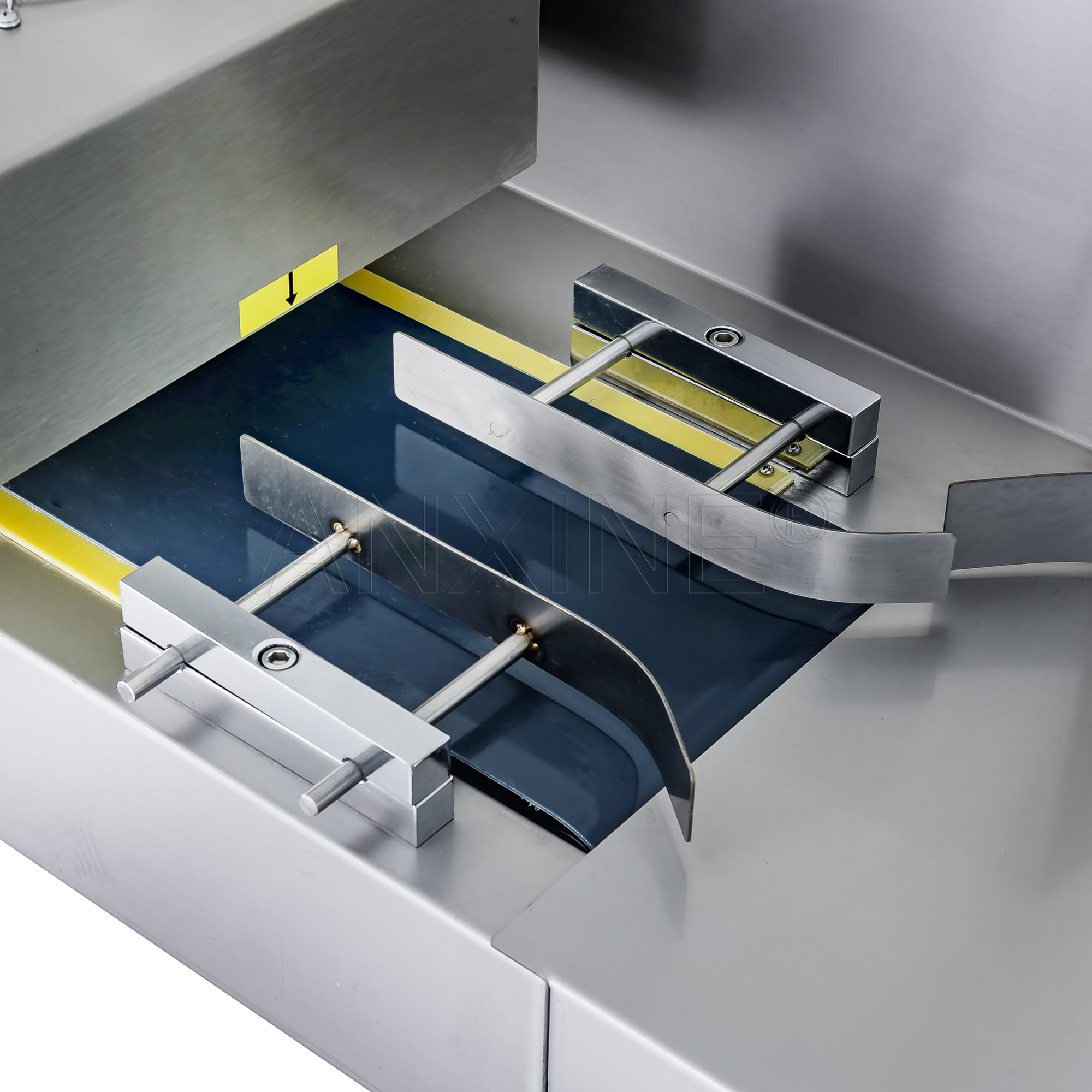

  • Adjustable Sealing Range: Compatible with a wide range of bottle sizes.
  • Automatic Fault Detection: If a system error is detected, the conveyor stops automatically, helping prevent mixing of unsealed and sealed products on the line.
  • Real-Time Speed Control: Conveyor speed can be fine-tuned on the fly based on voltage and current feedback.

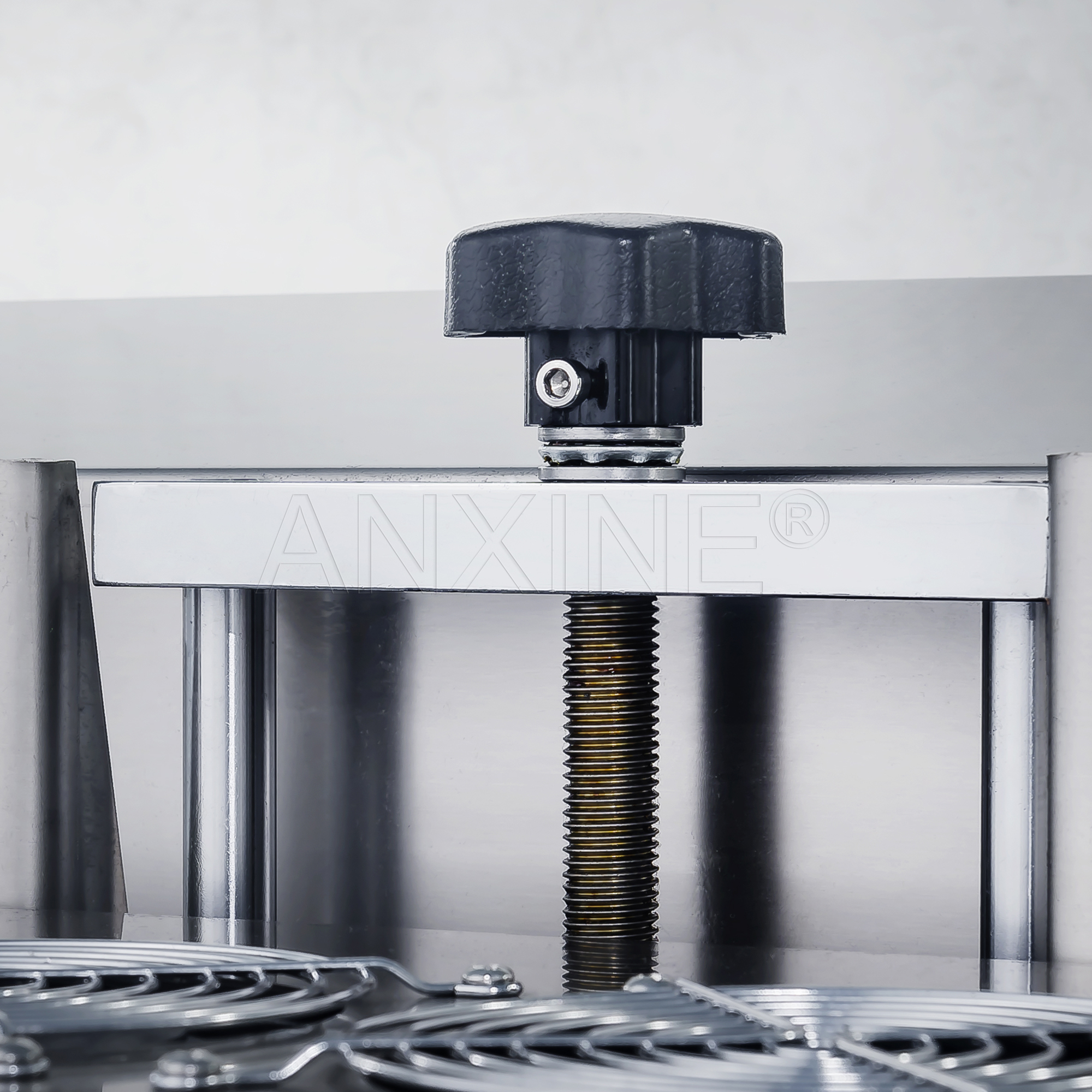

  • Flexible Induction Head Adjustment: The sealing head supports vertical movement, easily adapting product heights between 20 mm and 300 mm.

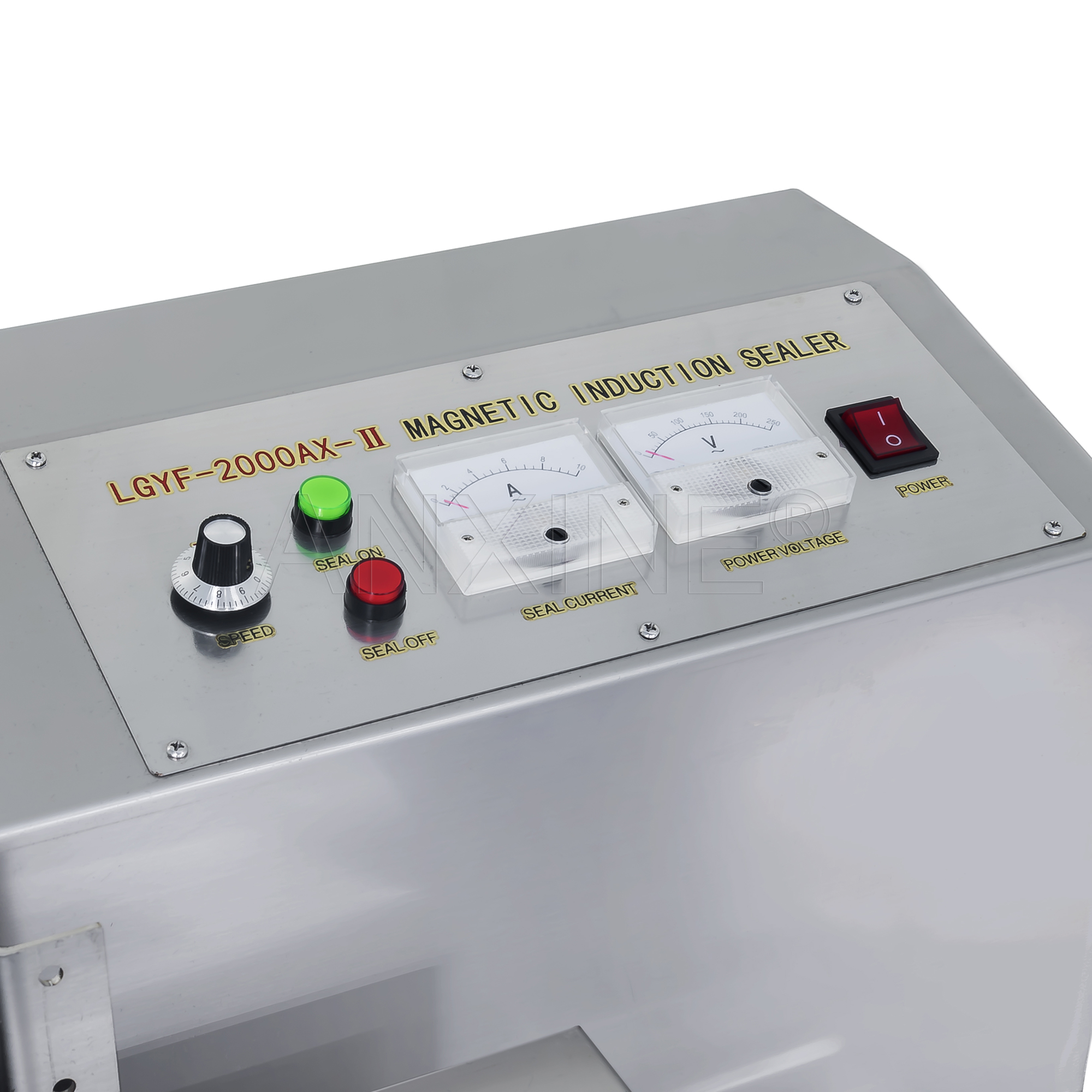

  • Built-In Monitoring Meters: Equipped with voltage and current meters to monitor operating conditions.

Specifications

Model LGYF-1500A LGYF-2000AX
Sealing Diameter φ20mm～φ50mm(Optimum Diameterφ30mm～φ50mm) φ20mm～φ130mm(Optimum Diameterφ30mm～φ120mm)
Height of Bottle 20～200mm 40～300mm
Conveying Diameter ≤￠200mm ≤￠200mm
Sealing Speed 3～10m/min (Size of bottle mouth, material, sealing film) 2～12m/min (Size of bottle mouth, material, sealing film)
Conveyor Table Load-bearing Load ≤ 20kg ≤ 20kg
Input Power AC220V±10%，50Hz AC220V±10%，50Hz
Weight 38kg 40kg
Dimensions 1,150 × 480 × 400 mm 1,150 × 600 × 400 mm
