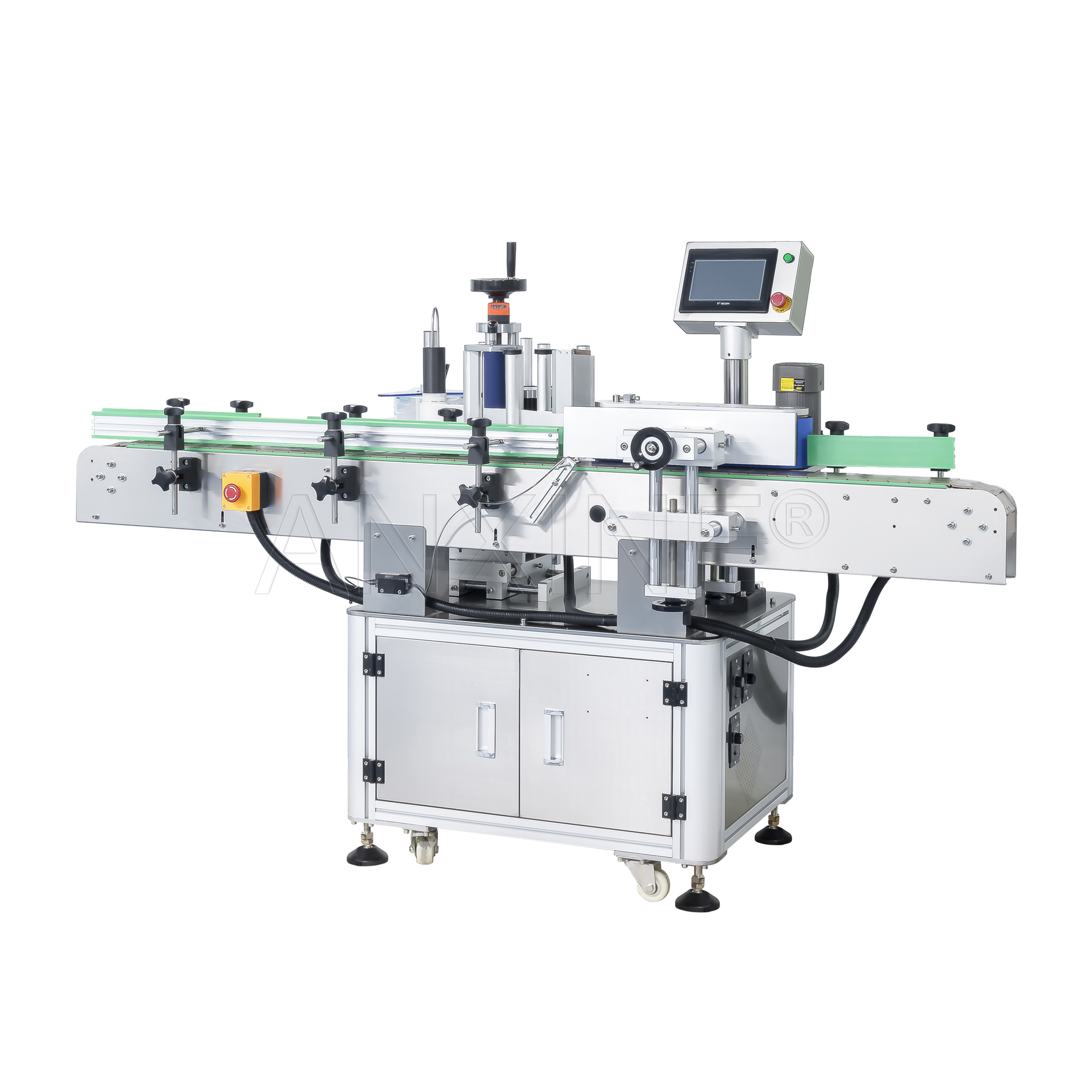

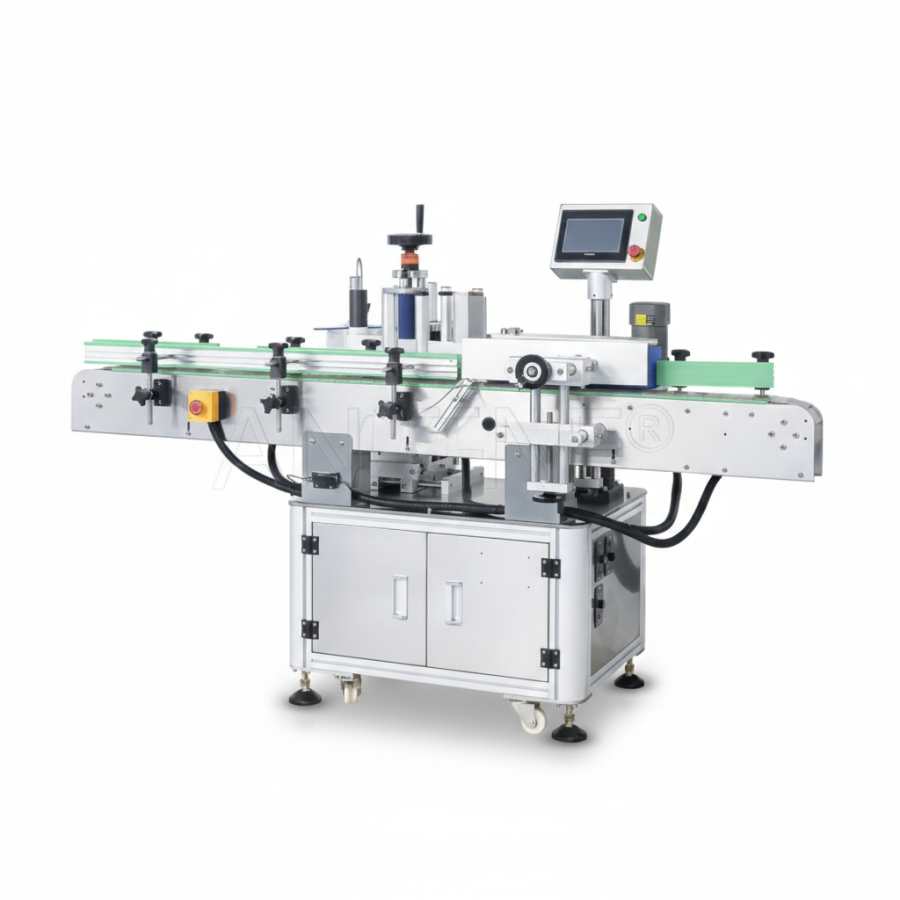

Automatic Poked Roll Type Vertical Labeling Machine NCT-21100
Automatic Poked Roll Type Vertical Labeling Machine NCT-21100
The NCT-21100 is a high-precision, efficient vertical labeling machine specifically designed for labeling large cylindrical products. This advanced machine boosts stability and improves labeling accuracy through its innovative vertical transmission and labeling systems, significantly increasing operational efficiency. Ideal for applying self-adhesive labels on a wide range of large cylindrical items such as wine bottles, cans, and cleaning products, the NCT-21100 is highly versatile and suitable for use across various industries including electrical, pharmaceutical, food, beverage, cosmetic, and chemical sectors.
The machine’s adaptability extends to double labeling capabilities, allowing for the simultaneous application of two labels, which further enhances efficiency and reduces production costs. With its robust design and precision engineering, the NCT-21100 offers a reliable solution for businesses seeking to optimize their labeling processes while maintaining high standards of quality and consistency.
The NCT-21100 is a high-precision, efficient vertical labeling machine designed for labeling large cylindrical products. Its advanced design boosts stability and improves labeling accuracy.
Highlighted Features
- Vertical Design: Ensures enhanced stability and precise labeling.
- Versatile Application: Suitable for large cylindrical products across diverse industries.
- Double Labeling Capability: Option to apply two labels at once for increased efficiency.
- Advanced Control System: Utilizes a mature PLC system for stable, high-speed operation.

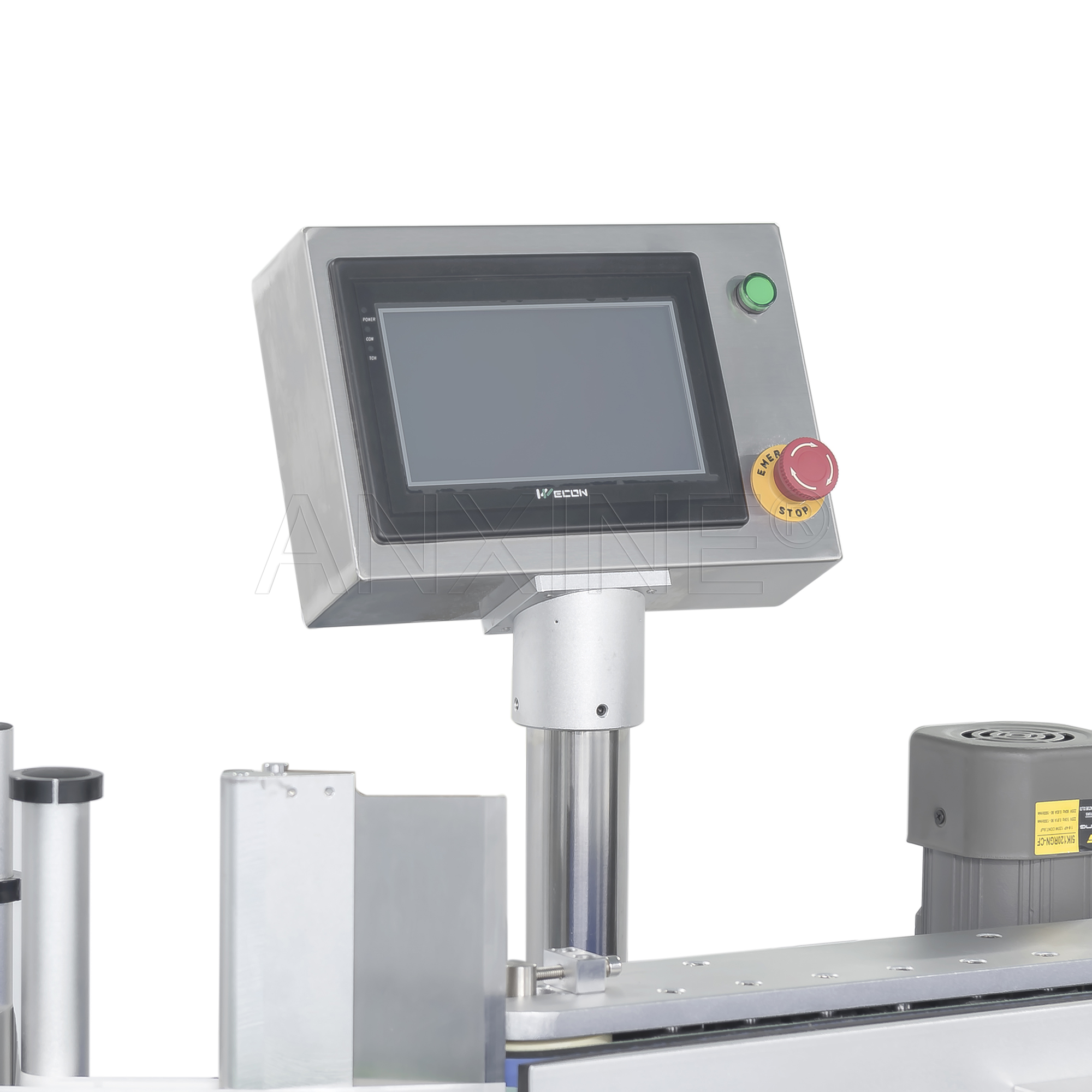

- User-Friendly Interface: Simple, practical touch-screen controls for efficient operation.
- High Precision: Features synchronization chain mechanism for smooth, precise label application with an accuracy of ±1mm.
- Adaptability: Accommodates a variety of product shapes with top labeling.
- Sturdy Construction: Made with stainless steel and high-quality aluminum alloy for durability.
- Clear Marking: Pneumatic code system prints batch numbers and expiration dates clearly.
- Firm Labeling: Transmission-type rolling bottles ensure labels adhere firmly without bubbles or wrinkles.
| Model | NCT-21100 |
|---|---|
| Labeling Speed | 30-200 pcs/min (dependent on product and label size) |
| Label Size | Width 20-150 mm / Length 20-320 mm |
| Product Size | Diameter φ25-φ90 mm, Height 25-300 mm |
| Label Reel | Inner diameter 76 mm / Outer diameter 280 mm |
| Accuracy | ±1 mm (dependent on product and label size) |
| Voltage | 220V 50HZ / 110V 60HZ |
| Dimensions | 1,950 x 1,100 x 1,300 mm |
