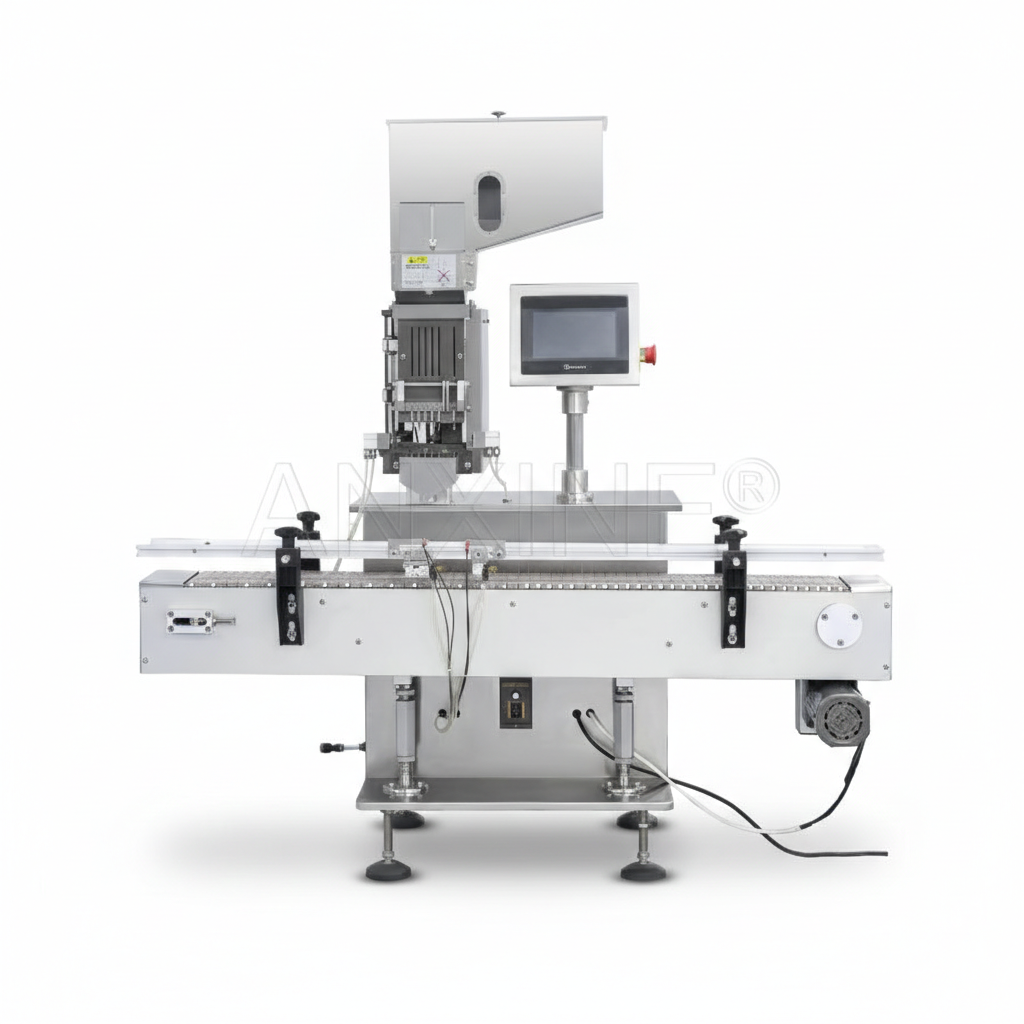

Fully Automatic Capsule Counting Machine NCC-A
NCC-A Capsule Counting and Bottling Machine with Feeding System

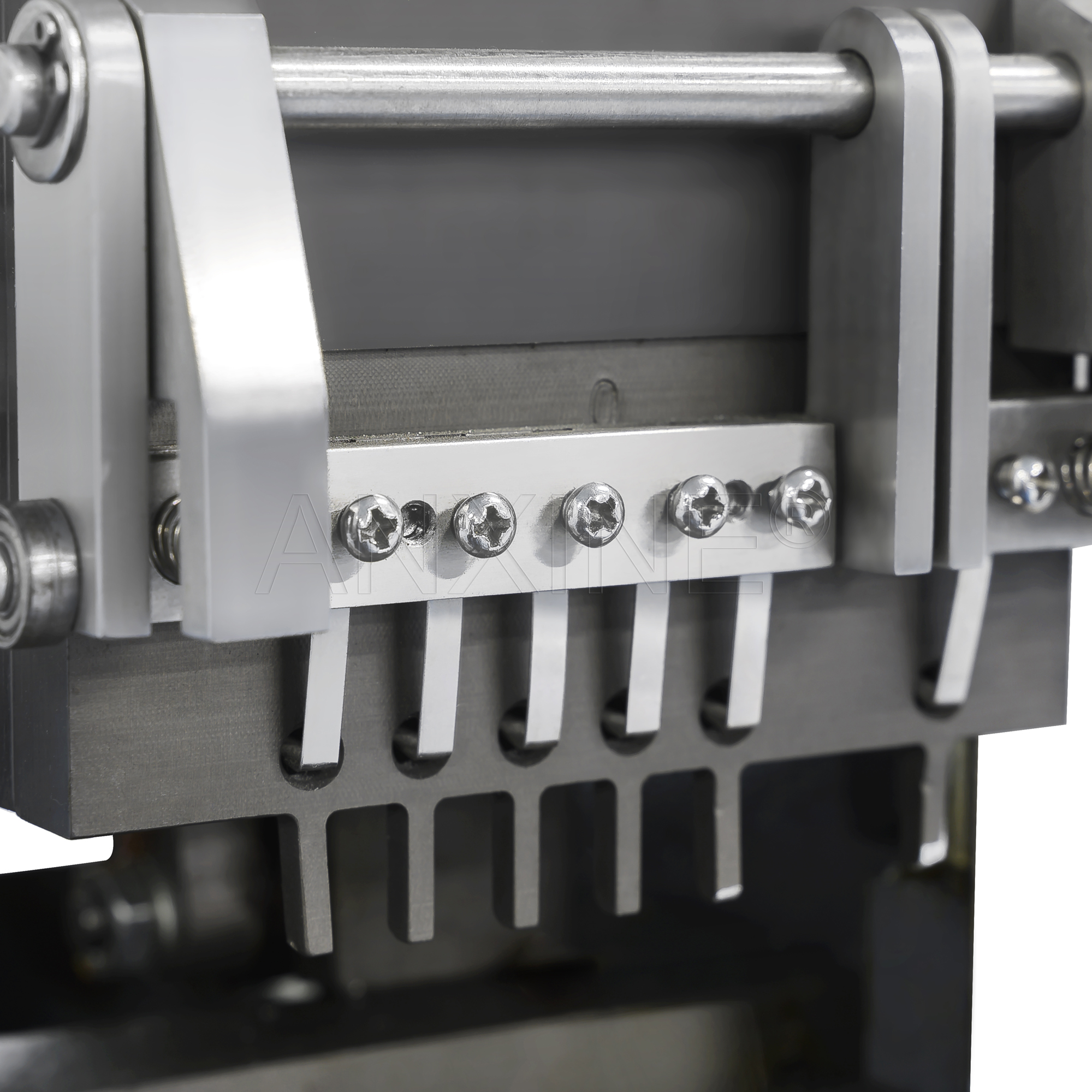

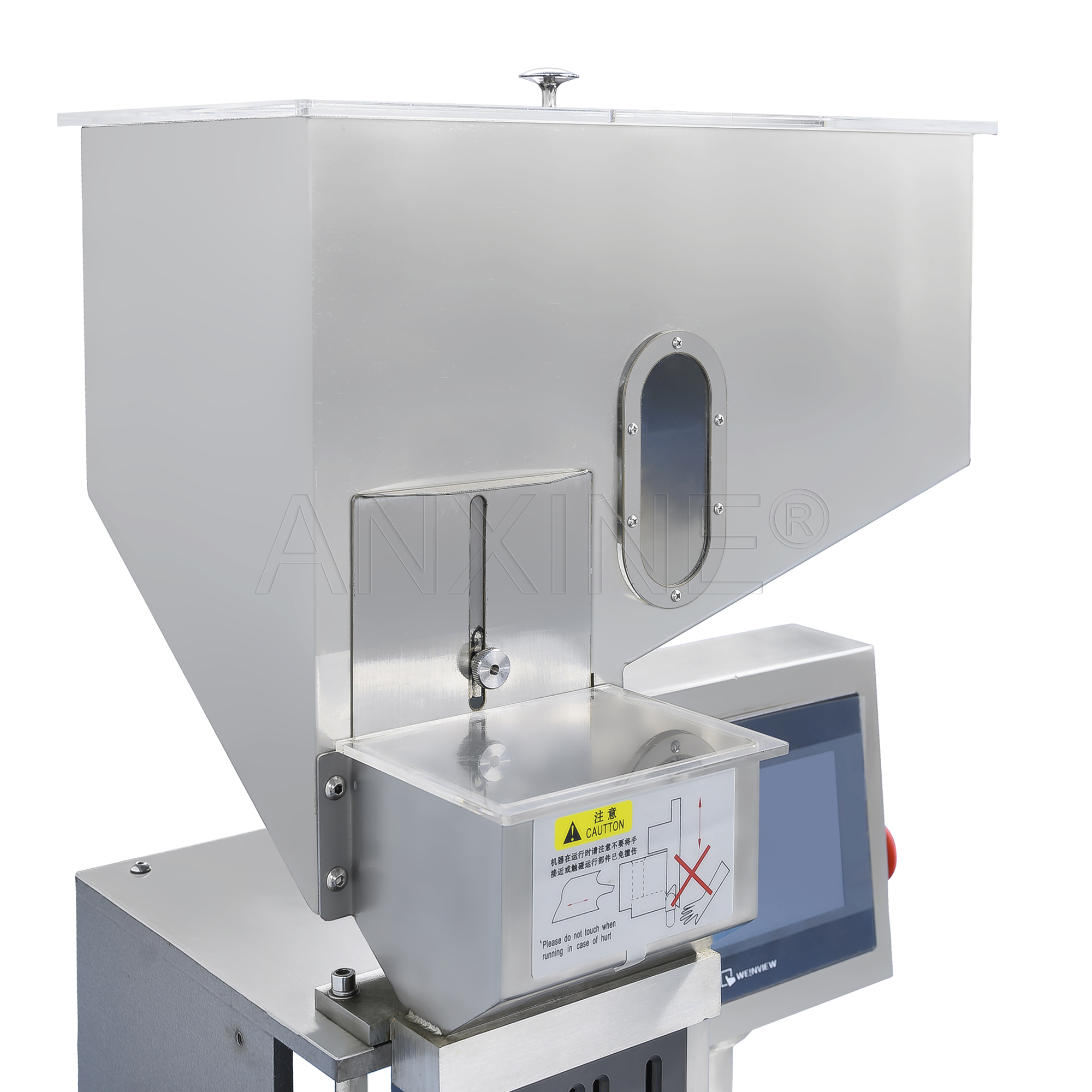

Unlike other pill counters, the NCC-A capsule counting machine counts in a unique manner. It comes with a 5-slot capsule feeding mechanism that includes a magazine, sorting block, and horizontal sorting fingers—just like the ones found in semi-auto capsule fillers.
Five capsules are dispensed by the mechanism and drop through a funnel at a time into bottles. This gives you consistent and accurate counts without relying on optical sensors. It also features a conveyor system for the automatic transport of bottles. The NCC-A is a solid choice for anyone looking for a compact capsule counting and bottle filling machine.
Description
Highlighted Features
- 5-Slot Capsule Feeding: Feeds five capsules into the funnel at a time.

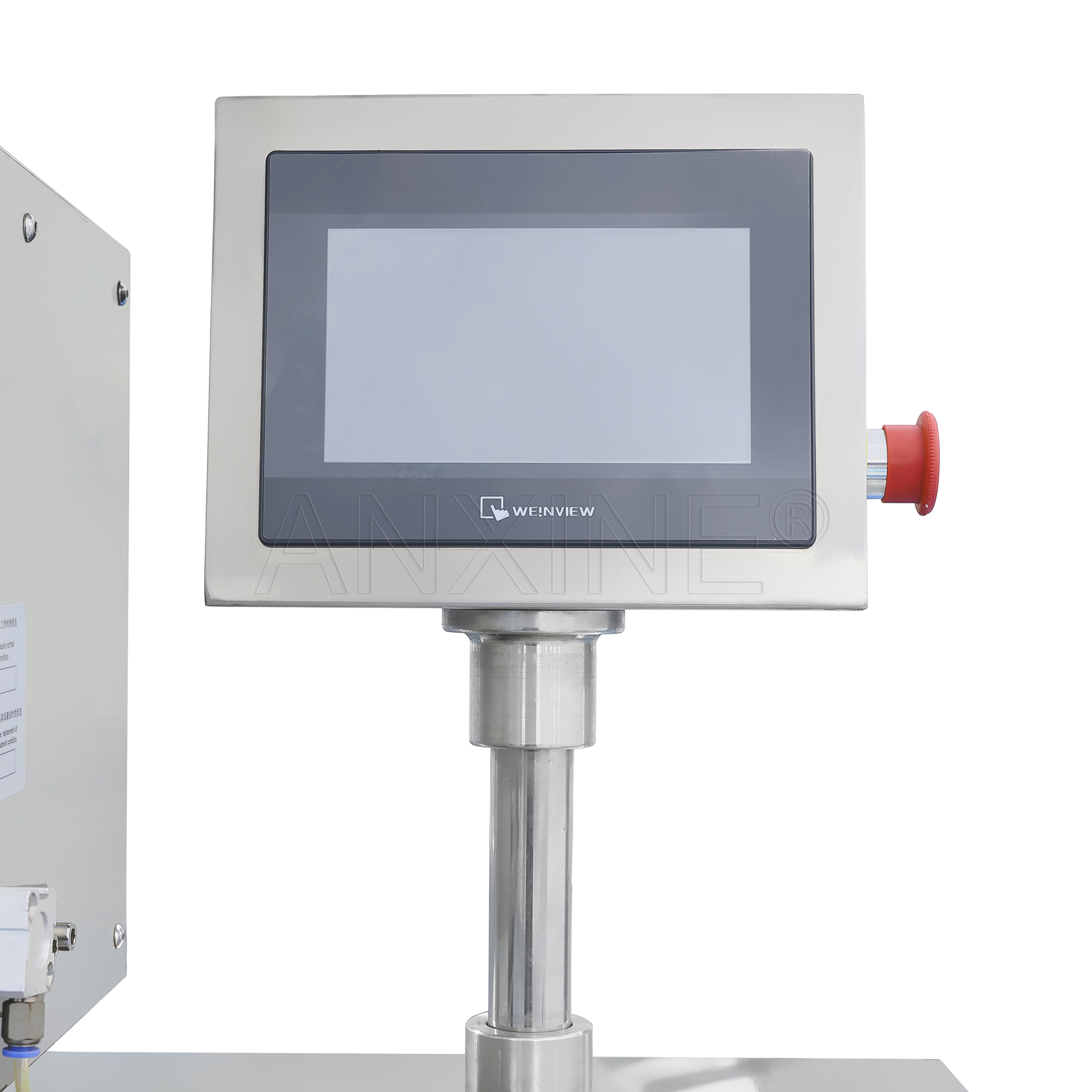

- Touchscreen Count Setting: The count can be set between 0 and 9999.
- Compact and Low-Noise Design: Small footprint and quiet operation.
- Built-in Conveyor: Moves empty bottles into place for filling and filled bottles to the next stage.
- GMP-Compliant Build: All contact parts are made from 304 stainless steel.
- Easy Integration: Connects seamlessly with other bottling line equipment.
Specifications
| Model | NCC-A |
|---|---|
| Mould Changing Time | 5 minutes |
| Capacity | 20,000-40,000 pcs/hour |
| Counting Accuracy | 100% |
| Suitable Capsule Sizes | 000#, 00L#, 00#, 0L#, 0#, 1#, 2#, 3#, 4#, 5# |
| Max. Bottle Diameter | 130mm |
| Power Supply | 110V 60Hz / 220V 50Hz |
| Weight | 200kg |
| Dimensions | 1650x800x1750mm |
