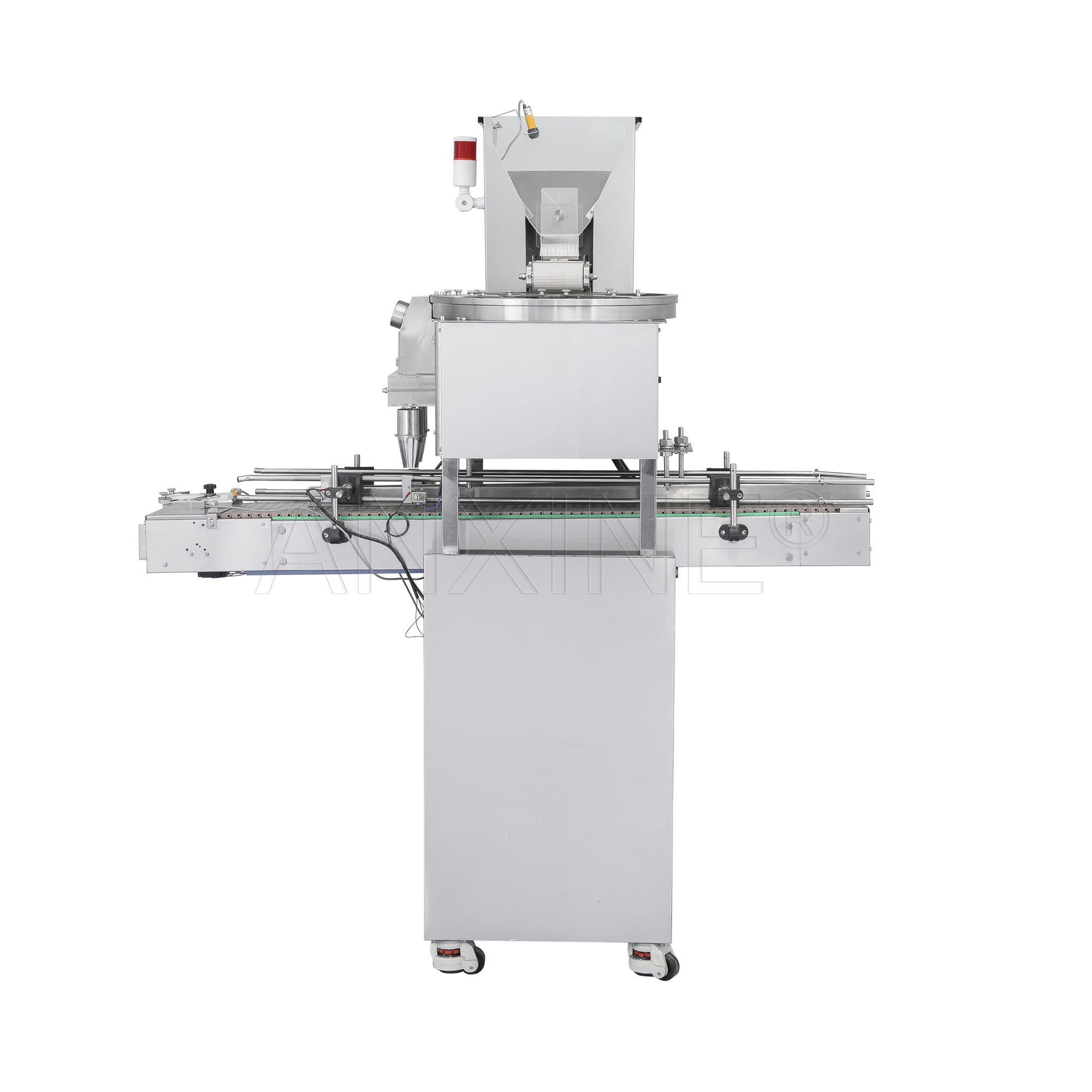

Conveyor-Based Tablet and Capsule Counting Machine NPC-3AC
NPC-3AC Pill Counting Machine with Conveyor Bottling

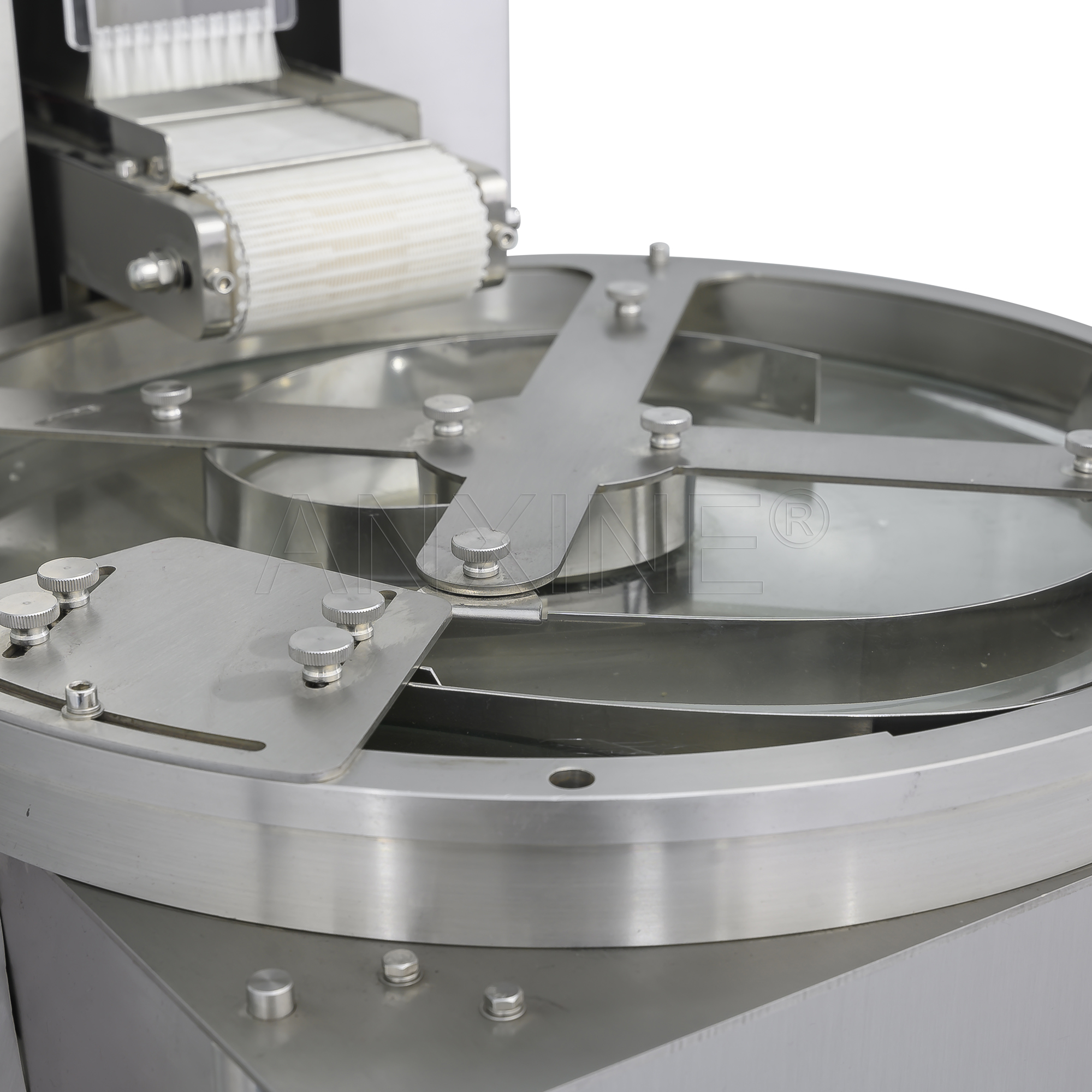

The NPC-3AC is an automated capsule and tablet counting machine. As an upgraded version of the NPC-3A, it features a built-in conveyor system. Designed for smooth, low-noise performance, this model gently guides pills through a rotary plate before they’re counted and dispensed into bottles.
Thanks to the conveyor system, the NPC-3AC enables each filled bottle to be automatically moved to the next stage. It enhances the efficiency of the production line and reduces labor costs. Compact and user-friendly, the NPC-3AC is ideal for companies seeking a hands-free solution for mid-speed counting and bottling of tablets, capsules, and similar solid-dose products.
Description
Highlighted Features
- Smart Bottle Detection: Detects bottle presence, positioning, or jams.
- Adjustable Nozzles: Accommodate bottles of different heights.

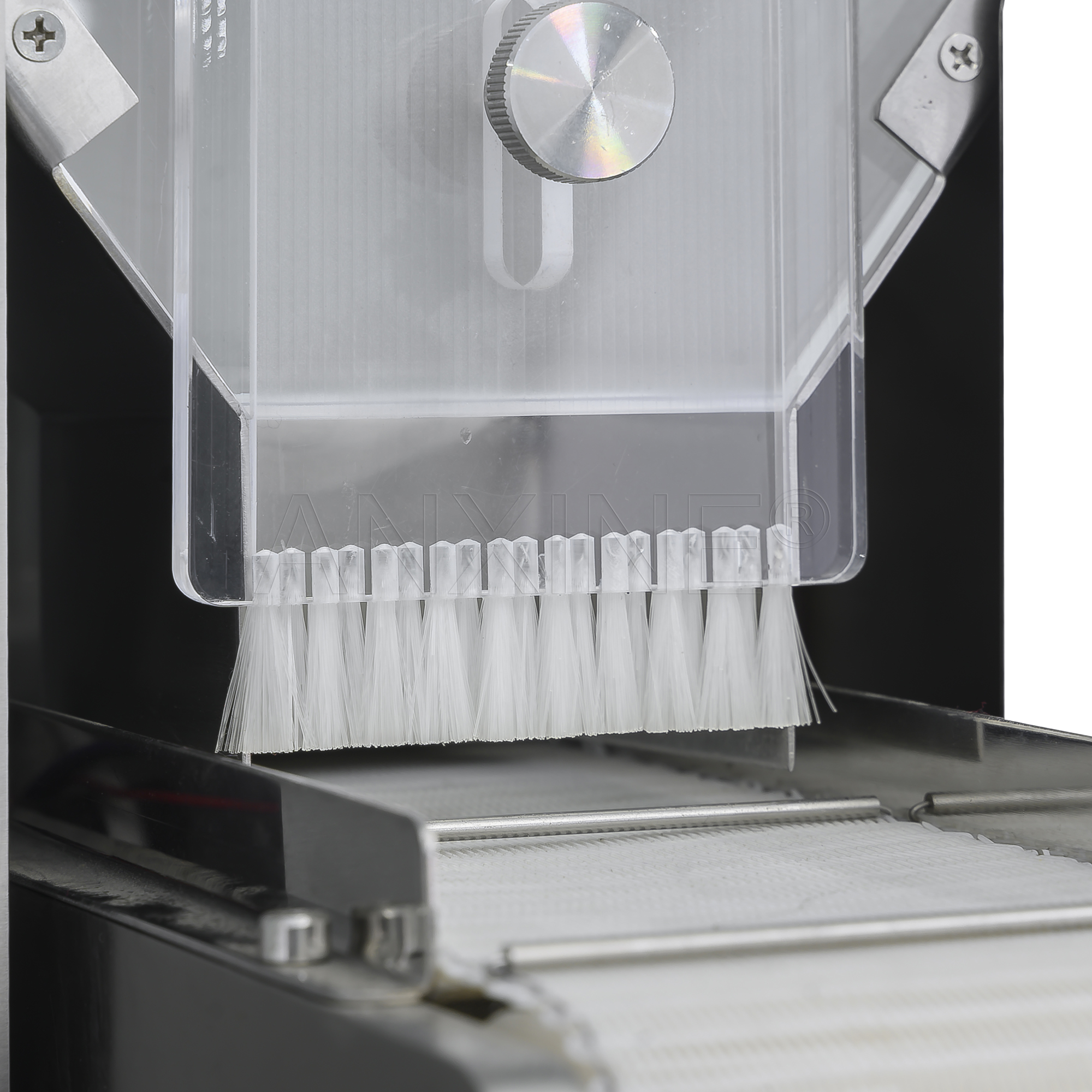

- Gate Mechanism: Precisely regulates the outflow of products from the hopper.
- Level Sensor: Automatically monitors the hopper level.

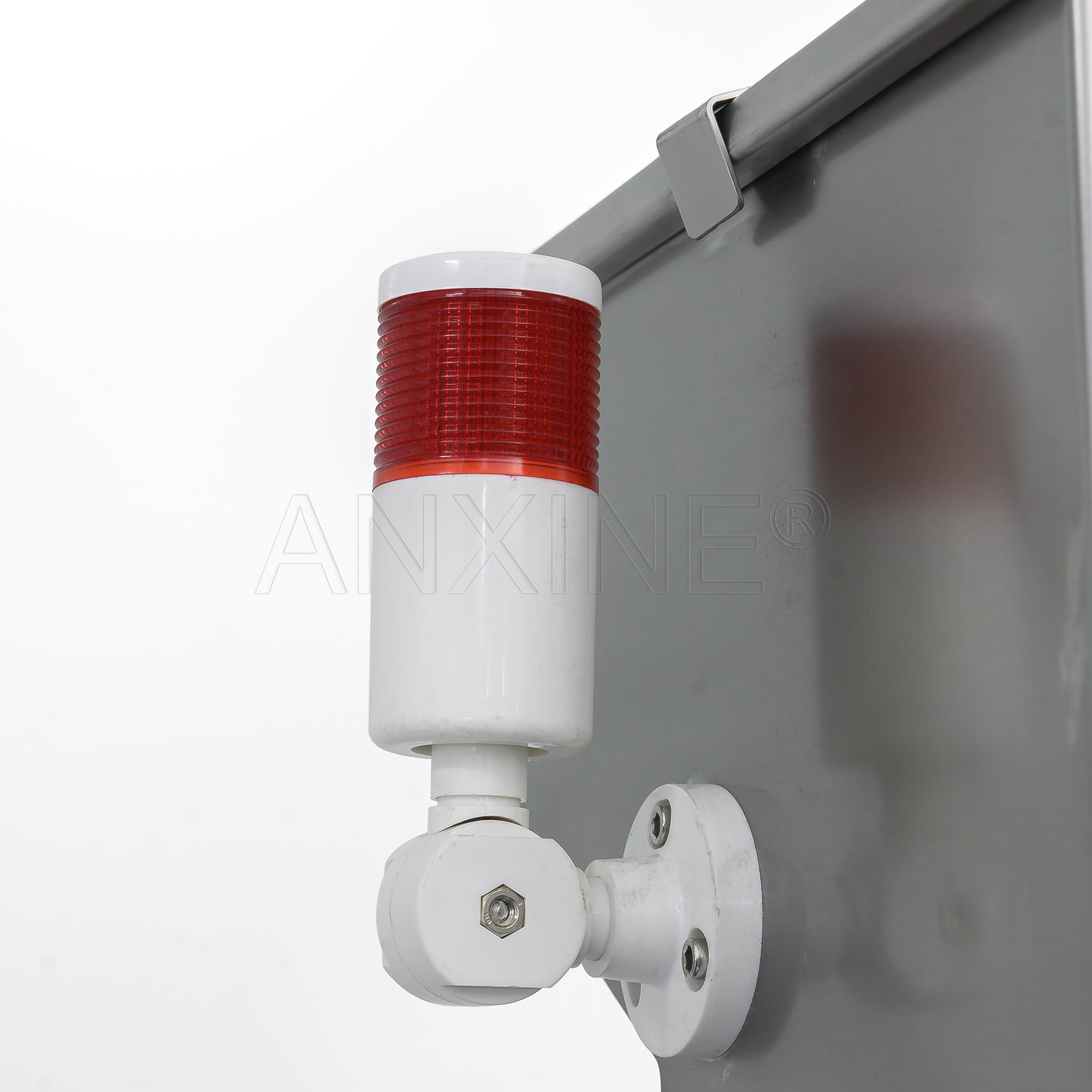

- Alarm Indicator Light: Visually displays real-time errors and alerts operators.

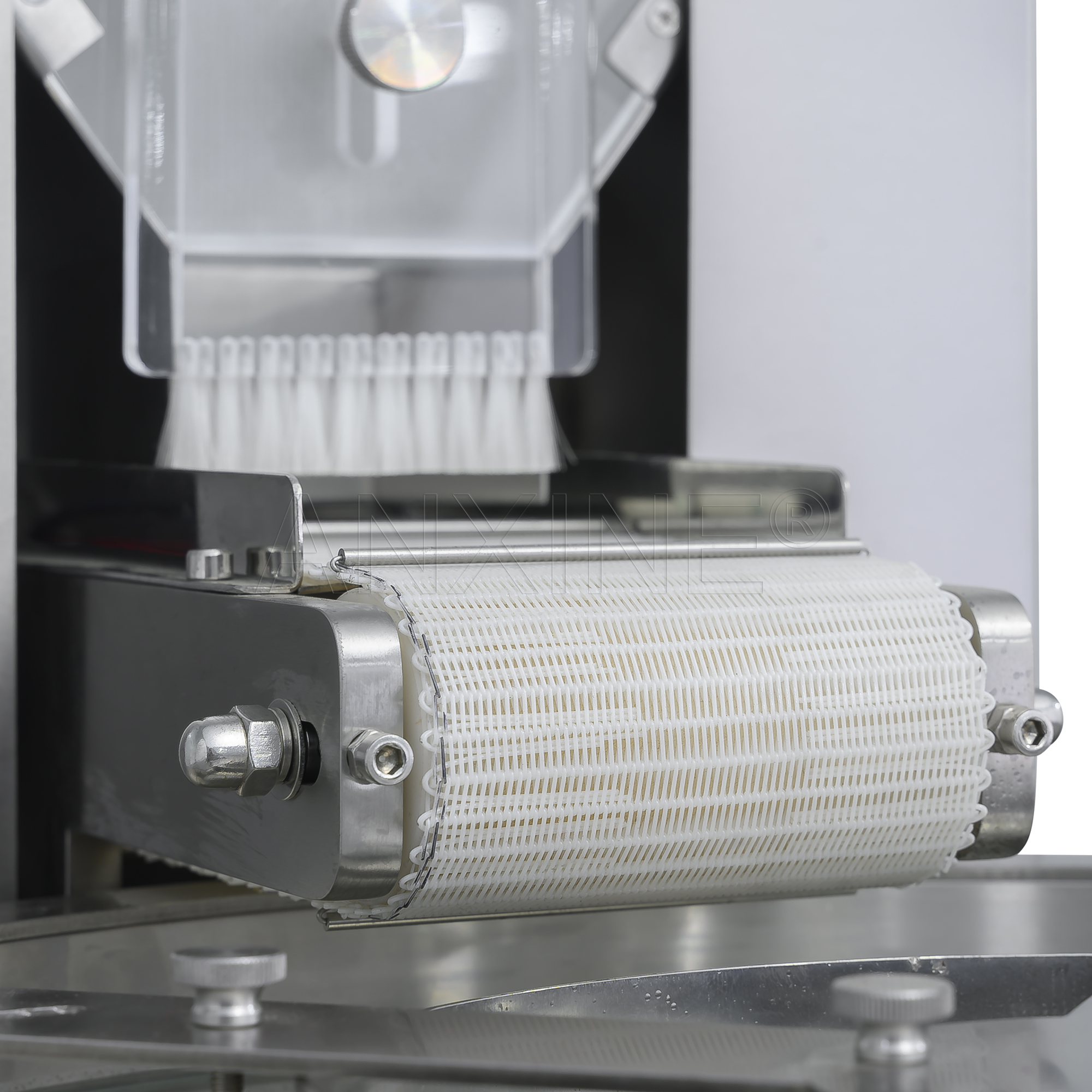

- Integrated Conveyor: Reduces manual handling and streamlines the bottling process.
Specifications
| Model | NPC-3AC |
|---|---|
| Production Capacity | 1300 capsules/minute (Capsule No. 0) |
| Counting Accuracy | 99.99% |
| Bottle Quantity Range | 1-9999 (customizable) |
| Pharmaceutical Range | Tablets up to φ22mm; Capsules #00-#5 |
| Bottle Mouth Size | φ20~25mm (customizable) |
| Power | 220V AC, 50/60 Hz |
| Power Consumption | 0.2KW |
| Air Consumption | 0.1 m³/h |
| Air Pressure | 0.4 mpa |
| Dimensions | 845×1,372×1,648mm |
