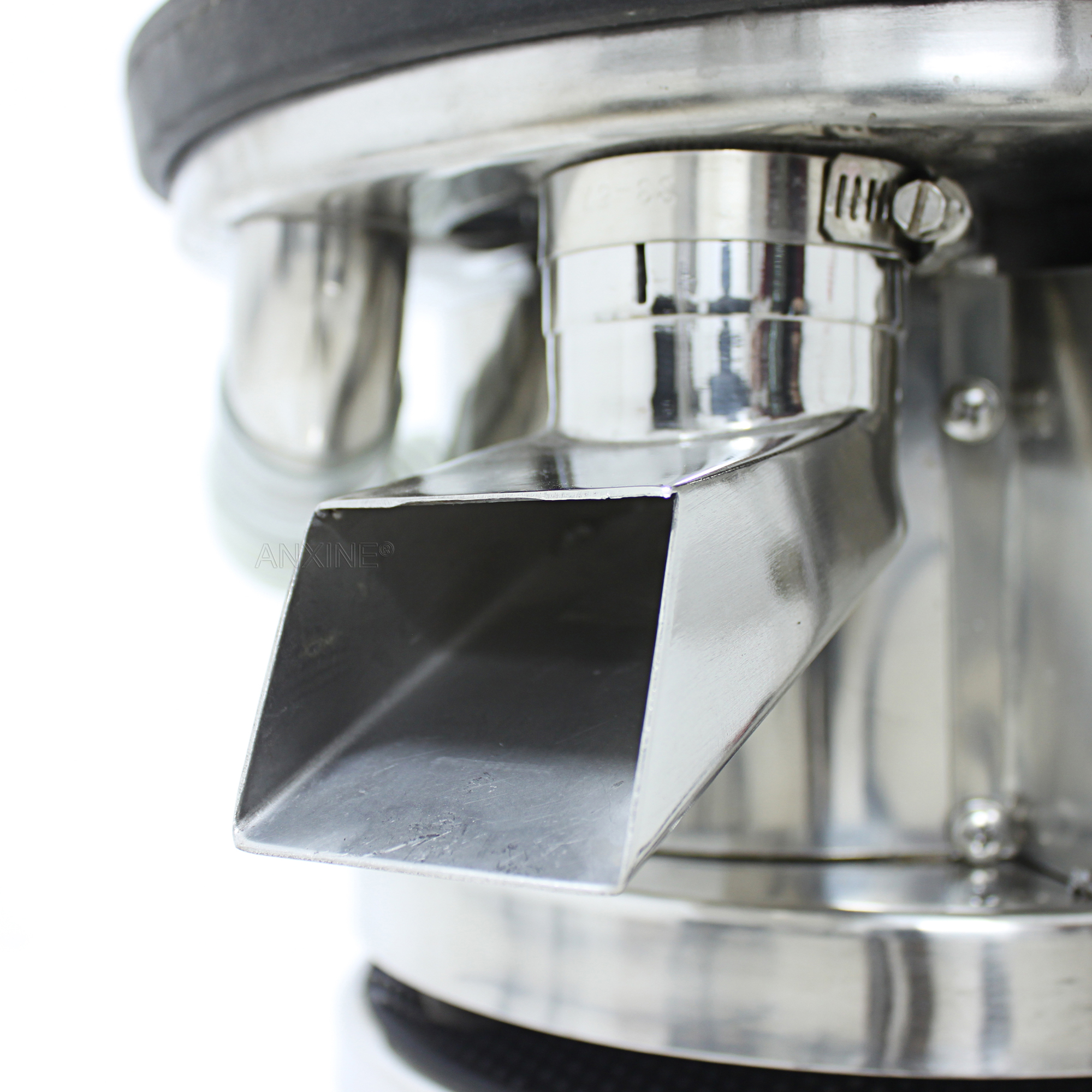

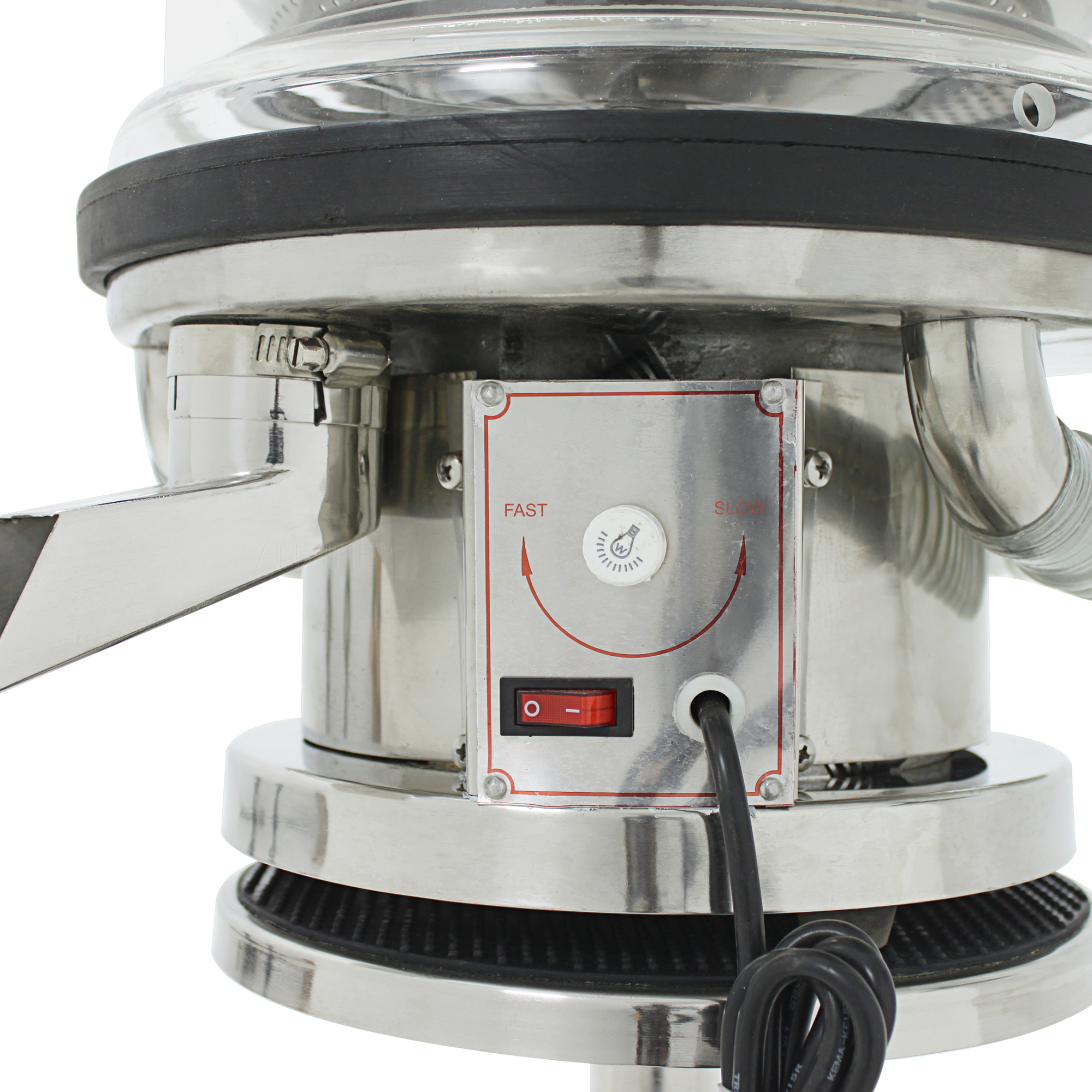

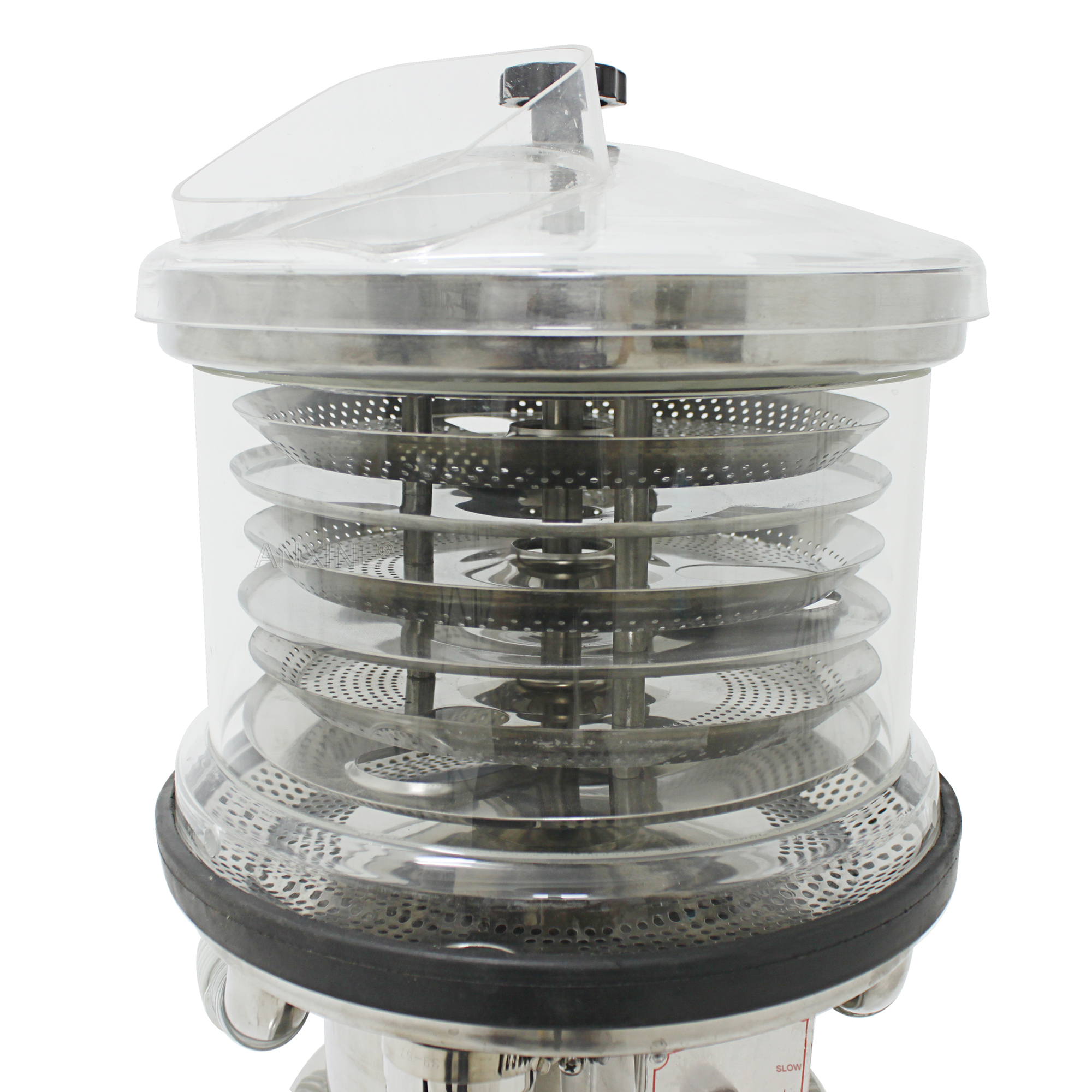

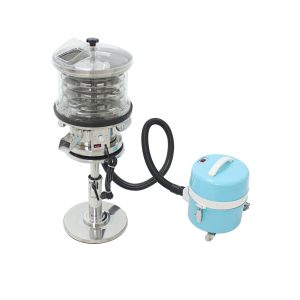

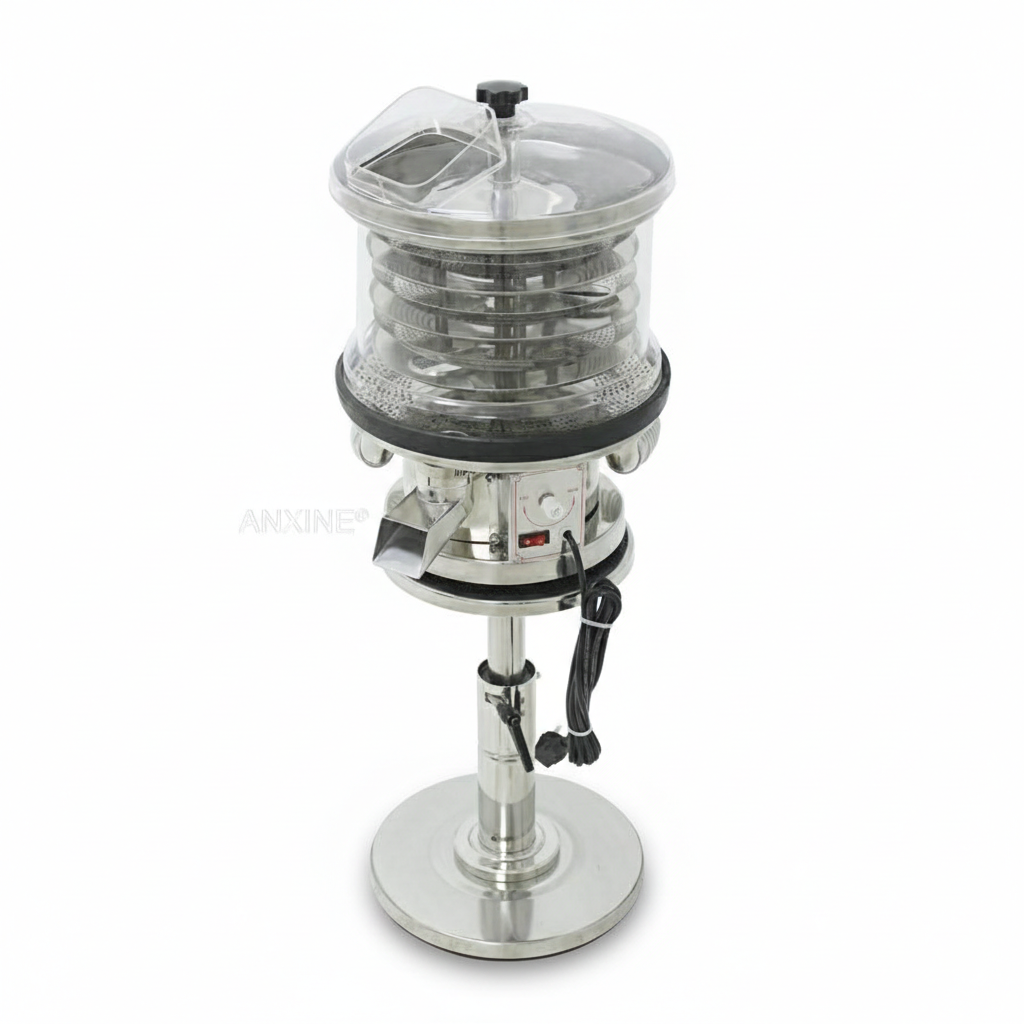

Tablet Pill Deduster Machine ATD-310

The ATD-310 uses vibratory action to effectively remove surface dust from tablets, ensuring high-quality pharmaceutical production.

Tablet Screening Device Pill Deduster Machine ATD-310

ATD-310 Rotary Vibration Dust Remover is an innovative equipment from Anxine Machinery Ltd.co., specially designed for the pharmaceutical industry to remove tiny dust and foreign matter from the surface of tablets. The machine combines rotational and vibrational motion to ensure that the tablets are thoroughly cleaned during transport while maintaining their integrity uncompromised.

ATD-310 is suitable for tablets of various shapes and sizes, and is easy to operate and maintain, which can significantly improve production efficiency and product quality.

The ATD-310 Pill Deduster Machine is a high-efficiency pharmaceutical processing device designed to remove fine surface dust from tablets. Utilizing a vibratory mechanism, it is ideal for dedusting all types of tablets, ensuring high-quality pharmaceutical production.

Highlighted Features

  • Double cleaning mechanism: Through a combination of rotation and vibration, it effectively removes fine dust and other impurities on the surface of the tablets.
  • High-precision processing: The carefully designed drum and screen structure ensure that each tablet can be processed evenly without damage or deformation.
  • High degree of automation: Equipped with advanced control systems, it can achieve continuous operation, reduce manual intervention, and improve work efficiency.
  • Easy to clean and maintain: The modular design makes disassembly and assembly simple and quick, convenient for daily cleaning and regular maintenance, and reduces downtime.
  • Safe and reliable: It meets international safety standards and has multiple protection measures, such as overload protection, emergency stop button, etc., to ensure the safety of operators.
  • Compact design: It occupies a small area and is suitable for production workshops of different sizes, saving space resources.
  • Environmentally friendly: It adopts a closed working environment to prevent dust diffusion, improve workshop air quality, and meet environmental protection requirements.

Model ATD-310
Capacity 550,000 tablets/hour
Max Tablet Dimensions 25 mm diameter
Compressed Air Requirement 1.8 m³/min at 0.01 MPa
Vacuum Requirement 0.1 m³/min at 0.05 MPa
Power Supply 220V 50Hz 1P / 110V 60Hz 1P
Power Consumption 75W
Dimensions 380 x 340 x 890 mm
Weight 31.5 kg
