Uphill Tablet Deduster ATU-750

he ATU-750 deduster removes dust and burrs while elevating tablets, integrating with presses and metal detectors for seamless operation.

Uphill Tablet Deduster ATU-750

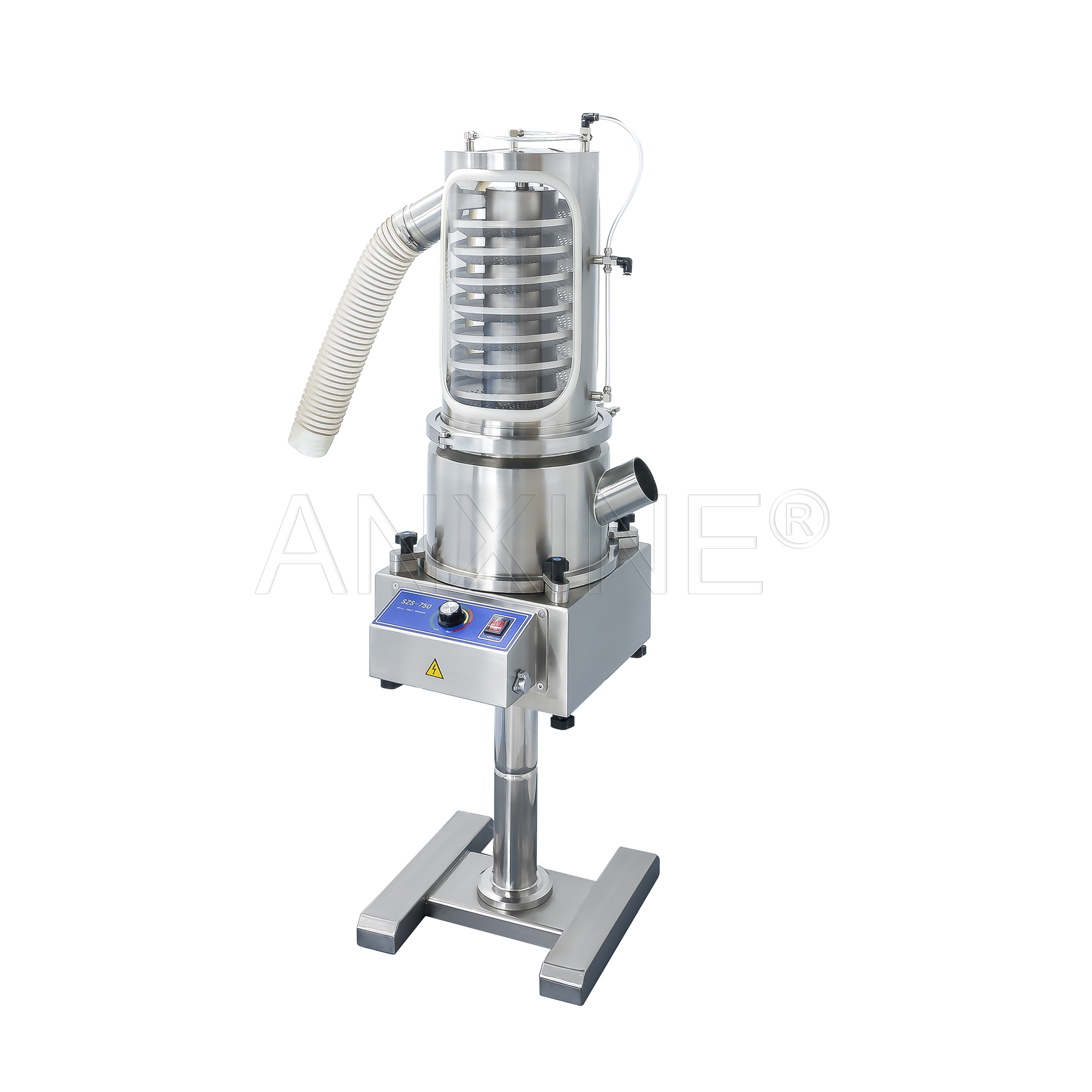

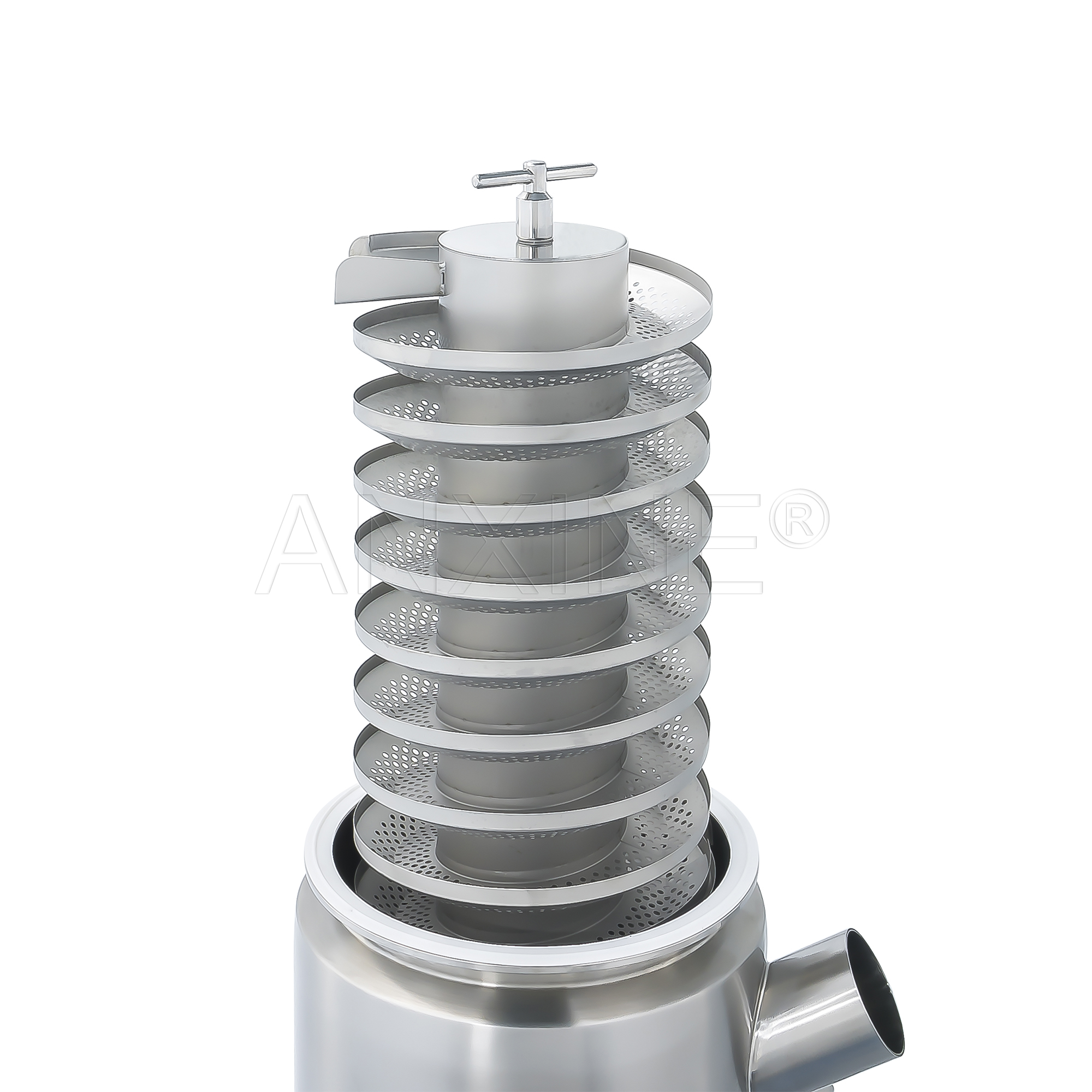

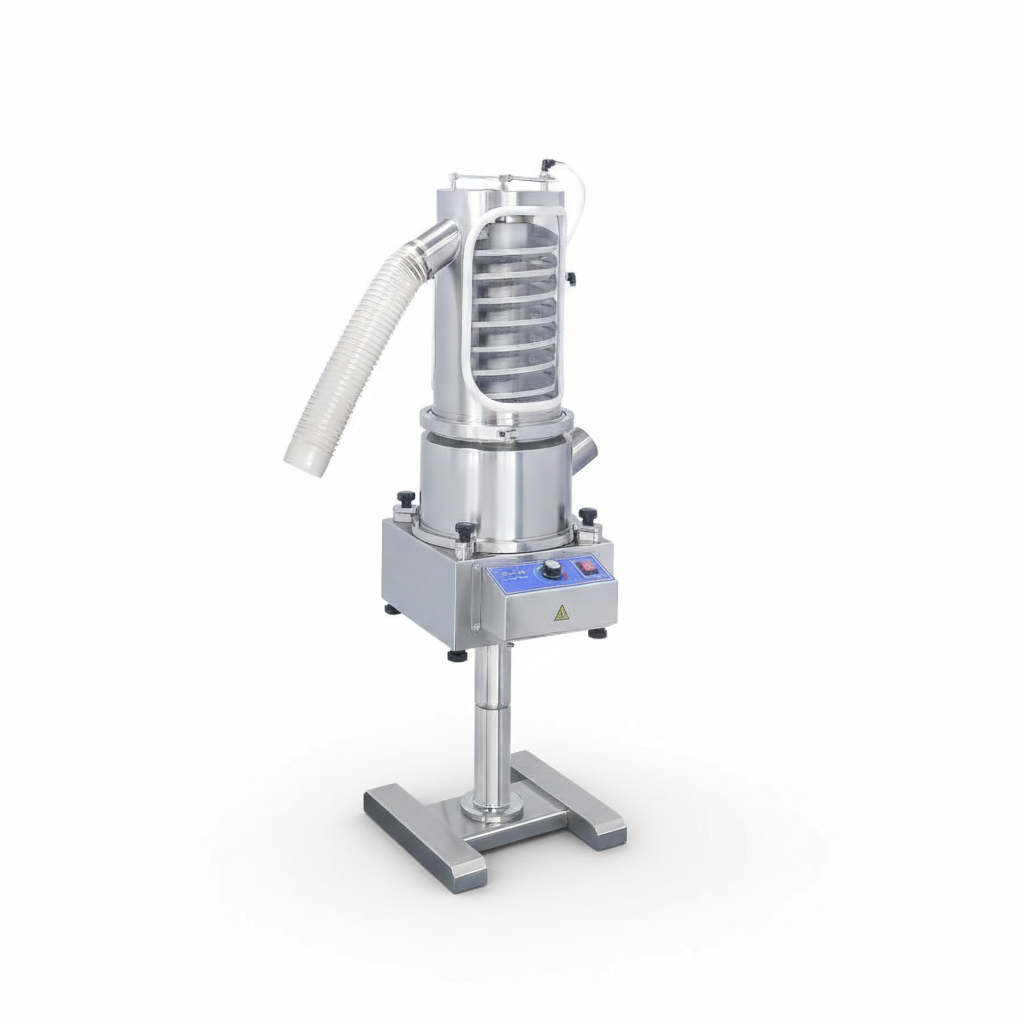

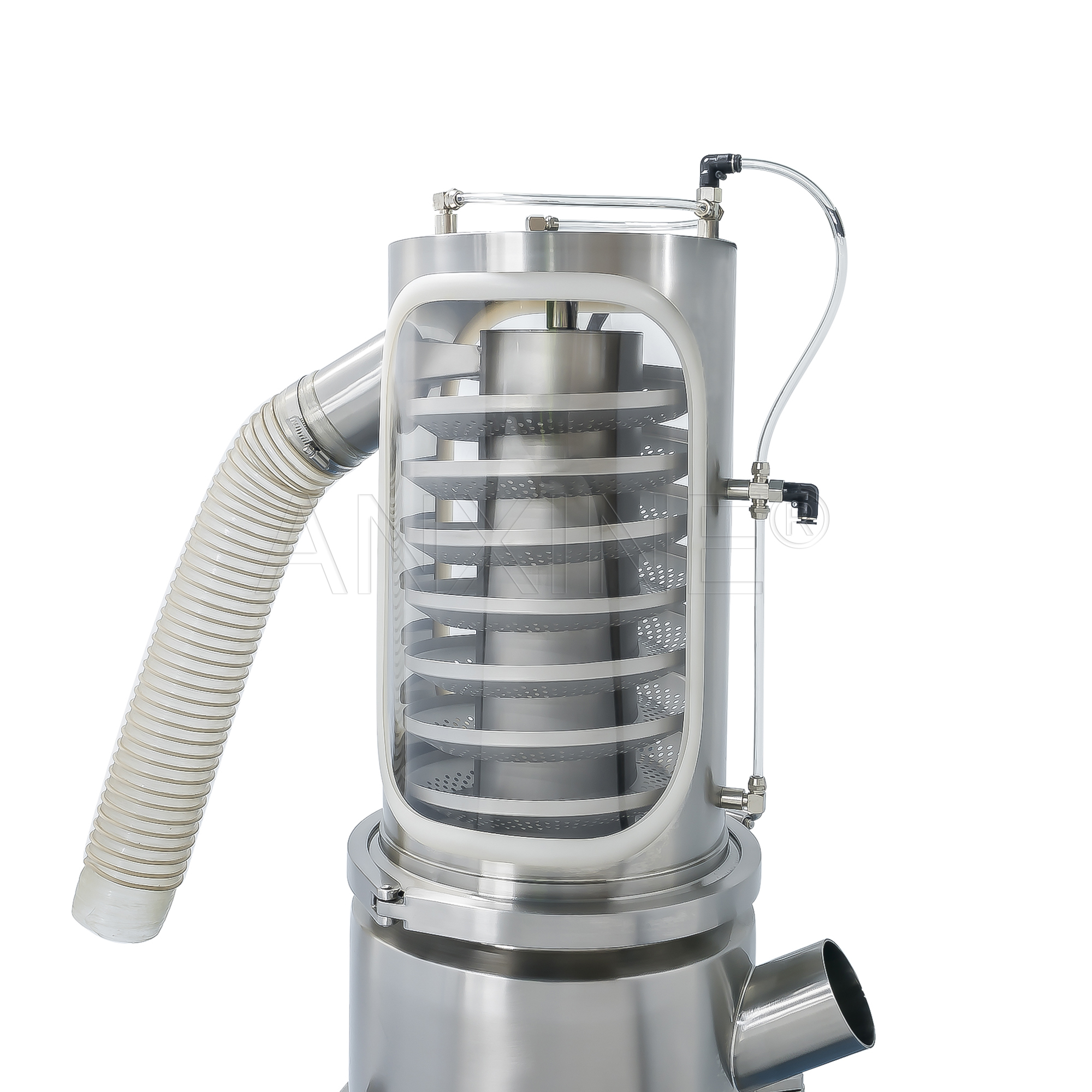

The ATU-750 Uphill Tablet Sieving Machine is an innovative device designed by Anxine Machinery Ltd.co., specifically tailored for the pharmaceutical industry. This machine excels in efficiently screening tablets to ensure uniform size distribution, removing defective or improperly shaped tablets from the production line. The ATU-750 utilizes a unique uphill sieving mechanism that gently conveys tablets upward while simultaneously sifting out any fragments, dust, or undersized pieces, thereby enhancing product quality and consistency.

The ATU-750 Uphill Tablet Deduster is advanced pharmaceutical processing equipment designed to remove dust and burrs from tablets while moving upward. It integrates seamlessly with tablet presses and metal detection systems, offering multifunctional capabilities including lifting and sieving.

Highlighted Features

  • High Efficiency: Rapidly screens large quantities of tablets with high accuracy, ensuring consistent product quality.
  • Gentle Handling: The uphill sieving process minimizes damage to tablets during screening, preserving their integrity.
  • Automated Operation: Equipped with advanced control systems, it supports continuous operation and reduces manual intervention.
  • Easy Maintenance: Modular design facilitates quick disassembly and assembly for cleaning and maintenance, reducing downtime.
  • Safety and Reliability: Adheres to international safety standards with multiple protective features such as overload protection and emergency stop buttons.
  • Compact Design: Small footprint suitable for various production environments, optimizing space utilization.
  • Eco-Friendly: Closed-loop system prevents dust dispersion, maintaining a clean working environment and meeting environmental requirements.

Model ATU-750
Capacity Up to 800,000 tablets per hour (depending on 6mm diameter)
Tablet diameter 3mm to 25mm
Inlet height 825-1005 mm
Outlet height 1230-1410 mm
Dedusting distance 7.5 m
Compressed air requirement 0.1 m³/h (0.05 MPa)
Vacuum cleaning 2.7 m³/h (-0.1 MPa)
Power supply 110V 60Hz / 220V 50Hz, 0.1 kW
Dimensions 550 x 550 x 1365-1545 mm
Weight 80 kg
