Rotary Tablet Press ZP-D
Rotary Pill Press Machines | ZP-D Series
The ZP-D series rotary tablet press offers efficient and accurate tablet-making solutions. The series includes four models: ZP-29D, ZP-19D, ZP-17D, and ZP-15D. These machines are good for making medium to large batches of tablets. They feature easy use and maintainenace. The ZP-D series uses a rotary system and a precise control system for processing. They keep each tablet consistent and high in quality. The machines can adjust tablet hardness and thickness by changing pressure and speed. This helps meet the needs of different products.
Each model has a simple touch screen (HMI) that supports multiple languages for easy operation. The machines are made according to GMP standards to keep the process clean and safe. Their modular design makes it easy to clean and change parts. It helps you reduce downtime and save maintenance costs.
Description

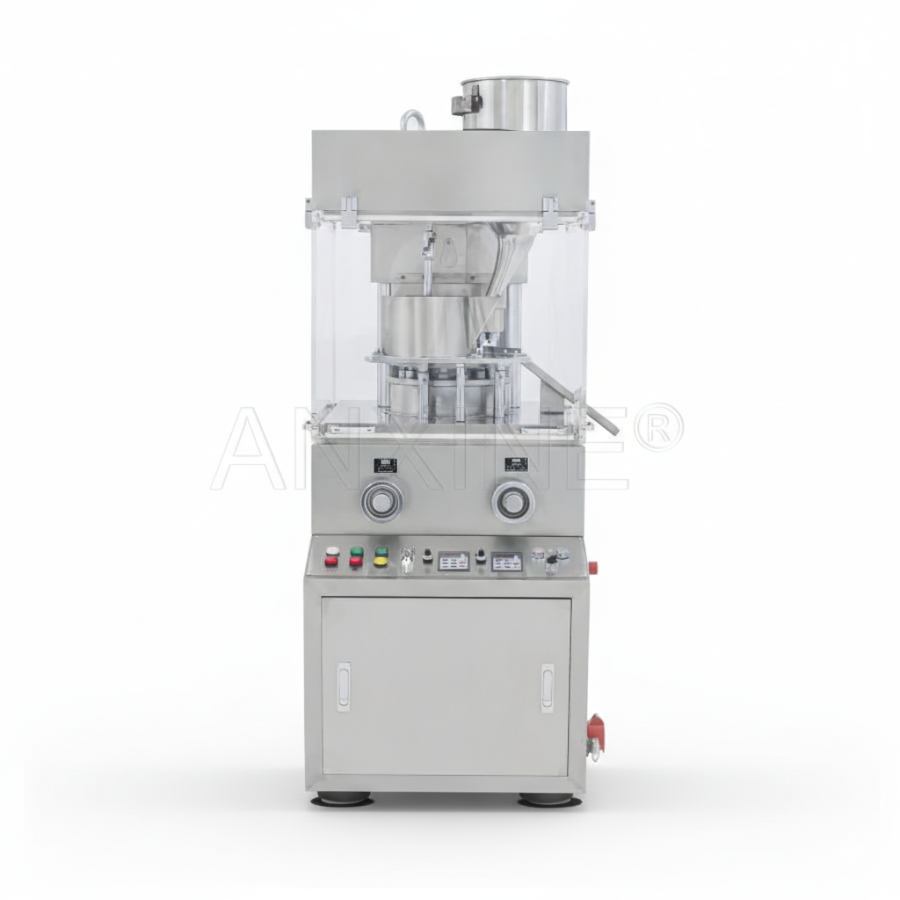

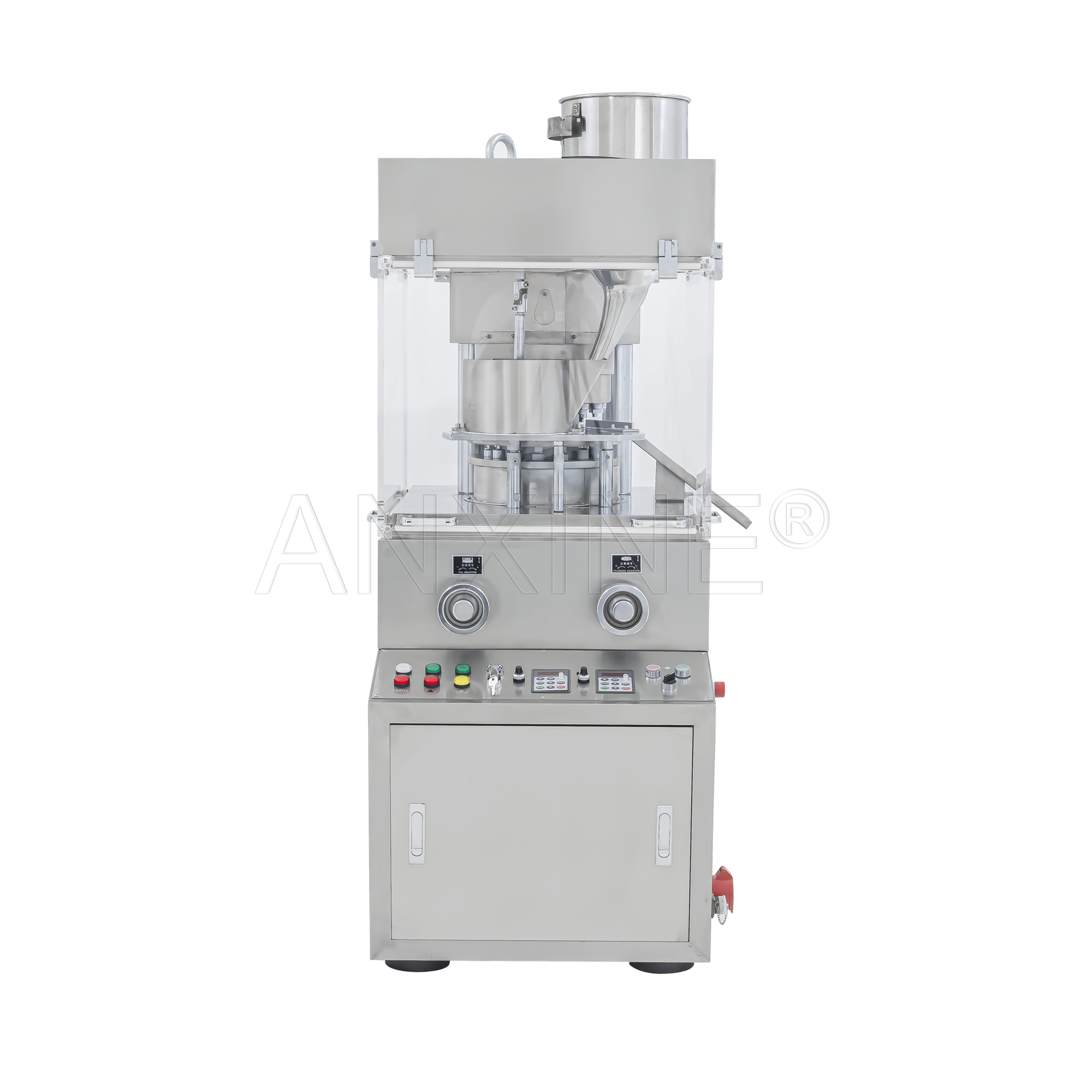

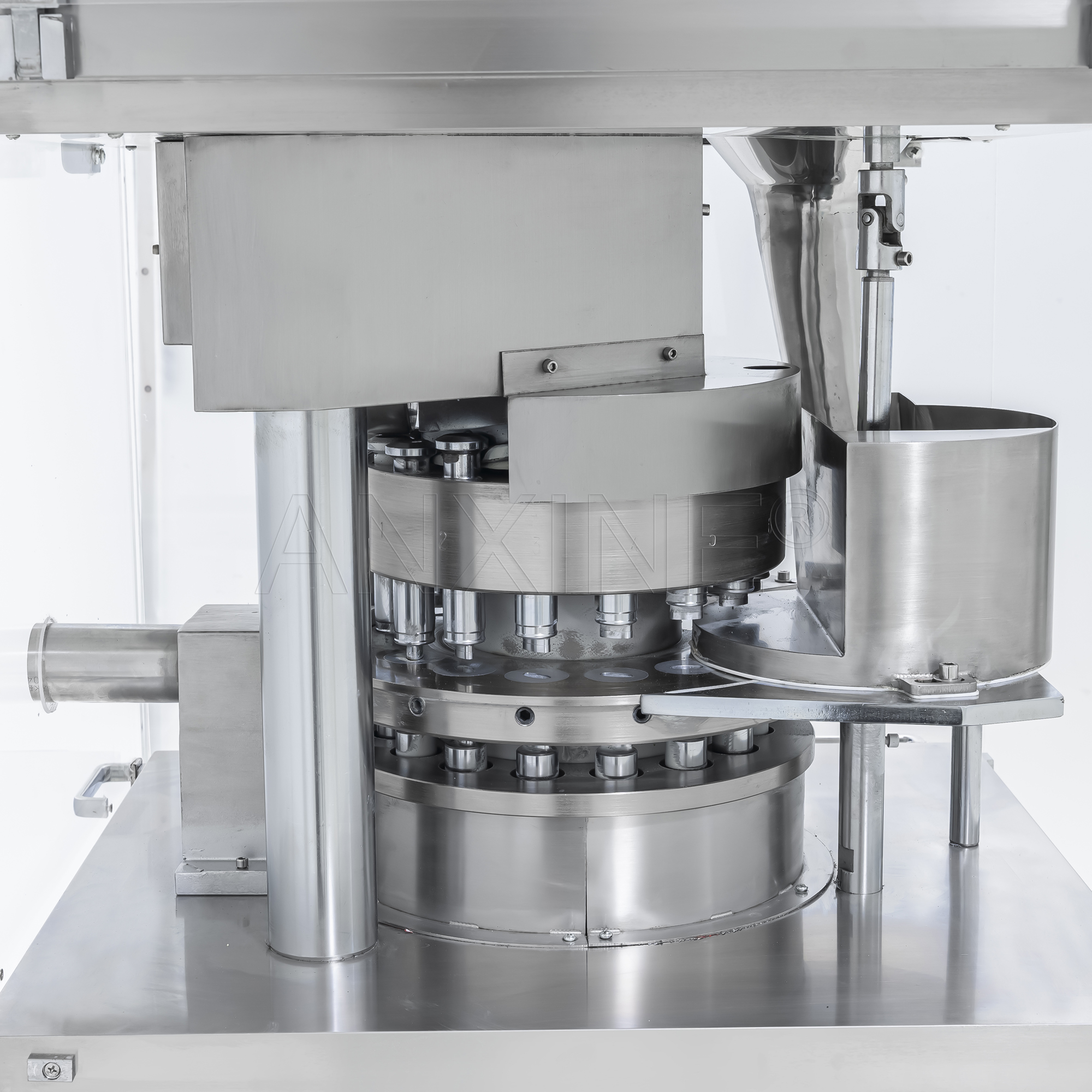

The ZP-D Rotary Tablet Press is a fully automatic machine that works continuously to press tablets. It is used to turn dry, granular materials into tablets. However, it does not work well with semi-solid, wet powders, or very fine non-granular powders. This machine is widely used in the pharmaceutical, chemical, ceramic, food, electronics, plastic, and powder metal industries.
Main Features
- Efficient design: The machine uses rolling friction on the pressing wheels. This helps lower resistance and saves power.

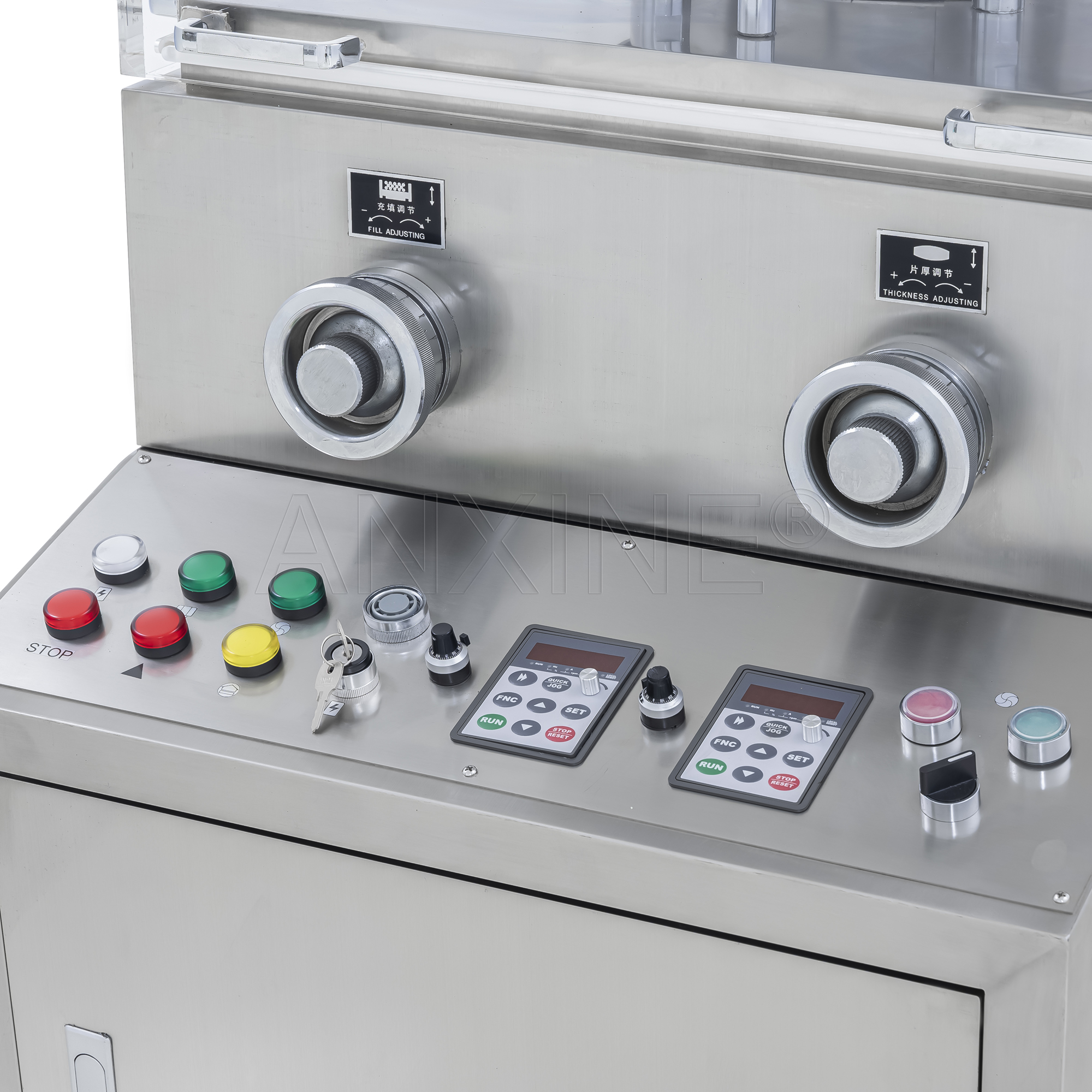

- Easy controls: You can easily adjust the filling amount, tablet thickness, and rotation speed according to your production needs.

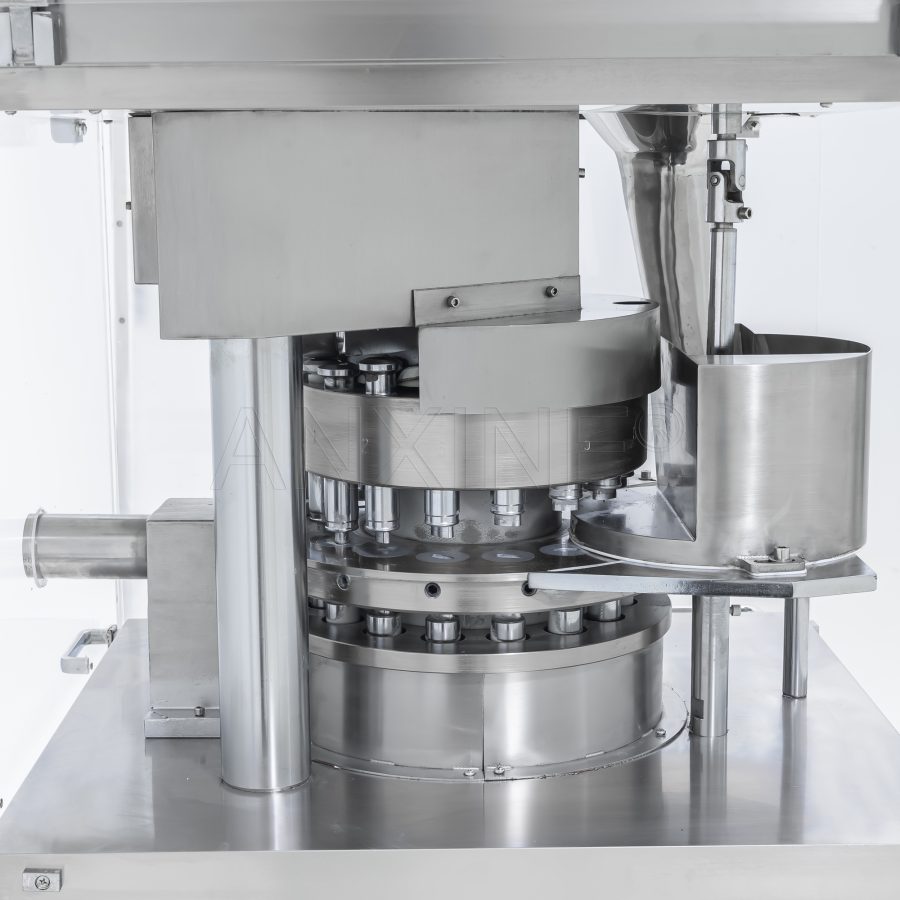

- Clean and safe: The pressing area is fully enclosed and sealed. This stops dust and oil from mixing and keeps the working area clean.
- Dust removal: The machine includes its own vacuum cleaner to collect dust, making the machine run smoothly.
Specifications
| Model | ZP-15D | ZP-17D | ZP-19D | ZP-29D |
|---|---|---|---|---|
| Punch quantity | 15 Set | 17 Set | 19 Set | 29 Set |
| Max Tablet Pressure | 60KN | 60KN | 60KN | 80KN |
| Max Tablet Diameter | 22 mm | 20 mm | 13 mm | 25 mm |
| Max Tablet Thickness | 6 mm | 6 mm | 6 mm | 6 mm |
| Max Filling Depth | 15 mm | 15 mm | 15 mm | 15 mm |
| Max Production Capacity | 35,000 pc/h | 40,000 pc/h | 42,000 pc/h | 12,5000 pc/h |
| Depth of Middle Punch | 22 mm | 22 mm | 22 mm | 22 mm |
| Diameter of Middle Punch | 34 mm | 30 mm | 26 mm | 26 mm |
| Diameter of Upper and Lower Punch | 26 mm | 22 mm | 22 mm | 22 mm |
| Length of Upper Punch | 115 mm | 115 mm | 115 mm | 115 mm |
| Length of Lower Punch | 115 mm | 115 mm | 115 mm | 115 mm |
| Overall Dimensions | Length: 615mm Width: 890mm Height: 1,415mm Weight: 1,000kg |
Length: 615mm Width: 890mm Height: 1,415mm Weight: 1,000kg |
Length: 615mm Width: 890mm Height: 1,415mm Weight: 1,000kg |
Length: 1,230mm Width: 950mm Height: 1,670mm Weight: 1,700kg |
