High Speed Tablet Pill Press Industrial Machine ZP-H
High Speed Tablet Pill Press Industrial Machine ZP-H

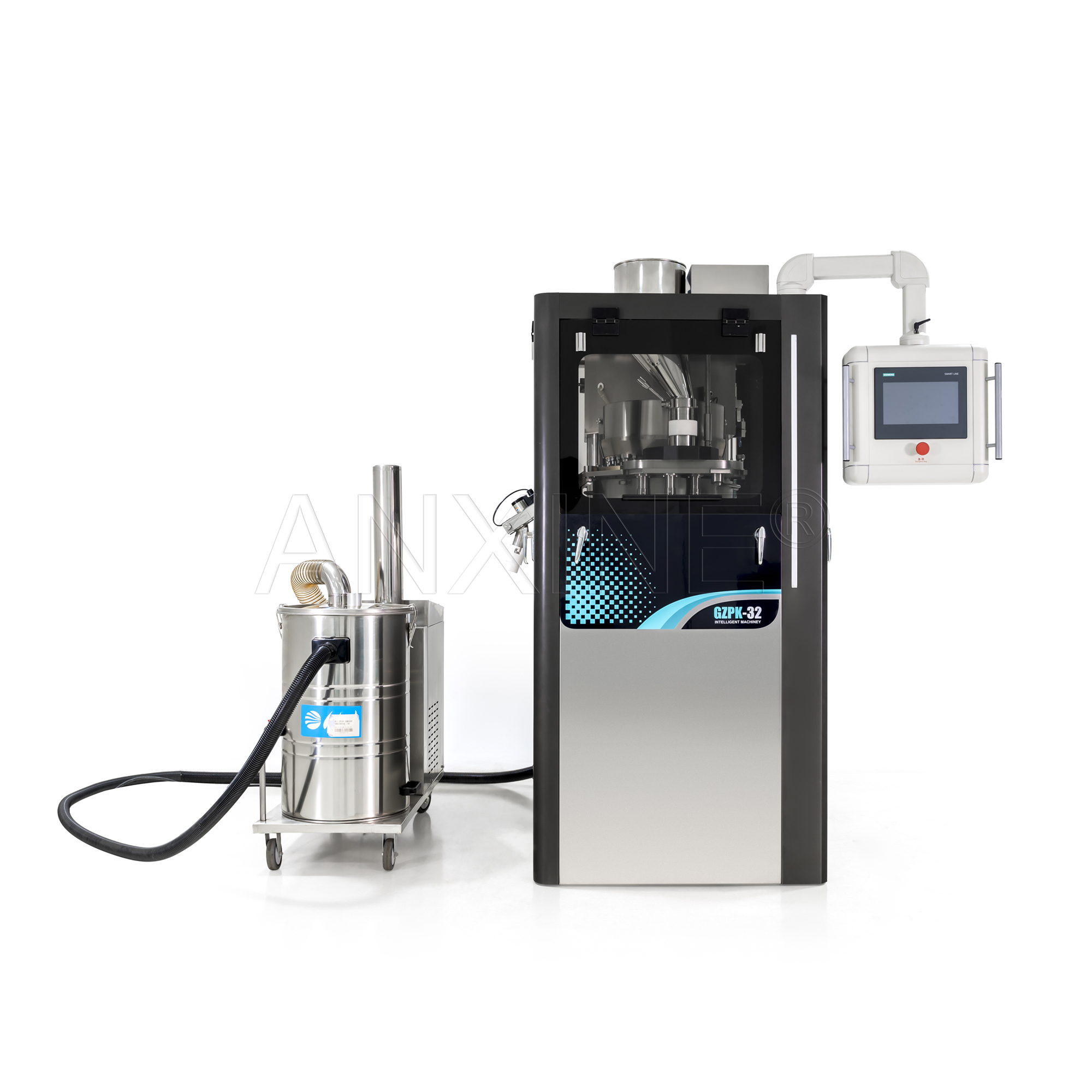

The ZP-H series high-speed rotary tablet press is one of the core products of Anxine Machinery Ltd.co., which is specially designed to meet the modern pharmaceutical industry’s needs for efficient, precise and diversified tablet pressing. This series of machines is known for its excellent performance, flexibility and user-friendly operation interface. It is suitable for mass production of various specifications of solid oral preparations such as tablets, sugar tablets and calcium tablets. Whether it is round or special-shaped tablets, the ZP-H series can provide stable and reliable pressing effects to ensure consistent product quality.
The ZP-H series ensures high efficiency and quality for industrial-scale tablet production, catering to diverse industry requirements.
The high-speed rotary tablet press is a versatile machine primarily used in the pharmaceutical industry but also applicable for chemical, food, electronic, and household products. It presses various particle materials into tablets, producing round and specially shaped tablets, including those with embossed letters on both sides. It’s ideal for large-scale production of medicines, sweets, and supplements like calcium.
Highlighted Features
- Small Batch Production: Perfect for evaluating the tablet-forming capability of granular raw materials.
- Versatile Tablet Shapes: Can press materials with powder content under 10% into round, special-shaped, and lettered tablets ranging from 4 to 12 mm in diameter.
- Wide Application: Suitable for pharmaceutical, chemical, food, and electronic manufacturing.

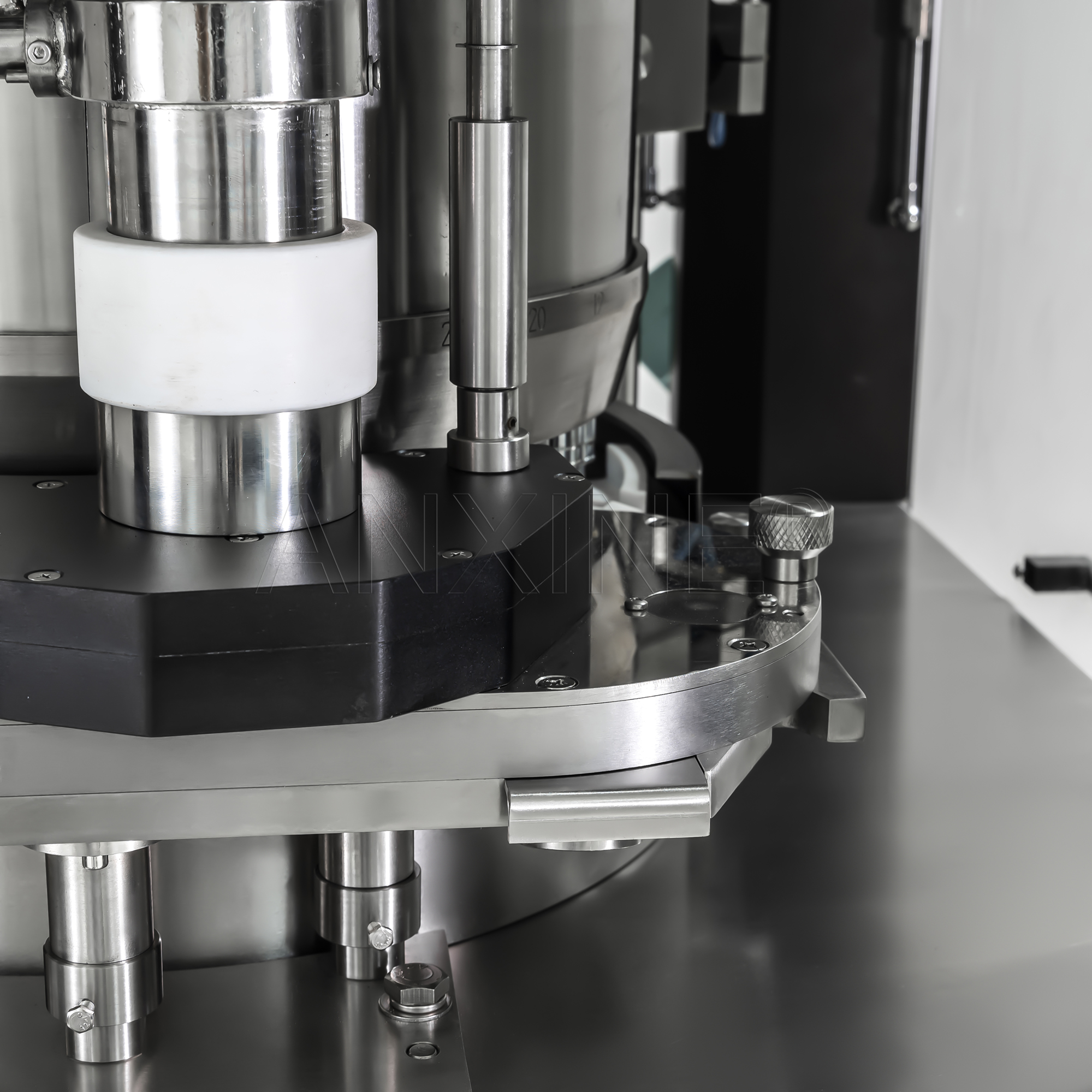

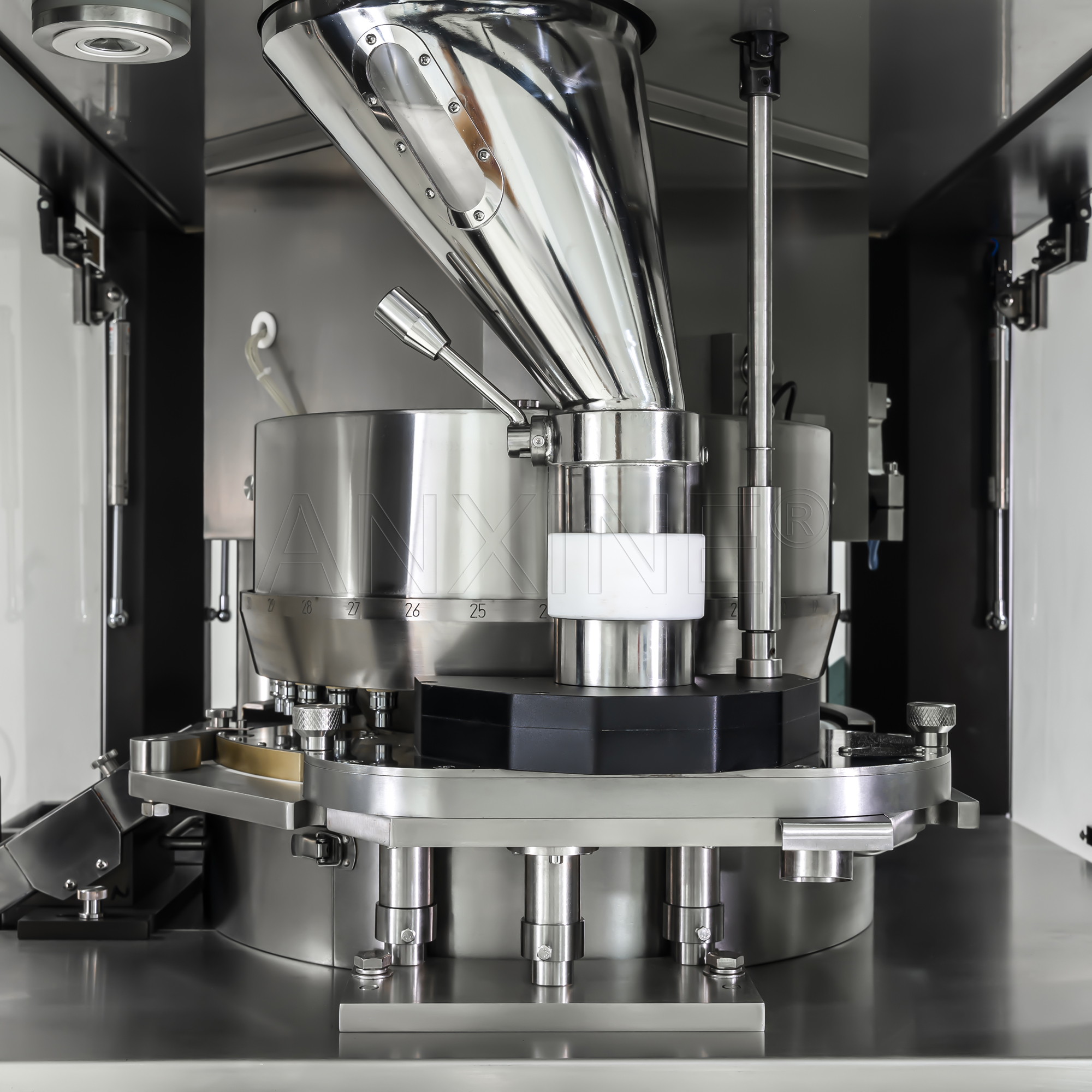

- Turntable Mechanism: Includes upper and lower bearing components, main spindle, and two turnplates with nine evenly distributed punch sets.
- Track Mechanism: Comprises upper and lower tracks and pressing wheels.
- Filling-Adjustment Unit: Adjusts the weight of the tablets.
- Tablet-Thickness Adjustment Unit: An external hand wheel rotates to adjust tablet thickness and hardness via the eccentric shaft.

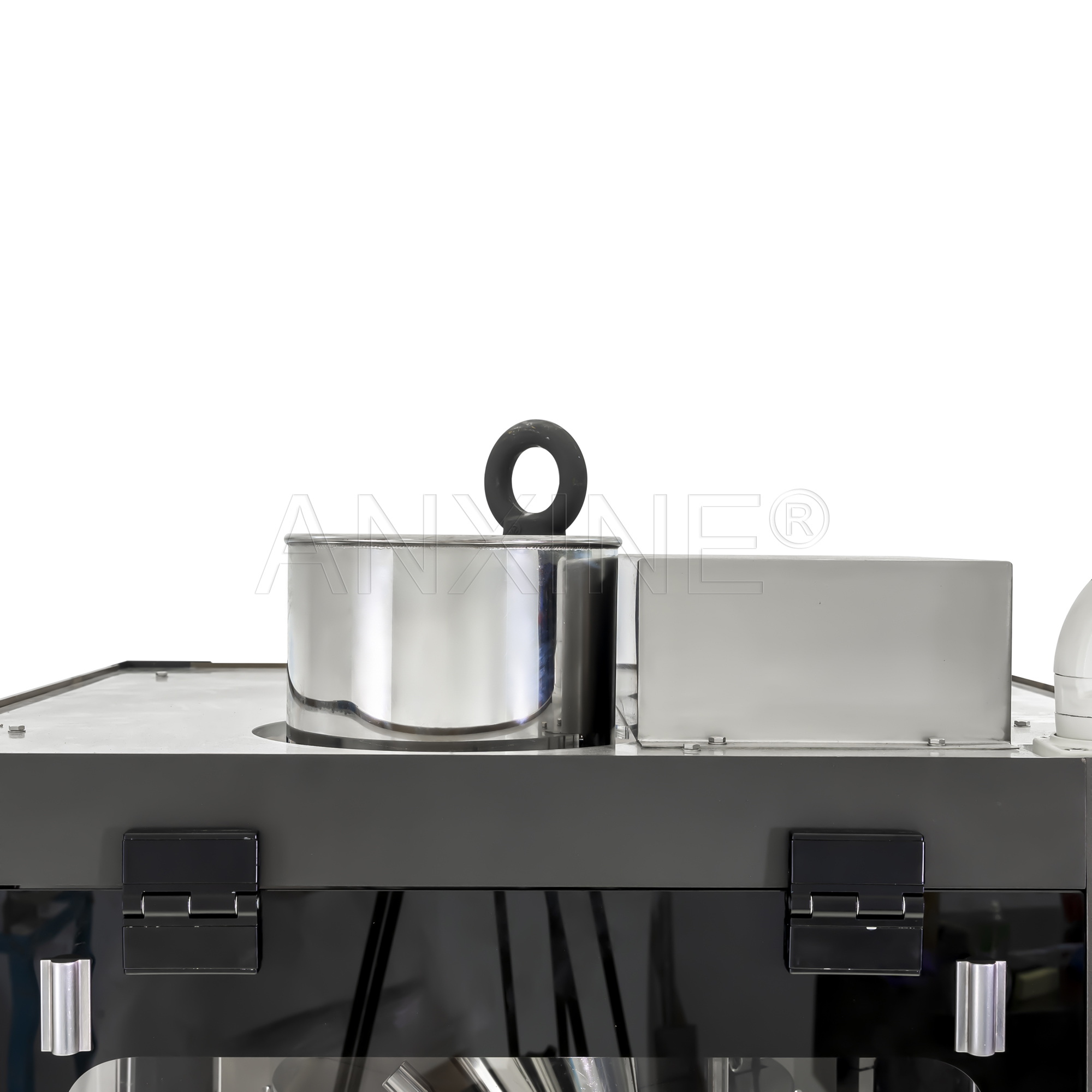

- Feeding Mechanism: The fence-shaped feeder is mounted on the turntable.
- Peripheral Cover: Fully-sealed stainless steel design for easy cleaning and maintenance.
| Model | ZP-26H | ZP-32H | ZP-40H |
|---|---|---|---|
| Dies | 26 | 32 | 40 |
| Max Output | 160,000 pcs/h | 210,000 pcs/h | 260,000 pcs/h |
| Max Tablet Pressure | 80 KN | 80 KN | 100 KN |
| Max Tablet Diameter | 25 mm | 16 mm | 13 mm |
| Max Depth of Filling | 20 mm | 16 mm | 16 mm |
| Overall Dimensions | Length: 1,120mm Width: 930mm Height: 1,900mm Weight: 1,650kg |
Length: 1,120mm Width: 930mm Height: 1,900mm Weight: 1,650kg |
Length: 1,120mm Width: 930mm Height: 1,900mm Weight: 1,650kg |
