Vertical Form Fill Seal Machine (VFFS)

Automated packaging equipment integrating pouch forming, product filling, and heat sealing for powders, granules, solids, and liquids in pharmaceutical and food production.

Vertical Form Fill and Seal Machine for Industrial Packaging

Often shortened to VFFS, a vertical form fill seal packaging machine is widely used in the packaging industry. It converts flat roll stock into bags, fills products using gravity, and supports various sealing styles. It’s also known as a vertical bagger, and its compact design helps maximize floor space and continuous production throughput.

New to VFFS technology? Anxine machines are designed to be easy to operate from the start. Our intuitive touchscreen interface includes built-in diagnostics that pause the machine during film or product shortages, helping reduce waste. Some high-speed models can achieve up to 70 pouches per minute, enabling efficient, high-volume packaging.

Request a Quote Get Catalog

Explore Anxine VFFS Packaging Equipment Solutions

Equipped with dedicated dosing systems, our versatile VFFS lineup handles powders, liquids, and granules, ensuring precise filling and hermetic sealing for your products.

Automatic Powder Packing Machine DXD-80P

The DXD-80P 3 side seal packaging machine efficiently creates high-quality pouches from roll film. Get consistent, cost-effective packaging for food, pharma, and more, boosting your in-house production.

Automatic Liquid Packing Machine DXD-80L

Automate your liquid pouch line. The DXD-80L delivers high-speed, accurate filling and sealing for various liquids. Perfect for boosting efficiency and consistent quality in high-volume settings.

Automatic Powder Packing Machine DXD-300F

The DXD-300F automatic powder packing machine offers precise, dust-free powder filling for various bags. Achieve high-volume, consistent packaging for food, chemicals, and more.

Automatic Powder Packaging Machine VFSS-50P

Go from film roll to perfectly sealed packages, automatically. The VFSS-50P automatic VFFS machine integrates bag creation, precise filling, and robust sealing for diverse goods. Elevate your packaging capabilities.

Vertical Packing Machine VFSS-520P

Maximize adaptability with the VFFS-520P packing machine. Expertly pack various products into a range of bag styles, ensuring efficient, automated, and precise vertical packaging.

What Sets Anxine Vertical Packaging Machines Apart

Our VFFS machines come in a true modular architecture. Acting as a universal base, each model allows for rapid changeovers across a range of functional modules for handling different materials and packaging styles.

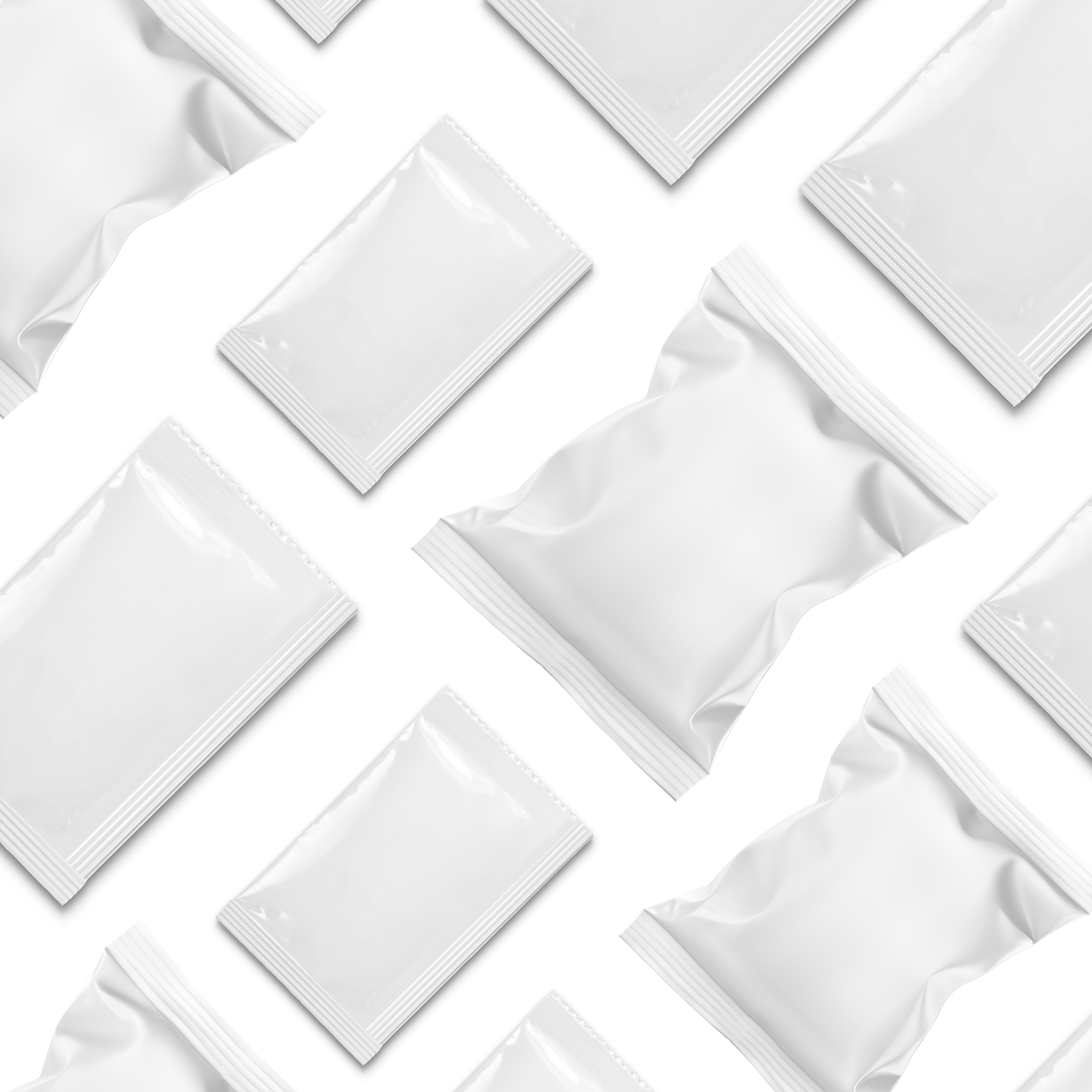

Diverse Seal Style & Pouch Formats

Supports back-seal, 3-sided-seal, and 4-sided-seal configurations. Optional gusseting allows you to produce spacious stand-up bags.

Universal Dosing Integration

Filling heads can be swapped to work with piston pumps, augers, or multi-head weighers to enable handling of liquids, powders, granules, or solid products on a single machine.

Consumer-Ready Customization

Customize your output with modular tear-notch cutters, thermal batch coders, and integrated gas flush systems to meet your packaging needs.

100% Food-Grade Stainless Contact

All product-contact parts are made from premium stainless steel and non-toxic plastics, rigorously satisfying strict food and pharmaceutical hygiene standards.

Technical Specifications

Model	DXD-80P	DXD-80L	DXD-300F	VFFS-50P	VFFS-520P
Sealing Style	Back-seal & 3-sided seal	Back-seal & 3-sided seal	Back-seal	Vertical seal & horizontal seal	Vertical seal & horizontal seal
Output	20-40 pouches/min	30-60 pouches/min	20-40 pouches/min	Up to 60 pouches/min	5-70 pouches/min
Pouch Length	50-140 mm	50-120 mm	30-160 mm	50-200 mm	80-360 mm
Pouch Width	30-80 mm	40-80 mm	80-150 mm	50-150 mm	90-250 mm
Filling Range	1-20 g, 20-50 g	1-20 ml, 20-50 ml	30-100 g	1-100 g	150-2500 ml

Quick VFFS Bagging Machine Selection Guide

How do you choose the right VFFS system? Start with your material, dosing needs, and pouch format, then use the matrix below to narrow down the right solution.

Selection Criteria	Packaging Requirements	Recommended Model(s)
Material Type	Powders and fine particles	DXD-80P / DXD-300F / VFFS-50P / VFFS-520P
	Liquid or viscous pastes	DXD-80L / VFFS-50P / VFFS-520P
	Granules and irregular solids	VFFS-50P / VFFS-520P
Filling Volume	Small-dose powders or liquids (1-50 g / 1-50 ml)	DXD-80P / DXD-80L
	Mid-dose powders or liquids (50-100 g / 50-100 ml)	DXD-300F / VFFS-50P
	High-volume or weight (150-2500 ml)	VFFS-520P
Pouch Format	Basic back seal or center seal	DXD-300F
	Flexible sealing styles	DXD-80P / DXD-80L / VFFS-50P / VFFS-520P
	Stand-up gusseted bags	VFFS-520P

Build Your Own VFFS: Custom Upgrades & Configurations

Anxine offers comprehensive modular upgrades and bespoke engineering services to tailor the system to your application.

Pouch & Seal Configurations: Customized forming collars for back, 3-sided, or 4-sided seals. Additional tools to make gusseted bags.

Advanced Cutting Solutions: Tear-notch blades for easy opening, perforation jaws for chain bags, and custom die-cutters for unique pouch shapes.

Process Integrations: Can be added with batch coding, gas flushing, outfeed conveyors, and advanced HMI touchscreens.

How Vertical Form Fill Seal Baggers Work

VFFS packaging follows a top-down process. Here’s how it works step by step:

Step 1. Film Unwinding & Feeding

The roll stock is unwound by the servo motor and passes over dancer rollers into the machine. A photoelectric sensor tracks registration marks to align the film.

Step 2. Bag Forming

The film then travels over the forming collar, which folds it into a vertical tubular shape around the filling tube.

Step 3. Vertical Sealing

Longitudinal jaws apply heat and pressure to the overlapping film edges to create a back seal.

Step 4. Bottom Sealing

Cross-heating jaws clamp the bottom of the film tube to form the pouch’s bottom.

Step 5. Product Filling

The synchronized dosing system fills a precise amount of product into the partially formed pouch.

Step 6. Top Sealing

The horizontal jaws close again to seal the top of the filled bag. This seal is also the bottom seal for the next bag.

Step 7. Cutting & Output

A built-in blade cuts the finished pouch from the film tube. The pouch is then discharged into a collection bin or onto a conveyor for downstream handling.

FAQs about Vertical Form Fill Seal Machines

Q: What is a VFFS machine?

A Vertical Form Fill Seal machine is an automated system that forms film into a pouch, fills it with product, and seals it within one continuous vertical motion.

Q: What products can a VFFS machine package?

It’s designed to pack free-flowing goods. You can swap the filling head to handle powders, granules, solid chunks, and even liquids or viscous pastes.

Q: What packaging film works on VFFS equipment?

The machine is compatible with heat-sealable PET, foil laminates, and PE blends. It’s equipped with a PID temperature controller that ensures leak-proof seals across different film thicknesses.

Q: What types of bags can VFFS machines make?

Standard configurations produce classic pillow bags. With specific modular upgrades, they can also form gusseted pouches, flat pouches, stick packs, and chained bags.

Q: What is the difference between VFFS and HFFS?

VFFS operates vertically. It uses gravity to drop flowable materials into forming pouches. HFFS runs horizontally along a flat track. It’s better suited for solid, individual items.
