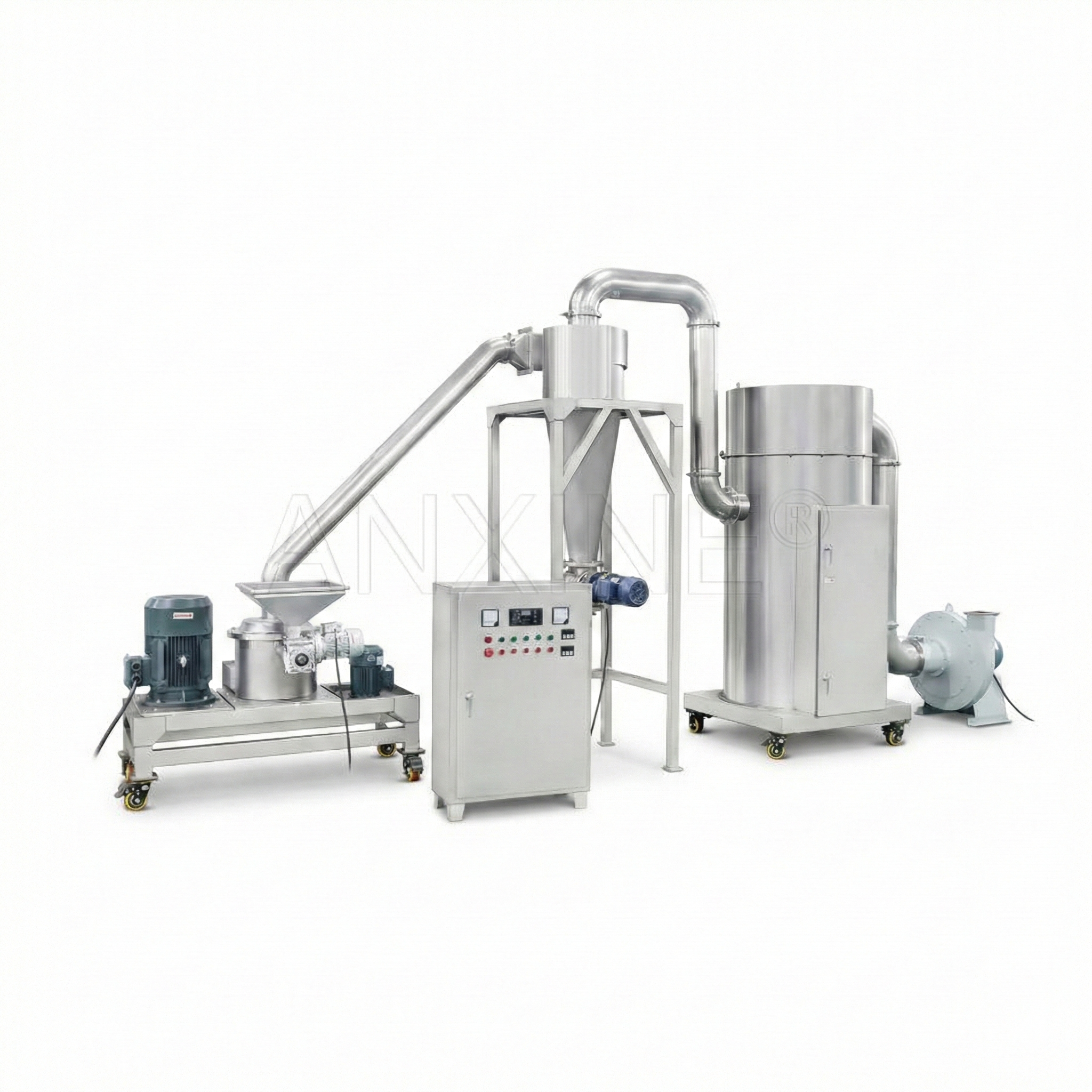

Superfine Grinder CF-15
Superfine Grinder CF-15 for Precise Particle Control
The Superfine Grinder CF-15 is advanced equipment designed for achieving superfine grinding of dry materials through air separation, heavy pressure grinding, and shearing, ideal for industries needing precise particle size control. Materials are fed into the grinding chamber via an auger conveyor and processed by high-speed rotating blades that shear and crush them.
The resulting fine particles are then transported using wind force from negative pressure to a cyclone separator and bag-type dust collector. Comprising a main machine, cyclone separator, and pulse dust collector, this grinder features air sorting with even particle size distribution and operates without a sifter. Its continuous production process ensures efficiency and consistency, making it suitable for heat-sensitive materials in pharmaceutical, chemical, and food industries without causing overheating.and food industries.
The Superfine Grinder CF-15 is designed for achieving superfine grinding of dry materials through air separation, heavy pressure grinding, and shearing. This advanced equipment is ideal for industries requiring precise particle size control.
Highlighted Features

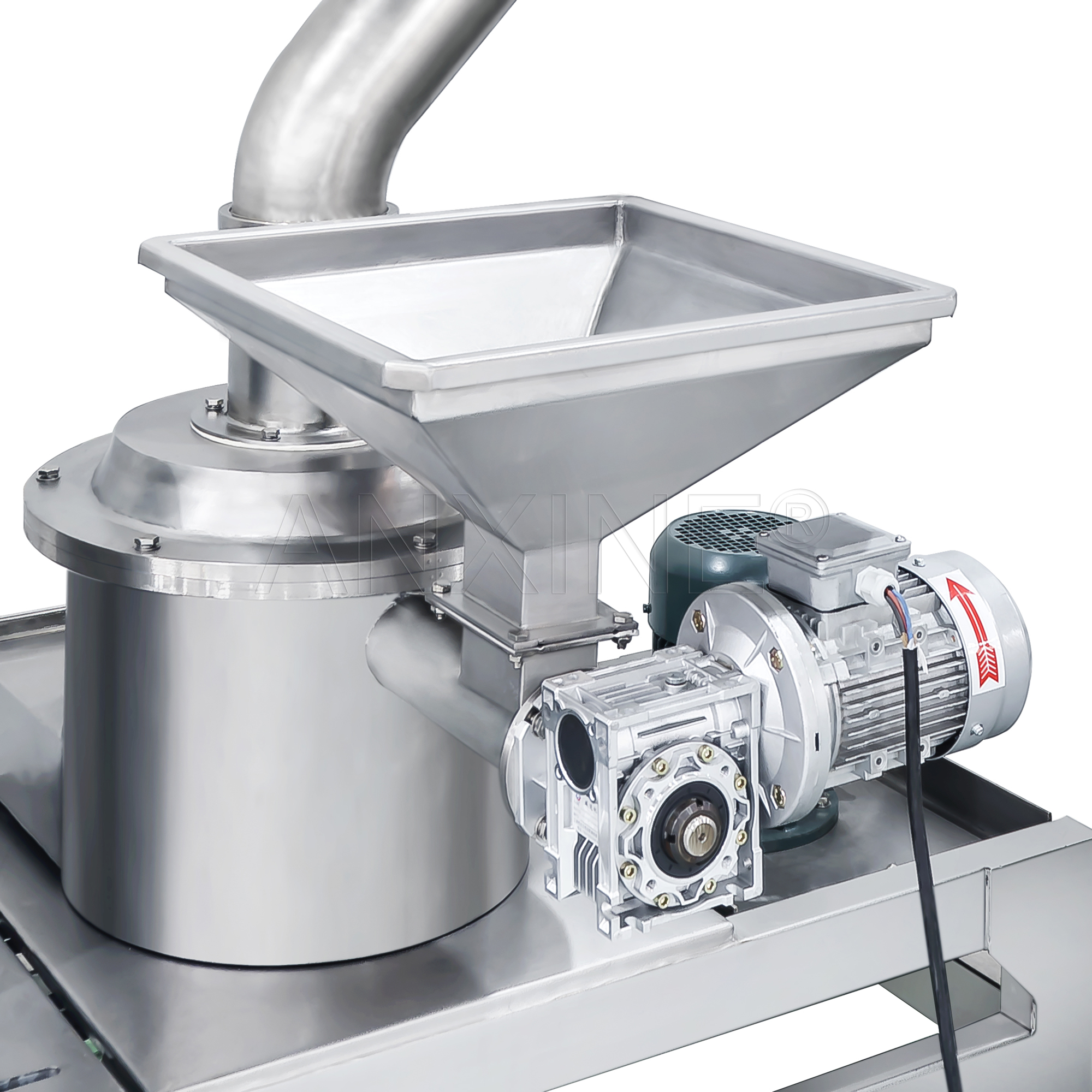

- Smashing Bin: Features a small screw feeder for even and controllable feed speed.
- Cyclone Separator: Separates dust from powder with a discharge valve for uniform discharge. Made of 304 stainless steel for easy disassembly.

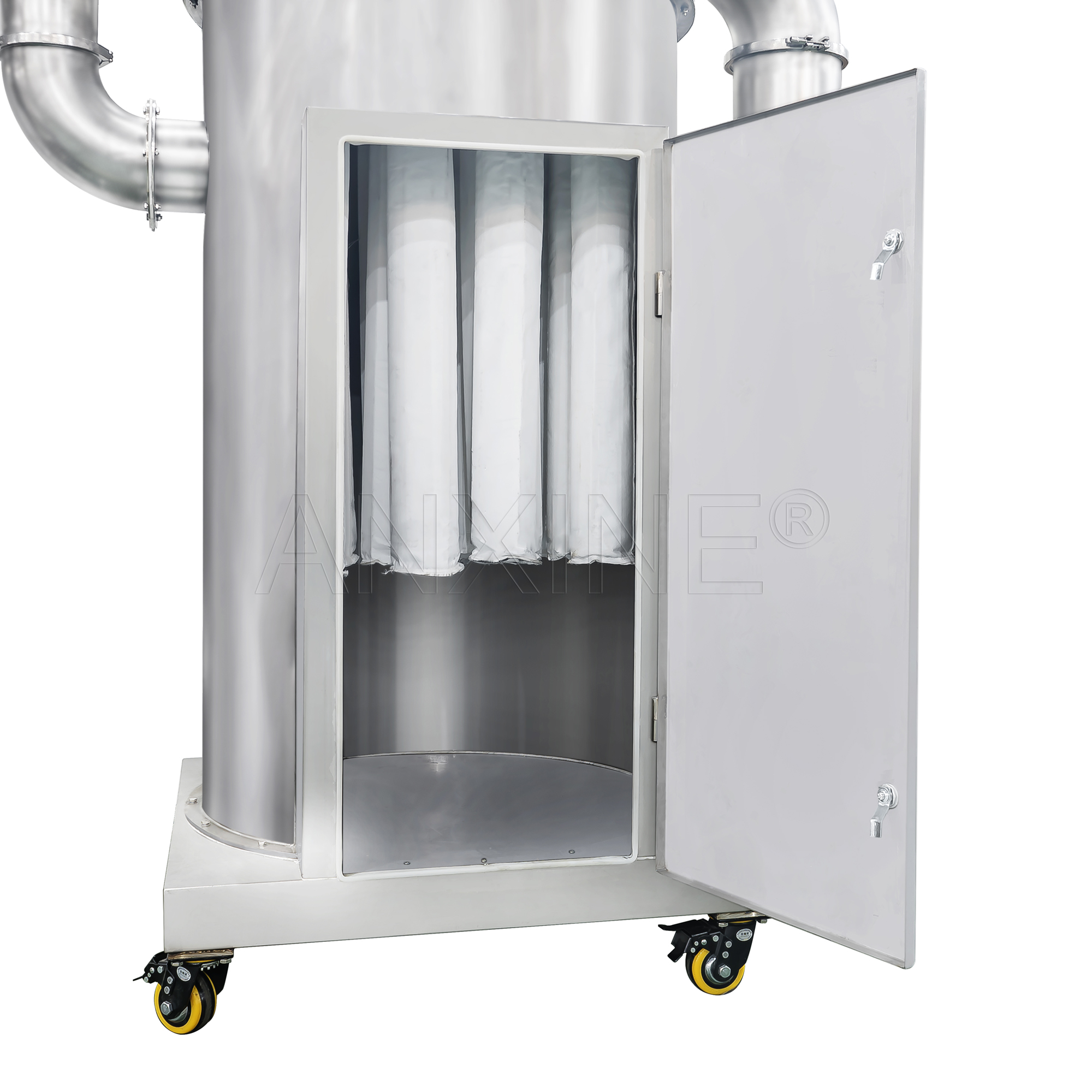

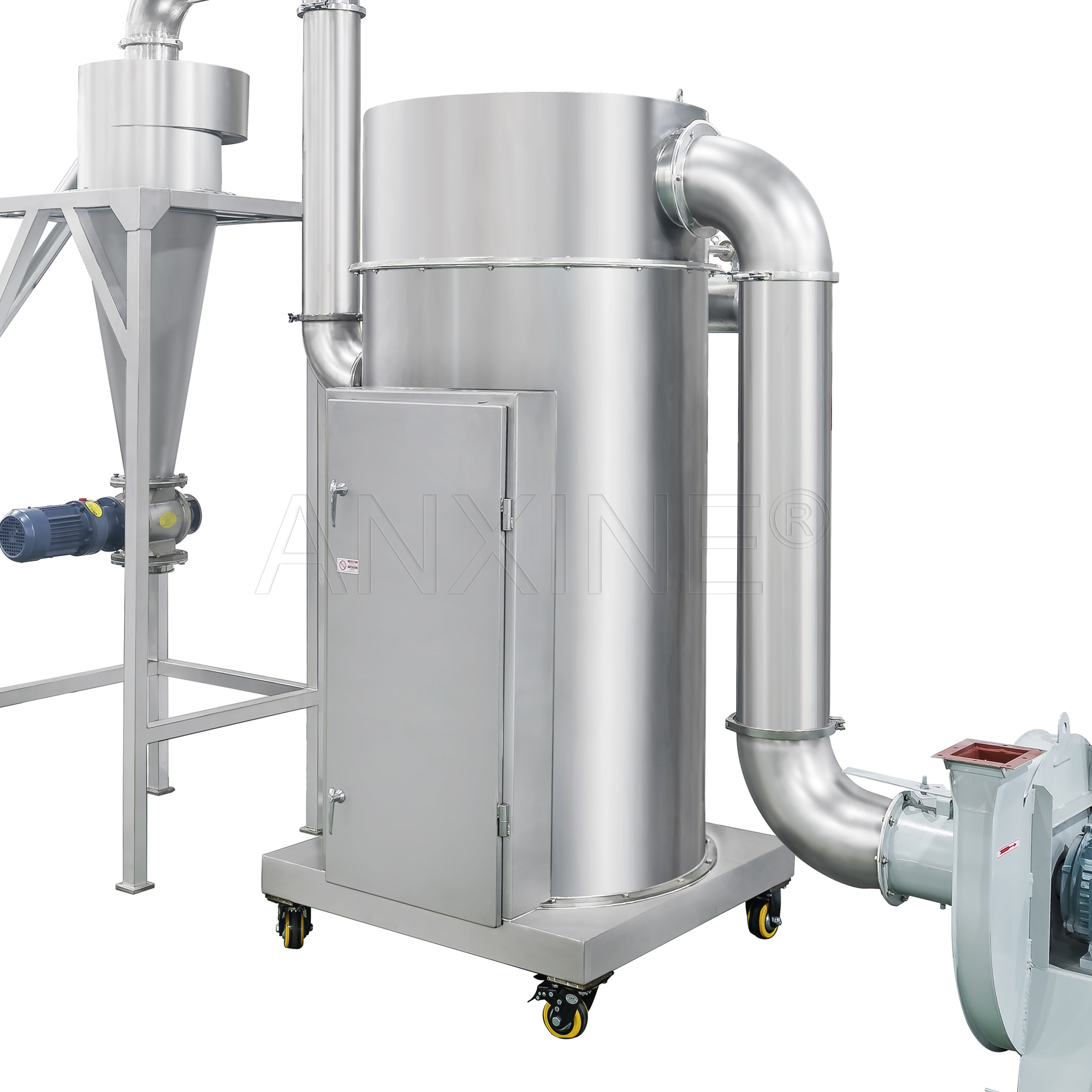

- Pulse Dust Collecting Box: Contains multiple food-grade bags with an outer frame of 304 stainless steel, ensuring easy cleaning.

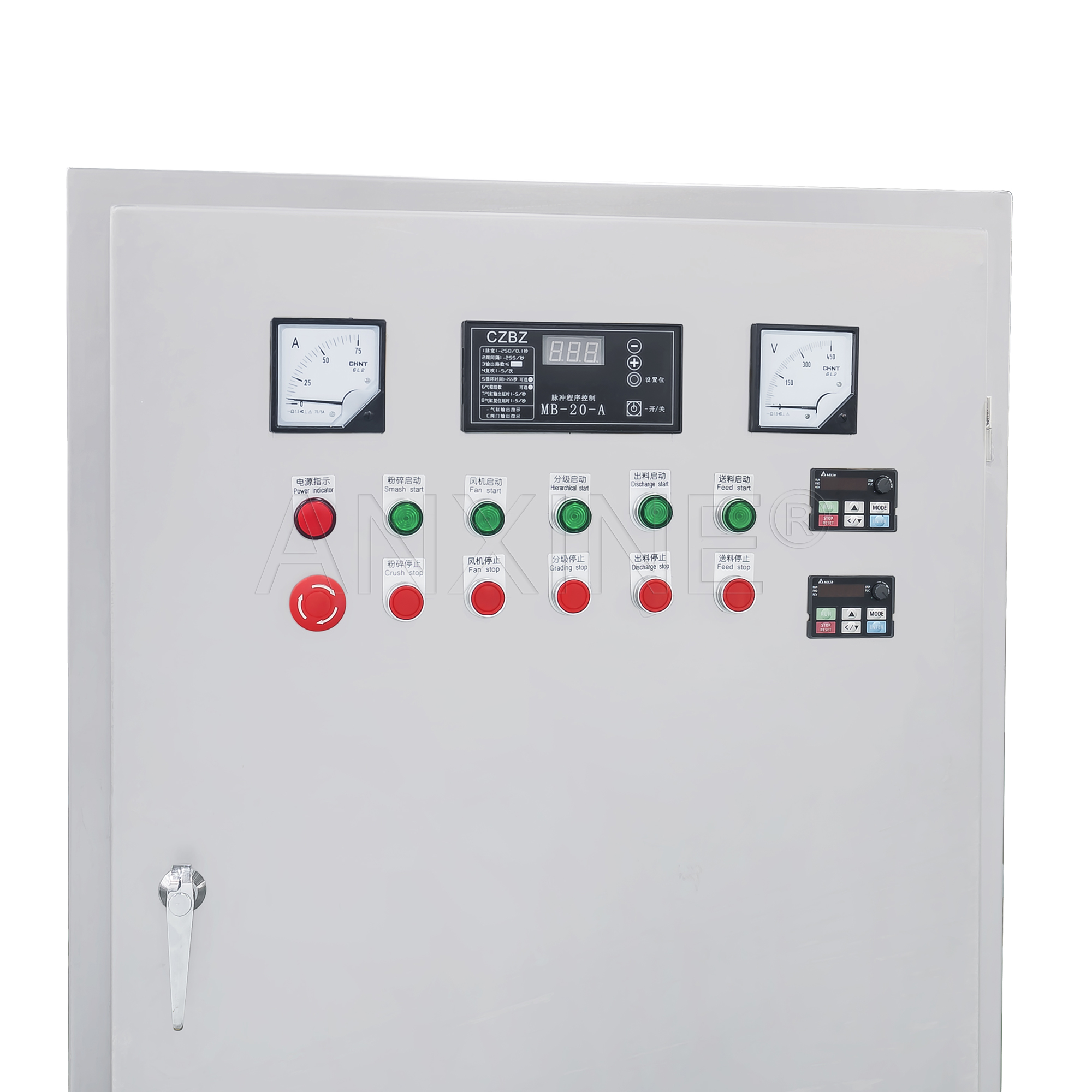

- Electric Control Box: Operates the device with customizable controls, including button or touch screen options.
| Model | CF-15 |
|---|---|
| Feeding Motor | 4 kW |
| Screen Aperture | 0.55 kW |
| Material Discharging Motor | 0.75 kW |
| Fineness of Finished Product | 80~320 |
| Production Capacity | 40~200 kg/h |
| Dimensions | 4,000×1,200×2,700 mm |
