Tablet Coating Machine

Tablet coating machines add the final touch to the solid dosage forms. They apply uniform coatings and support fast drying to improve drug stability and appearance.

Tablet Coating Solutions for Versatile Applications

Precision atomization and efficient drying are at the heart of our tablet coaters. To accommodate diverse production needs, we provide a versatile lineup that includes conventional coating pans and automatic pan coaters. Each system is developed to deliver a clean, uniform finish for every batch.

With fast and consistent coating performance, our tablet coating equipment can process up to 150 kg per batch. The integrated PLC control system also allows each unit to handle both film coating and sugar coating efficiently.

Request a Quote Get Catalog

Types of Tablet Coating Machines

Matching the right technology to your specific product and batch volume is effortless with our comprehensive range of pan coaters.

Tablet Coating Machine ATC Type

Transform your tablets with a perfect, consistent finish using the ATC-type tablet coater. This equipment ensures superior product quality, enhanced stability, and precise release profiles for your pharma formulations.

Efficient Coating Machine ATC Pro

Try the efficient coating machine ATC Pro, the latest technology in pharmaceutical coating. This advanced system was designed to be precise and efficient. It sets a new standard for the quality and performance of tablets.

Why Choose Anxine Tablet Coaters

Beyond taste masking and coloring, many formulations require functional coatings like enteric protection or controlled release. To coat tablets efficiently, you need a coating machine that’s both versatile and high-performing. That’s where Anxine can help.

Full Range of Pan Styles

Conventional and perforated coating pans accommodate the specific processing requirements of various products.

Uniform Finish Mastery

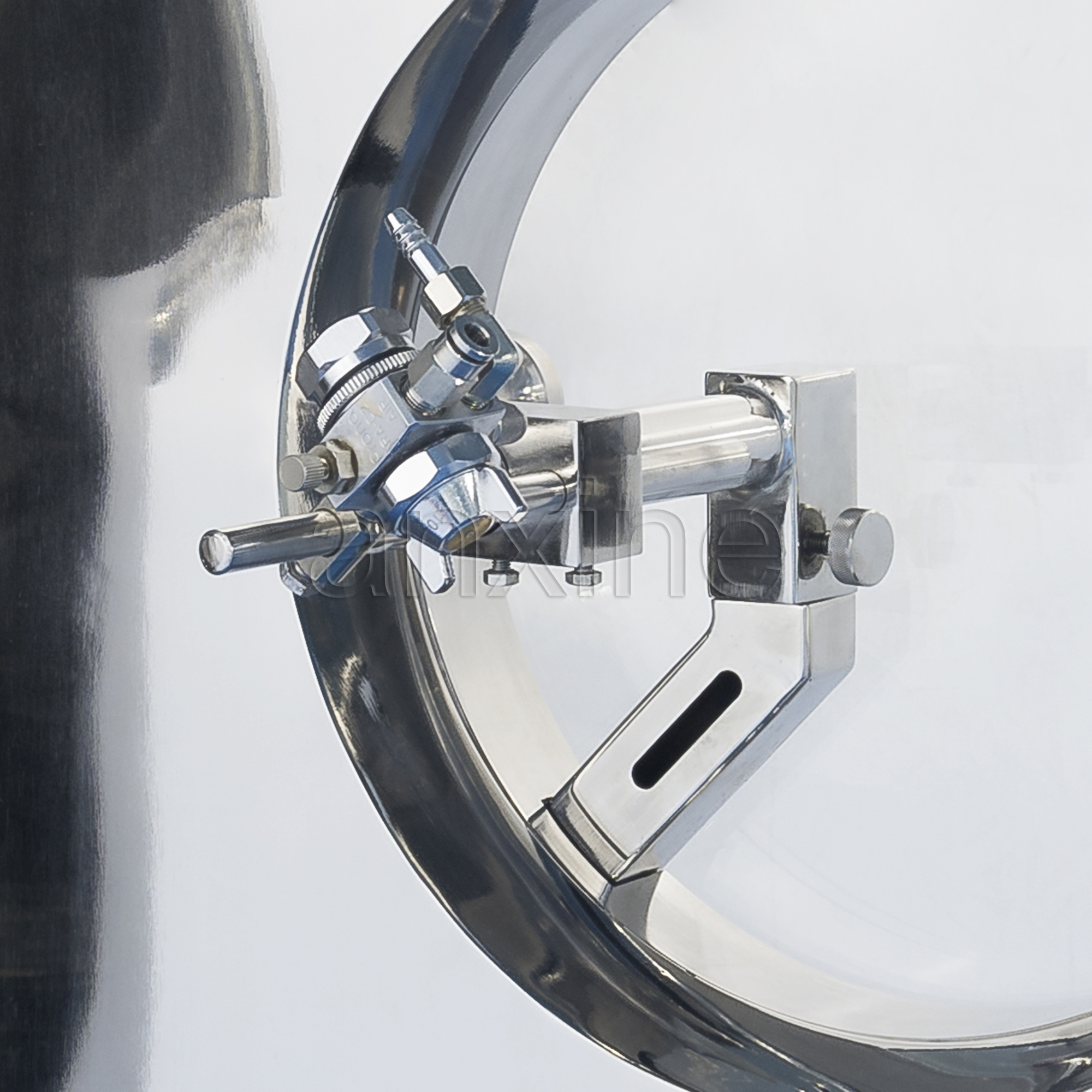

Adjustable drums and high-precision sprayer systems ensure an exceptionally smooth, consistent coat on every tablet.

Optimized Operational Value

Simple coating pan maintenance and minimized material waste significantly lower the total cost of ownership.

Global Compliance Standards

A diverse model range meets current safety and quality standards across any facility scale.

Applications & Industries

Our tablet coating machines are versatile and highly efficient. Each model supports both sugar and film coating processes. Whether you’re developing new products or running small-batch trials, you can get professional coating results.

Pharmaceuticals

Film-coated tablets, enteric-coated dosages, sugar-coated pills, sustained-release formulations.

Nutraceuticals & Supplements

Multivitamins, mineral tablets, herbal extract pills, dietary supplements.

Confectionery & Food Industry

Functional candies, coated chewing gums, roasted nuts, dried fruits.

Chemical & Laboratory Research

Catalyst pellets, experimental trial batches, pilot-scale formulations.

The Tablet Coating Process at a Glance

There are two common tablet coating methods: sugar coating and film coating.

Sugar Coating

Tablets tumble in the pan while getting coated with several syrup-based layers until the surface turns smooth and shiny. The downside is that this method is typically slow and labor-intensive.

Film Coating

A spray gun applies a thin coating solution onto the tablet surface. At the same time, hot air dries it quickly to form a clear protective film. Compared with sugar coating, film coating is faster and usually more cost-effective.

Technical Specifications

Model	ATC-300	ATC-400	ATC-600	ATC-800	ATC-1000	ATC-1250	ATC Pro-5
Production Output	1-3 kg/cycle	2-5 kg/cycle	8-15 kg/cycle	30-50 kg/cycle	50-70 kg/cycle	80-150 kg/cycle	–
Pan Rotation Speed	0-46 r/min	0-46 r/min	0-32 r/min	0-32 r/min	0-32 r/min	0-28 r/min	0-30 r/min
Drum Working Volume	1 L	1 L	5 L	8 L	10 L	20 L	Φ300/1 L Φ380/3 L Φ480/5 L
Equipment Weight	49 kg	50 kg	150 kg	280 kg	300 kg	500 kg	750 kg

Your Quick Selection Checklist

Use this checklist to find the Anxine tablet coater that suits your specific coating requirements.

Features	ATC-300/400	ATC-600/800	ATC-1000/1250	ATC Pro-5
Solid Coating Pan	✔	✔	✔
Perforated Coating Pan				✔
R&D or Small-Scale Trials	✔			✔
Mid-Scale or Large-Scale Manufacturing		✔	✔
Standard Film & Sugar Coating	✔	✔	✔	✔
Water-based & Solvent-based Options	✔	✔	✔	✔
High-Volume Air Handling				✔
Adjustable Spray Nozzles	✔	✔	✔	✔
Interchangeable Drum System				✔
Fully Enclosed Design				✔
Explosion-Proof Design for Organic Solvents				✔

Compatible Upstream & Downstream Equipment

Link your tablet coater to the right pre- and post-processing machinery.

Tablet Press Machine

Tablet press machine is a specialized machine for producing tablets and pills.

Tablet Deduster

Tablet dedusters are designed for removing unwanted dust and edge burrs from newly produced pharmaceutical and nutraceutical tablets and capsules.

Pharmaceutical Metal Detector

Our pharmaceutical metal detectors are designed to detect and remove metal contaminants from tablets, capsules and powders. It is ideal for ensuring the quality of pharmaceutical products.

Pill Counting Machine

Automate your bottling process with our counting machines. Accurate, reliable, and suitable for pills in all sizes.

Blister Packaging Machine

Blister packaging equipment works well with ALU-PVC and ALU-ALU blisters, suitable for packing tablets, capsules, and softgels. It is always applied in pharmaceutical and supplement production.

FAQs on Tablet Coating

Q: What types of coatings can your machine handle?

Our machines are engineered to handle all major coating techniques, from standard sugar and film coating to complex enteric formulations. Some models can also work with aqueous (water-based) and organic solvent-based coating solutions.

Q: How do you make sure every tablet gets an even coating?

Our coating pans use advanced spray gun setups and adjustable spray patterns to apply a uniform coating across every tablet. Each model is PLC-controlled so you can fine-tune airflow, temperature, and spray rate with precision.

Q: How many tablets can the machine coat per batch or per hour?

The ATC series coating pans are now available in six models. They support batch capacities from 1 kg to 150 kg. The range covers both small batches and commercial-scale production. Our ATC Pro series can also integrate with your existing equipment to improve efficiency across the whole line.

Q: How easy is it to clean and maintain the machine?

We design our coating systems for long-term value and easy operation. Daily upkeep is simple, and just follow the manual provided. Key parts, like the coating drum, are built for quick replacement without special tools. We also provide complete training for your team, plus 24/7 technical support.
