Compact V Type Powder Mixer
Compact V Mixer Machine for Pharma Use

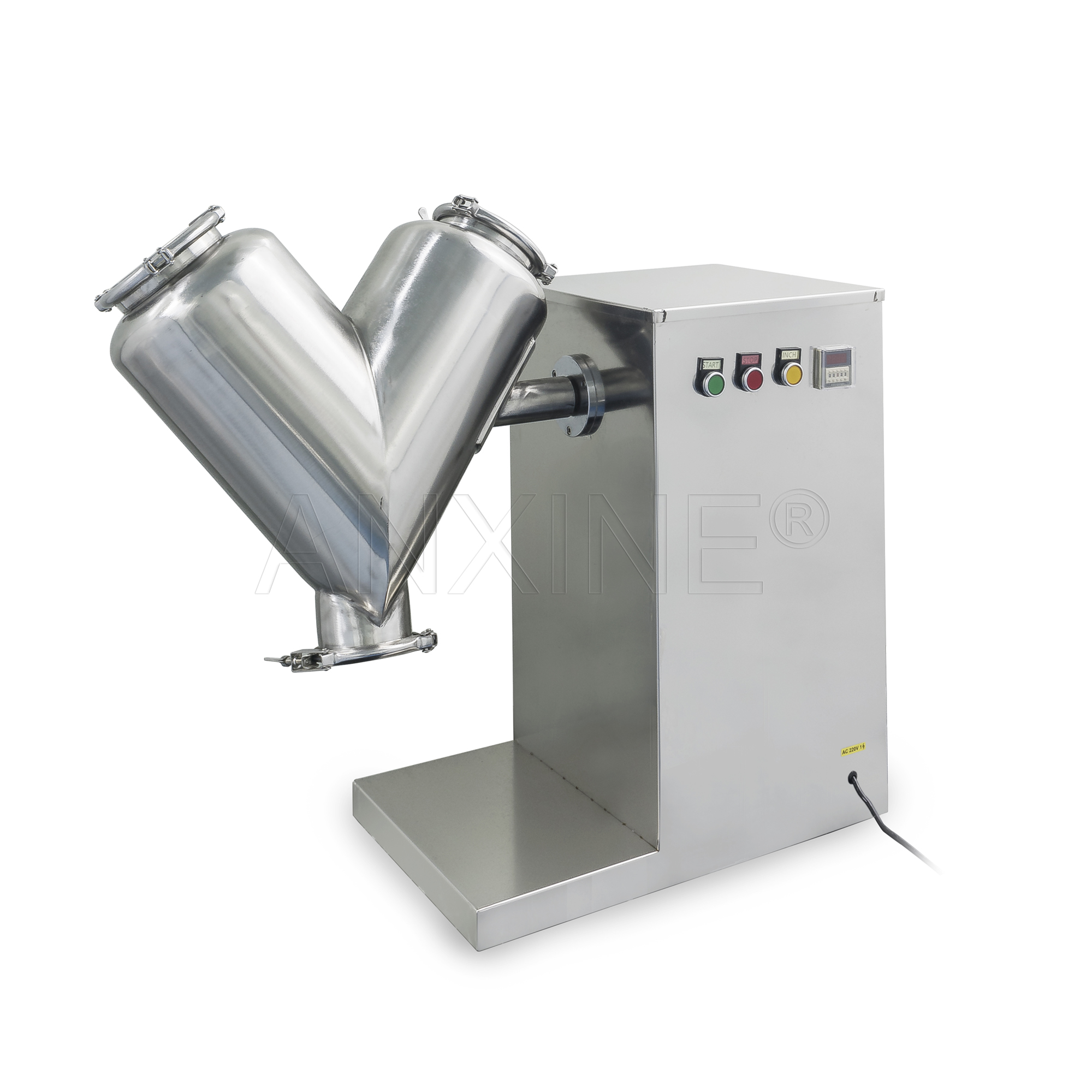

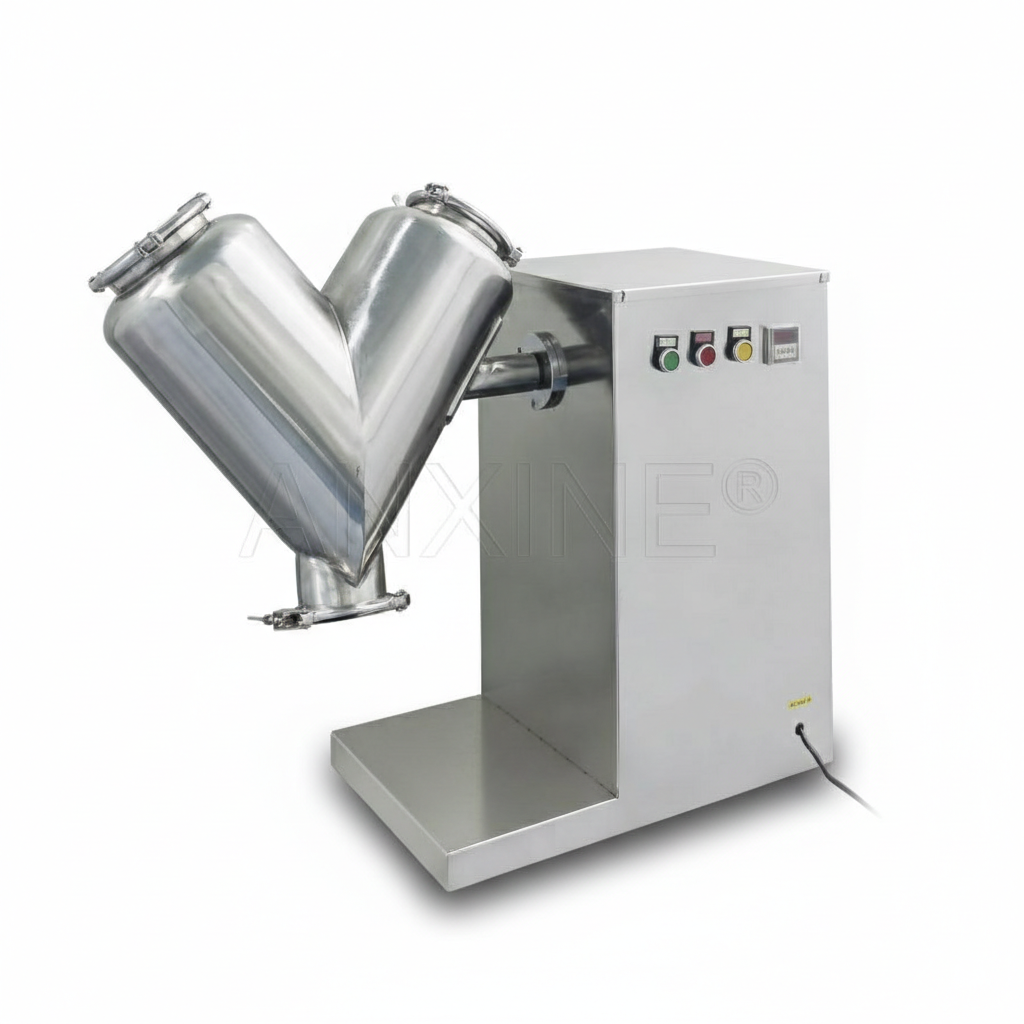

The V-20 Mixer is designed to blend dry powders and granules in the pharmaceutical, chemical, and food industries. Its simple structure and compact size make it ideal for small-scale production and laboratory use. The V-20 uses a V-shaped mixing barrel for even distribution of materials. The machine operates through a motor and a reducer system. They enable gentle but thorough mixing. This design helps protect fragile particles from damage during the mixing process.
Description
Built with stainless steel contact parts that meet CGMP standards, the V-20 ensures hygiene and corrosion resistance. It supports various uses of powder mixing.
Highlighted Features

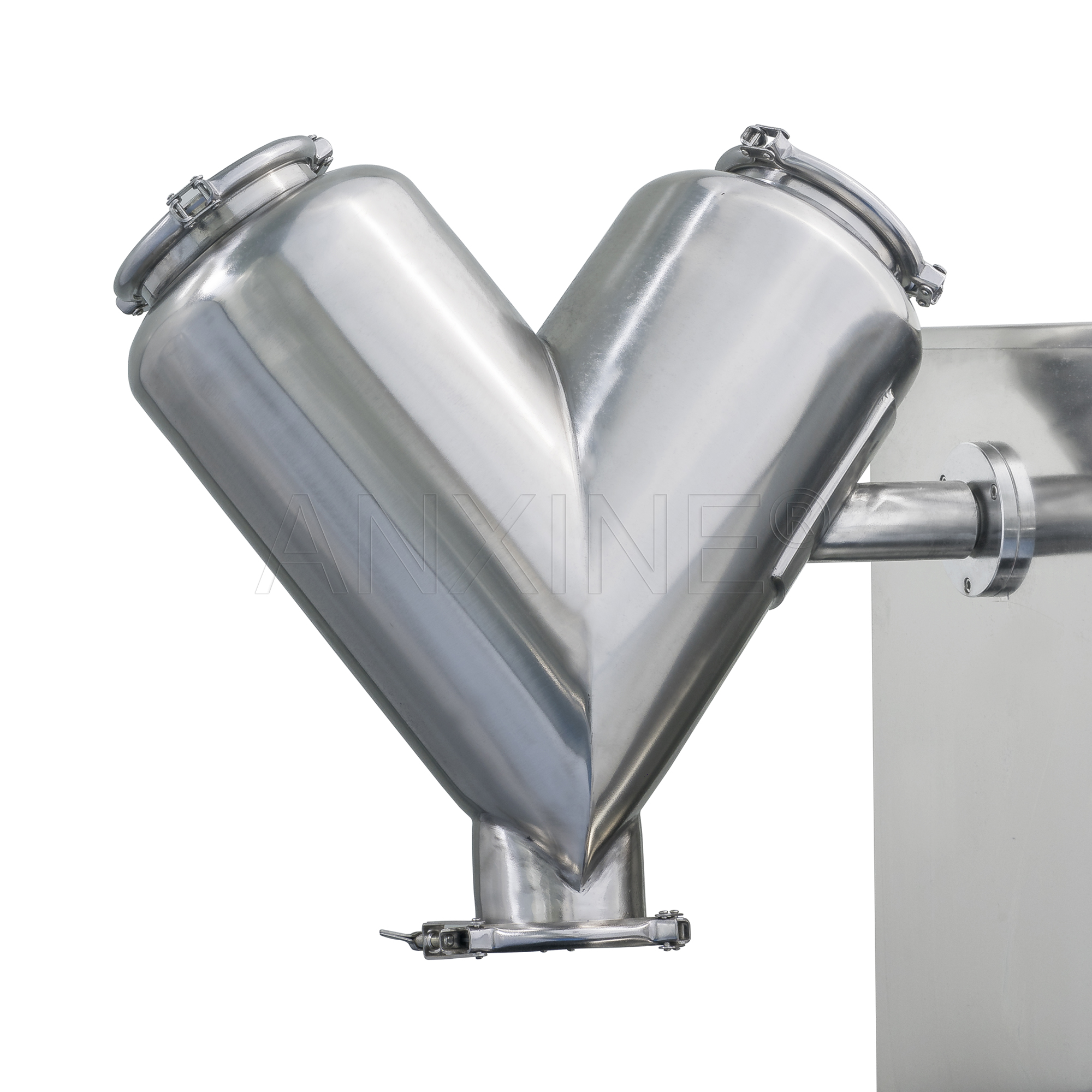

- Efficient mixing action. The V-shaped barrel enables powders to flow freely and mix evenly, eliminating dead corners.
- Compact and practical size. With an 8-liter maximum and 6.4-liter optimal load, the V-20 is ideal for small batches and R&D purposes.
- Reliable motor and speed. Equipped with a 110V, 0.55kW motor and operating at 20 RPM, it delivers stable and consistent performance.

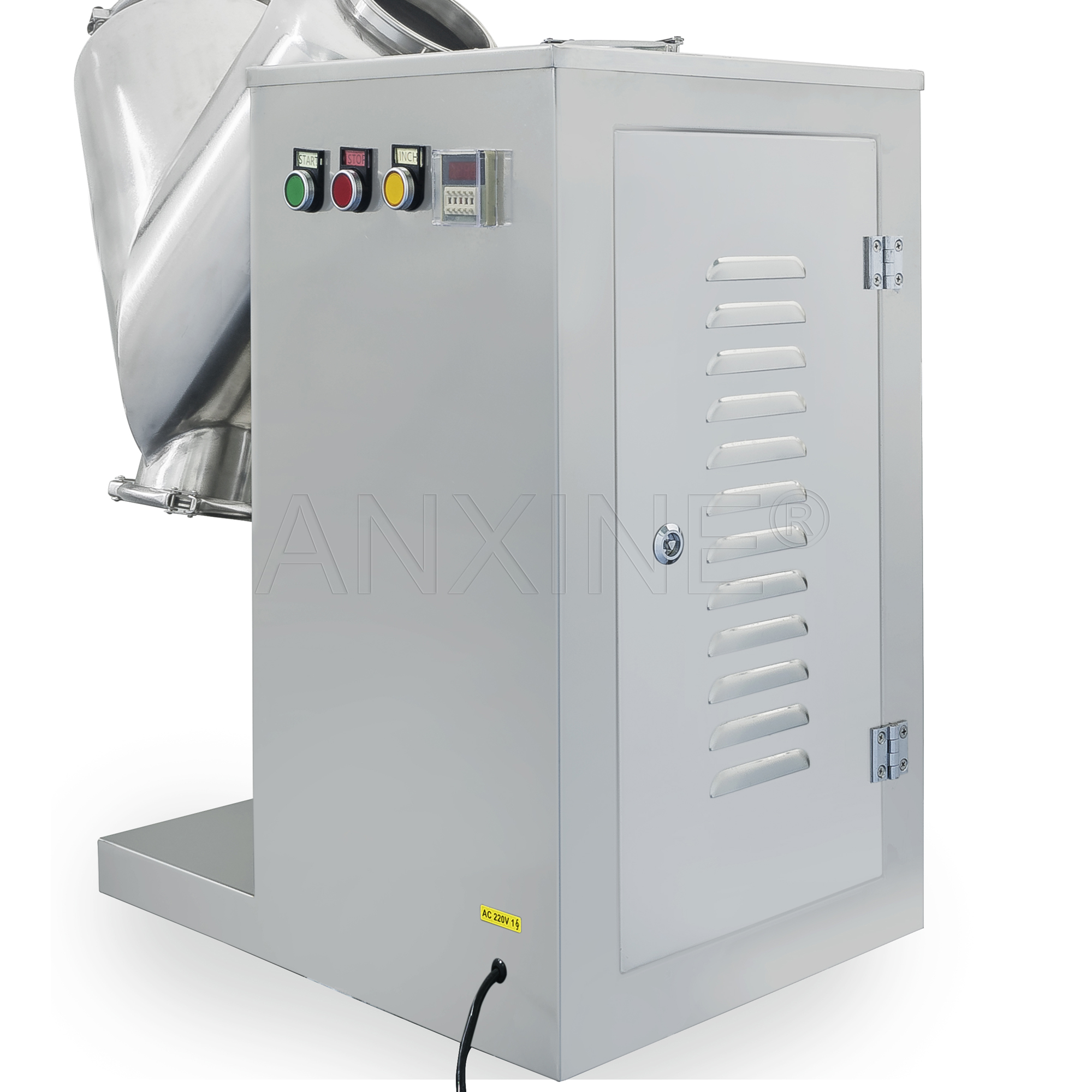

- User-friendly operation. The interface includes clear start, stop, and jog buttons, allowing easy control and positioning of the barrel.
- Easy cleaning and maintenance. The detachable barrel design simplifies cleaning, while regular inspection points support long-term reliability.
Specifications
Model | V-5 | V-10 | V-20 |
---|---|---|---|
Volume | 5L | 10L | 20L |
Max. Filling Capacity | 2L | 4L | 8L |
Rotational Speed | 20r/min | 20r/min | 20r/min |
Dia. Of Barrel | Φ133mm | Φ159mm | Φ220mm |
Dia. Of Inlet | Φ76mm | Φ76mm | Φ133mm |
Dia. Of Outlet | Φ76mm | Φ76mm | Φ76mm |
Power | 0.55KW | 0.55KW | 0.55KW |
Machine Weight | 47kg | 69kg | 83.5kg |
Dimensions | 720x360x615mm | 850x360x785mm | 950x340x830mm |
Also Offer
Explore cutting-edge pharmaceutical and packaging machinery with Anxine. Our offerings include state-of-the-art equipment for capsule filling and blister packing, supported by expert custom solutions and a robust global service network.
