Large Capacity And Efficient Dry Powder Mixer V

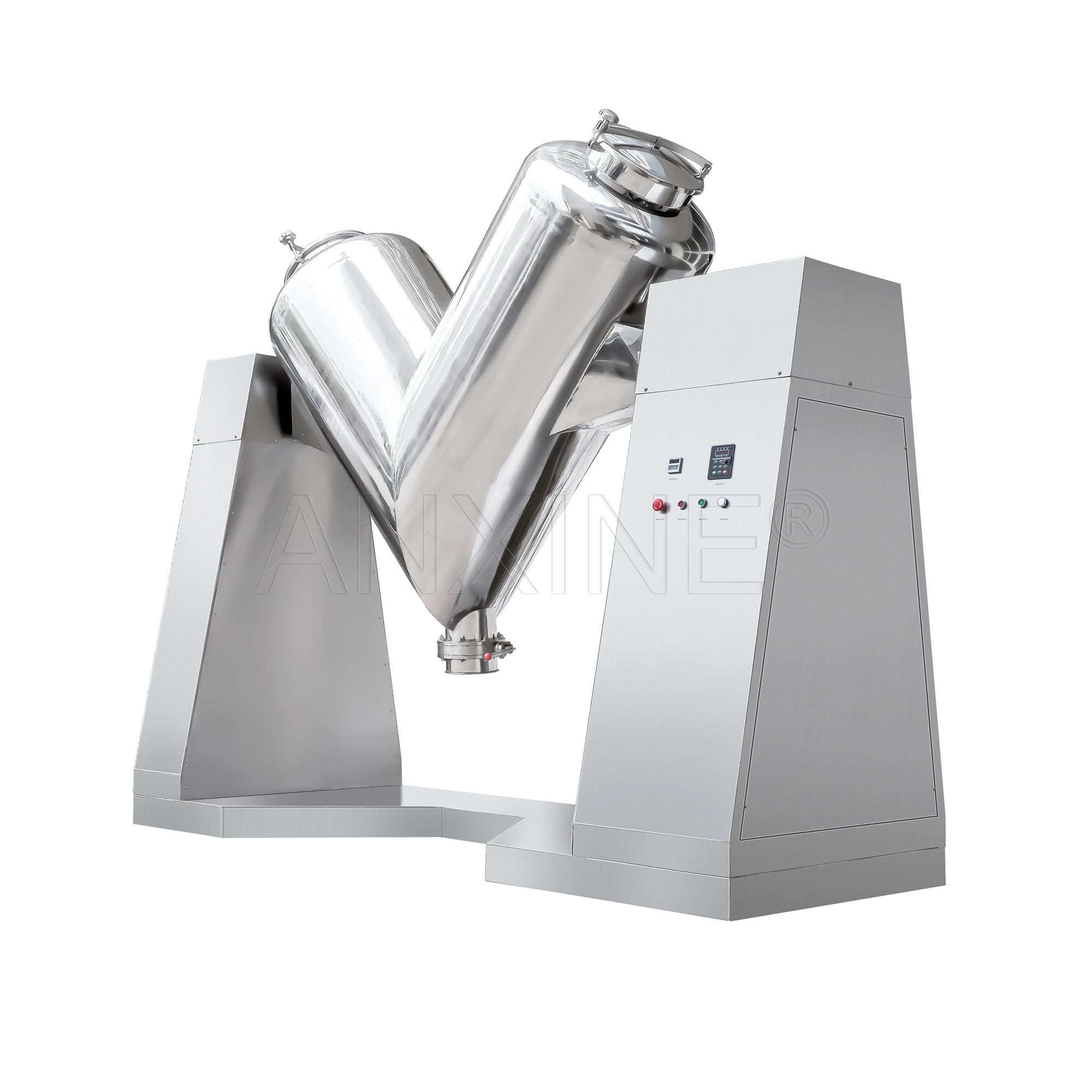

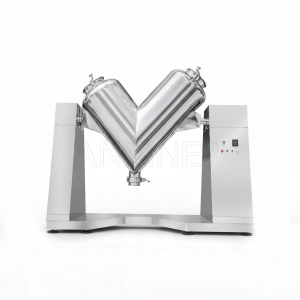

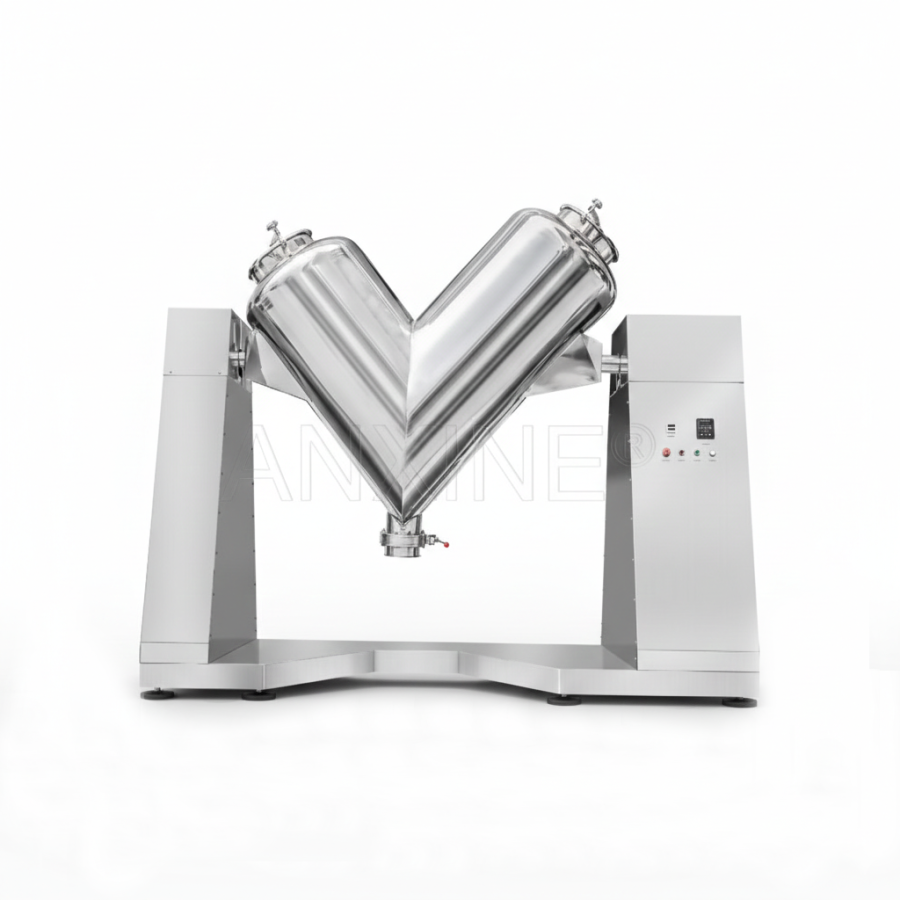

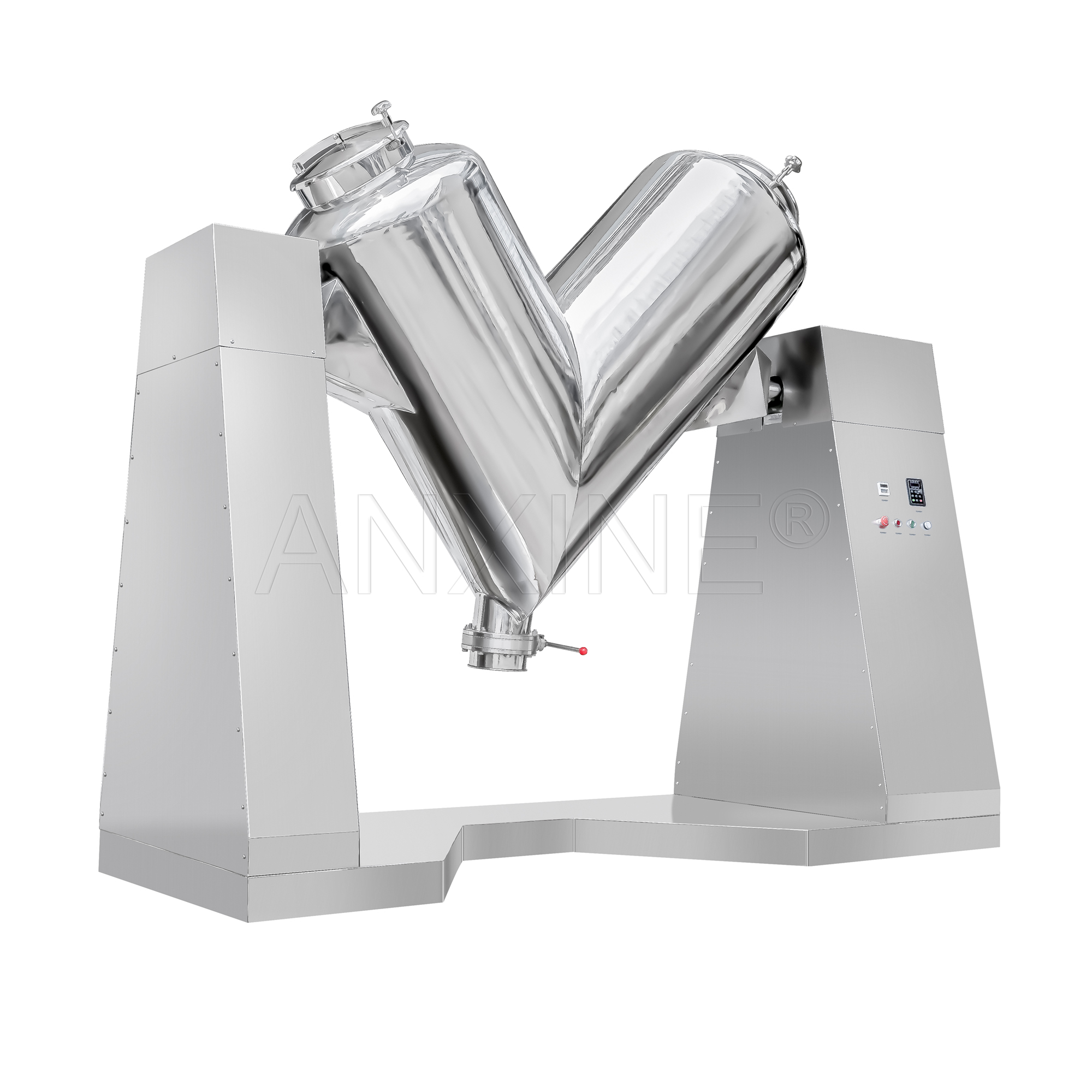

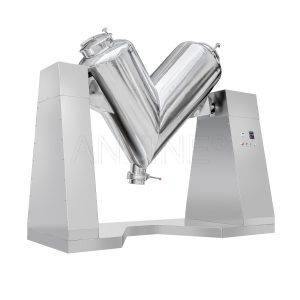

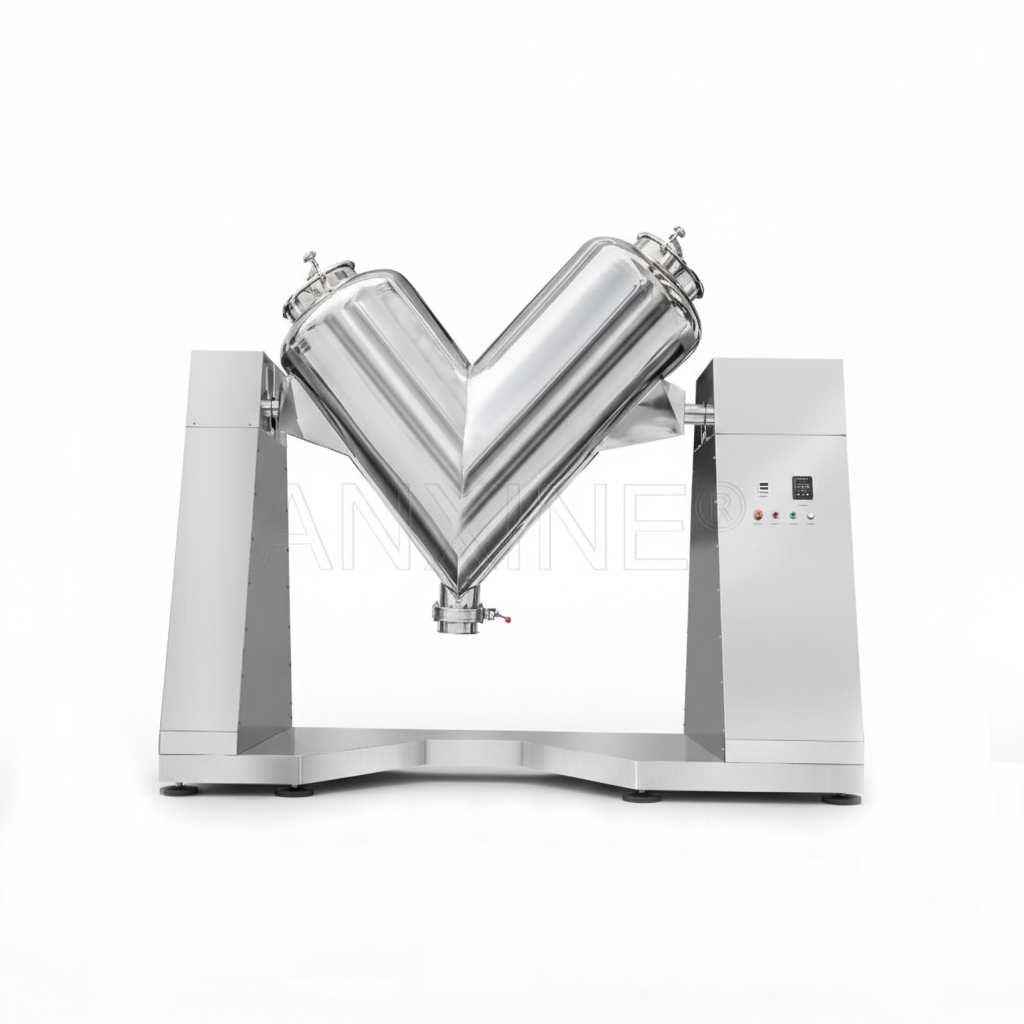

V Blender Dry Powder Mixer Blending Machine V500 - V3000
The V series high-efficiency dry powder mixer is designed for the pharmaceutical, chemical and food industries, covering a variety of needs from small batches to industrial large-scale production. This series of products has a simple structure, convenient operation and beautiful appearance. All parts that come into direct contact with the material are made of stainless steel that meets cGMP standards, ensuring the hygiene and safety of the product. Different models are equipped with V-shaped cylinders of various capacities, supporting the mixing of various types of dry powders and granular materials, and are particularly suitable for applications that require high-precision mixing.
Description
The V Blender Dry Powder Mixer is ideal for mixing powders and granules in the pharmaceutical, chemical, and food industries.The machine uses a reducing mechanism to drive barrel rotation, leveraging asymmetry for effective mixing.
Highlighted Features
- Large-capacity processing: With a large-capacity V-shaped cylinder of 3,000 liters, it is suitable for extremely large-scale industrial production.
- Efficient and uniform mixing: The unique V-shaped design ensures full contact of materials during the mixing process, achieving highly uniform mixing quality, which is particularly suitable for applications with strict requirements on mixing accuracy.
- Adjustable speed: Users can adjust the rotation speed of the V-shaped cylinder according to different material characteristics and mixing requirements to achieve the best mixing state.

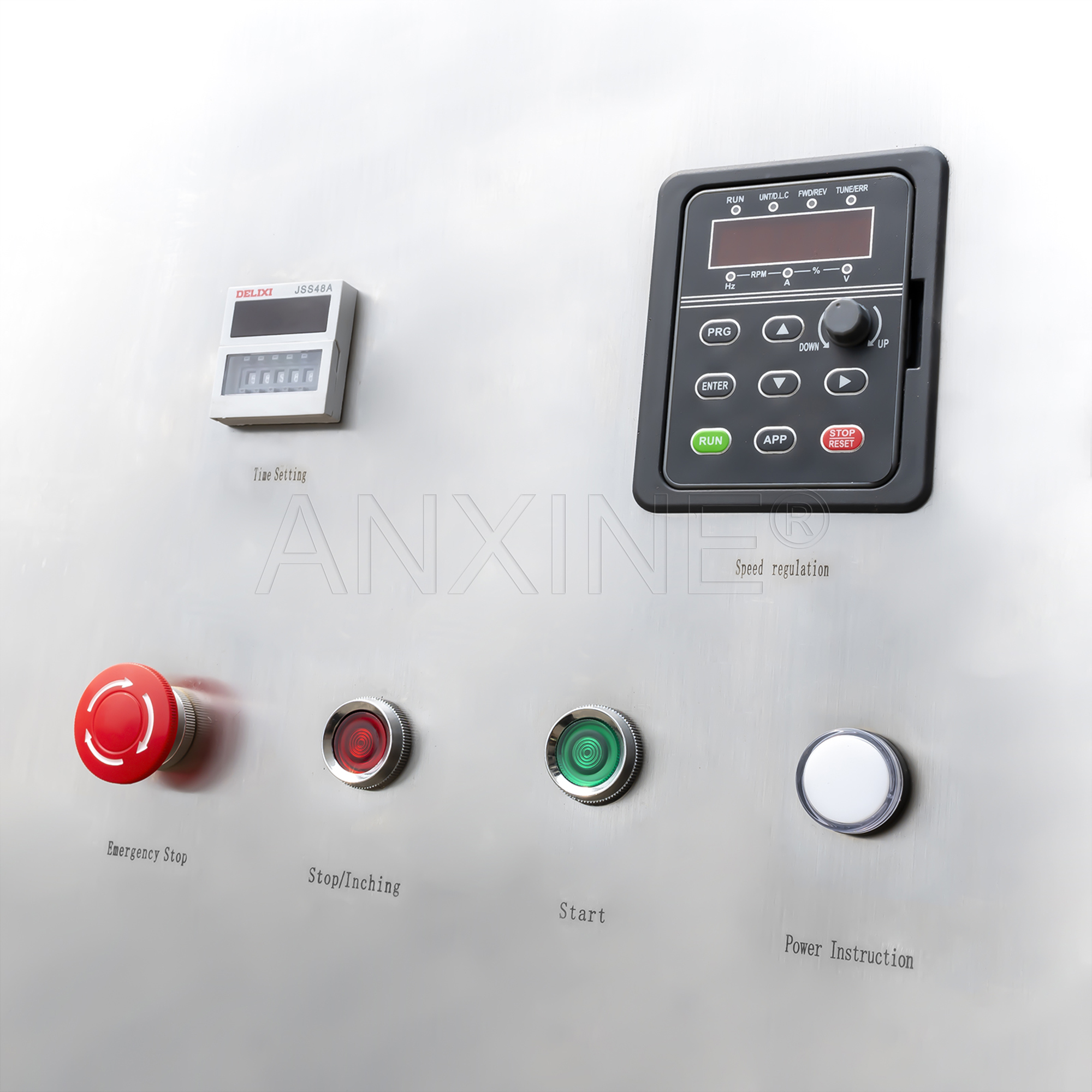

- Intelligent control system: Equipped with an advanced PLC control system, it supports automated operation and can easily set parameters through a touch screen interface for precise control.
- Safety protection: Built-in multiple safety protection measures, such as the need to close the protective cover before starting, and overload protection functions, ensure the safety of operators and the stable operation of the equipment.
- Easy to clean and maintain: The stainless steel material is not only corrosion-resistant but also easy to clean, reducing the difficulty and time cost of cleaning; at the same time, the open structure allows for quick disassembly and assembly of the V-shaped cylinder, further simplifying daily maintenance work.
Specifications
| Model | V-500 | V-1000 | V-1500 | V-2000 | V-2500 | V-3000 |
|---|---|---|---|---|---|---|
| Volume | 500L | 1000L | 1500L | 2000L | 2500L | 3000L |
| Max. Filling Capacity | 200L | 400L | 600L | 800L | 1000 L | 1200L |
| Rotational Speed | 13r/min | 10r/min | 10r/min | 10r/min | 10r/min | 8r/min |
| Dia. Of Inlet | Φ330mm | Φ400mm | Φ400mm | Φ400mm | Φ400mm | Φ400mm |
| Dia. Of Outlet | Φ200mm | Φ200mm | Φ200mm | Φ200mm | Φ200mm | Φ200mm |
| Power | 1.5KW | 3kW | 4KW | 5.5KW | 7.5KW | 11KW |
| Dimensions | 2,300x910x2,050mm | 2,800×1,000×2,280mm | 3,000×1,100×3,100mm | 3,200×1,200×3,350mm | 3,400×1,300×3,550mm | 3,600×1,400×3,850mm |
