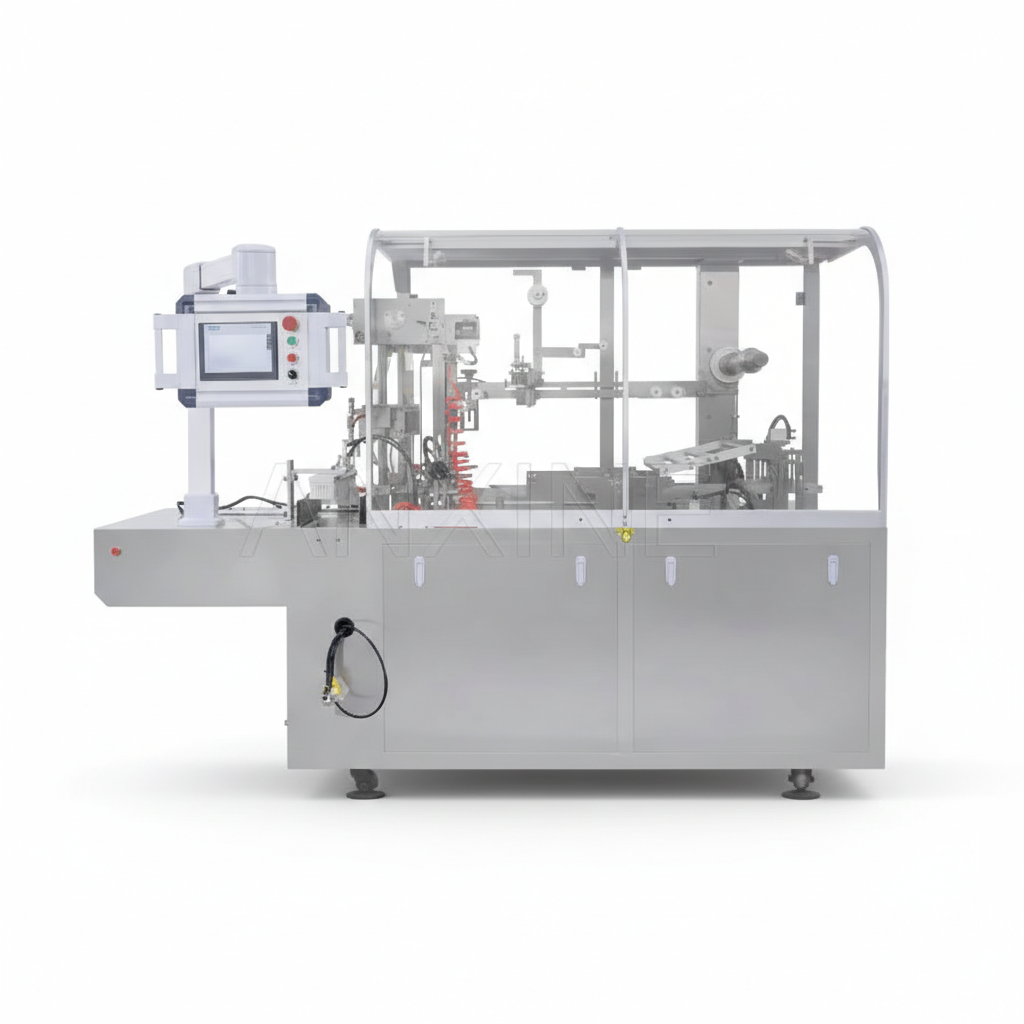

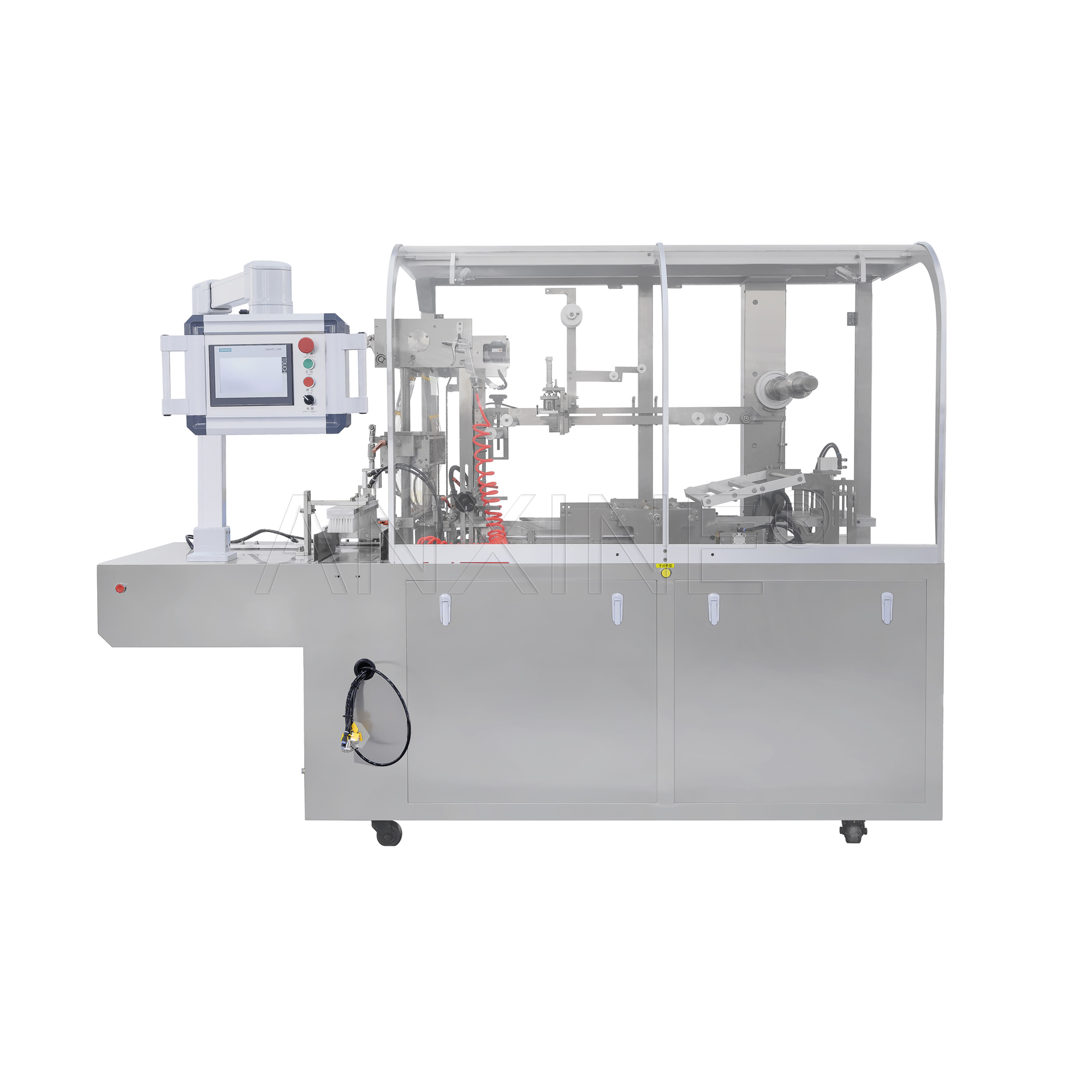

Cellophane Wrapping Machine TMP-400S

The TMP-400S offers high-speed, efficient wrapping for various industries, reducing costs while providing anti-counterfeiting and moisture-proof benefits.

Automatic Packing Machine CKB-180K

TMP-400S is a high-speed automatic transparent film packaging machine, designed to provide comprehensive automated packaging solutions for single or multiple boxed products in various industries such as medicine, food, health care, tea, cosmetics, gifts, stationery, and audio-visual products. plan. The machine integrates a series of operations such as feeding, wrapping, folding, sealing, forming, counting and attaching anti-counterfeiting features, significantly improving the efficiency and convenience of the packaging process.

The TMP-400S stands out for its advanced features, including quick and easy mold changes, an intuitive operator interface, and an easy-to-maintain design that makes daily use more efficient. By optimizing the packaging process, this machine can effectively reduce packaging costs by up to about 95%, while providing anti-counterfeiting, moisture-proof and dust-proof functions, greatly increasing the market value of the product. It not only meets the requirements of modern industry for high output and high quality, but also ensures precision and consistency in the packaging process, thereby helping companies stay ahead in the highly competitive market.

In addition, the TMP-400S is designed with users’ needs in mind. Its stable and reliable performance, user-friendly control panel and highly flexible application range make it an ideal choice for many companies to upgrade their packaging production lines. Whether it is large-scale single-variety production or multi-variety small-batch production, TMP-400S can bring significant cost-effectiveness and quality assurance to enterprises with its rapid adjustment capabilities and excellent adaptability.

The TMP-400S is a high-speed automatic transparent film packaging machine that provides comprehensive operations, including feeding, wrapping, folding, sealing, shaping, counting, and pasting anti-counterfeiting features. Its advanced features drive efficiency and convenience in mold replacement, operation, and maintenance.

The TMP-400S is perfect for single or multi-box automatic packaging across various industries such as medicine, food, healthcare, tea, cosmetics, gifts, stationery, and audio-visual products. This machine effectively reduces packaging costs by approximately 95% while offering anti-counterfeiting, moisture-proof, and dust-proof benefits, enhancing product value.

Highlighted Features

  • Advanced Interface: Utilizes a user-friendly PLC control system with fault diagnostics.
  • Servo Motor Efficiency: Automatically adjusts film placement for smooth, accurate operation.
  • Stable Operation: Servo-driven motor ensures precise synchronization and firm sealing.
  • Compact Design: Easy to operate and maintain, with comprehensive safety protection.
  • Mechanical Transmission: Main design achieves speeds up to 40 boxes/min with minimal failures.
  • Ease of Use: Simple operation, quick variety changeover, and convenient maintenance.
  • Overload Protection: Box pushing mechanism is safeguarded to lower failure rates.
  • Versatile Conveying: Supports linear or vertical conveying based on site constraints.

Model TMP-400S
Packaging Materials OPP, BOPP, PVC
Production Capacity: 10-40 bags/min
Package Size L(50-400) × W(40-220) × H(10-90)mm
Power Supply AC380V 50HZ 6.5KW
Working Pressure 0.5-0.7 MPa
Exhaust Volume 400L/min
Dimension 2,450 × 1,000 × 1,850 mm
Weight 850kg
