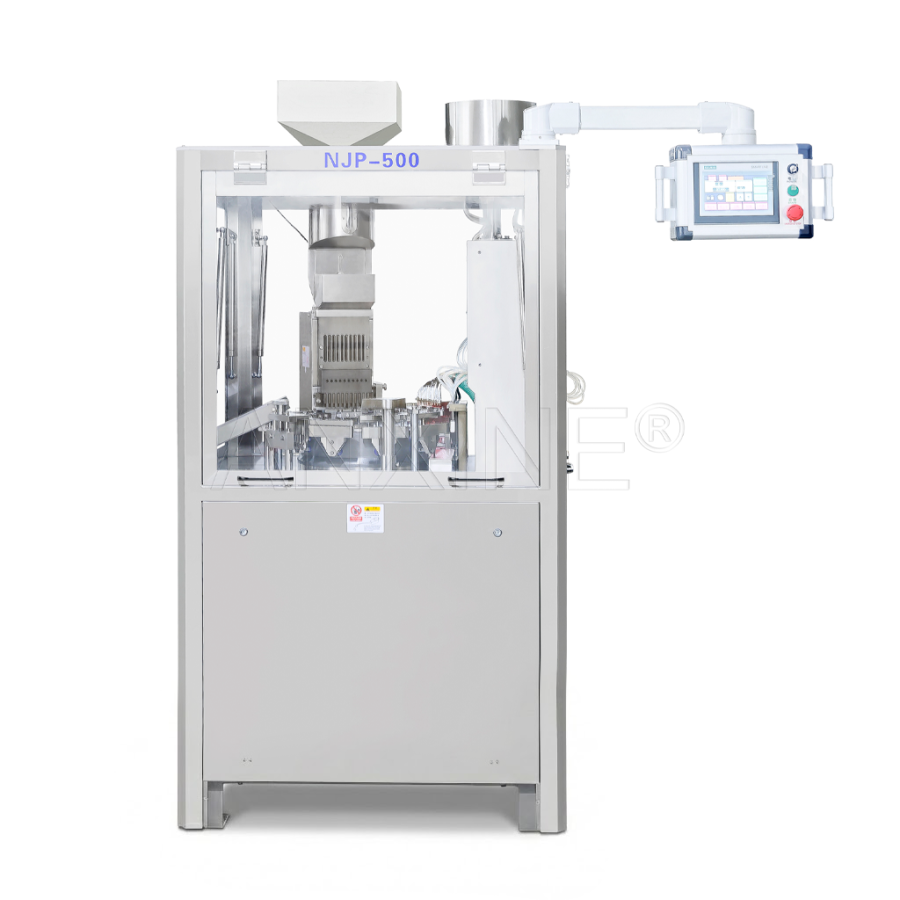

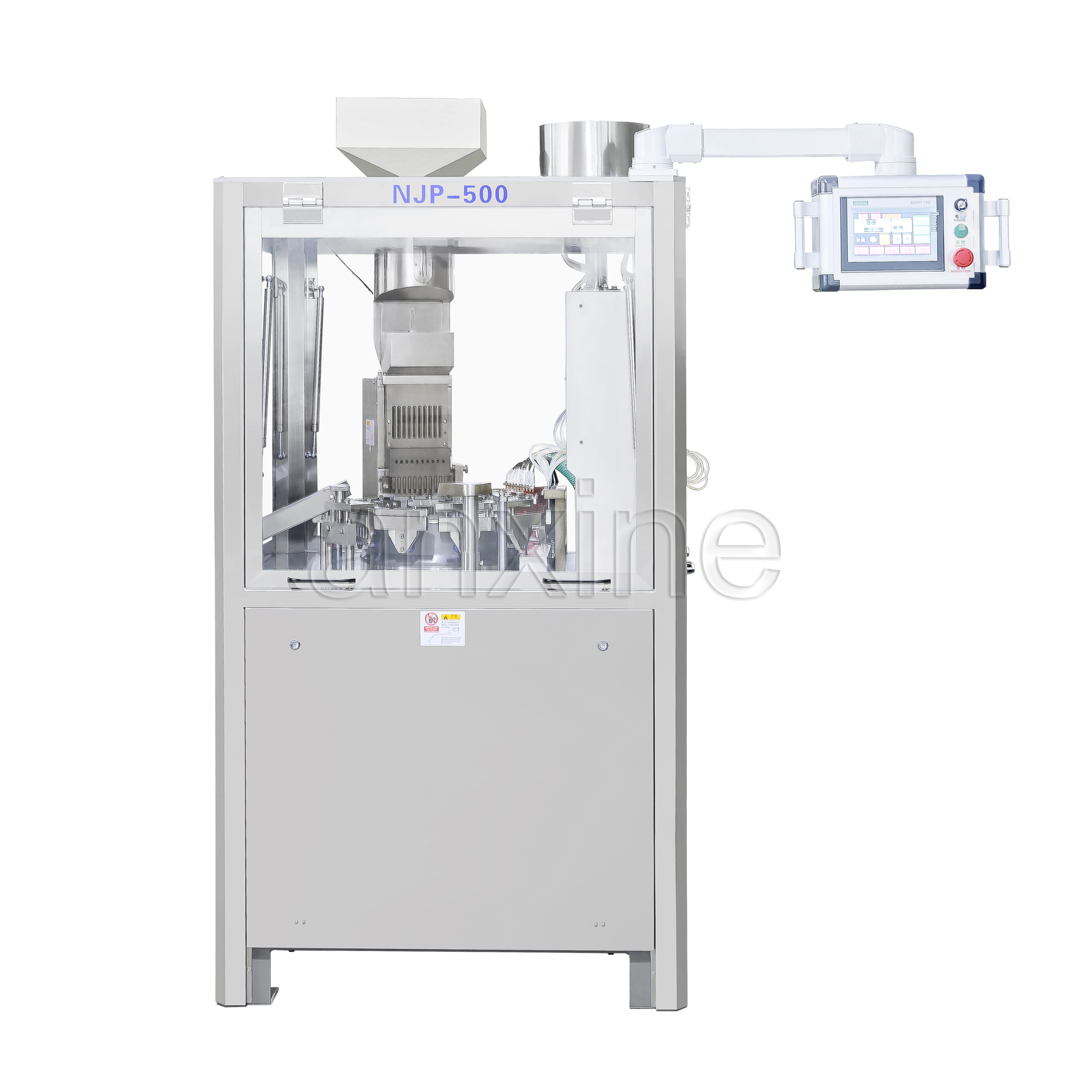

Automatic Liquid Capsule Filling Machine NJP-500L
Automatic Liquid Capsule Filling Machine NJP-500L
NJP-500L is an advanced fully automatic liquid capsule filling machine designed for the pharmaceutical and health care products industries, combining high precision, high speed and high efficiency. The machine uses an advanced servo control system and a precision filling and metering device to ensure that the liquid dosage in each capsule is accurate and consistent, and realizes a fully automated process from capsule separation, positioning, filling to sealing. Users can easily operate and monitor the entire production process through the HMI touch screen. At the same time, the machine has built-in multiple safety protection mechanisms (such as emergency stop button, door interlock switch, etc.) to ensure the safety of operators.
In addition, NJP-500L is designed and manufactured in strict accordance with the Good Manufacturing Practice (GMP) of pharmaceutical production to ensure the sanitary conditions and safety of the product; its modular design facilitates the rapid replacement and cleaning of components and reduces downtime. It can handle various types of liquid drugs or nutritional supplements, is suitable for the flexible production needs of capsules of different specifications, and is an ideal choice for modern pharmaceutical production.
The NJP-500L is a cutting-edge automatic liquid capsule filling and sealing machine, designed to offer unparalleled performance and versatility. It supports capsule sizes from 00# to 5# and A-E safe capsules, making it ideal for various pharmaceutical applications.
Highlighted Features
- Advanced Technology: With international top-brand components, including reducer, vacuum pump, and cam indexer, the NJP-500 boasts high configuration and stable performance.
- Enhanced Efficiency: Enjoy good sealing, precise filling, and smooth operations with variable frequency speed regulation. This machine delivers high output with low energy consumption and noise.
- Versatile Applications: Capable of filling capsules with liquids, slow-release pellets, or tablets, it also allows for mixing ingredients within the same capsule.
- User-Friendly Interface: Features a touch screen with alarm notifications to monitor key parameters, including motor status, hopper levels, and capsule feed paths, ensuring seamless operation.
- Precision Sealing and Drying: Utilizes a dual sealing roller mechanism and efficient drying process to ensure capsules remain intact and appropriately sealed.
- Smooth Conveyance: Equipped with a position-rectifying mechanism for preventing capsule damage and printing detachment.
- Efficient Sealing System: Utilizes a circulating sealing solution managed at optimal temperatures for effective sealing without residue.
- Adaptive Capsule Sizing: Easily switch between different capsule sizes with replaceable parts.
- Consistent Sealing Solution: Features a timely water-supplying function to maintain the sealing solution’s concentration for optimal performance.
| Model | NJP-500L |
|---|---|
| Capacity | 36,000 capsule per hour |
| Capsule Size | 00# to 5# |
| Power input | 380V 50Hz three-phase four-wire |
| Total Power | 7.75 kW |
| Relative humidity | 40～55% |
| Temperature | 21℃±3℃ |
| Overall Dimensions | Length: 1,350mm Width: 1,080mm Height: 1,900mm Weight: 1,000kg |
