Vibrating Granulator CYK Series
Superfine Grinder CF-15 for Precise Particle Control

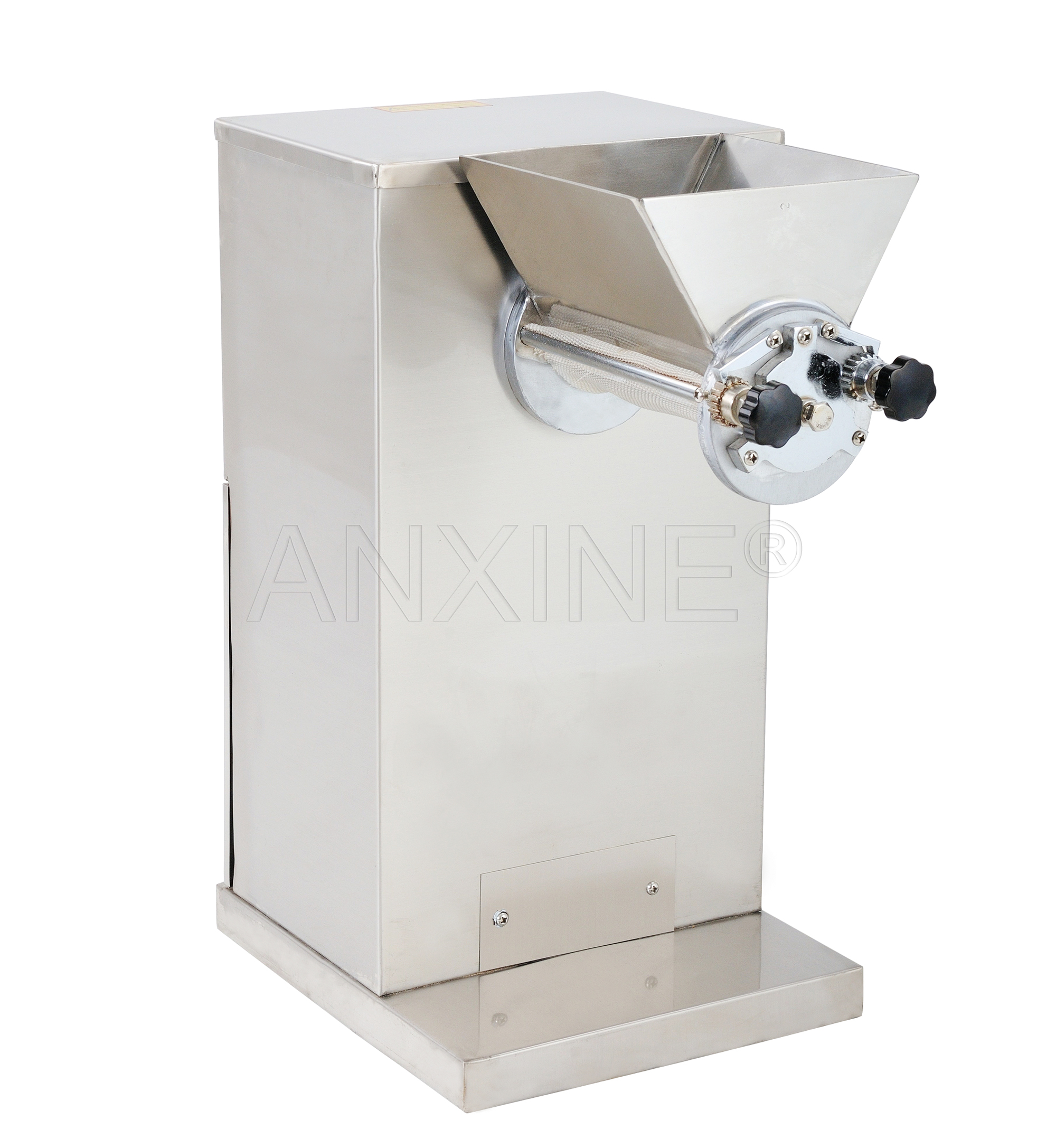

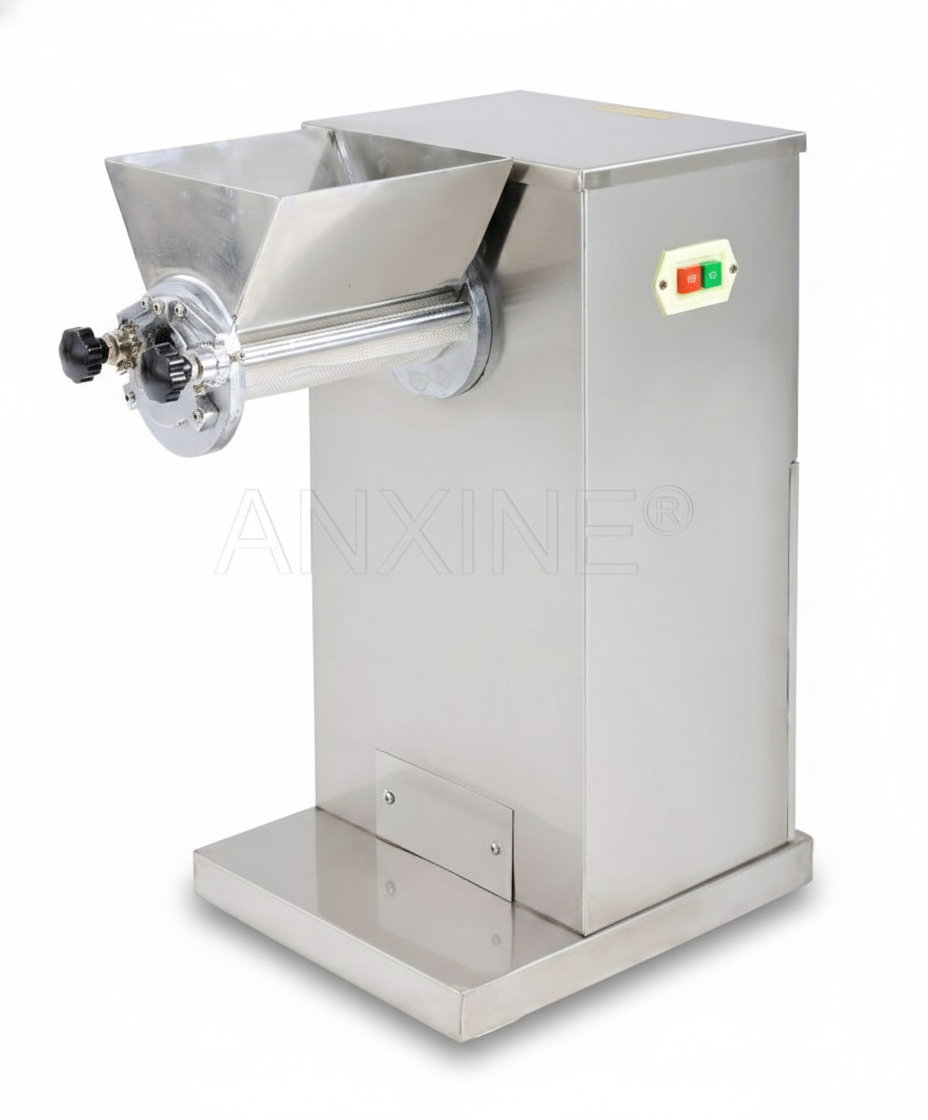

The CYK60W-90W-160W series granulator is manufactured by Anxine. It is a simple and reasonable structure, advanced granulation method and energy-saving equipment suitable for pharmaceutical, chemical, food and other industries. The machine can produce uniform granules with less powder content, long service life and meets GMP standards. After the material enters through the feed hopper, it is processed into granules under the action of the rotating drum.

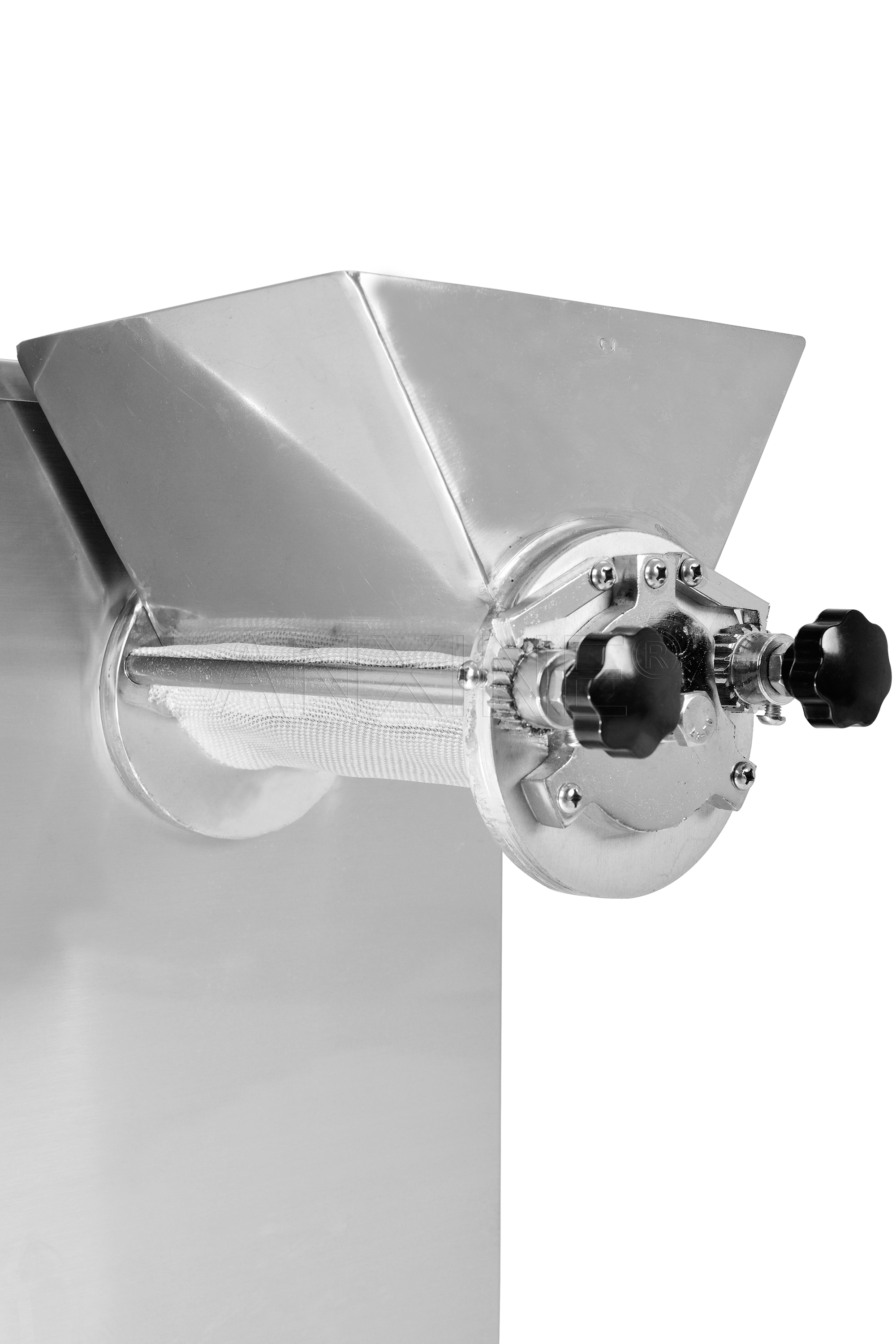

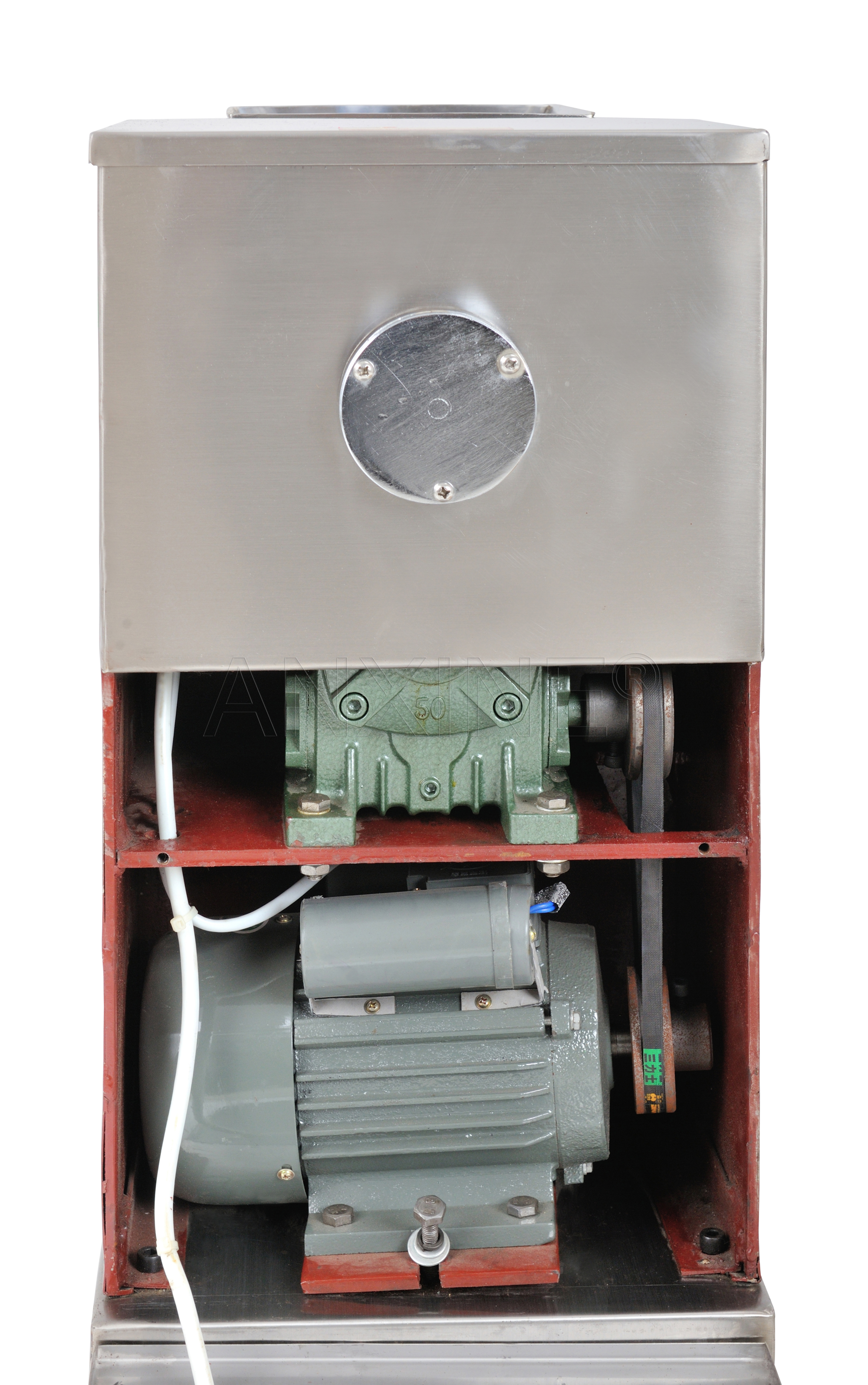

The drum is equipped with bearing supports at the front and back and is driven by a rack to rotate clockwise and counterclockwise regularly, ensuring the consistency of particle size and efficient production. The end face of the front bearing seat is removable for easy disassembly and maintenance; the discharge port is square, and observation windows are set on both sides of the feed hopper to facilitate the observation and collection of finished granules.
Description
The Vibrating Granulator CYK Series is extensively used in industries such as pharmaceuticals, chemicals, food, pottery, and plastics. It efficiently converts moist powder materials into granules by reciprocally swinging a cylinder to extrude material through a screen mesh. This machine is also capable of crushing agglomerated materials into smaller granules, making it ideal for high-viscosity substances.
Highlighted Features
- Simple and Reasonable Structure: Designed for ease of use and maintenance.
- Advanced Granulating Method: Ensures even granules with minimal powder content.
- Energy Efficient: Complies with GMP standards, offering long service life.
- Versatile Applications: Suitable for various specifications in pharmaceutical, chemical, and food industries.
- Uniform particles: ensure the production of uniform particle size.
- Low powder content: effectively reduce the proportion of fine powder in the finished product.
- Long life: the durable design extends the service life of the machine.
- GMP compliant: meets the requirements of pharmaceutical production quality management specifications.
- Easy to operate: simple operation process improves work efficiency.
- Flexible adjustment: the screen can be easily replaced and the particle size can be adjusted according to different needs.
Specifications
| Model | CYK-60W | CYK-90W | CYK-160W |
|---|---|---|---|
| Production Capacity | Wet (12 mesh): 20 kg/h | Wet (12 mesh): 30 kg/h | Wet (12 mesh): 300 kg/h |
| Diameter of Roller | 60 mm | 90 mm | 160 mm |
| Effective Length of Roller | 184 mm | 270 mm | 360 mm |
| Roller Speed | 46 r/min | 46 r/min | 46 r/min |
| Hopper Inlet | 210×210 mm | 300×270 mm | 410×380 mm |
| Power | 0.55 kw (220V) | 1.1 kw(220V) | 5.5 kw(380V) |
| Weight | 70 kg | 150 kg | 260 kg |
| Dimension | 330x550x570 mm | 750x460x840 mm | 970x750x1,240 mm |
