Inline Induction Cap Sealer LGYF-2000BX

Compact air-cooled automatic induction sealer with conveyor for fast, consistent foil cap sealing. Ideal for non-metal containers in pharmaceuticals and more.

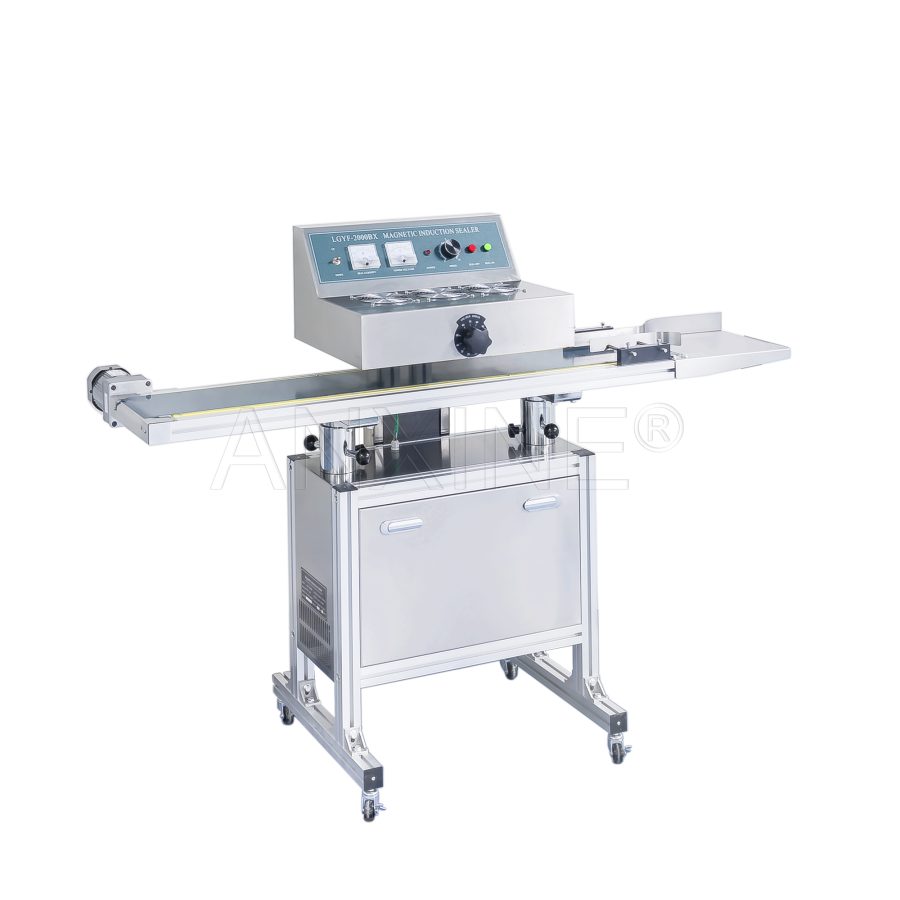

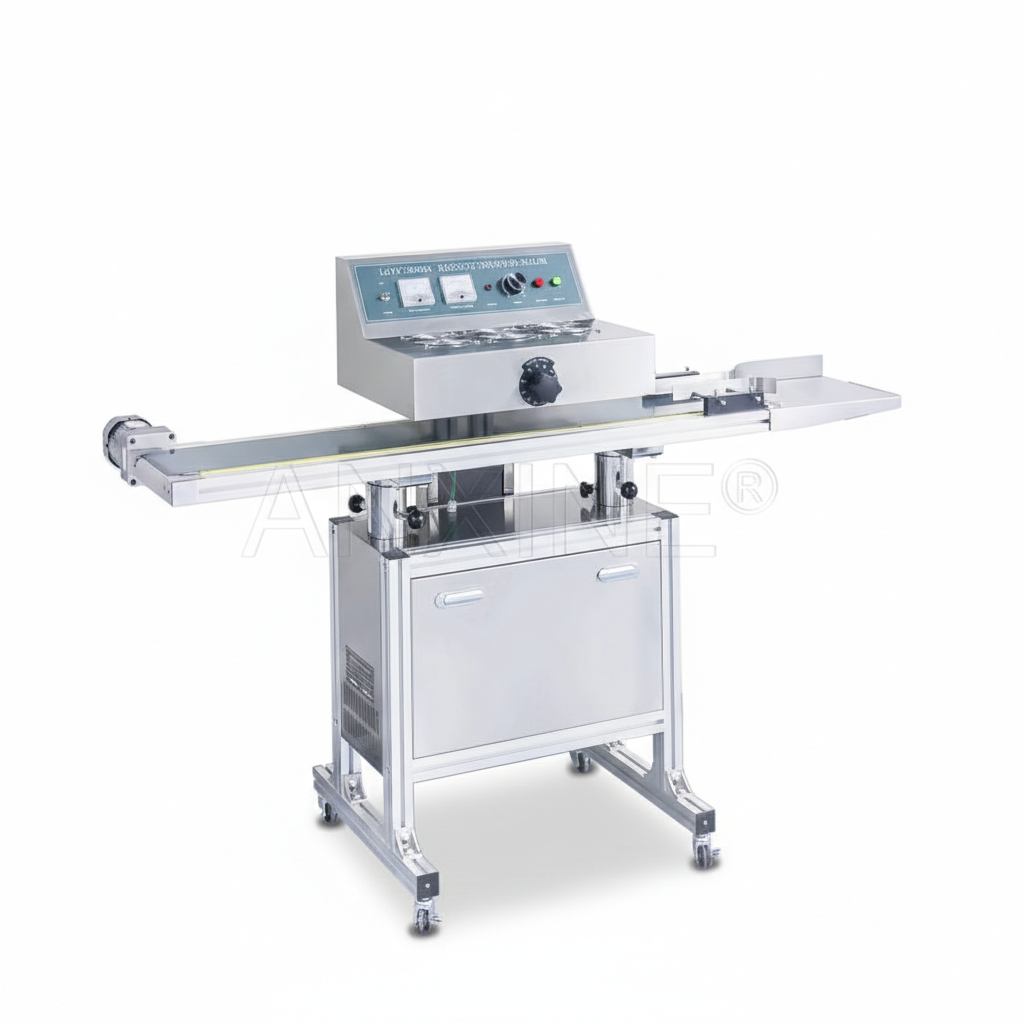

LGYF-2000BX Fully Automatic Electromagnetic Induction Sealing Machine for Continuous Foil Capping

If you’re searching for a dependable induction sealer for your packaging line, the LGYF-2000BX checks all the boxes. It’s an inline induction sealing machine built for continuous cap sealing. Featuring advanced electromagnetic induction heating, it creates airtight and tamper-evident seals without direct contact.

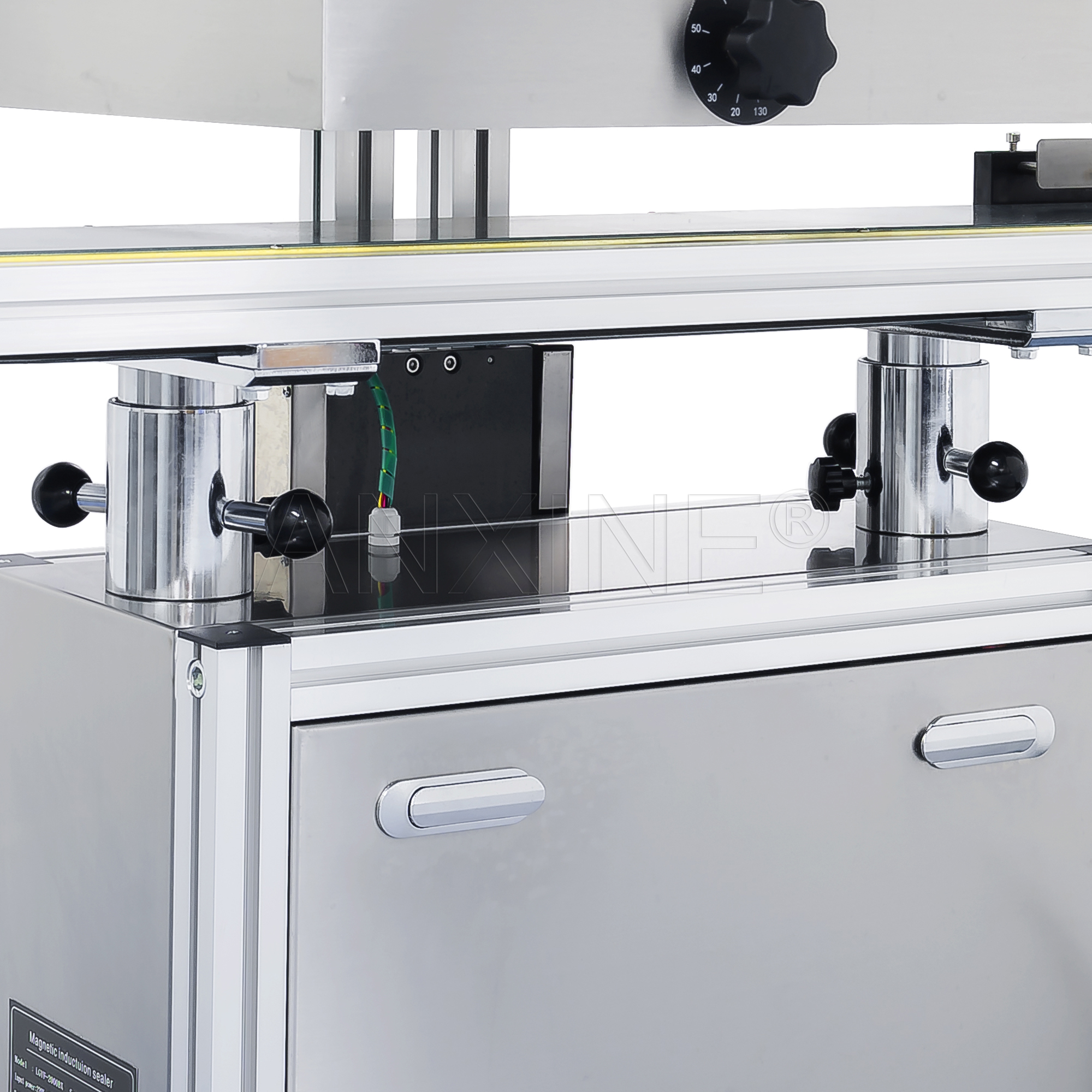

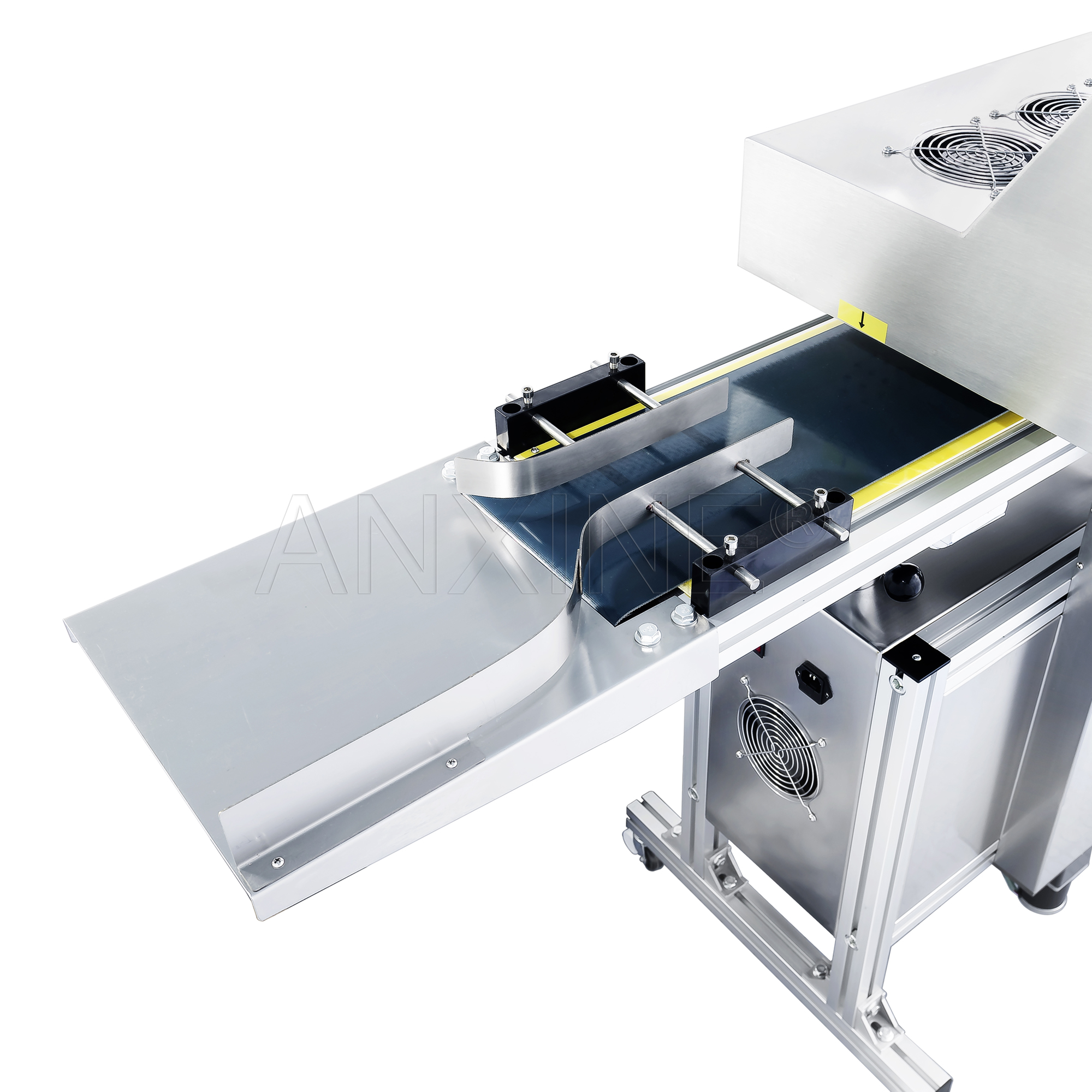

This model comes with an integrated variable-speed conveyor that is longer than its sealing section, making it ideal for larger-volume capping operations than its siblings in our induction sealer lineup. Plus, this machine features a toggle switch that allows you to raise or lower the induction sealing head. This makes the LGYF-2000BX flexible to handle containers of various heights. And the best part? This induction cap sealer can be easily integrated into existing production lines.

Request for Quote

Description

Highlighted Features

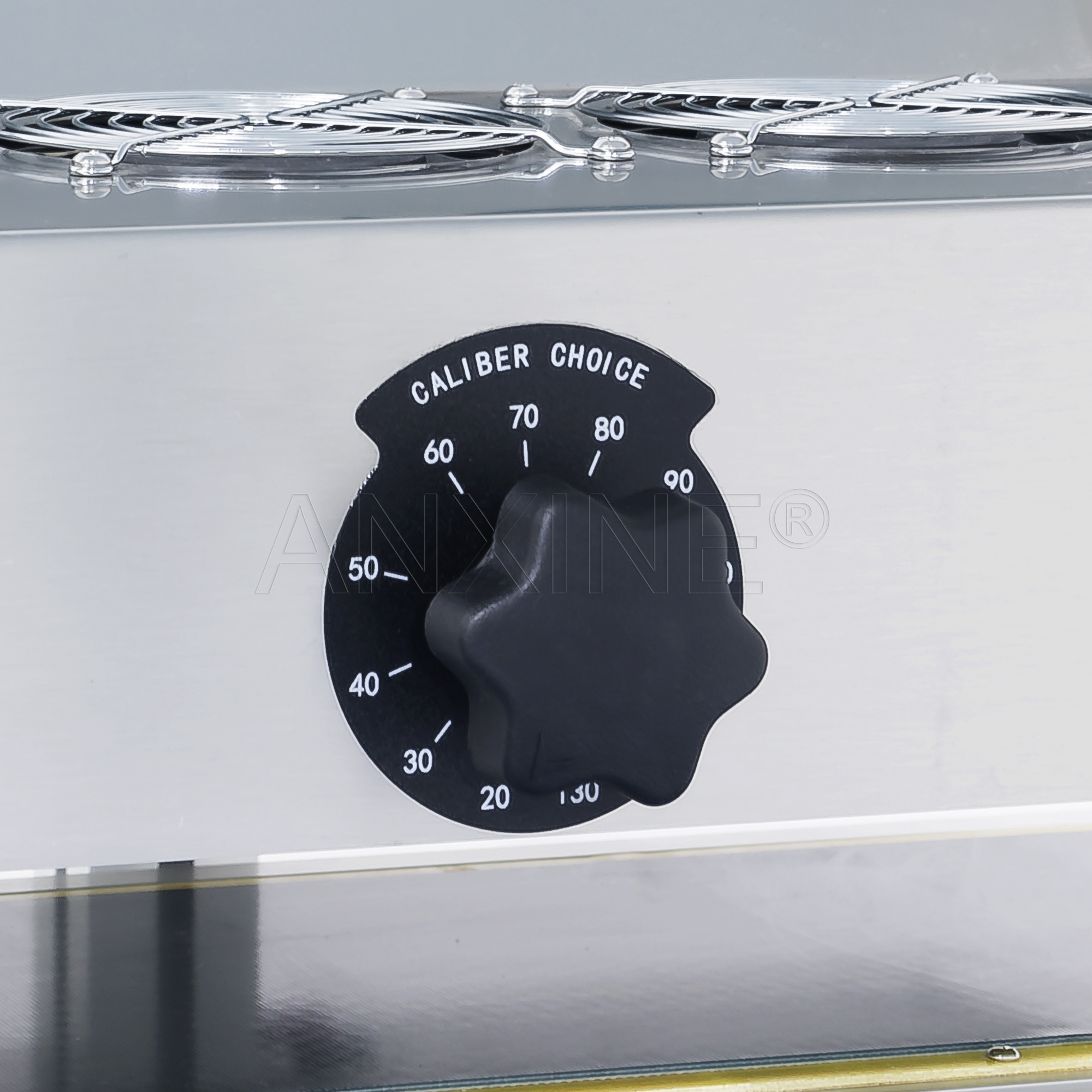

  • Flexible Sealing Range: Adjustable sealing head height to support both small and large containers.

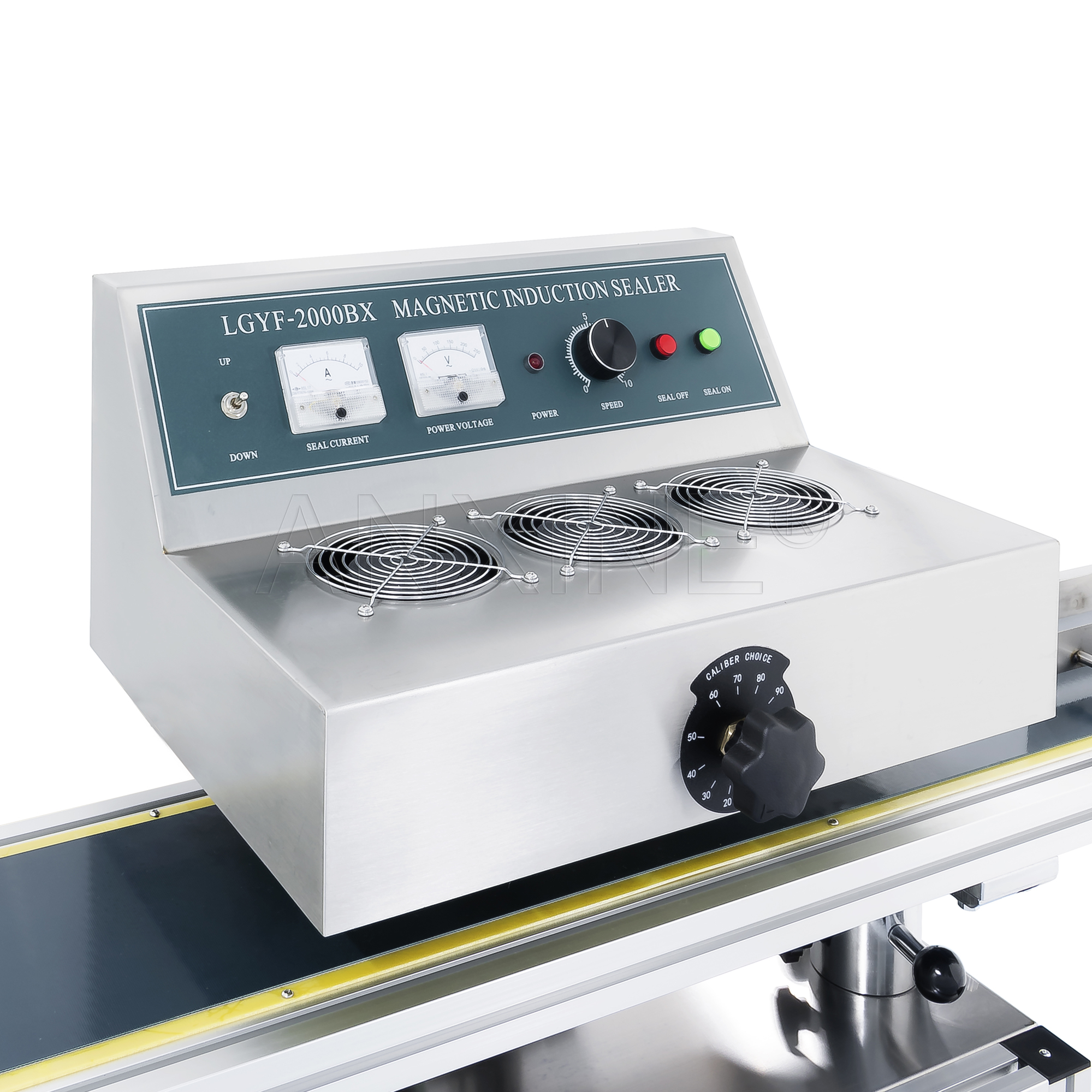

  • Analog Voltage & Current Meters: Displays real-time sealing current and power voltage to help monitor performance.
  • Adjustable Speed: Rotary dial lets you fine-tune conveyor speed to ensure consistent seal quality.
  • Auto Stop on Fault: Conveyor stops automatically in case of any system fault.
  • Overload Protection: Built-in protections for power surges and overheating.
  • Fan-Cooled System: Multiple cooling fans help maintain an ideal internal temperature.
  • Simple, Intuitive Control Panel: Clear labels and buttons make operation easy.

Specifications

Model LGYF-2000BX
Sealing Diameter  φ20mm～φ130mm(Optimum Diameterφ30mm～φ120mm)
Height of Bottle 40～300mm
Conveying Diameter ≤￠200mm
Sealing Speed 2～12m/min (Size of bottle mouth, material, sealing film)
Conveyor Table Load-bearing Load ≤ 20kg
Input Power AC220V±10%，50Hz
Weight 40kg
Dimensions 1,150 × 600 × 400 mm
