Automatic Labeling Machine

Delivers precise, high-speed label application with minimal operator intervention. Designed for continuous pharmaceutical, food, and consumer goods packaging lines.

Inline Labeling Systems for High-Speed Operations

Unlike tabletop systems that rely on manual feeding, the machines are equipped with a conveyor belt that automatically feeds containers to be labeled from upstream and transfers the finished ones to the next stage of processing. These automated labeling machines greatly increase throughput without sacrificing accuracy while reducing labor costs.

Anxine’s lineup of automatic label applicators supports flexible deployment as standalone machines or as part of integrated packaging lines. The systems can be connected to tablet counters, capping machines, induction sealers, and cartoners. Depending on the application, labeling speeds can reach up to 200 bottles per minute or 80 cartons per minute. Each model can be configured with hot foil stamping, TIJ, or TTO for real-time batch data printing.

Request a Quote

The Anxine Automatic Label Applicator Machines Collection

Browse our versatile inline setups ranging from wrap-around labelers to dual-head labeling systems.

Automatic Positioning Labeling Machine CED-202

Automatic Positioning Labeling Machine CED-202

The CED-202 automatic positioning labeling machine not only has precise positioning and fast labeling capabilities, but is also suitable for both round and square bottles. It is very suitable for use in industries such as food, pharmaceuticals, and cosmetics.

Automatic Double-head Labeling Machine CTB-3600

Automatic Double-head Labeling Machine CTB-3600

As an important part of the automated production line, the automatic double side labeling machine can easily improve the overall production efficiency.

Automatic Card Labeling Machine​ T-11500

Automatic Card Labeling Machine​ T-11500

Our automatic card labeling machine​ is dedicated to flat labeling of cards. It is an ideal choice for industries that require high-speed and accurate labeling.

Self-adhesive Round Bottle Labeling Machine CED-TB201

Self-adhesive Round Bottle Labeling Machine CED-TB201

CED-TB201 is a high-precision self-adhesive round bottle labeling machine designed for efficient labeling. The self adhesive label machine​ supports a variety of bottle types, has fast bottle change speed and reliable performance.

Automatic Round Bottle Self-Adhesive Labeling Machine PBTB-160

Automatic Round Bottle Self-Adhesive Labeling Machine PBTB-160

PBTB-160 automatic round bottle labeling machine is a high-performance self-adhesive labeling solution designed for all kinds of round bottles. The machine has stable labeling accuracy and fast labeling speed. It is an ideal packaging equipment for the pharmaceutical, chemical, food, cultural products and other industries.

Automatic Poked Roll Labeling Machine NCT-21100

Automatic Poked Roll Labeling Machine NCT-21100

NCT-21100 automatic poked roll labeling machine is specially used for labeling the circumferential side of round bottles. It can be applied to labeling round bottles in various industries, such as food cans, cosmetic round bottles, medicine bottles, etc.

Automatic Vertical Labeling Machine NCT-21200

Automatic Vertical Labeling Machine NCT-21200

NCT-21200 vertical bottle labeling machine​ is a high-performance machine designed to provide fast and accurate labeling for cylindrical containers. The vertical labeling machine​ supports double-sided labeling, which significantly improves production efficiency.

Why Choose Our Automated Labeling Solutions

Integrating an Anxine automatic labeling machine helps stabilize your continuous packaging workflow. Our dedicated inline applicators operate at high speeds while minimizing label alignment issues that can affect your line performance.

Precision Label Registration

Use diffuse reflective sensors and pneumatic cylinders that lock onto specific container seams to ensure targeted placement.

Advanced Material Recognition

Equipped with self-learning photoelectric sensors, the system can accurately identify transparent labels and reduce false missing-label alarms during operation.

Rapid Container Changeovers

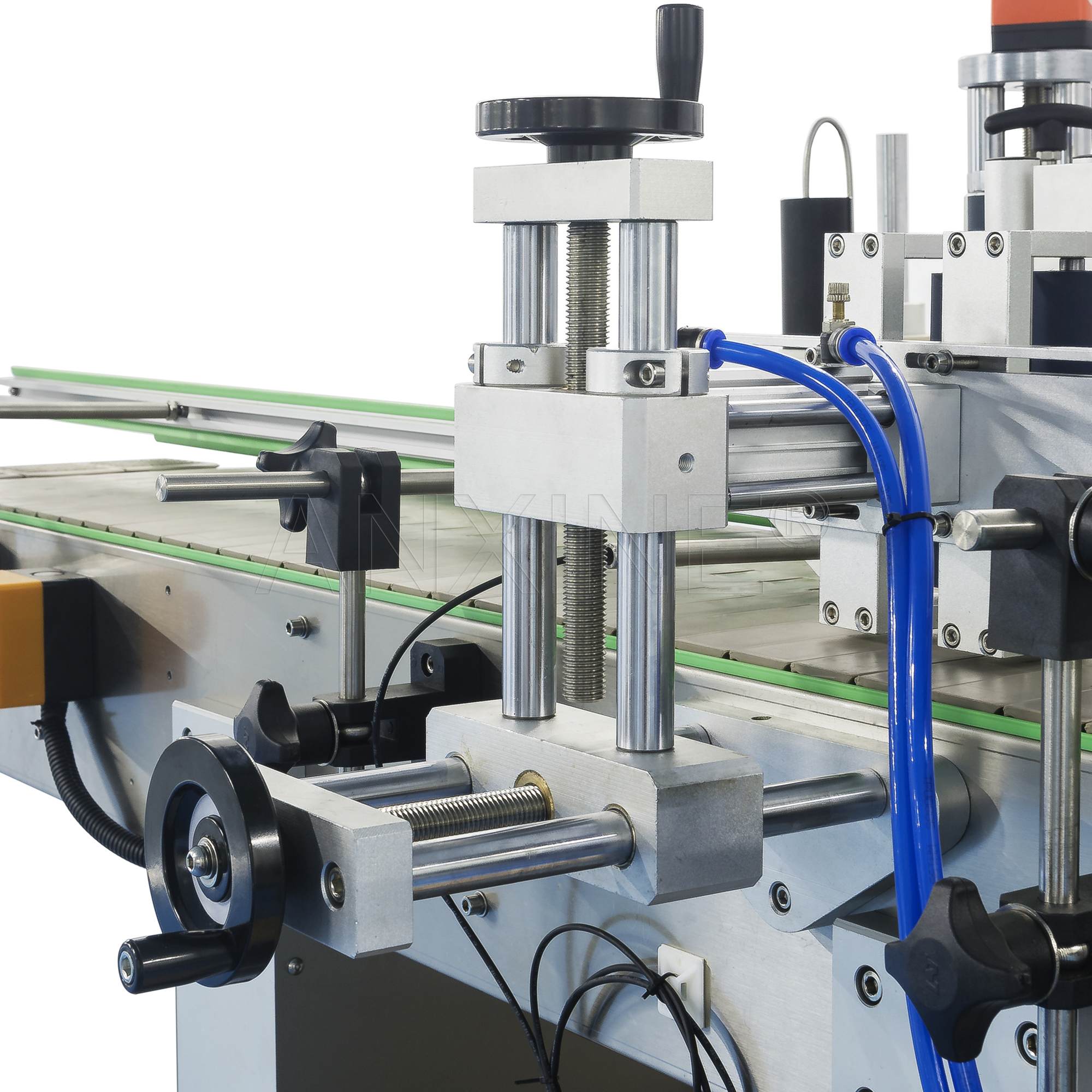

Scaled multi-axis handwheels enable quick adjustments for different container sizes and shapes with no need for tooling changes.

Strict GMP Compliant Construction

Sanitary stainless steel construction is suitable for pharmaceutical and food packaging applications that demand high cleanliness standards.

Specifications Overview

Model CED-202 CTB-3600 T-11500 CED-TB201 PBTB-160 NCT-21100 NCT-21200
Container Type Round & Square Bottles Cards & Flat Objects Cards & Flat Objects Round Bottles Round Bottles Cylindrical Containers Cylindrical Containers
Output 30 – 120 pcs/min 20 – 80 pcs/min 20 – 80 pcs/min 30 – 120 pcs/min Max. 120 pcs/min 30 – 200 pcs/min Max 120 pcs/min
Label Placement Tolerance Not Specified ±1.0 mm ±1.0 mm Not Specified Not Specified ±1.0 mm ±1.0 mm
Product Dimensions 15 – 500 mL Customized 40-280 mm × 40-200 mm × 0.2-2 mm 15 – 500 mL 50 – 500 mL OD: Φ25 – 90 mm; Height: 25 – 300 mm OD: Φ25 – 90 mm; Height: 25 – 300 mm
Label Size Length: < 300 mm

Width: < 120 mm

 Not Specified Length: 20 – 250 mm; Width: 20 – 180 mm Not Specified Length: 20 – 250 mm; Width: 25 – 90 mm Length: 20 – 320 mm; Width: 20 – 150 mm Length: 20 – 285 mm; Width: 20 – 180 mm
Batch Coding Integration Optional (Ribbon / TIJ / CIJ / TTO) Optional (Ribbon / TIJ / CIJ / TTO) Optional (Ribbon / TIJ / CIJ / TTO) Optional (Ribbon / TIJ / CIJ / TTO) Optional (Ribbon / TIJ / CIJ / TTO) Optional (Ribbon / TIJ / CIJ / TTO) Optional (Ribbon / TIJ / CIJ / TTO)

Find Your Perfect Automatic Labeling Configuration

Processing flat objects or cylindrical packaging? Match your requirements against the matrix below to find your ideal label applicator.

Selection Factor Packaging Requirement Recommended Model(s) Why It Fits
Product Geometry Flat objects CTB-3600 / T-11500 Features friction feeders designed to automatically separate and feed stacked flat items.
Cylindrical containers CED-202 / CED-TB201 / PBTB-160 / NCT-21100 / NCT-21200 Engineered for round or square bottles.
Labeling Method Top and bottom labeling CTB-3600 Dual applicator heads process both surfaces of flat objects.
Complete or partial coverage for containers CED-202 / CED-TB201 / PBTB-160 / NCT-21100 / NCT-21200 Designed for wrap-around labeling.
Targeted Registration Bottle seams or molded features CED-202 Uses specialized optical sensors to lock in precise geometric placements.
Side and top surfaces NCT-21200 Can be configured with either positioning or hold-down cylinders for different targeted labeling.
Coding Needs Simple batch and date printing CED-202 / CED-TB201 / PBTB-160 Factory-integrated hot foil stampers for immediate coding.
High-resolution QR codes or barcodes CTB-3600 / T-11500 / NCT-21100 / NCT-21200 Preconfigured interfaces for TIJ, CIJ, and TTO printers.

Quick Diagnostics for Inline Labelers

Are wrinkled labels slowing down your production line? Struggling with crooked labels that lead to costly rework? Try these proven fixes to resolve the issues.

Missed Containers

  • The Cause: Your photoelectric sensor fails to read clear labels or misaligns with the passing bottles.
  • The Fix: Recalibrate the sensor sensitivity for your current label rolls and physically realign the unit to face the container path.

Label Application Skew

  • The Cause: The applicator head has shifted over time and no longer runs parallel to the conveyor belt.
  • The Fix: Rotate the handwheels to adjust the dispensing head until it matches the conveyor direction.

Wrinkles and Blisters

  • The Cause: A timing mismatch between your label dispensing rate and the conveyor speed.
  • The Fix: Fine-tune the speed via the touchscreen until both the web transit and the bottle movement are synchronized.

Poor Label Adhesion

  • The Cause: The pre-dispense label length is too short to grip the bottle.
  • The Fix: Increase the pre-dispense length.

Faint Coding Marks

  • The Cause: The thermal print head was not fully heated to its specified operating temperature.
  • The Fix: Allow adequate preheating time during your initial startup or manually increase the temperature via the thermal controller.

FAQs about Automatic Labeling Machines

The system transports containers along a motorized conveyor. A photoelectric sensor detects the passing item and triggers the dispensing head instantly. The machine then peels the backing and wipes the self-adhesive label onto your product in one continuous motion.
Automatic labeling machines are compatible with paper, BOPP, clear films, and foil materials. Depending on the application, they can process self-adhesive labels, shrink sleeves, or glue-applied labels. For transparent label materials, specialized sensors are often required to prevent false missing-label alarms.
Yes. Many automatic labelers are modular. On Anxine systems, you can use handwheels to adjust the applicator head and conveyor guide rails for quick format changes. But for drastic shape changes, you may need additional tooling or a different machine setup.
Absolutely. Some models are factory-configured with hot stamp coders for immediate batch date coding. For more complex data, our machines also preserve space for mounting TIJ, TTO, or CIJ printers.
