Semi Automatic Flat Surface Labeling Machine MT-60M

Applies self-adhesive labels on flat surfaces like cartons, boxes, and other flat containers. Ideal for flexible labeling operations with integrated code printing.

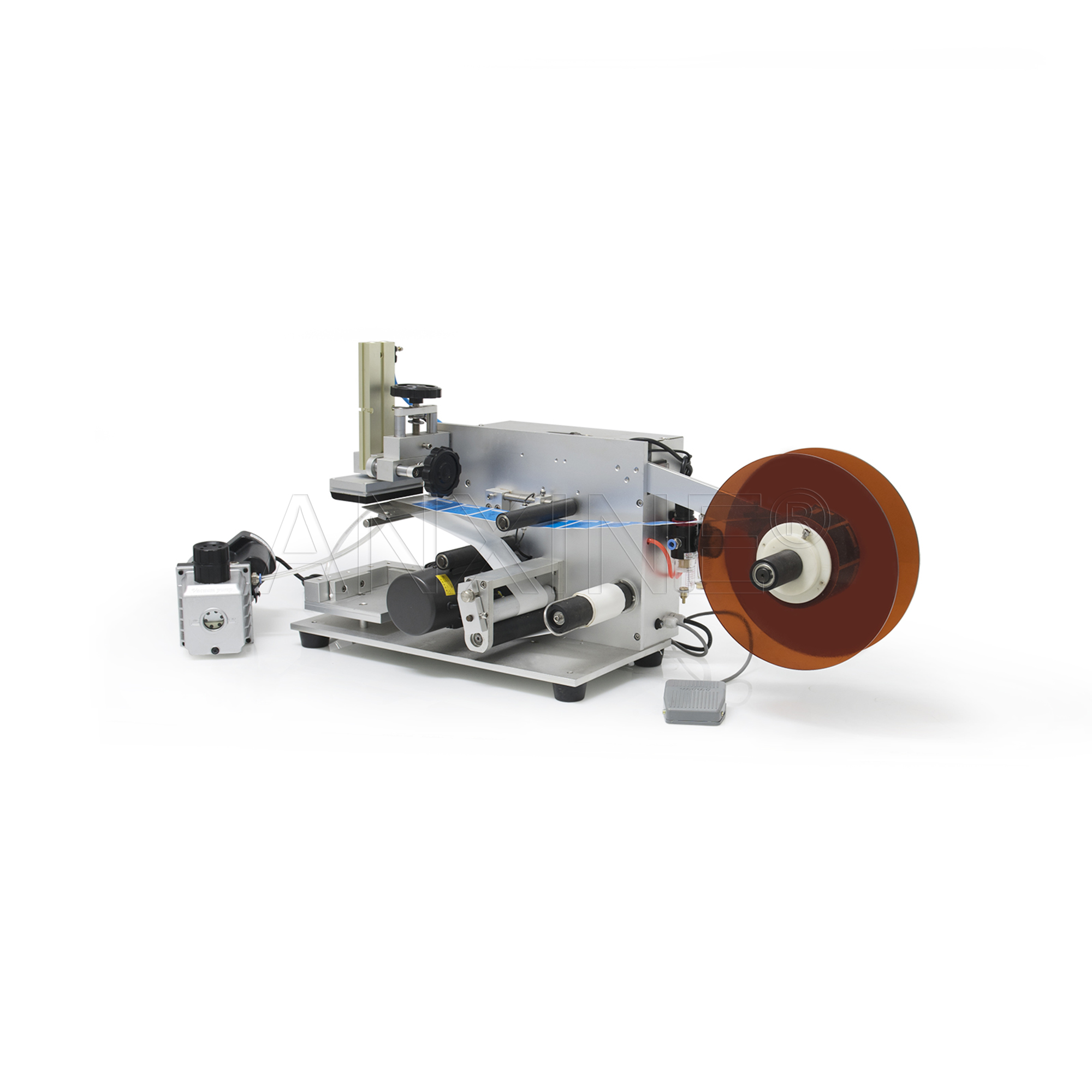

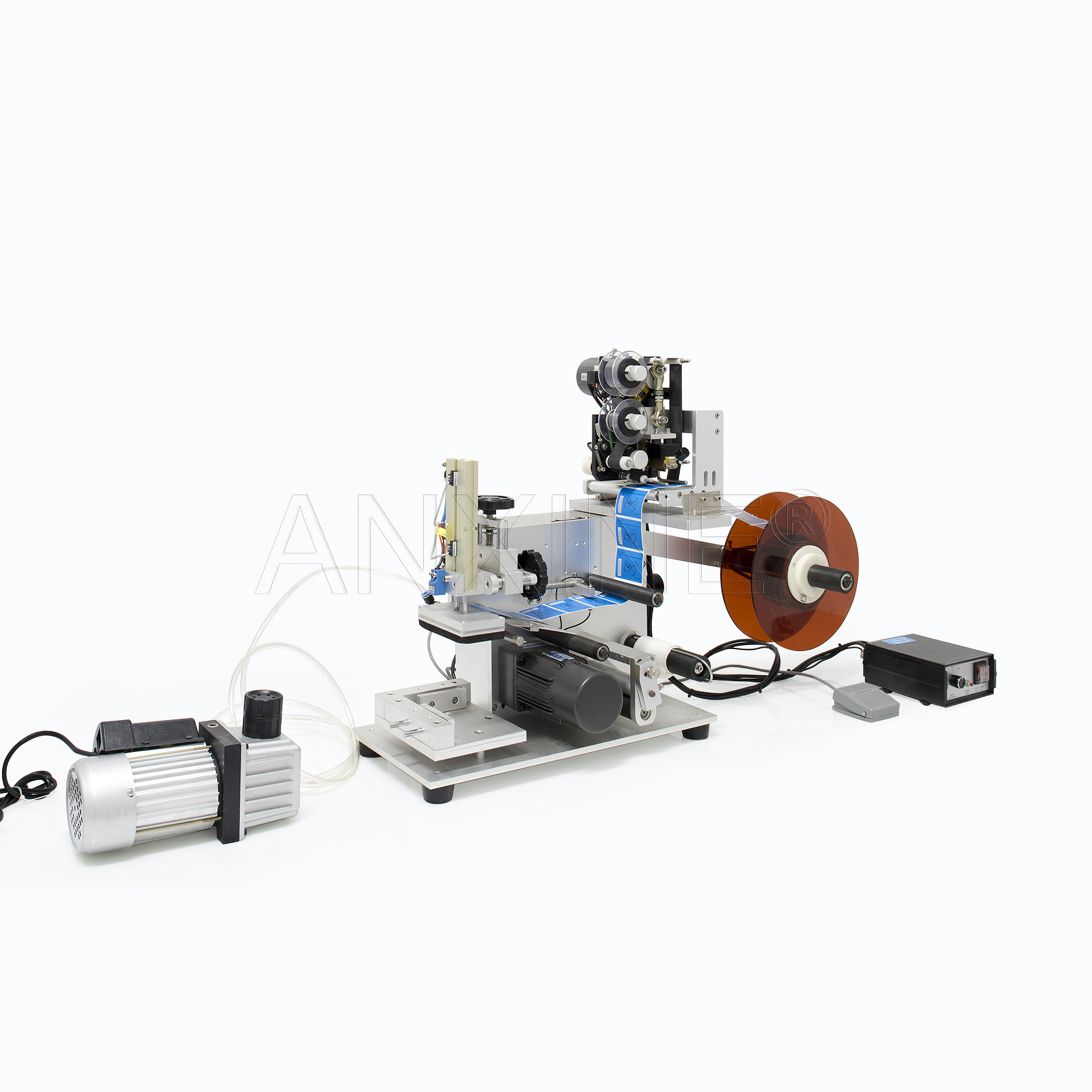

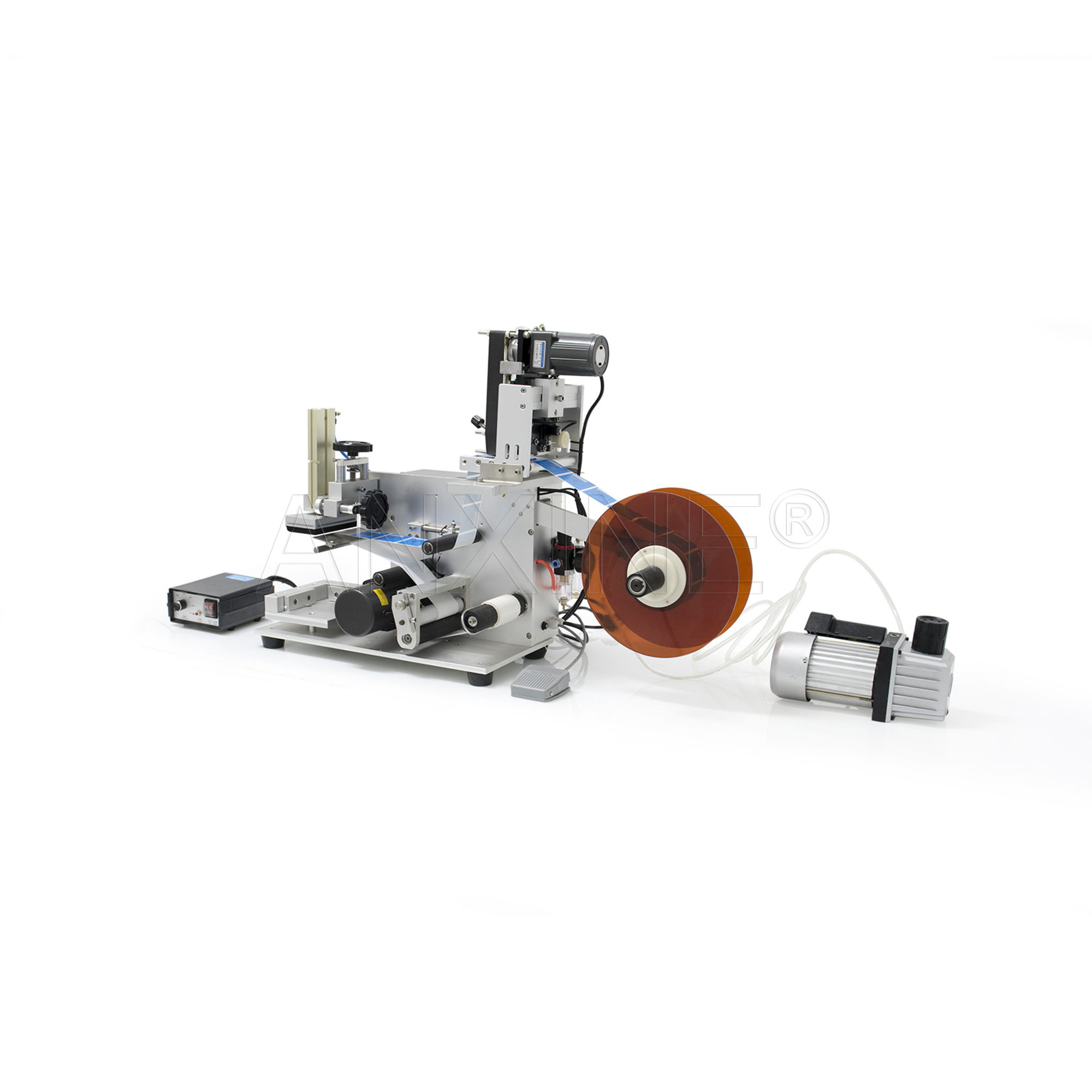

MT-60M Pressure-Sensitive Label Applicator Machine for Flat Surfaces

Tired of the tedious task of hand-labeling flat containers? The MT-60M makes the job faster and cleaner. This semi automatic labeler machine is built to apply self-adhesive labels to flat surfaces. It features a high-precision electric eye for accurate label sensing, a foot-pedal trigger for operator control, and an integrated hot stamp code printer for date and batch printing.

It’s worth mentioning that you can adjust the MT-60M’s label applicator head vertically to suit products of different heights. Plus, this model is built with a width-adjustable positioning jig that holds the product to be labeled and guides it in place for labeling. Its tabletop design and versatile adjustments make it a smart choice for pharmaceuticals, cosmetics, supplements, and food products.

Description

Highlighted Features

  • Flat Surface Labeling: Designed for labeling cartons, boxes, or square bottles.
  • Vacuum Suction: Uses vacuum to pick up sticker labels for wrinkle-free application.

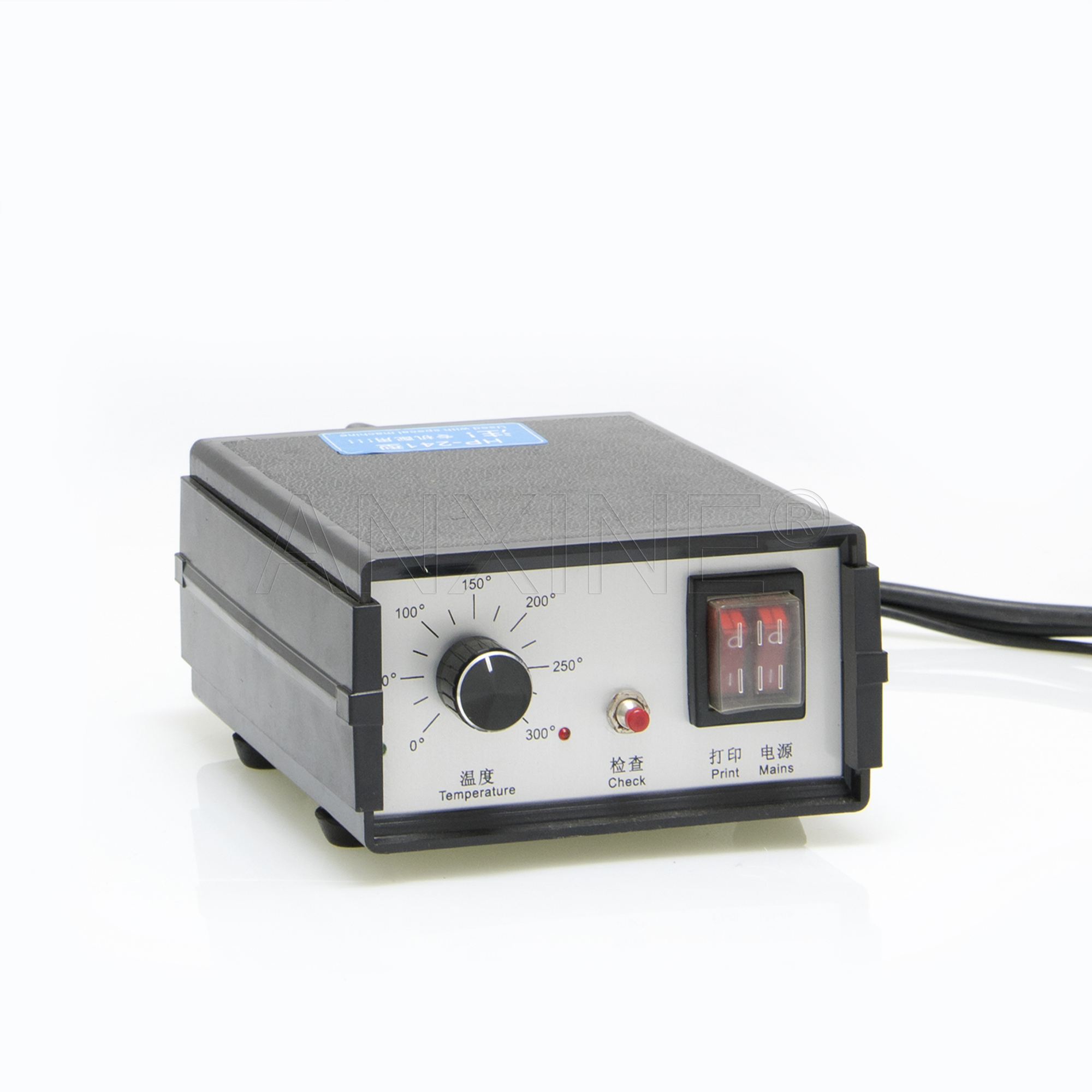

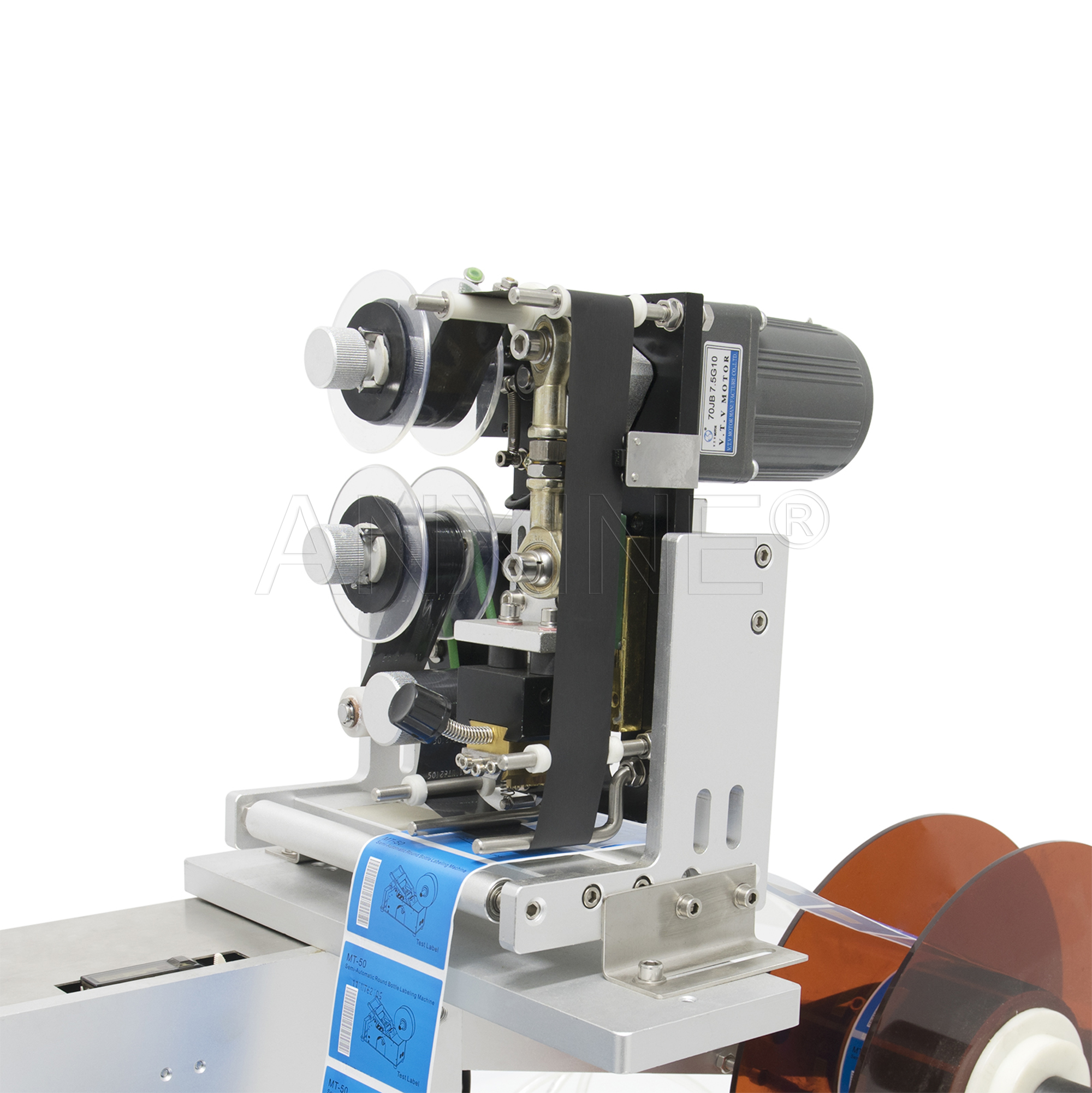

  • Built-in Ribbon Coding Printer: Prints product info on the label in real time.

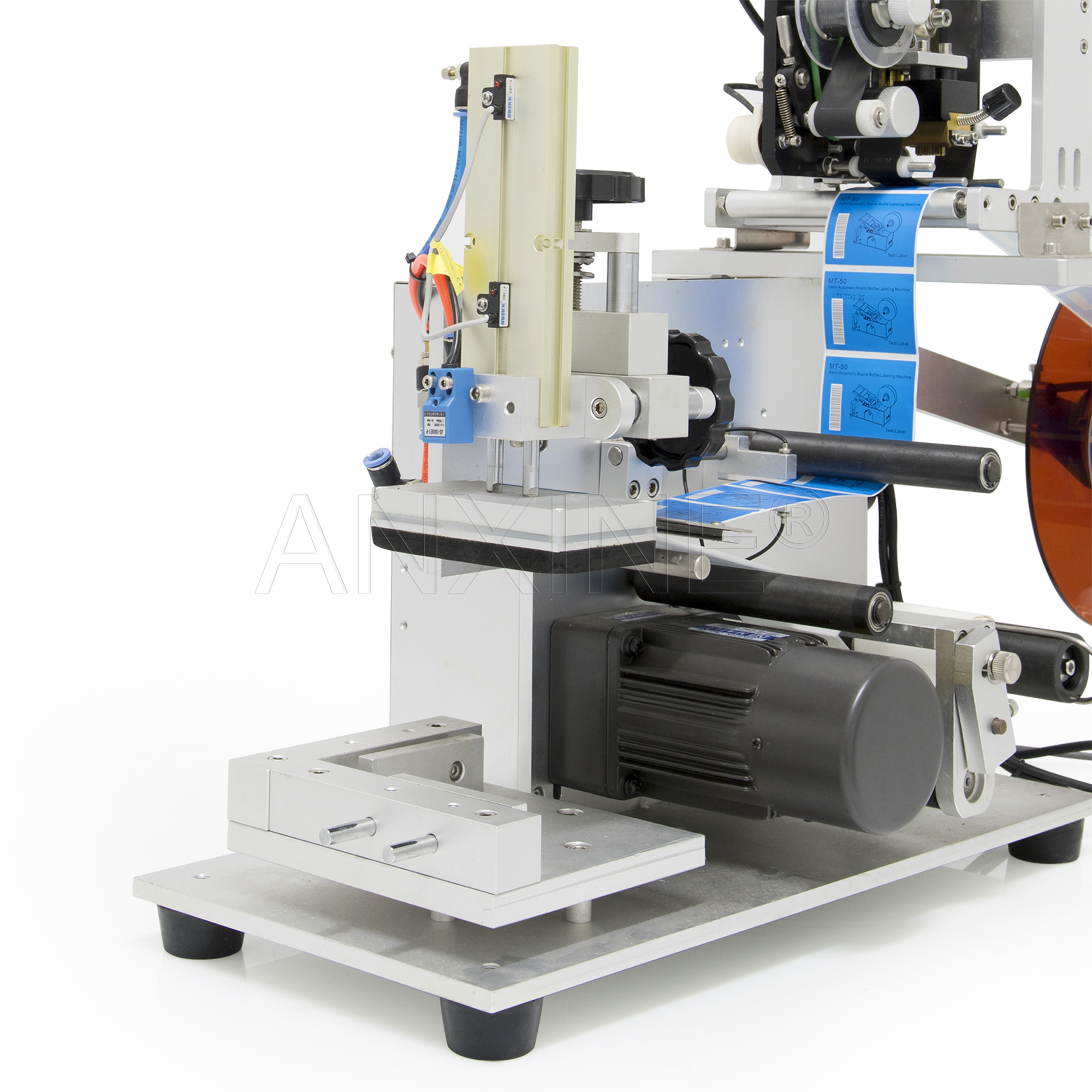

  • Adjustable Framing: Label applicator head and positioning jig can be adjusted for different product sizes.
  • Foot Pedal Trigger: Simple foot switch allows hands-free operation.
  • Clear Label Path: Open-frame design makes threading straightforward.
  • Compact Footprint: Space-saving design fits easily on a workbench.

Specifications

Model MT-60M
Labeling Speed 25-50 times/minute
Label Size Length: 30 mm – 100 mm
Width: 30 mm – 60 mm
Label Roll Diameter Inner: ≥75 mm
Inner: ≤Φ260 mm
Product Height 5 mm – 80 mm
Accuracy ±0.5mm
Voltage 220V 50Hz / 110V 60Hz
Dimensions 620 x 600 x 310 mm
Weight 35 kg
