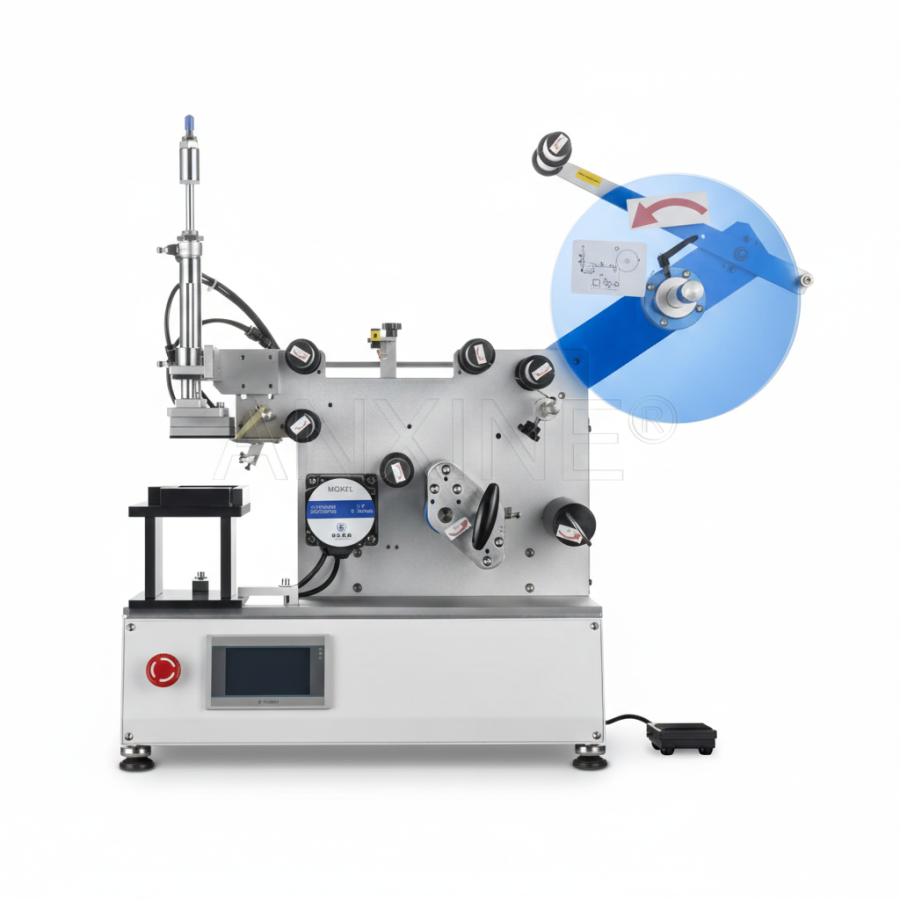

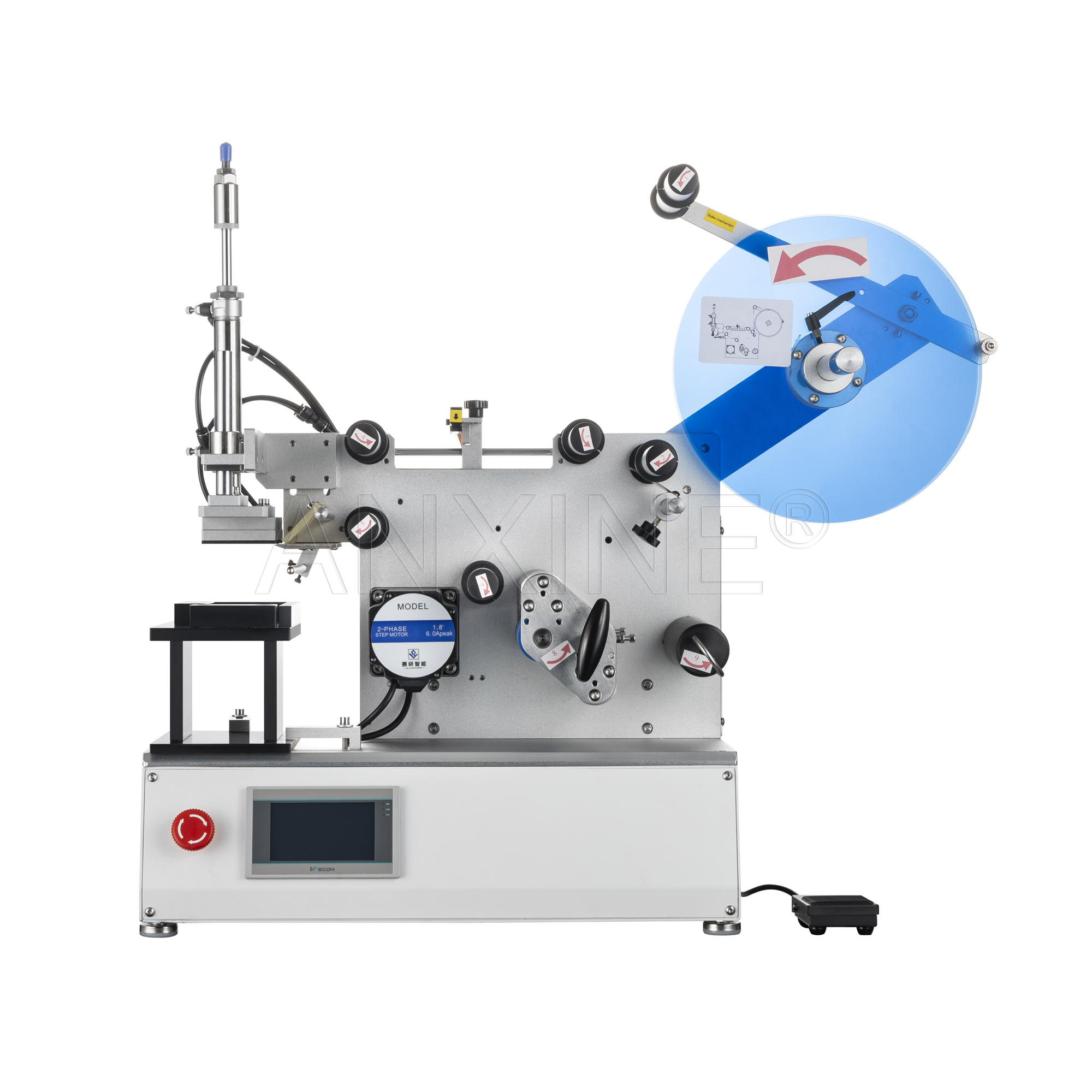

Semi Automatic Flat Labeling Machine T-30114
T-30114 Flat Label Applicator Machine with Printer Integration
Compact yet highly capable, this semi-automatic flat labeling machine is built to handle flat and even curved surfaces. The T-30114 uses a sensor-based positioning system to ensure accurate label feed. It also has an integrated PLC-controlled touch screen that allows manual/auto setup and parameter adjustments. Its print head lets you imprint batch numbers or expiration dates without switching stations.
The T-30114 is suitable for small-batch labeling operations, especially when space or budget doesn’t allow for a fully automatic system. Built with durability in mind, this desktop label applicator is a go-to tool for growing businesses that need precision and versatility.
Description
Highlighted Features
- Flexible Surface Labeling: Capable of labeling on flat and curved containers.

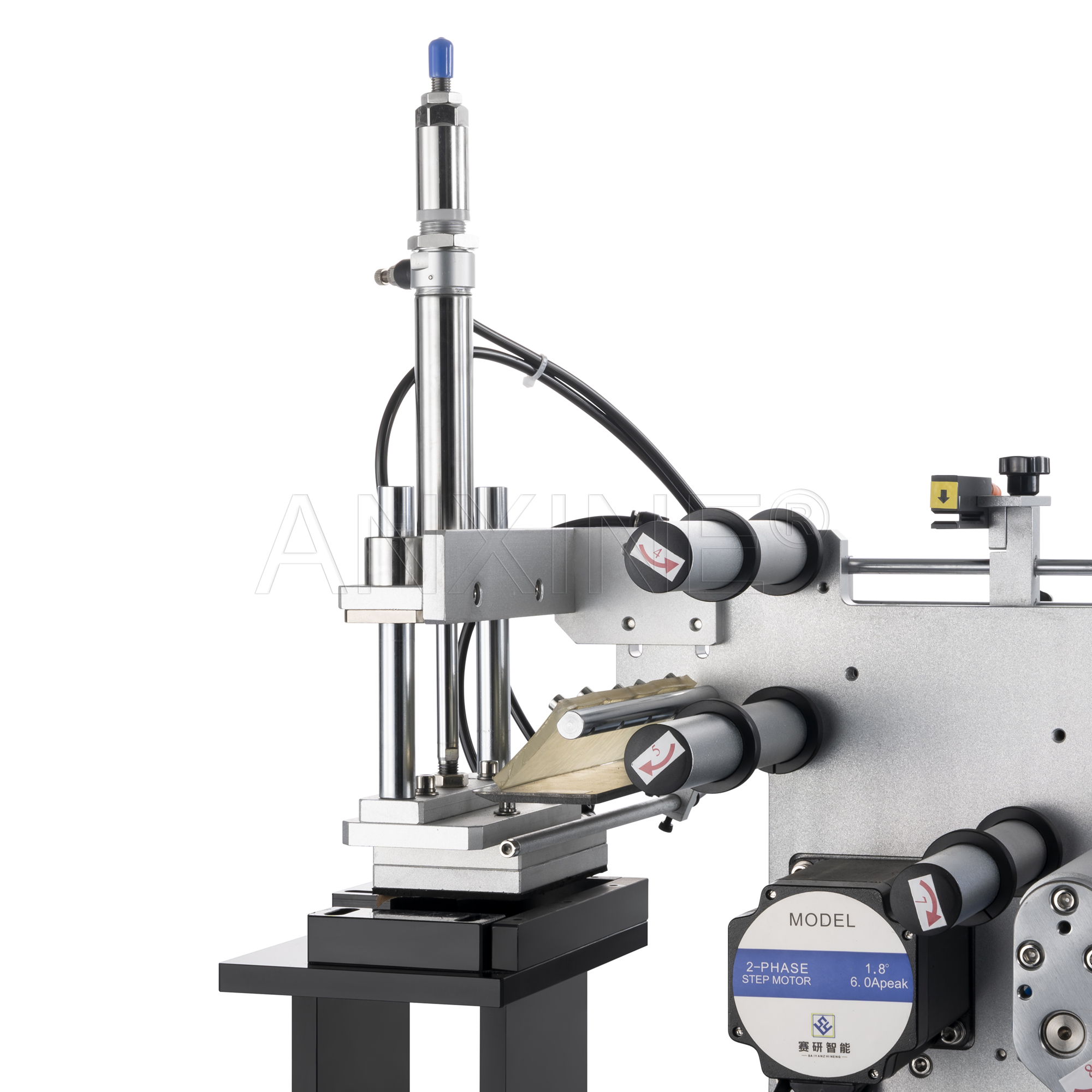

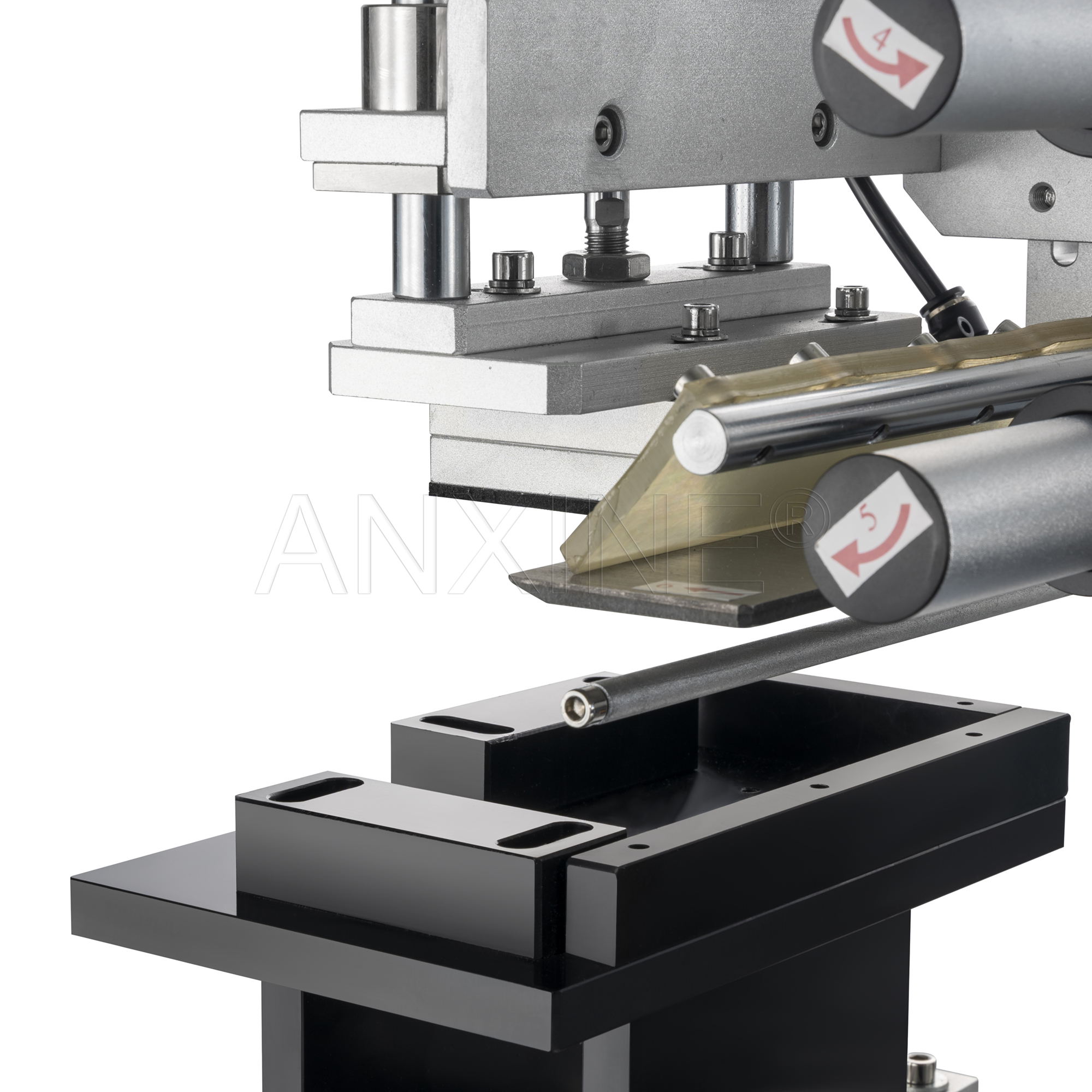

- Vertical Pressing Head: Pneumatic pressing ensures clean, bubble-free label application.

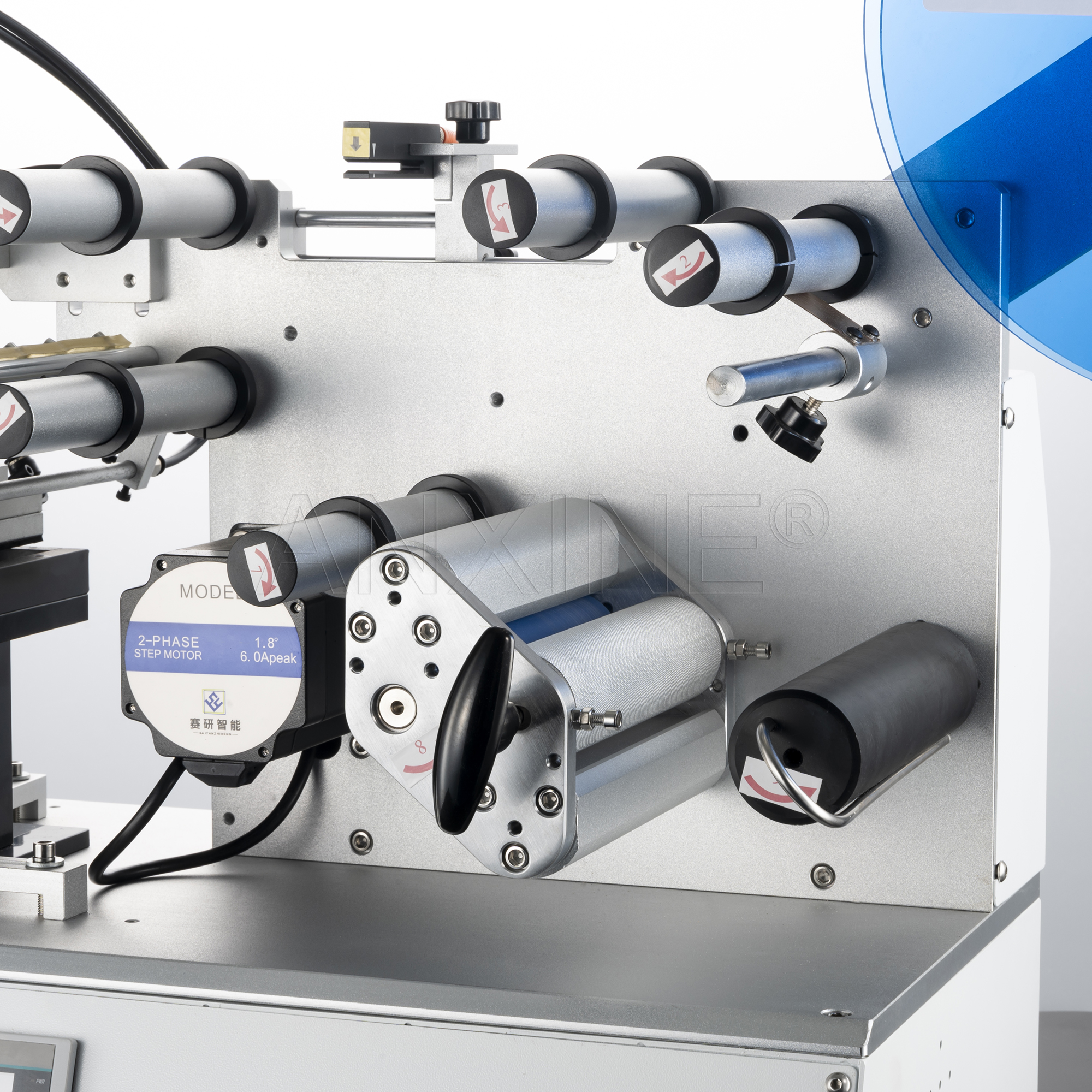

- Step Motor Drive: Powered by a reliable stepper motor for stable label feeding.

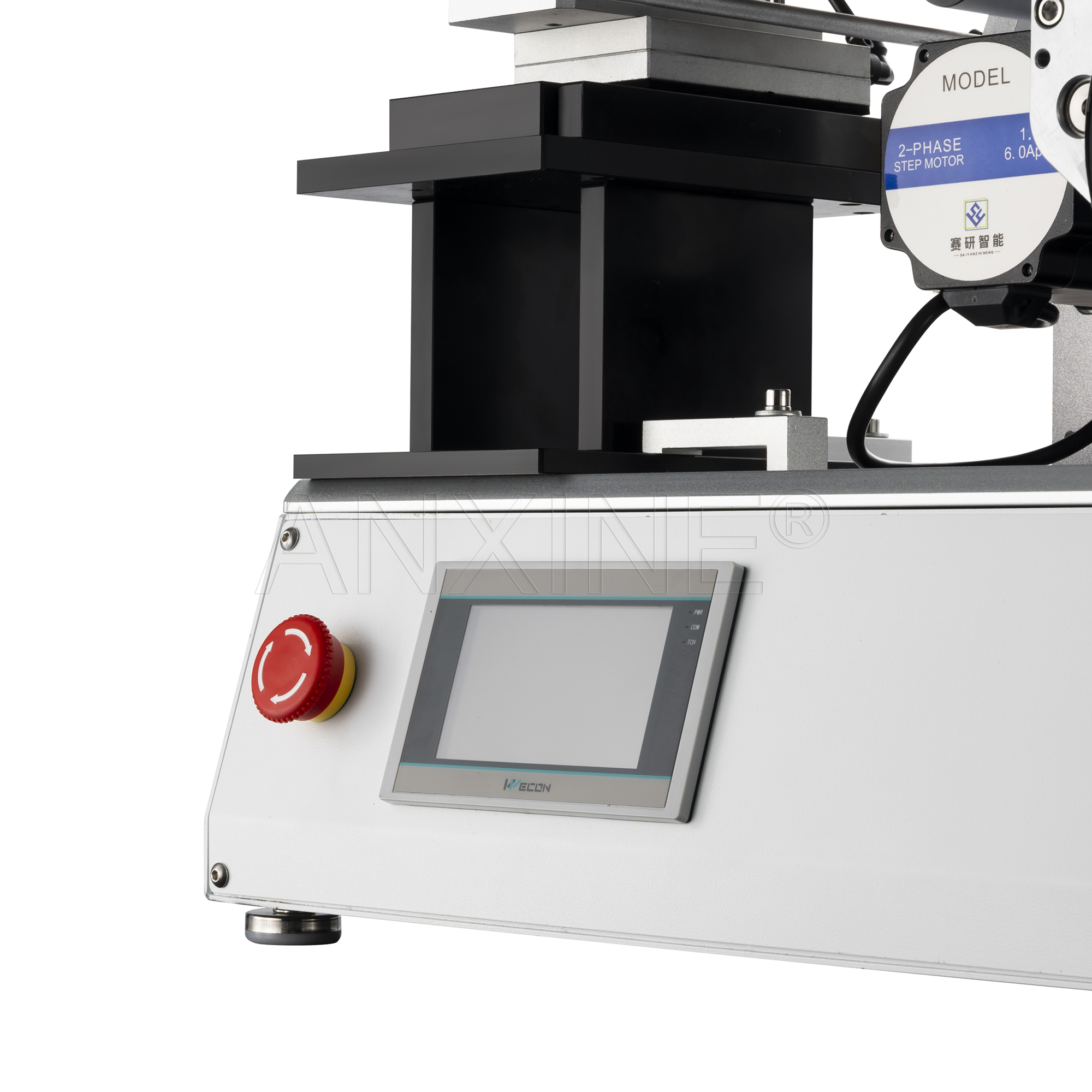

- Simple Touchscreen Control: Intuitive control interface enables user-friendly setup and adjustments.
- Photoelectric Label Sensor: Detects label position accurately to minimize misalignment and waste.
- Sturdy Construction: Built with durable aluminum and stainless steel for long-term use.
- Emergency Stop Button: Provides protection against sudden failures.
Specifications
| Model | T-30114 |
|---|---|
| Labeling Speed | 10-25 pieces/minute |
| Label Diameter | Inner: 40mm/76mm Outer: ≤Φ350mm |
| Product Size | Length 10-180mm, Width 10-180mm, Thickness 0.2mm-120mm |
| Power | 200W |
| Accuracy | ±0.5mm |
| Voltage | 110V/60Hz or 220V/50Hz |
| Dimensions | 840 x 430 x 770 mm |
| Weight | 95 kg |
