Conveyor Metal Detector CSJ-W150/200

Detects and rejects metal contaminants in bottled or jarred products using high-accuracy inline conveyor scanning and pneumatic rejection.

CSJ-W150/200 Metal Detector Machine with Conveyor System

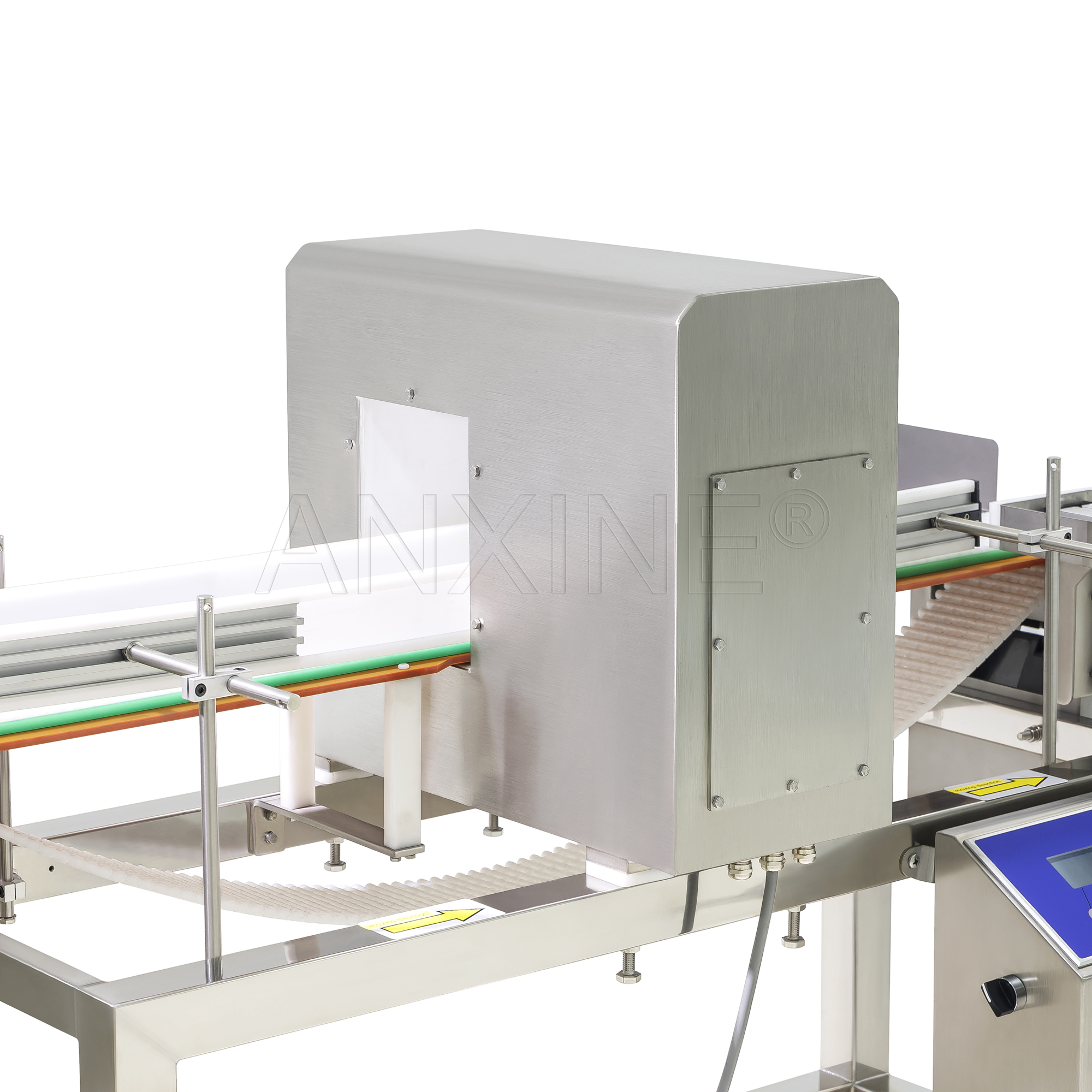

This versatile, high-precision metal detector machine is used in various industry settings. It features a sensitive detection tunnel, an inline pneumatic rejection system, and adjustable conveyors to ensure fast, clean removal of all magnetic and non-magnetic metal-contaminated products.

The CSJ-W150/200 is engineered to inspect products in cylindrical packaging, such as bottles and jars. That’s why it’s equipped with a side-grip conveyor belt to ensure stable and controlled bottle entry into the detection area.

You can effortlessly incorporate this conveyor metal detector into your existing bottle packaging line. It works well with filling, capping, and labeling machines, keeping everything in sync. Most importantly, it helps meet the toughest quality control expectations.

Request for Quote

Description

Highlighted Features

  • Side-Grip Conveyor System: Ensures stable bottle flow enters the detection tunnel without tipping.

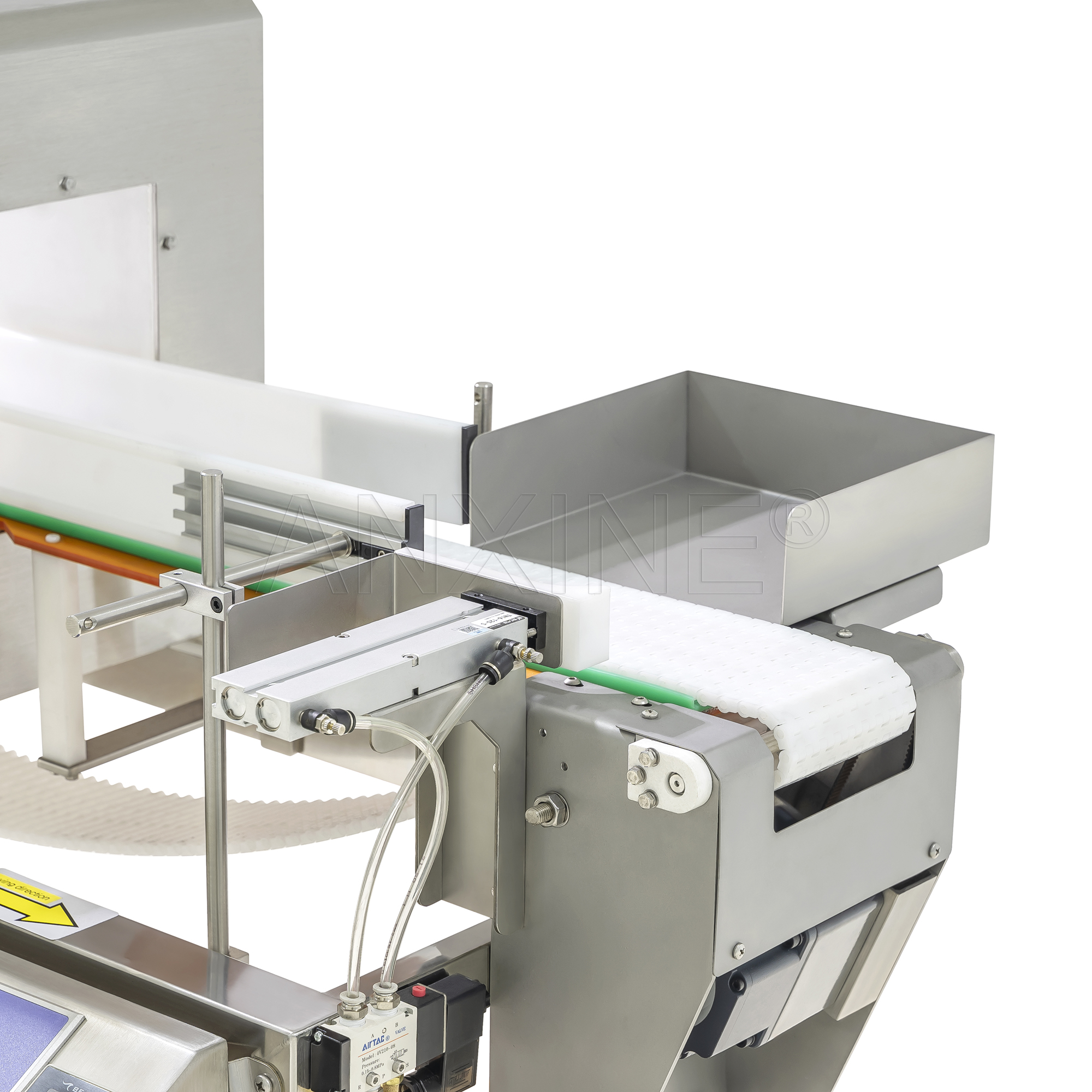

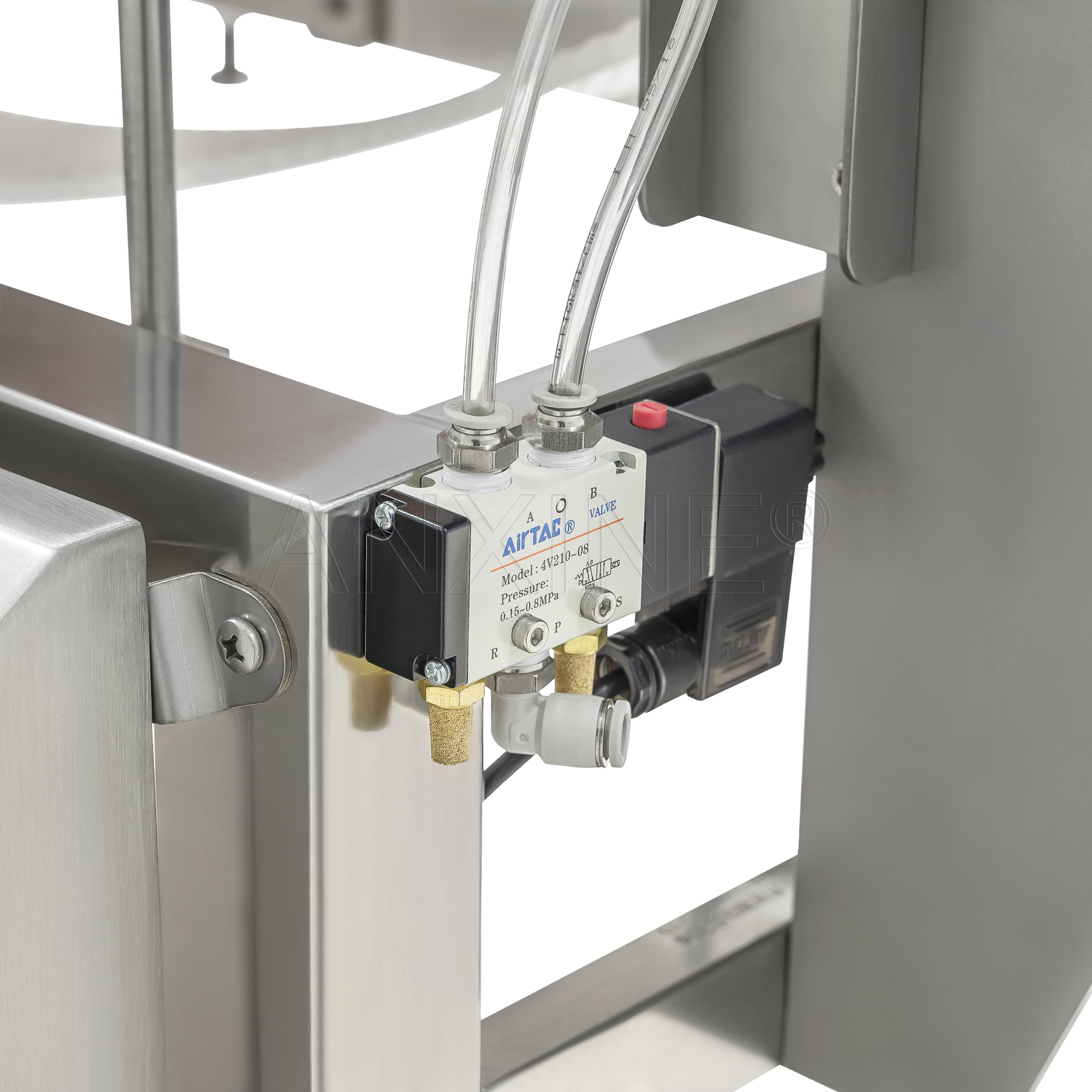

  • Automatic Rejection Unit: Pneumatic pusher removes defective bottles quickly without stopping production.
  • Warning Indicator Light: Red signal light alerts operators immediately when metal contaminants are detected.
  • Rejection Collection Tray: Keeps contaminated bottles separated for inspection.

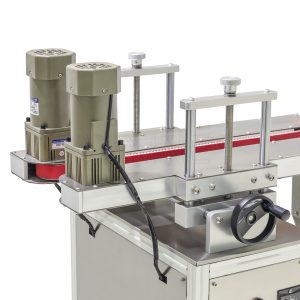

  • Adjustable Bottle Height: Hand-crank system allows quick adjustment of side belts and tunnel height to fit various bottle sizes.

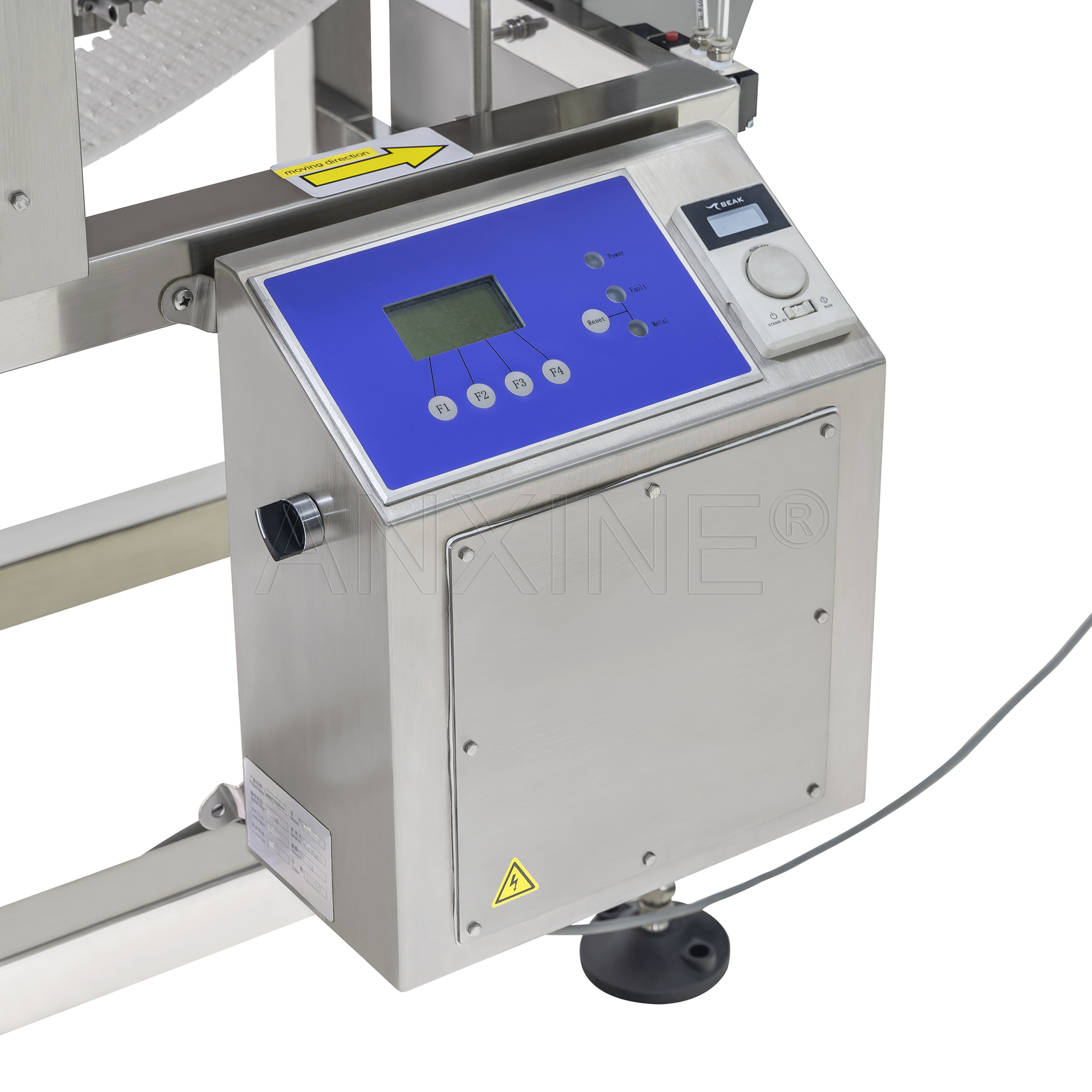

  • User-friendly Control Panel: Simple interface with basic switches and a digital display.

Specifications

Model CSJ-W150/200
Channel Diameter 200 x 150 mm
Effective Caliber 120 x 170 mm
Protection Level IP65
Detection Accuracy Fe: 0.7mm
Non-Fe: 0.8mm
SUS: 1.0mm
Power Supply Requirements Stable voltage, separate wiring to prevent electromagnetic interference, 0.2 kW energy consumption
Weight 120 kg
