Pharmaceutical Metal Detector
Metal Detector Machines for Pharmaceuticals & Nutraceuticals
Using electromagnetic induction, these metal detection systems scan bulk tablets, capsules, and packaged products for metallic particles or fragments that may go unnoticed during manual visual checks. They’re also typically equipped with rejection functions that automatically discard each contaminated piece from the production line.
Anxine offers two of the most common industrial metal detection setups: gravity-fall and conveyor metal detectors. Designed for high detection sensitivity and stable operation, our machines help identify metallic contaminants while reducing false rejects. Some models can intercept ferrous contaminants as small as 0.2 mm.
Our Range of Metal Detection Systems
Explore Anxine’s gravity-fall and conveyor metal detectors. Beyond bulk products, they can detect metallic contaminants in bottles, pouches, and cartons.

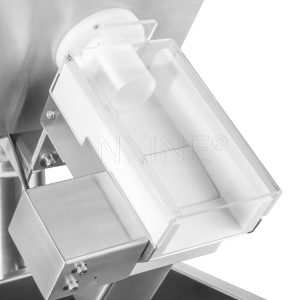

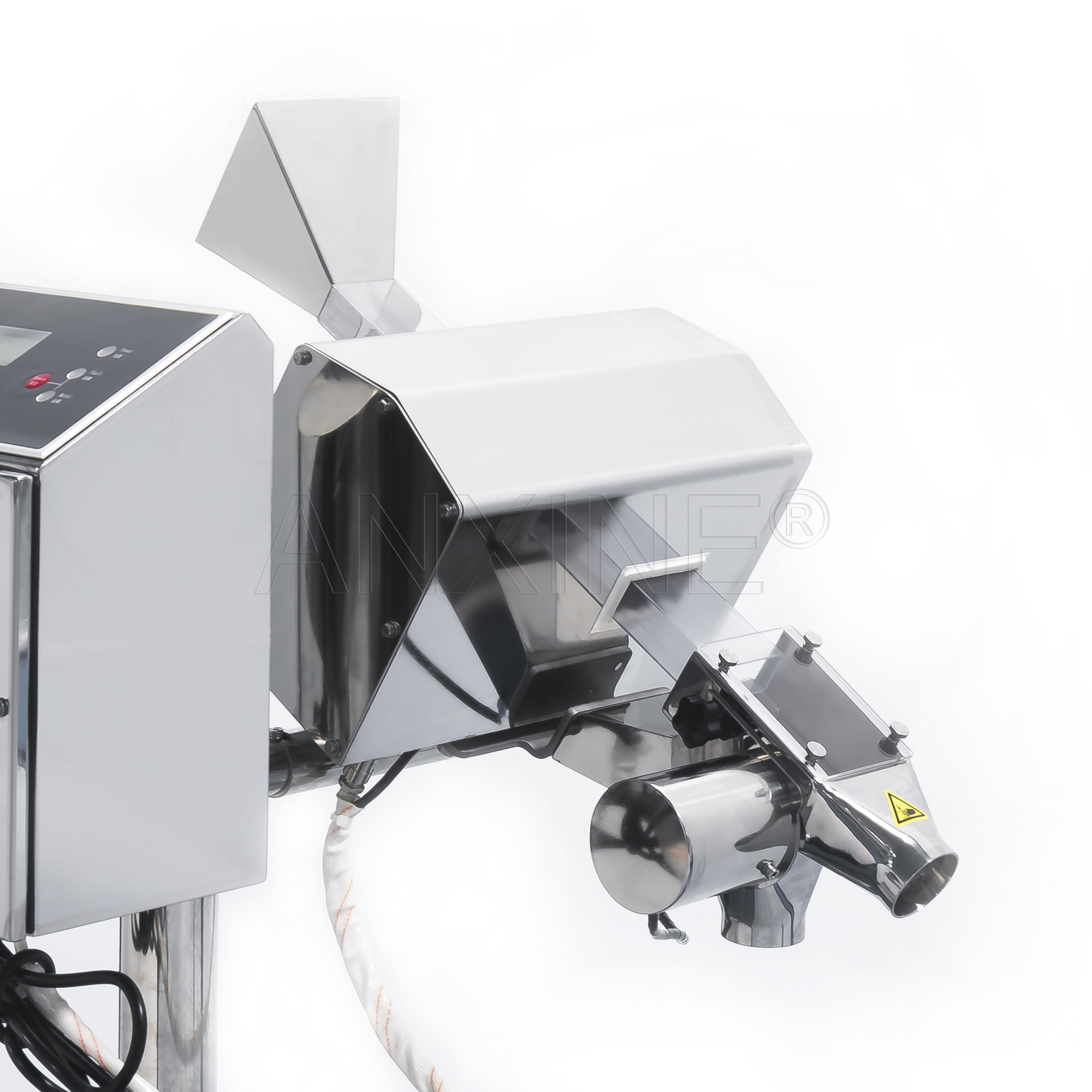

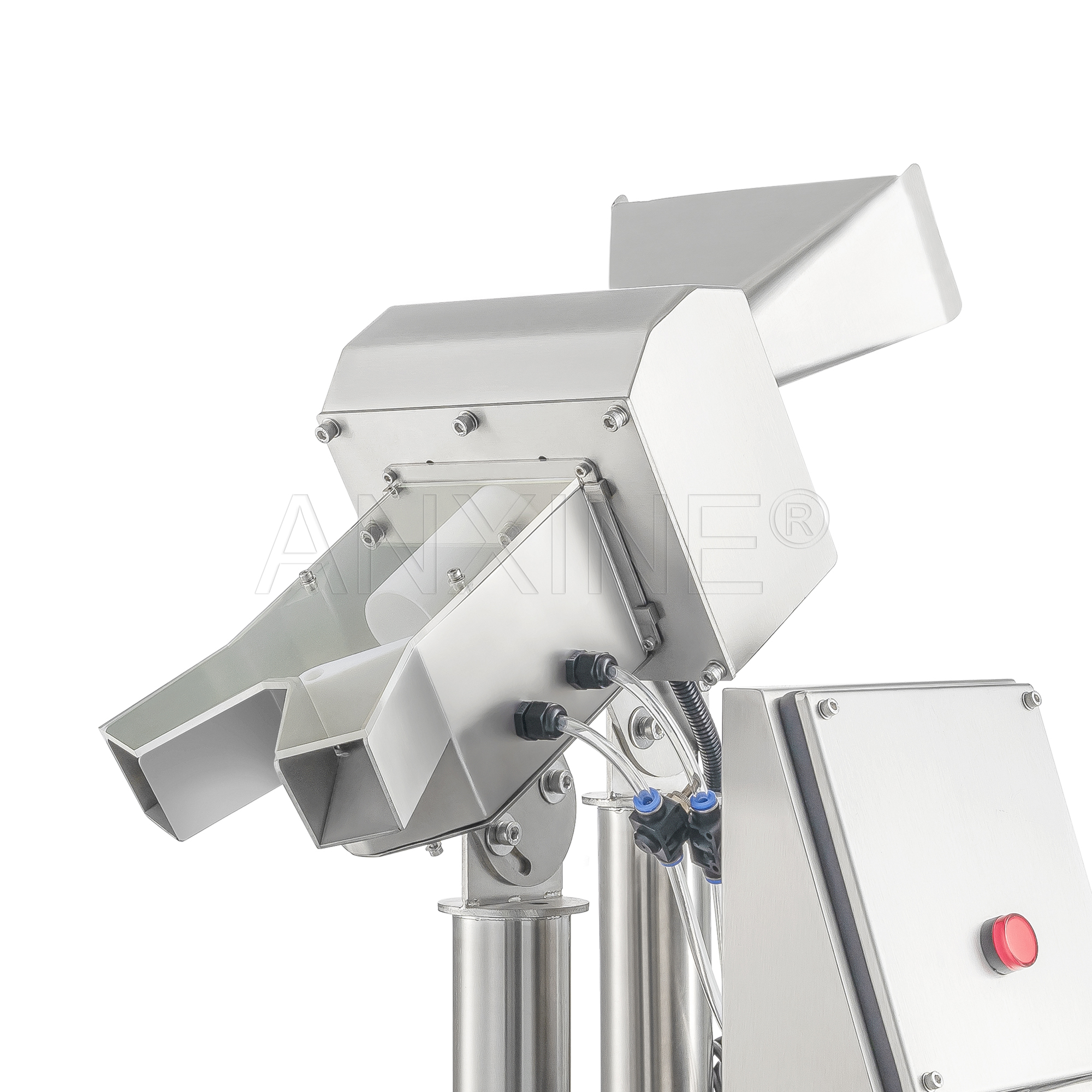

Pharmaceutical Metal Detector T68
Detects ferrous, non-ferrous, and stainless steel in seconds. Rejects contaminated tablets/capsules automatically. Compact, mobile design for any pharma production line.
Capsule & Tablet Metal Detector SAYP-600
Finds micro-metal fragments in tablets and capsules, auto-ejects defects, and seamlessly connects with a tablet press or capsule polisher.
Digital Metal Detector SAYP-700S
Separates and rejects capsules and tablets with ferrous and non-ferrous contaminants in real time. Ideal for the pharmaceutical and nutraceutical industries.
Conveyor Metal Detector CSJ-W150/200
Detects and rejects metal contaminants in bottled or jarred products using high-accuracy inline conveyor scanning and pneumatic rejection.
Conveyor Belt Metal Detector CSJ-990
Delivers fast, precise inline metal detection with automatic rejection and full belt integration. Ideal for both loose and packaged products.
What Sets Our Inline Metal Detectors Apart
Whether used as standalone units or integrated into existing production lines, Anxine inspection systems reliably identify and reject metal-contaminated products to support regulatory compliance.
Diverse Mechanical Integration
Flexible configurations, from adjustable gravity-fall systems and side-grip conveyors, allow easy adaptation to different production layouts.

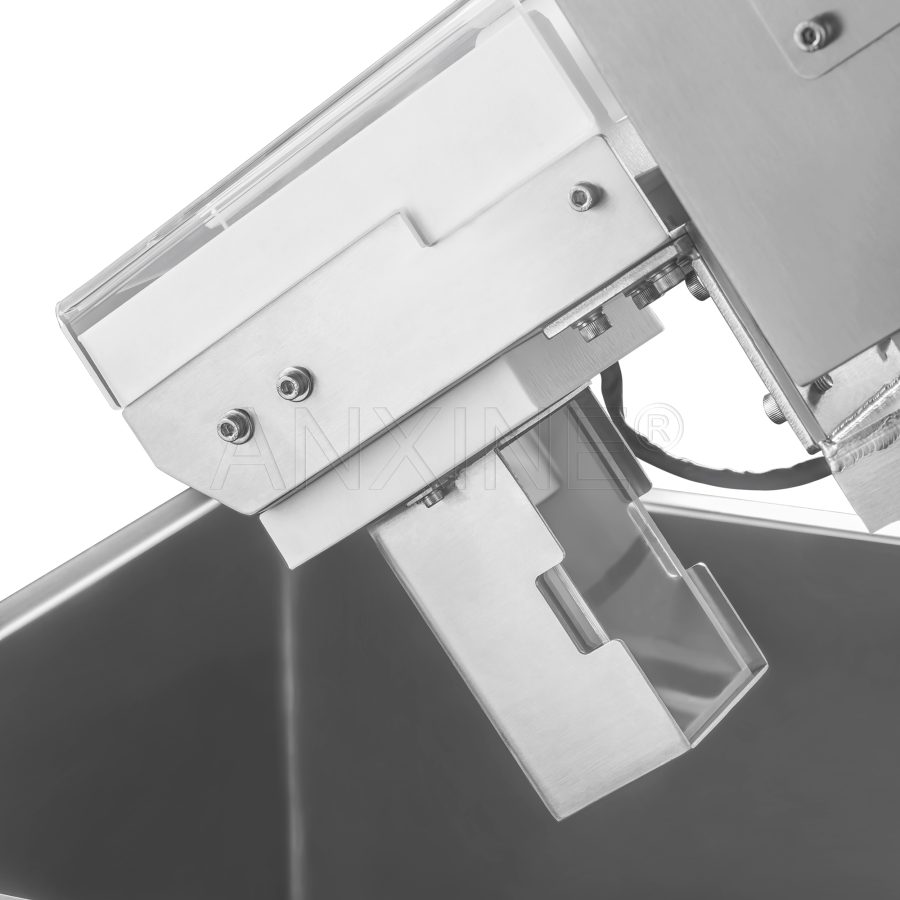

Zero Downtime Rejection
High-speed diverter flaps, pneumatic lateral pushers, or air blasts isolate contaminated units in microseconds without stopping the machine.
Dynamic Product Effect Compensation
Smart tracking algorithms automatically compensate for variations in material moisture and environmental conditions to reduce false-reject alarms.
Tool-Less Sanitary Construction
Washdown-ready stainless steel housings and food-grade conveyor belts support easy cleaning routines and ensure strict compliance with FDA sanitation standards.
Specifications Overview
| Model | T68 | SAYP-600 | SAYP-700S | CSJ-W150/200 | CSJ-990 |
|---|---|---|---|---|---|
| Equipment Type | Gravity Fall Metal Detector | Gravity Fall Metal Detector | Gravity Fall Metal Detector | Conveyor Metal Detector | Conveyor Metal Detector |
| Throughput | 460,000 pcs/hour | 2,000 – 44,000 L/hour | 2,000 – 44,000 L/hour | Not Specified | Not Specified |
| Detection Aperture | 68 × 18 mm | Φ50 – 200 mm | Φ50 – 200 mm | 200 × 150 mm | (400-500) × (100 – 400) mm |
| Detection Sensitivity | Fe: ≥ Φ0.2 mm
SUS: ≥ Φ0.4 mm |
Fe: Φ0.7 – 2.5 mm
Non-Fe: Φ1.0 – 3.0 mm SUS: Φ1.2 – 3.5 mm |
Fe: Φ0.4 – 1.5 mm
Non-Fe: Φ0.5 – 1.7 mm SUS: Φ0.7 – 1.8 mm |
Fe: Φ0.7 mm
Non-Fe: Φ0.8 mm SUS: Φ1.0 mm |
Fe: ≥ Φ0.6 – 3.0 mm
Non-Fe: ≥ Φ1.0 – 4.5 mm SUS: ≥ Φ1.2 – 4.5 mm |
| Reject Mechanism | Drop-flap / Separation Chute | Drop-flap / Separation Chute | Drop-flap / Separation Chute | Pneumatic Pusher | Drop-flap |
| Ingress Protection | IP65 | Not Specified | Not Specified | IP65 | IP65 |
Find Your Perfect Metal Detection Configuration
Looking to inspect tablets and capsules immediately after production, or screen finished bottles and cartons for contamination? The selection matrix below can help you identify the right solution.
| Selection Factor | Packaging Requirement | Recommended Model(s) | Why It Fits |
|---|---|---|---|
| Line Integration Position | Inspecting tablets and capsules immediately after production | T68 / SAYP-600 / SAYP-700S | Adjustable gravity-feed inlets connect directly to tablet presses and capsule filling machines. |
| Scanning finished bottles | CSJ-W150/200 | Side-grip conveyors firmly hug upright containers to prevent tipping as they enter the inspection section. | |
| Handling heavy packages | CSJ-990 | Heavy-duty flat conveyor belts support loads up to 25 kg and feature wide custom detection apertures for large items. | |
| Detection Sensitivity | Intercepting nearly invisible metal fragments | T68 / SAYP-700S | Advanced electromagnetic coils achieve ferrous detection limits of 0.2 mm and 0.4 mm. |
| Throughput Capacity | Processing high-volume bulk solid doses | T68 | Handles up to 460,000 pieces hourly with instant rejection. |
| Waste Rejection | Isolating contaminated products without stopping the production flow | CSJ-W150/200 / CSJ-990 | Available with multiple rejection options to suit different product types and applications. |
| Product Tracking | Managing frequent format swaps | SAYP-700S / CSJ-W150/200 / CSJ-990 | Stores hundreds of product recipes and detailed event logs to simplify production tracking. |
