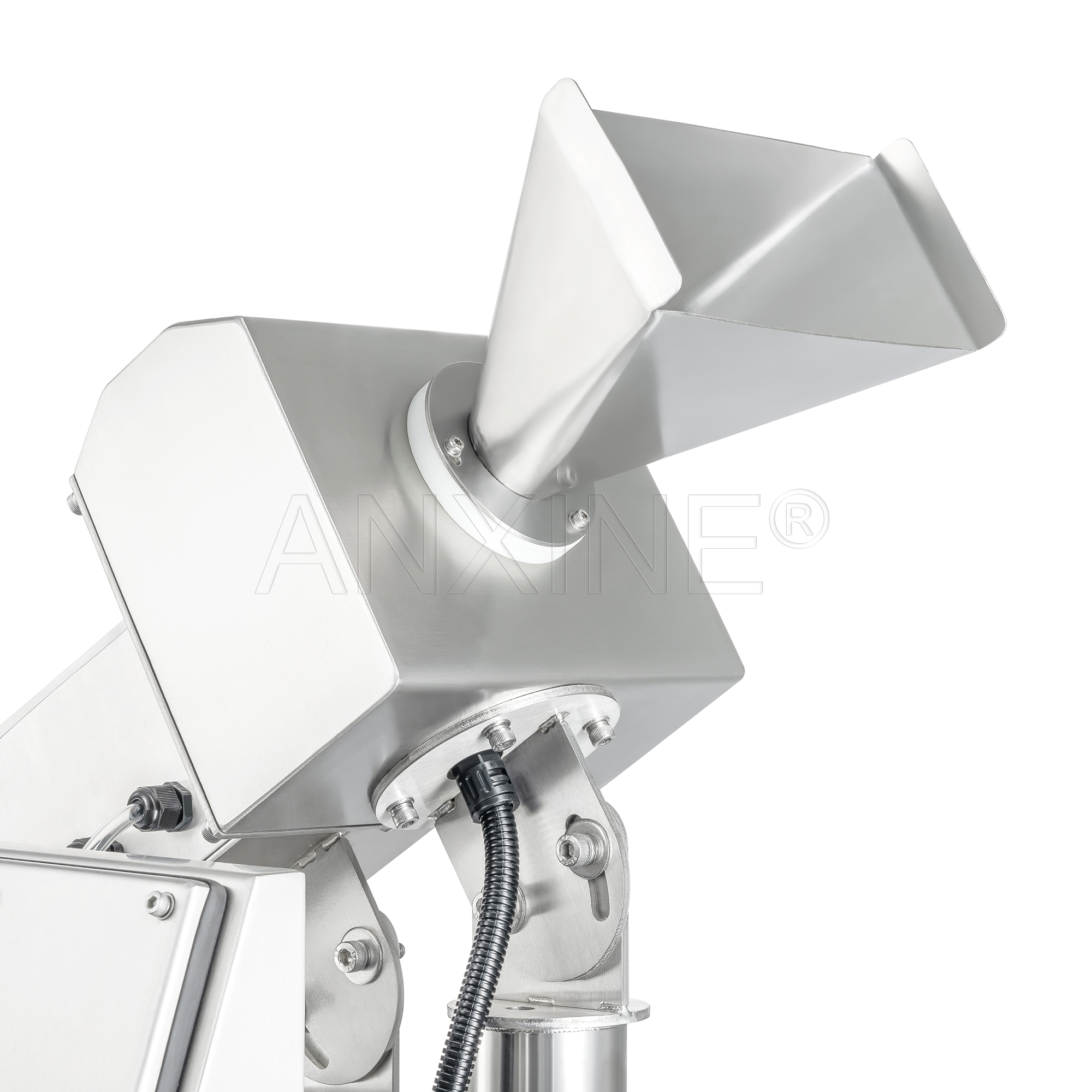

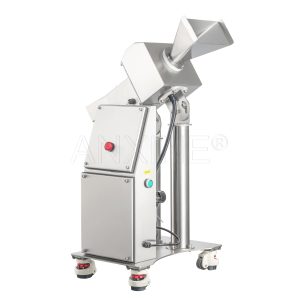

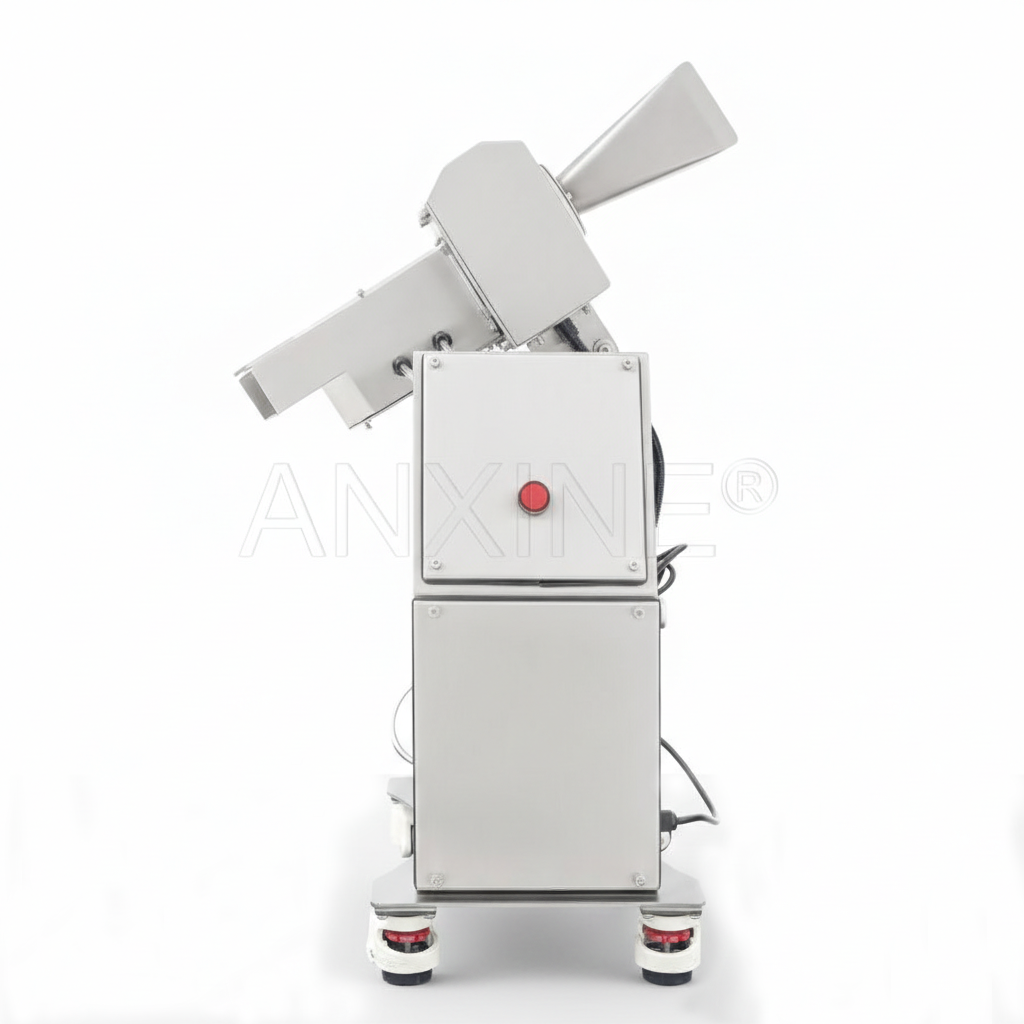

Capsule & Tablet Metal Detector SAYP-600
SAYP-600 High-Precision Pharmaceutical Metal Detector
This model is a high-sensitivity metal detector machine for use in the pharmaceutical industry. The SAYP-600 is built to spot even the tiniest metal fragment hiding in your tablets or capsules. It detects 100% of the product flow and automatically rejects pills containing foreign objects.
The SAYP-600 capsule metal detector is ideal for pairing with capsule fillers or tablet presses or working as a standalone unit. With a sanitary stainless steel build and single-button control, this metal detector is a solid choice for pharmaceutical and nutraceutical start-ups and small-sized businesses.
Description
Highlighted Features
- Compact Stainless Steel Design: Built with a hygienic stainless steel body, ideal for pharmaceutical production environments.

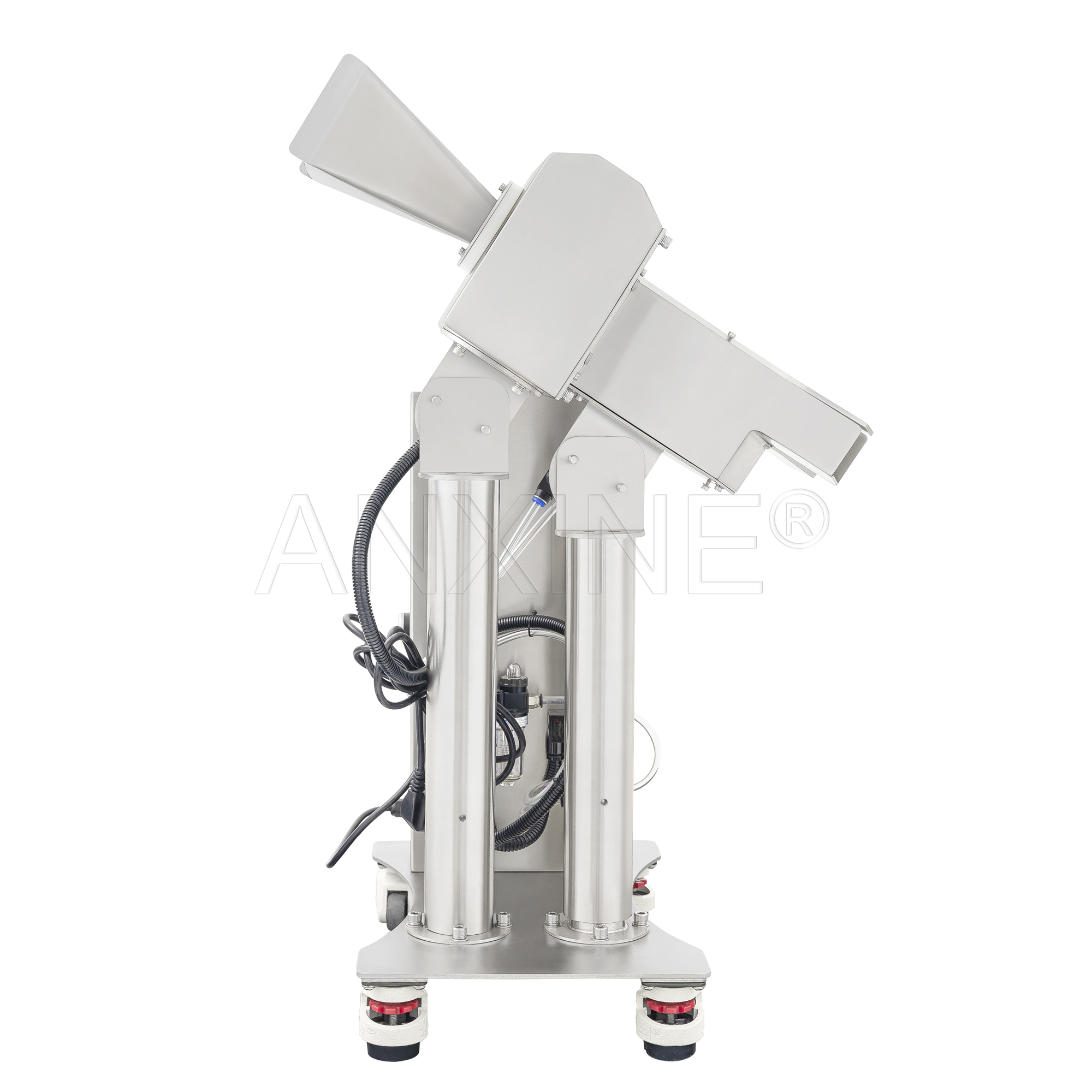

- Tilt Adjustable: The detection chute can be manually adjusted for angle.
- Lockable Casters: Fitted with four heavy-duty swivel casters for easy locating in your facility.
- Quick-Clean Access: Tool-free design around the product chute allows for fast cleaning and maintenance.

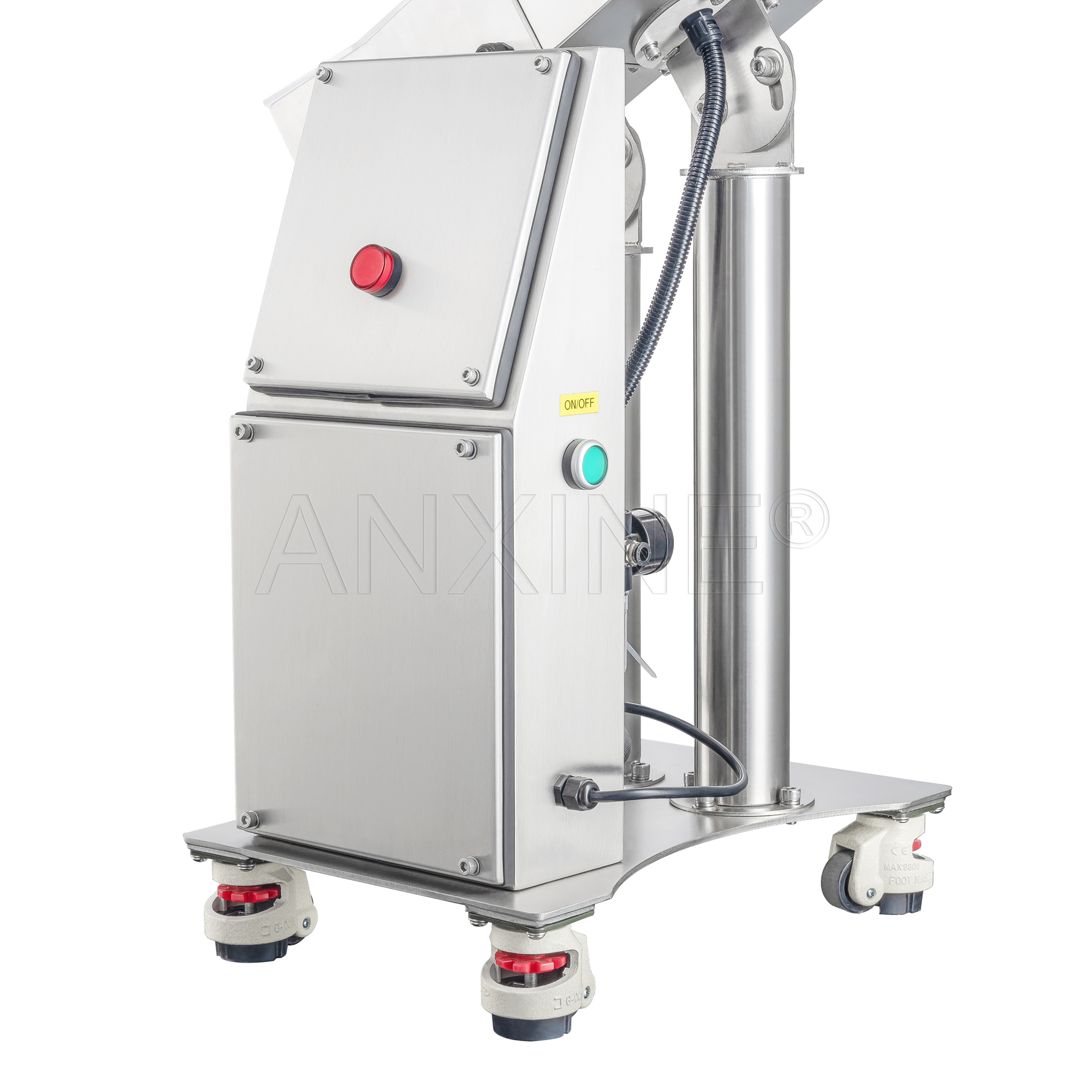

- Simple Control Panel: Equipped with easy-access physical buttons for basic power control.
- Rapid Rejection System: Comes with a reject gate for fast removal of contaminated products from the flow.
Specifications
| Model | SAYP600S-50 | SAYP600S-80 | SAYP600S-100 | SAYP600S-120 | SAYP600S-150 | SAYP600S-200 |
|---|---|---|---|---|---|---|
| Inlet Size | Φ50mm | Φ80mm | Φ100mm | Φ120mm | Φ150mm | Φ200mm |
| Detection accuracy (empty machine) | Fe 0.7mm NOFe：1.0mm SUS 1.2mm |
Fe 1.0mm NOFe：1.2mm SUS 1.5mm |
Fe 1.2mm NOFe：1.5mm SUS 1.8mm |
Fe 1.5mm NOFe：2.0mm SUS 2.3mm |
Fe 2.0mm NOFe：2.5mm SUS 3.0mm |
Fe 2.5mm NOFe：3.0mm SUS 3.5mm |
| Maximum production volume | 2000L/H | 8000L/H | 12000L/H | 16000L/H | 25000L/H | 44000L/H |
| Working voltage | 220/110VAC(+10%,-15%) | 220/110VAC(+10%,-15%) | 220/110VAC(+10%,-15%) | 220/110VAC(+10%,-15%) | 220/110VAC(+10%,-15%) | 220/110VAC(+10%,-15%) |
| Compressed air | 5-8bar | 5-8bar | 5-8bar | 5-8bar | 5-8bar | 5-8bar |
| Net weight of equipment | about 30kg | about 34kg | about 45kg | about 50kg | about 60kg | about 65kg |
