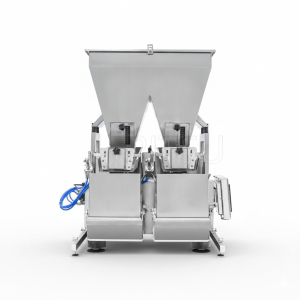

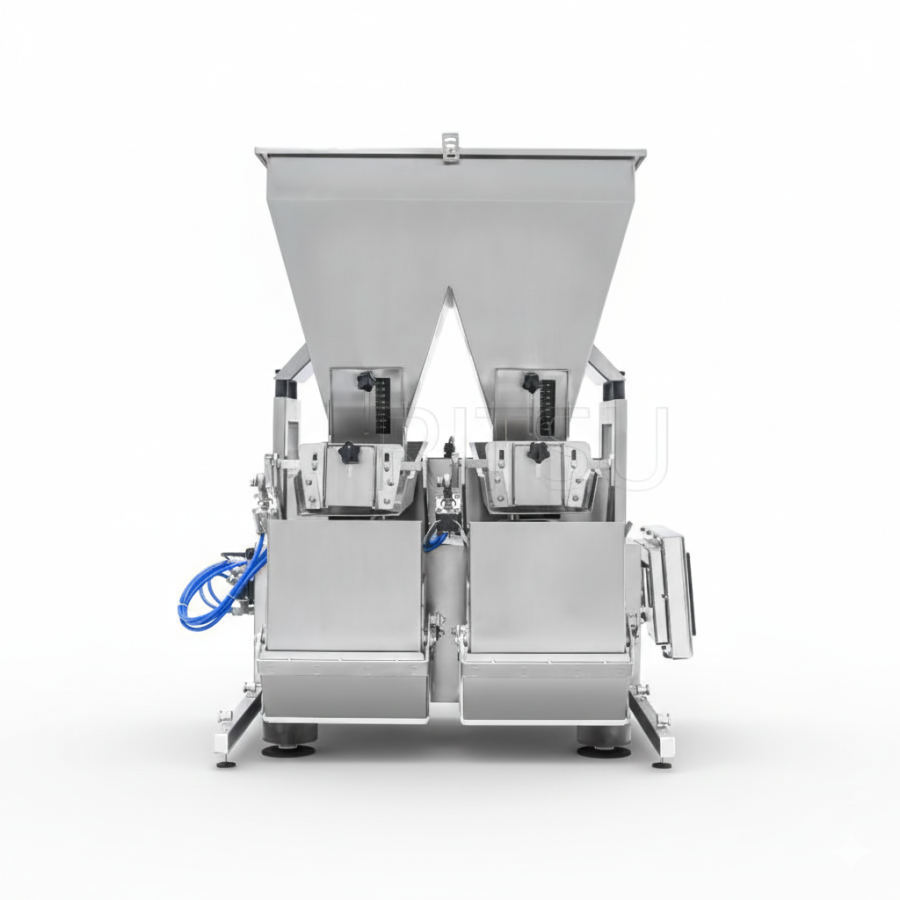

Second Generation Linear Multihead Weighing Machines – CN Series

Accurate and efficient linear weighing system with 1, 2, or 4 heads. Built for pharma, food, and dry bulk applications needing tight weight control.

CN Series High-Speed Multihead Weigh Fillers for Bulk Product Packing

The CN Series is the second-generation linear weigher lineup developed and manufactured by Anxine. Made for fast, stable, and accurate weighing of solid products, it’s available in 1-head, 2-head, and 4-head models. These multihead weighers use high-precision sensors, touchscreen control panels, and PLC automation to deliver reliable filling and packing.

Each linear weigher has modular components, making setup and maintenance easy. These multihead weighing machines can easily integrate with conveyor systems for automated filling. They also support connection to external packing equipment and software for data tracking, remote monitoring, and quality control. With built-in safety features and a compact frame, the CN Series is a smart choice if you need a precise, durable, and user-friendly linear weighing machine.

Description

Highlighted Features

  • Real-Time Weighing Control: Boasts weight feedback to adjust the feed rate.
  • High Precision & Fast Response: Each weigh bucket operates independently using CAN bus communication for quick feedback and accurate dosing.
  • Easy Integration: Built to connect with conveying systems and existing packaging lines.
  • Touchscreen Control Panel: Easy-to-use interface with parameter setting, diagnostics, and data access.
  • Easy Cleaning & Maintenance: Modular parts are easy to remove and reinstall.
  • Safety Features: Includes emergency stop button and safety guards to protect the operator.

Specifications

Model CN-AX1-2-1 CN-X2-2-1 CN-XM2-2-1 CN-X4-2-1 CN-XS4-2-1
Single Weighing Range 50-3000 g 50-3000 g 100-13000 g 10-2000 g 10-400 g
Accuracy 1-3% depending on product size /machine speed. 1-3% depending on product size /machine speed. 1-3% depending on product size /machine speed. 1-3% depending on product size /machine speed. 1-3% depending on product size /machine speed.
Max Output 20 ppm 32 ppm 18 ppm 50 ppm 70 ppm
Hopper Volume 4.5 L 4.5 L 15 L 3 L 0.5 L
Max Mixing Products 1 2 2 4 4
Voltage 220V/50/60HZ/2.5A 500W 220V/50/60HZ/4A 800W 220V/50/60HZ/4A 800W 220V/50/60HZ/5A 1000W 220V/50/60HZ/5A 1000W
Dimension 792 x 470 x 1006 mm 685 x 814 x 971 mm 1053 x 1063 x 1160 mm 805 x 800 x 1049 mm 684 x 684 x 738 mm
Weight 60 KG 130 KG 240 KG 160 KG 140 KG

Also Offer

Explore cutting-edge pharmaceutical and packaging machinery with Anxine. Our offerings include state-of-the-art equipment for capsule filling and blister packing, supported by expert custom solutions and a robust global service network.
