Small Volume CH Type Powder Mixer Blender

CH10 and CH20 are lightweight, efficient mixers designed for dry powder or granule blending in research or small-scale production.

Small-Scale Powder Mixing Machines | CH10 & CH20 Models

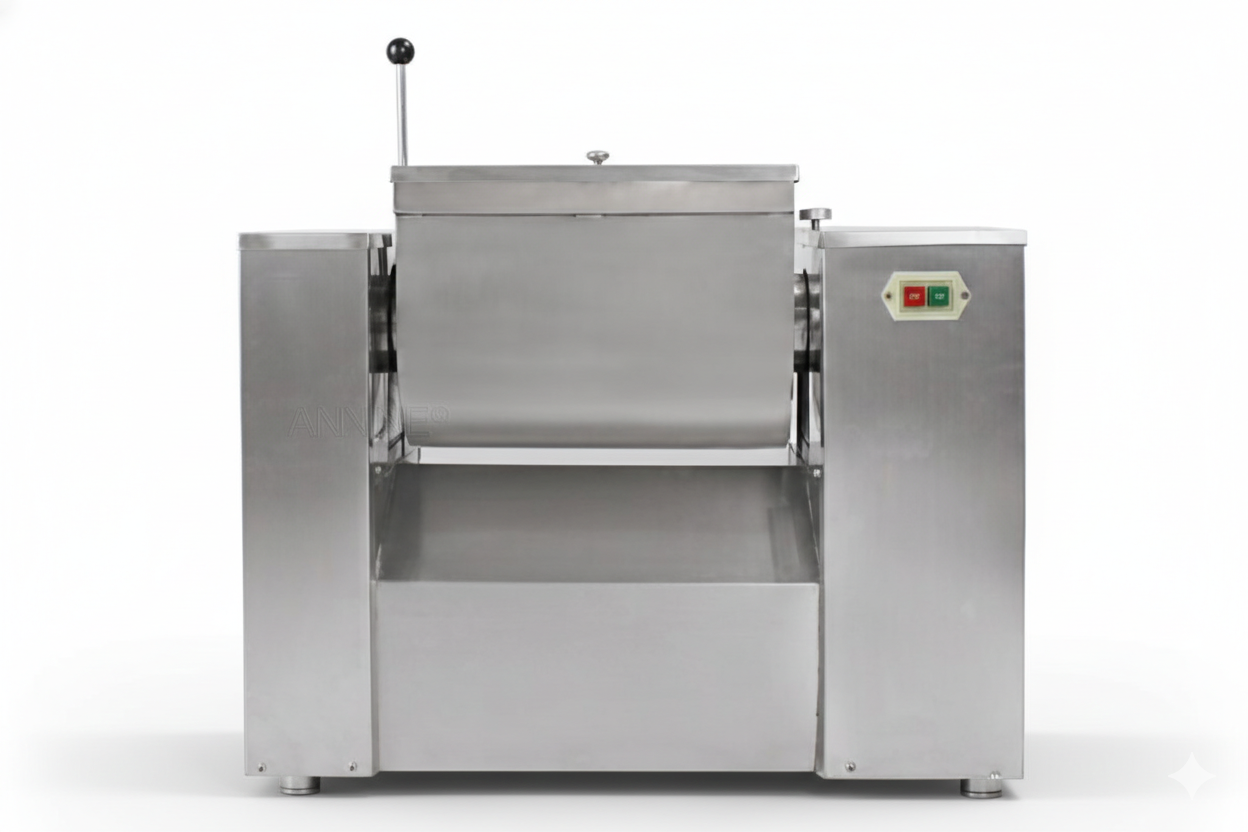

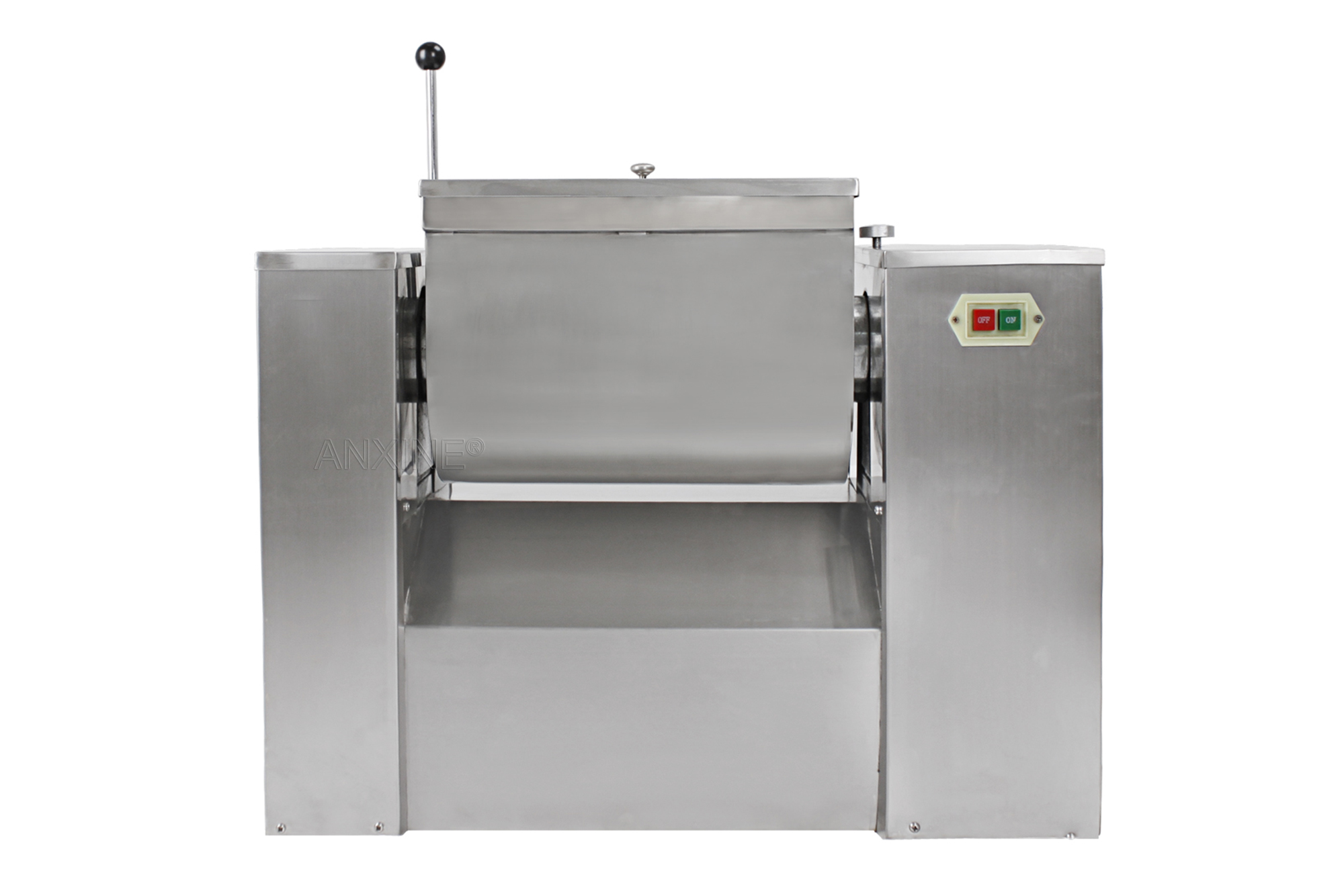

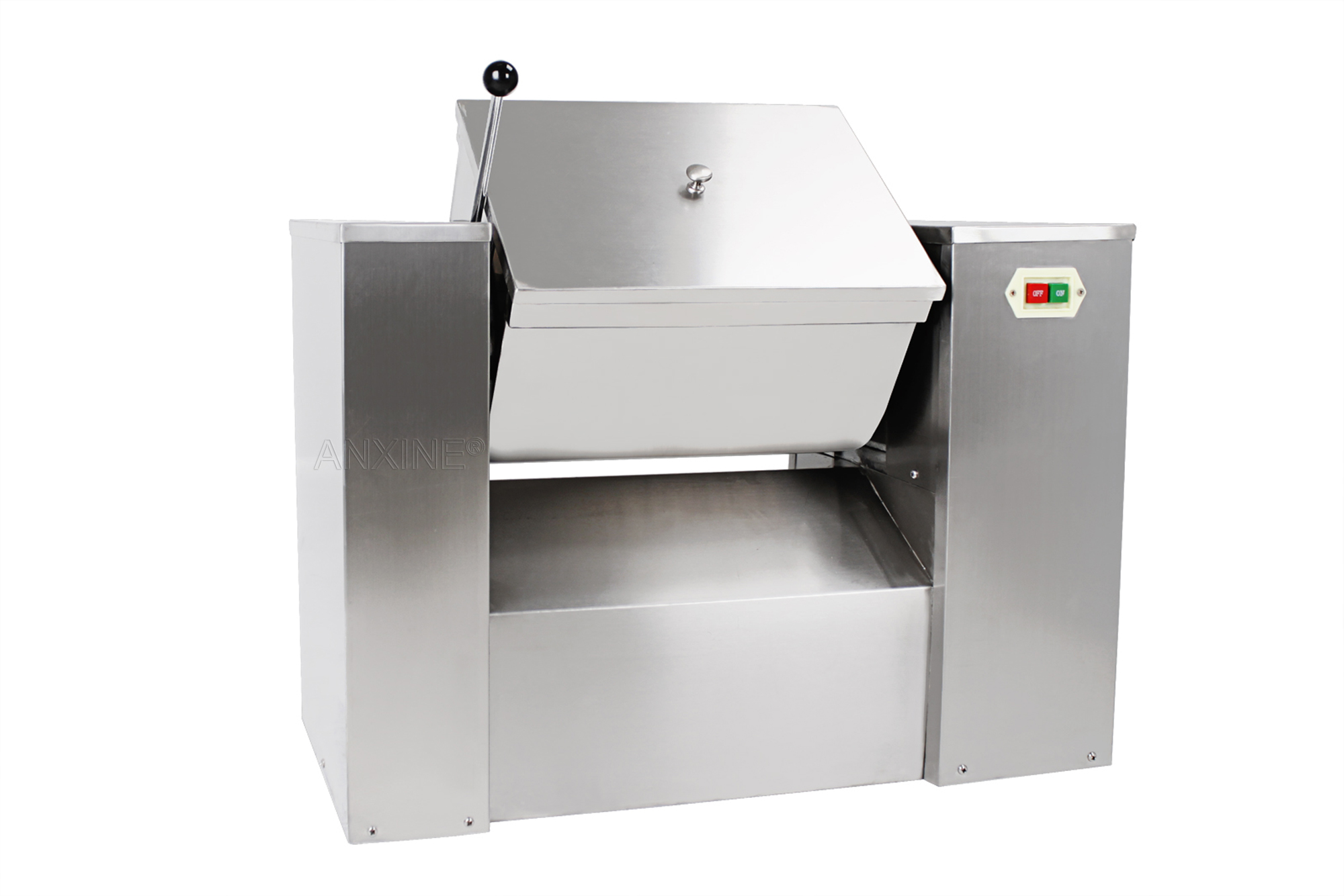

The CH-series trough mixers, including CH10 and CH20, belong to the horizontal mixer. They are designed for gentle and efficient blending of dry powders and granules, ideal for precise powder blending. With 10L and 20L capacities, they are well-suited for lab-scale production or small-batch formulations. They are useful in industries such as pharmaceuticals and R&D.

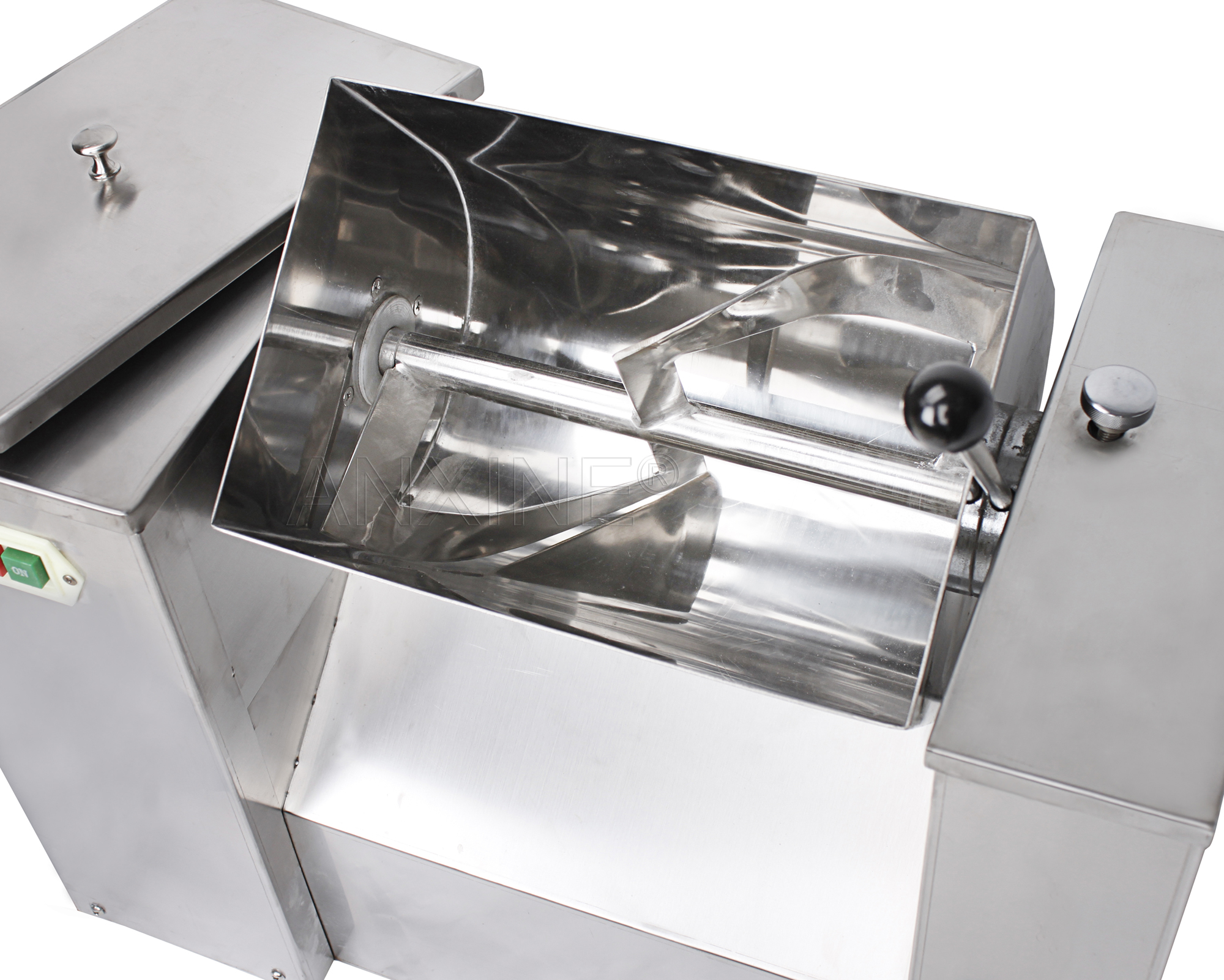

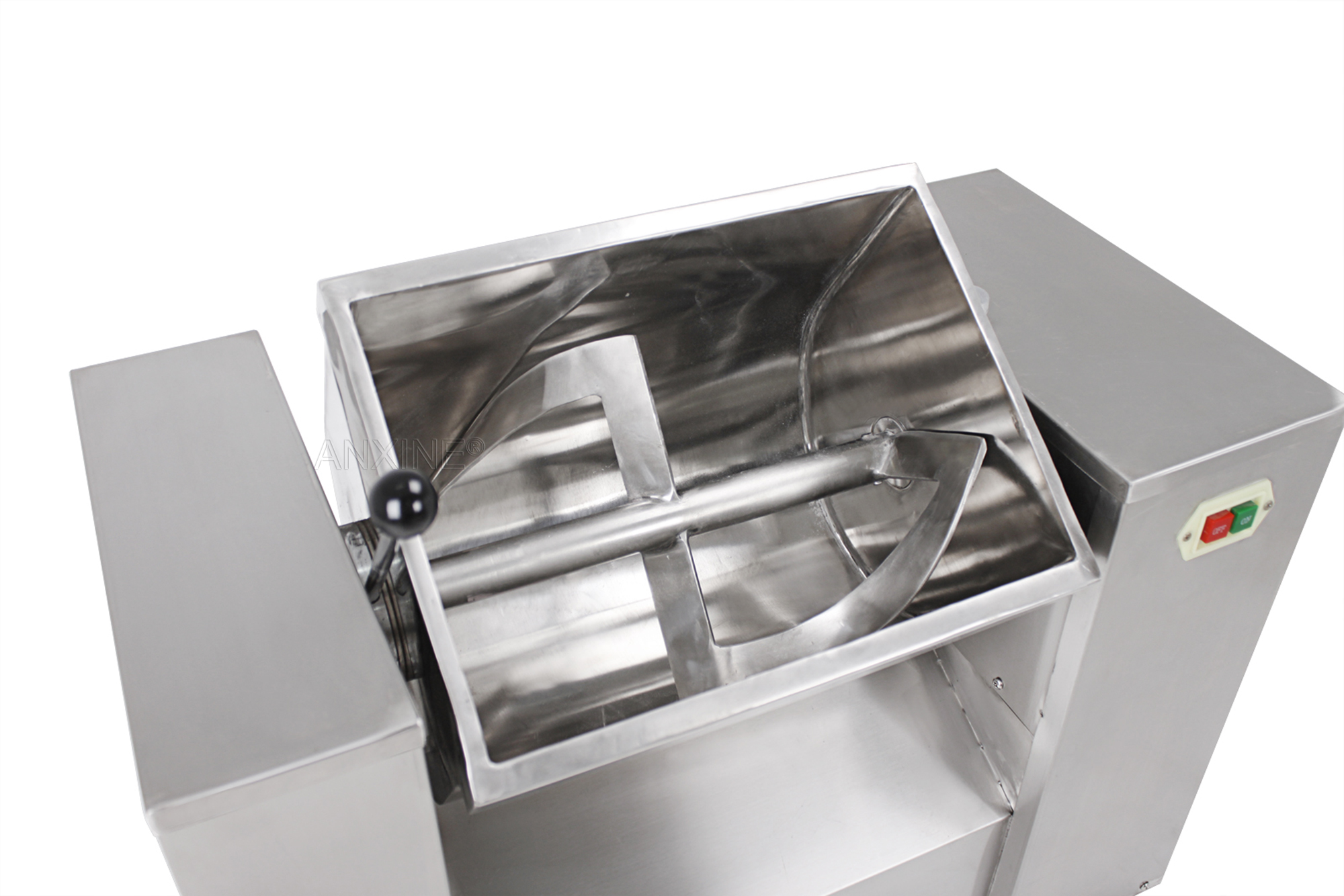

Equipped with an internal paddle and turning trough design, these mixers use dual motion to ensure better blending performance. While the blade stirs continuously, the hopper can tilt during discharge, making the mixing process both efficient and easy to control. This structure enhances uniformity and reduces leftover material.

Description

CH10 and CH20 feature a straightforward mechanical setup. It minimizes errors and maintenance. Operators can start mixing with just one button and unload materials by simply adjusting the trough angle. The mixer body is light but stable, making it easy to move, clean, and manage in small workspaces.

Highlighted Features

  • Dual mixing motion. A rotating paddle combined with a tilting hopper improves blending efficiency.
  • Small working area. Both models are lightweight and compact, suitable for tight workspaces or mobile setups.

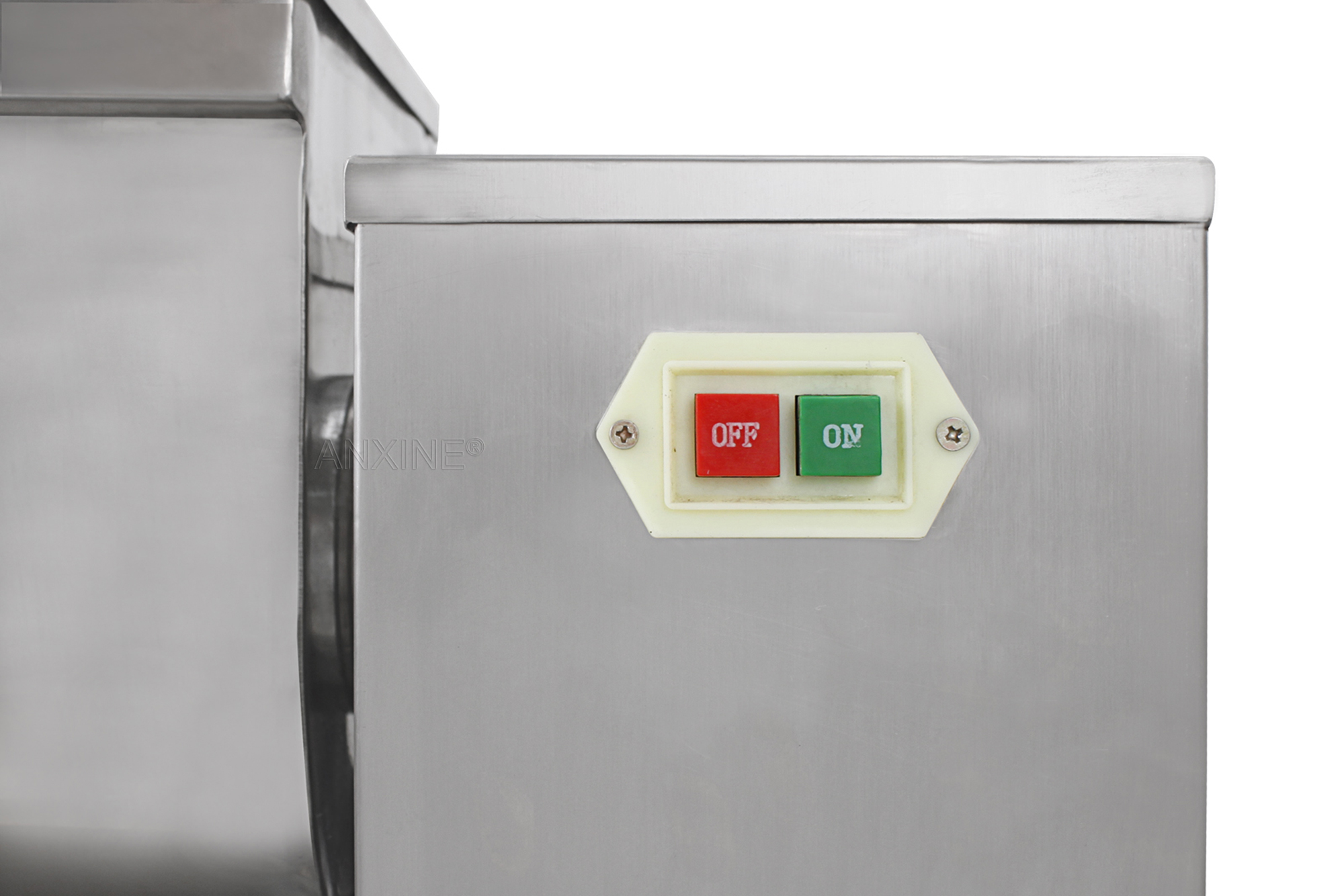

  • Easy operation. Simple controls and manual discharge make the workflow beginner-friendly.
  • Fast cleaning. The trough can tilt up to 115°, allowing easy access to all contact surfaces.
  • Stable speed. A fixed 24 r/min shaft speed provides steady performance across powder types.

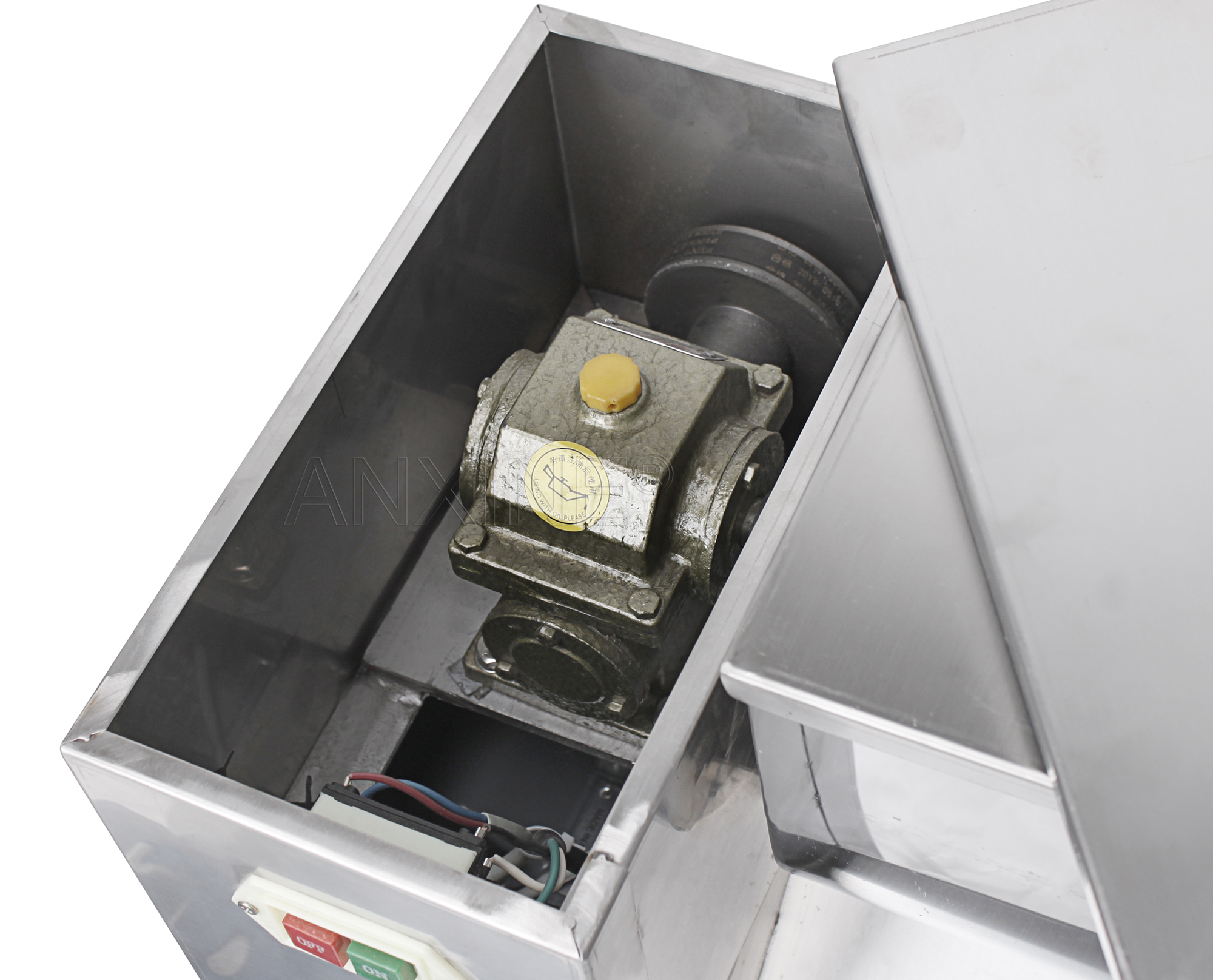

  • Durable drive system. It is powered by a 0.55kW motor and belt-driven reducer for smooth, long-term operation.
  • Low maintenance. Easy design requires less maintenance. You only need to check the oil, belts, and bearings every three months.

Specifications

Model CH-10 CH-20
Material tank capacity 10 L 20 L
Motor power 0.55 kW 0.55 kW
Paddle shaft speed 24 r/min 24 r/min
Maximum flip angle 115° 115°
Machine weight 40 kg 71 kg
Dimensions 600mm×325mm×540mm 750mm×380mm×650mm
