Big Volume CH Type Powder Mixer Powder Blender

Easy to maintain and simple to use, CH-series mixers help streamline production for various powders and granules.

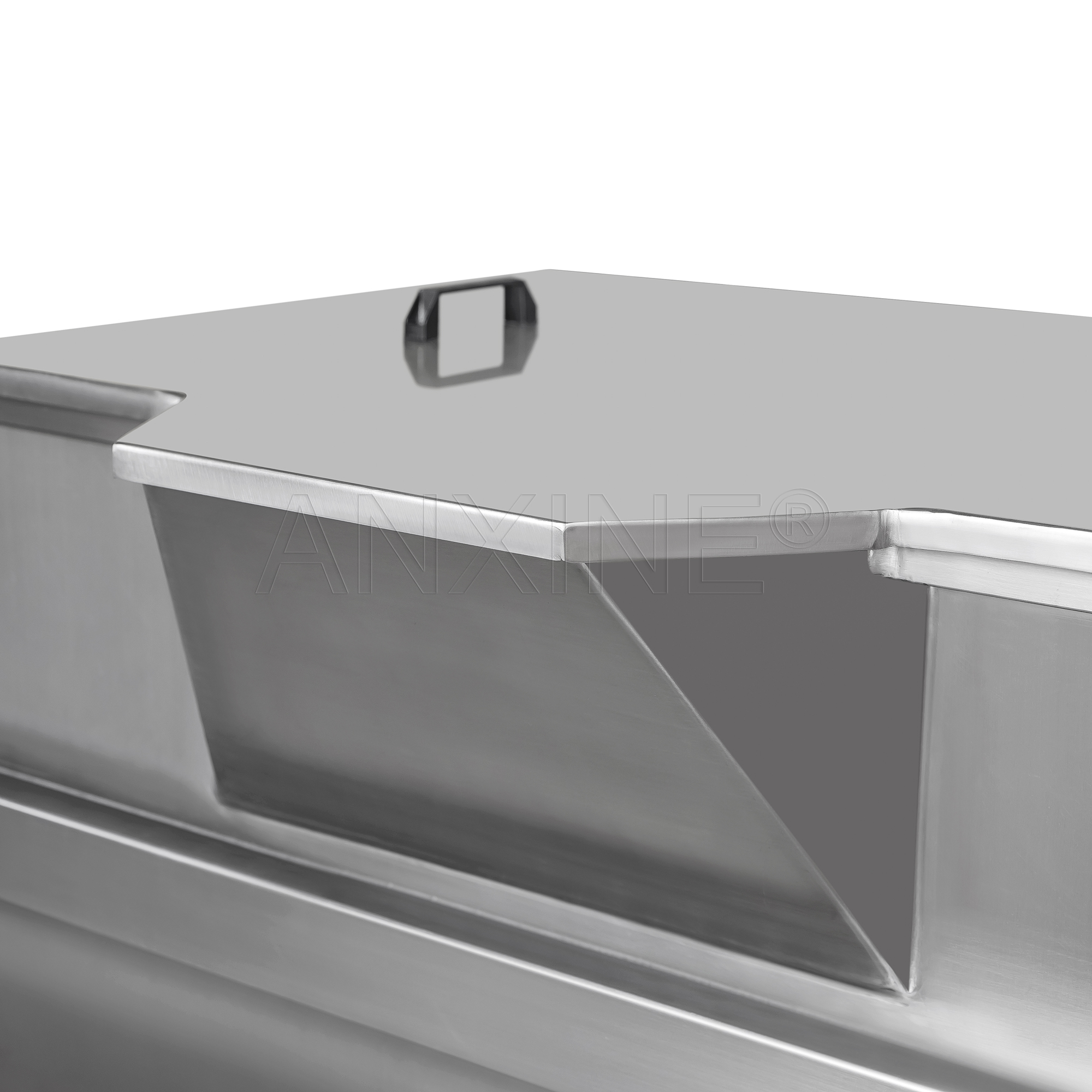

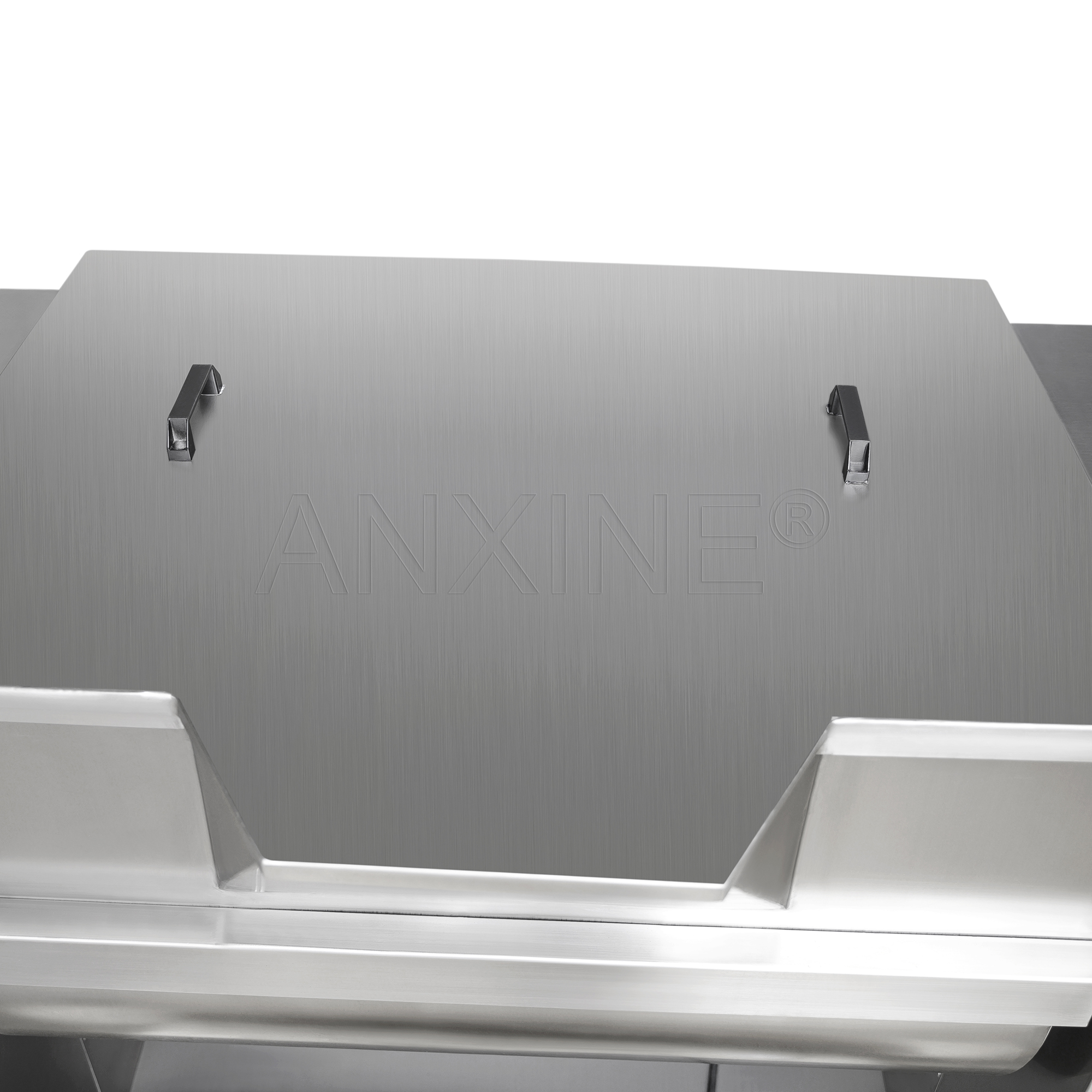

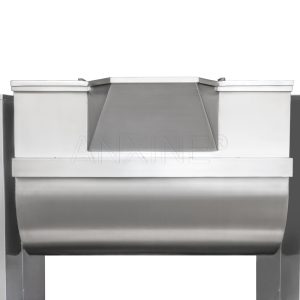

Horizontal Mixers for Large Production | CH50-CH500

The CH-series horizontal powder mixers are designed for consistent dry mixing in pharmaceutical, food, and chemical industries. With capacities ranging from 50L to 500L, these machines support flexible batch sizes. Their tiltable hoppers and automatic discharge function help speed up the workflow while minimizing manual handling. Whether for small factories or mid-scale operations, this series provides a practical solution with steady performance.

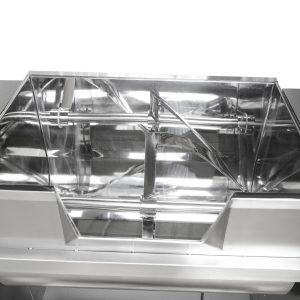

Each CH mixer uses a horizontal paddle system powered by a belt-driven motor and reducer. As the paddles rotate, materials are rolled repeatedly inside the hopper to achieve even mixing. The fixed 24 r/min speed ensures predictable output across all models, while the simple mechanism makes the machines stable during operation and less prone to failure.

Description

Designed with strict regulations, the CH-series complies with CGMP standards for safety operations. Daily use and maintenance are also easy.

Highlighted Features

  • Multiple capacity choices. From 50L to 500L, the series covers a wide range of mixing needs across different production scales.
  • Fixed rotation speed. All models operate at a consistent 24 r/min for batch uniformity.
  • Electric discharge system. A dedicated motor powers the discharge. It reduces labor and spillage.
  • Strong drive structure. A reliable motor and speed reducer ensure stable and long-term paddle movement.

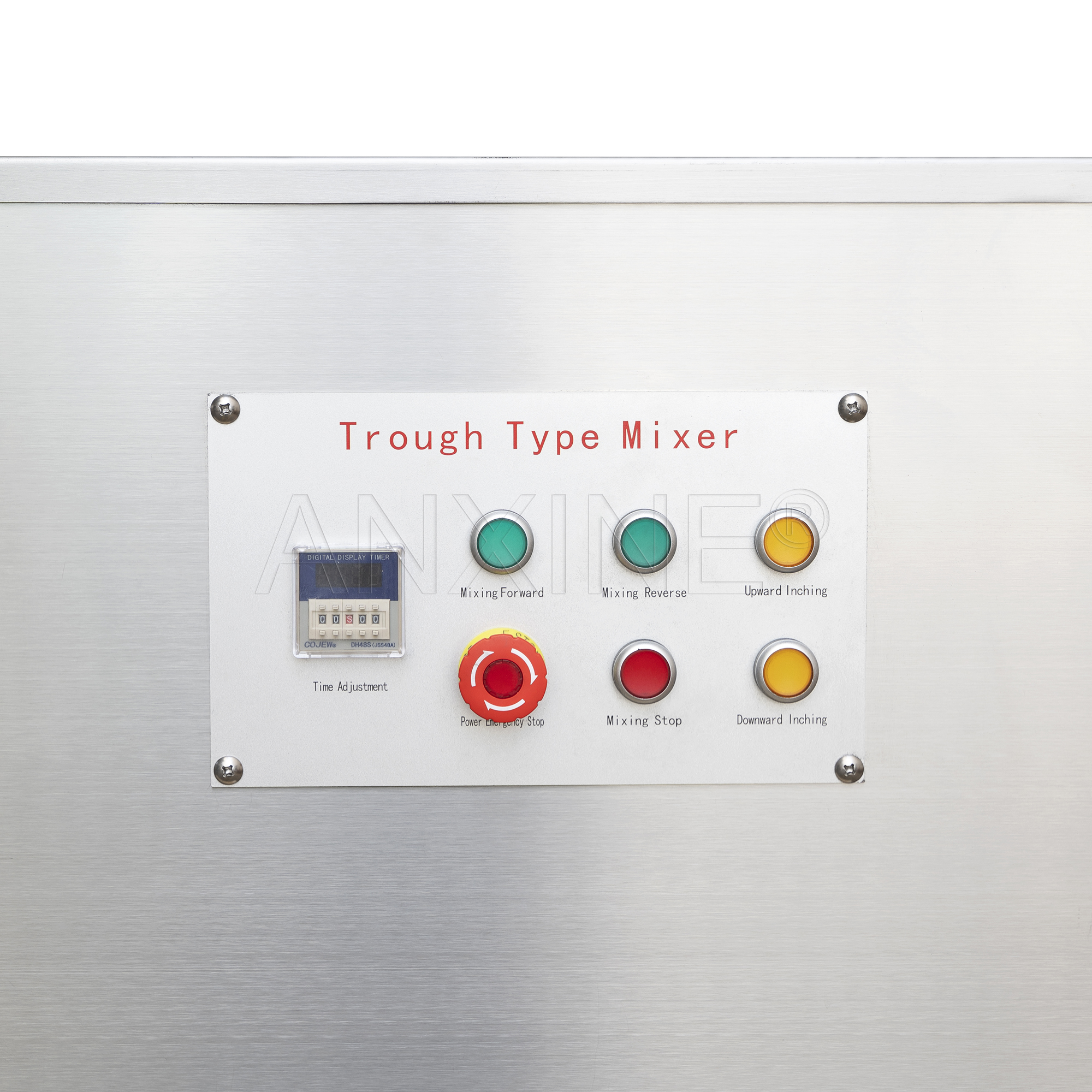

  • Simple control panel. It is equipped with clearly labeled buttons for each function. This greatly improves ease of use and reduces training time.
  • CGMP-compliant design. All contact surfaces are stainless steel, supporting sanitary production environments.
  • Compact design. Despite their volume, the machines are space-saving and easy to integrate into existing setups.

Specifications

Model CH-50 CH-100 CH-150 CH-200 CH-500
Volume 50L 100L 150L 200L 500L
Main Motor Power 1.1 kW 2.2 kW 3 kW 4 kW 7.5 kW
Discharging Motor Power 0.75 kW 0.75 kW 0.75 kW 0.75 kW 1.5 kW
Speed 24 r/min 24 r/min 24 r/min 24 r/min 24 r/min
Dimensions 980x425x820mm 1,280x440x900mm 1,590x600x1,075mm 1,590x660x1,125mm 2,350x800x1,300mm
Weight 220 kg 250 kg 550 kg 600 kg 680 kg
Dimensions 2,300x910x2,050mm 2,800×1,000×2,280mm 3,000×1,100×3,100mm 3,200×1,200×3,350mm 3,400×1,300×3,550mm
