Powder Mixer Ribbon Mixer WLDH100-500
Powder Mixer Ribbon Mixer WLDH100-500

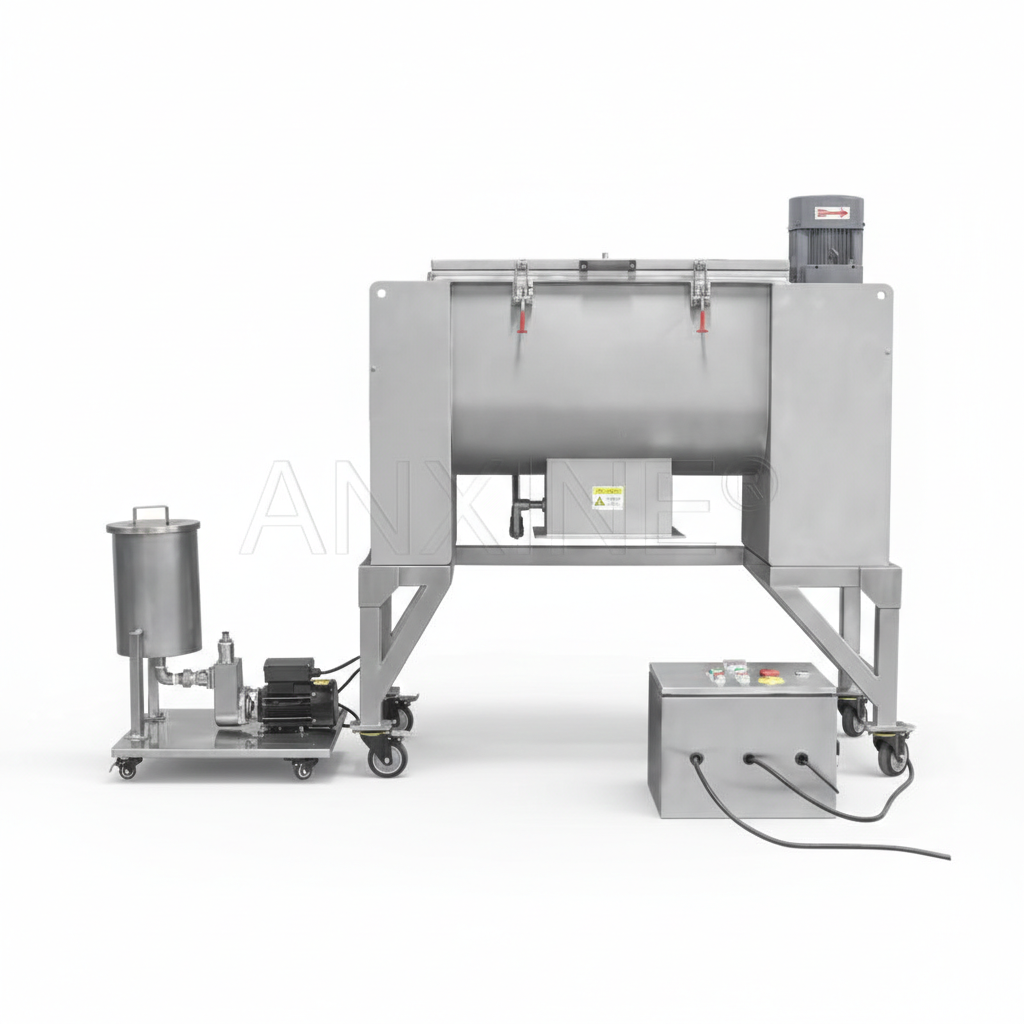

The WLDH Series Ribbon Mixer is a state-of-the-art blending solution designed to meet the diverse needs of industries ranging from pharmaceuticals to food processing. Its innovative design features a U-shaped horizontal trough and multi-layered ribbon agitating blades, which ensure efficient and thorough mixing of both dry and wet materials.
The mixer operates on a unique principle where the outer ribbon moves materials towards the center, while the inner ribbon pushes them outward, creating a convection mix that guarantees uniformity. This dual-action mechanism not only accelerates the mixing process but also enhances the homogeneity of the final product.
Whether you are looking to improve your production efficiency or achieve superior product quality, the WLDH Series Ribbon Mixer offers a comprehensive solution tailored to your specific needs. Contact us today to discover how our mixers can transform your operations.
The WLDH Series Ribbon Mixer is designed for efficient mixing of various materials, including powders and semi-liquids. It is widely used in industries such as pesticides, veterinary drugs, food, chemicals, and more.
Highlighted Features
- Design: U-shaped container with ribbon mixing blades and transmission parts.

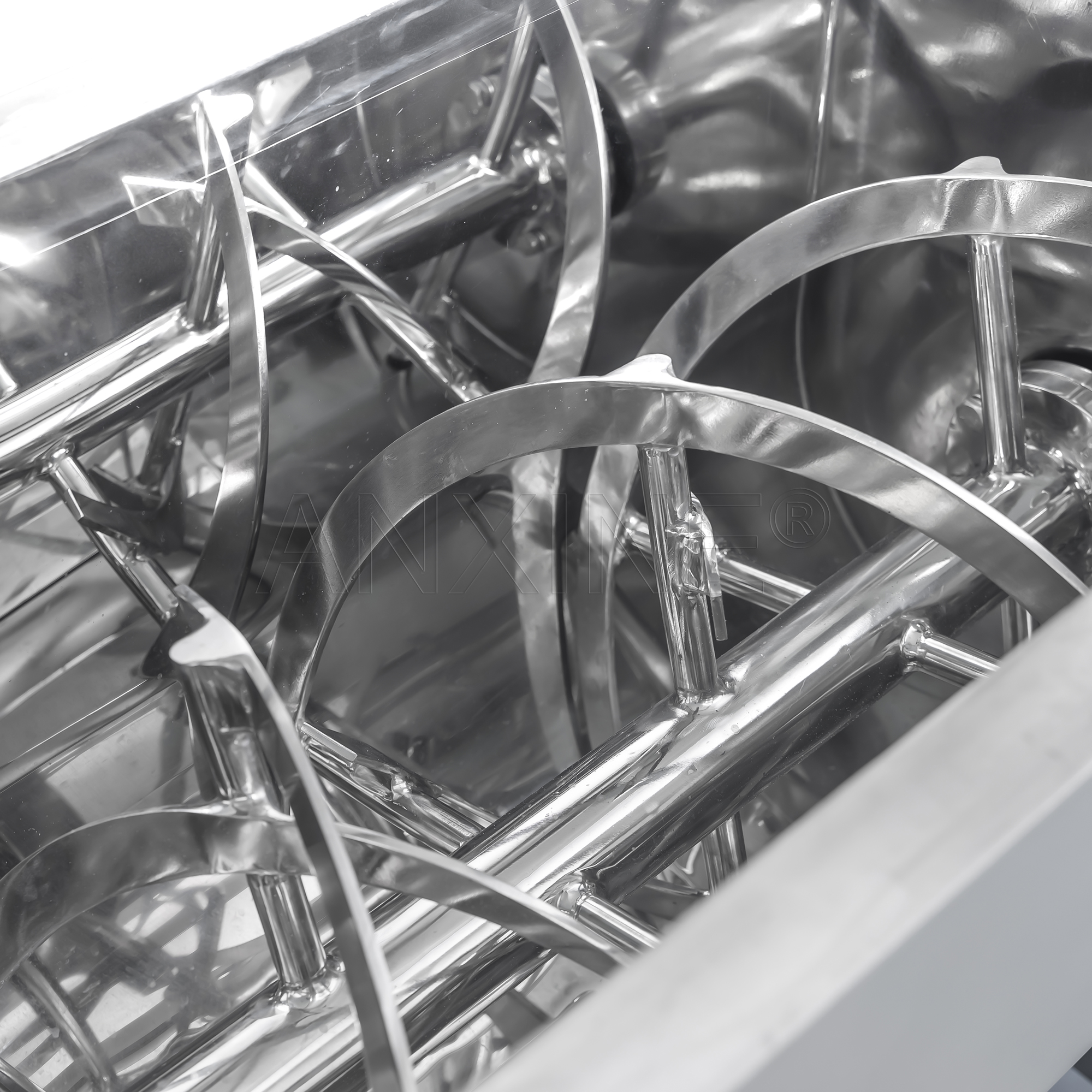

- Mixing Mechanism: Positive and negative rotation ribbons on the same axis create an efficient mixing environment.

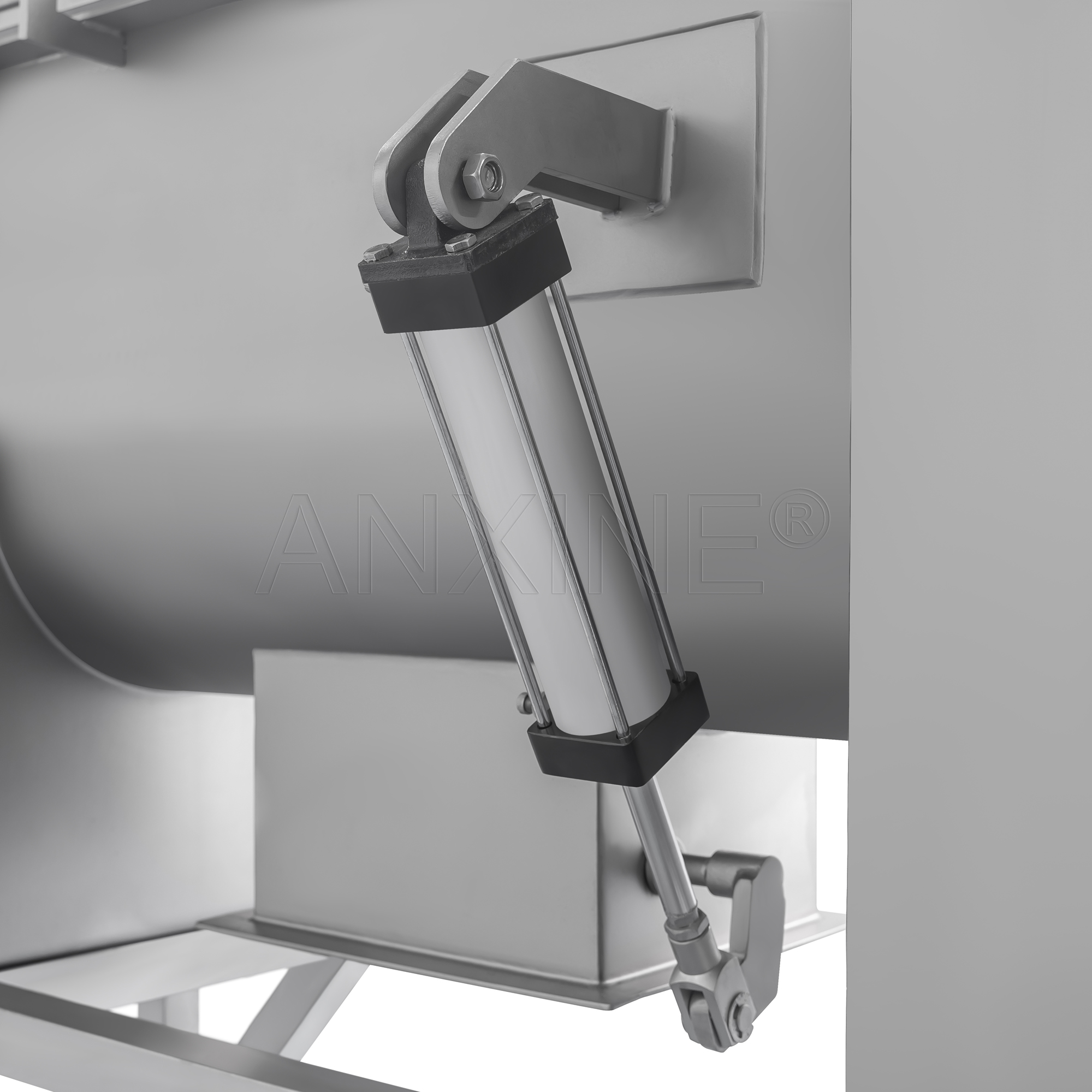

- Discharging Mode: Features a big open structure for fast discharging with no residue. Options for manual or pneumatic butterfly valves.
- Heating/Cooling: Configurable heating or cooling jacket with options for electric or heat conduction oil heating.

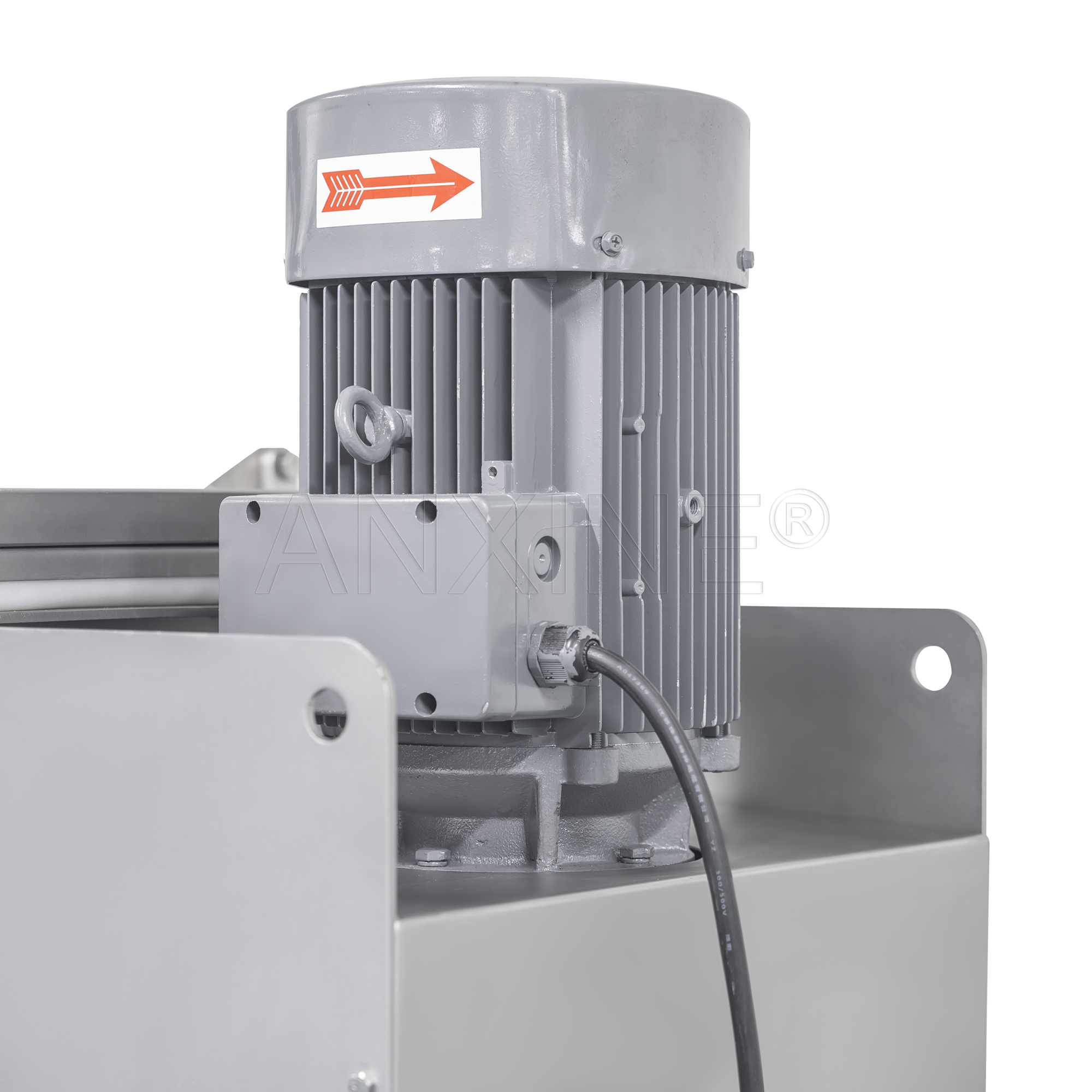

- Drive System: Small mixers use a reducer direct mode for simplicity, while larger mixers use a pulley drive with overload protection.
| Model | WLDH-100L | WLDH-300L | WLDH-500L | WLDH-1000L | WLDH-3000L |
|---|---|---|---|---|---|
| Effective Volume | 50L | 150L | 300L | 600L | 1800L |
| Main Motor Power | 2.2 kW | 4 kW | 7.5 kW | 11 kW | 18.5 kW |
| Rotational Speed | 58 r/min | 53 r/min | 49 r/min | 42 r/min | 33 r/min |
| Speed | 24 r/min | 24 r/min | 24 r/min | 24 r/min | 24 r/min |
| Dimensions | 1190*740*770mm | 2320*730*1130mm | 2800*920*1320mm | 3180*1020*1550mm | 4460*1300*1700mm |
| Weight | 380 kg | 560 kg | 680 kg | 1200 kg | 2500 kg |
