Shrink Band Heat Tunnel CBS-1538C

An advanced shrink band tunnel that wraps your products cleanly and securely. Ideal for tamper-evident packaging requirements.

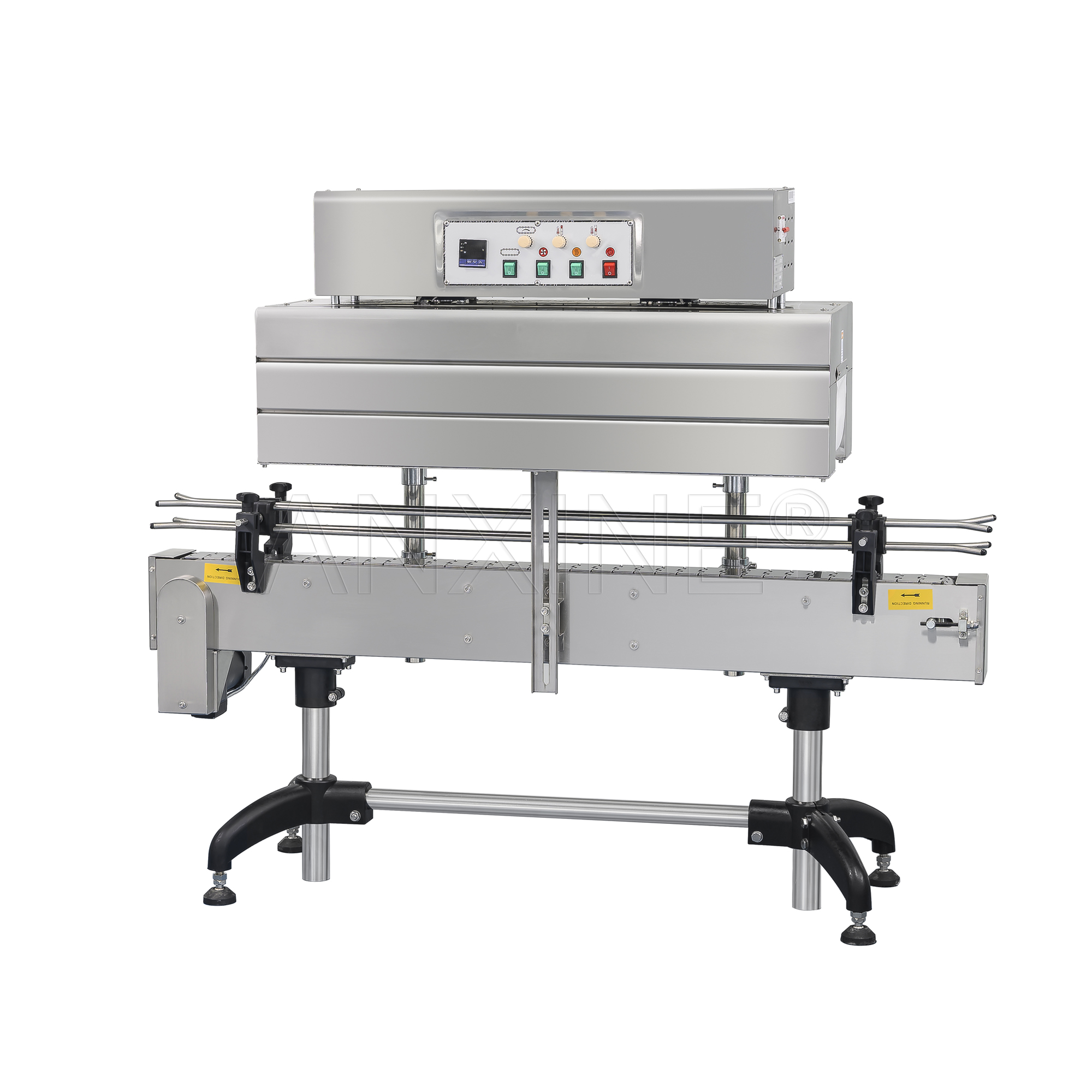

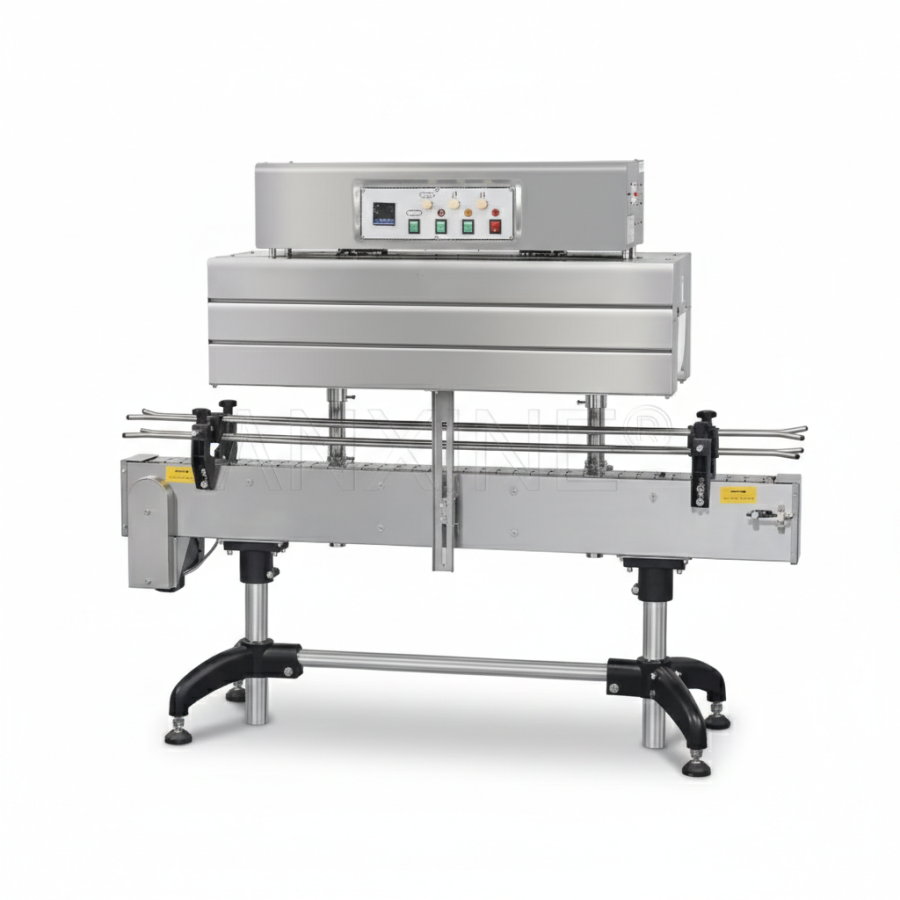

CBS-1538C Heat Shrink Tunnel for Diverse Shrink Sleeves

Equipped with a dual-zone heating system and adjustable frame, the CBS-1538C delivers efficient tamper-evident banding and sleeve labeling for bottles and jars. This automatic shrink tunnel machine allows operators to fine-tune heat settings for different label materials and shrink zones.

Whether you’re wrapping shrink bands around vitamin bottles or shrinking full-body sleeves on beverage cans, the CBS-1538C is a go-to heat shrink tunnel for companies seeking consistent shrink results. Quiet, height-adjustable, and maintenance-friendly, it’s one of the most flexible heat shrink tunnels available for mid-volume labeling operations.

Description

Highlighted Features

  • Flexible Label Positioning: Supports shrink labeling at the cap or full-body.

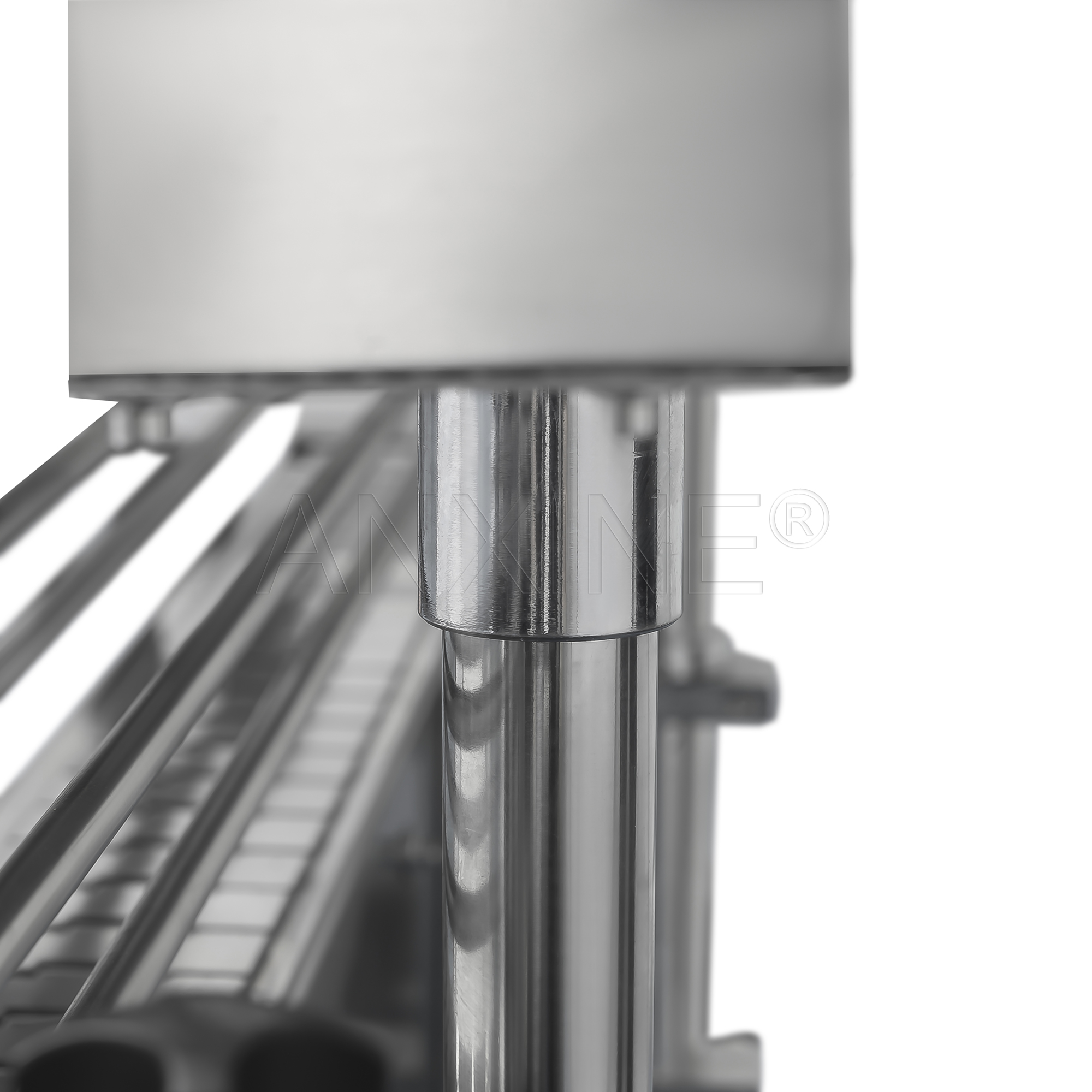

  • Adjustable Height: The tunnel can be adjusted vertically to fit different product heights.
  • Heavy-Duty Build: Durable steel structure ensures long-lasting performance.
  • Energy-Efficient Heating: Low power use with high shrink quality.

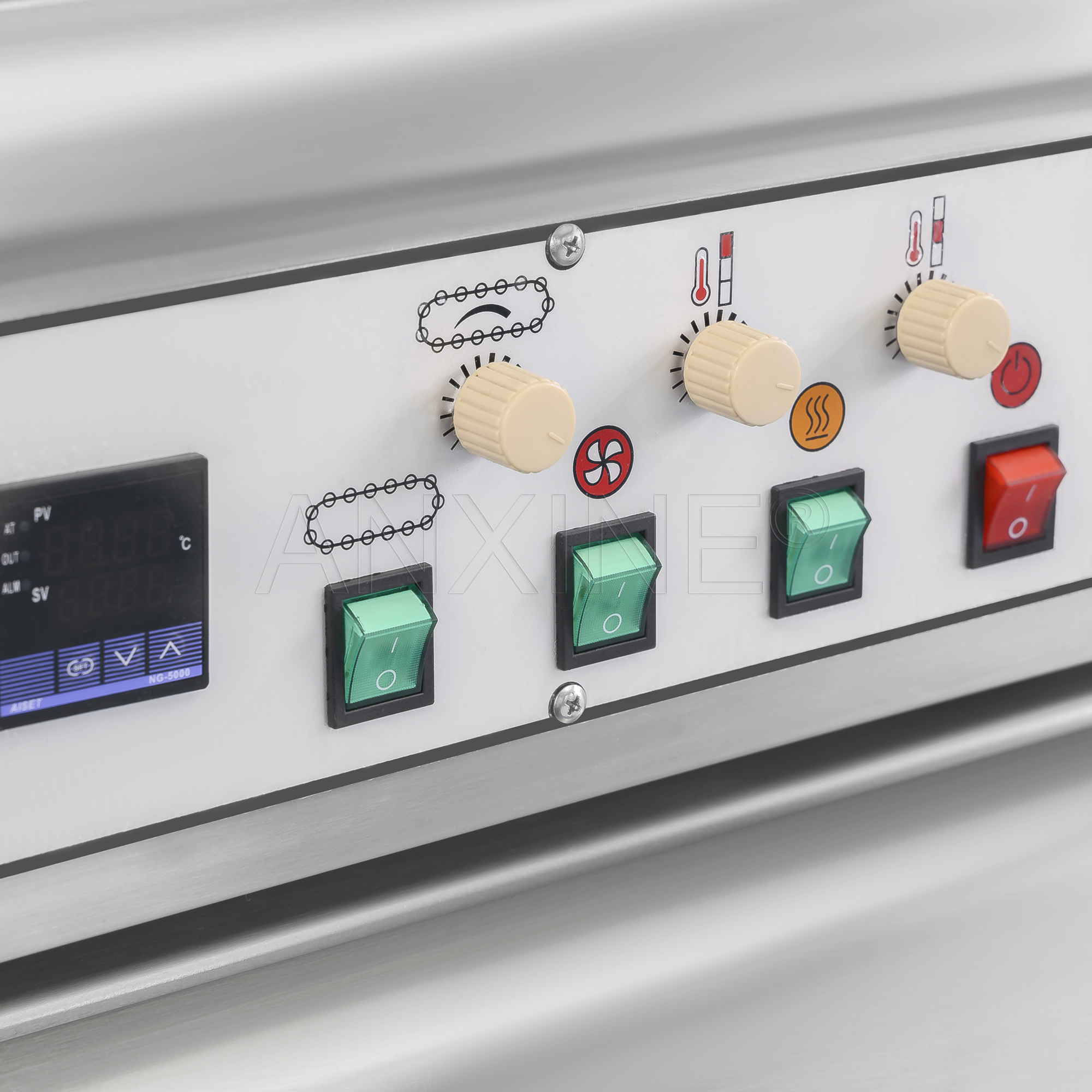

  • Simple to Operate and Maintain: User-friendly control panel paired with a low-maintenance design.
  • Compact Layout: Small footprint easily fits into limited production spaces.

Specifications

Model CBS-1538C
Tunnel Size 1,000 x 150 x 150 mm
Max Packing Size ¢105 x 350H mm (Adjustable)
Conveyor Motor AC90W/220V
Conveyor Speed  0-10 m/min
Max Loading 15 kgs
Shrink Film POF, PVC, PP, PE
Power 7 KW
Power Supply 220V/50Hz
Dimension 1,500 x 350 x 1,500 mm
Weight 90 kgs

Also Offer

Explore cutting-edge pharmaceutical and packaging machinery with Anxine. Our offerings include state-of-the-art equipment for capsule filling and blister packing, supported by expert custom solutions and a robust global service network.
