Shrink Wrap Machine

Tightly wraps irregular items and bundled products in protective heat shrink film to improve handling, storage, and retail appearance.

Industrial Shrink Wrapping Machines for Premium Secondary Packaging

These wrapping systems use heat technology to tightly conform plastic films around your items to enhance protection and shipping efficiency. Powered by integrated shrink tunnel systems, they can handle tamper-evident bottle neck banding, sleeve labeling, and economical multipack bundling.

Anxine shrink wrap solutions are designed to address your packaging headaches. Our heat shrink tunnel lineup features targeted temperature controls that allow you to safely seal containers without damaging the sensitive medicine or food inside. The automatic shrink sleeve labeling machines support rapid, tool-free product format changeovers. You can easily switch between different bottle shapes in minutes.

Request a Quote Get Catalog

Our Complete Range of Shrink Wrap Solutions

Choose from Anxine’s versatile heat tunnels, integrated L-bar sealers, and high-speed shrink sleeve labelers to simplify your shrink wrapping process.

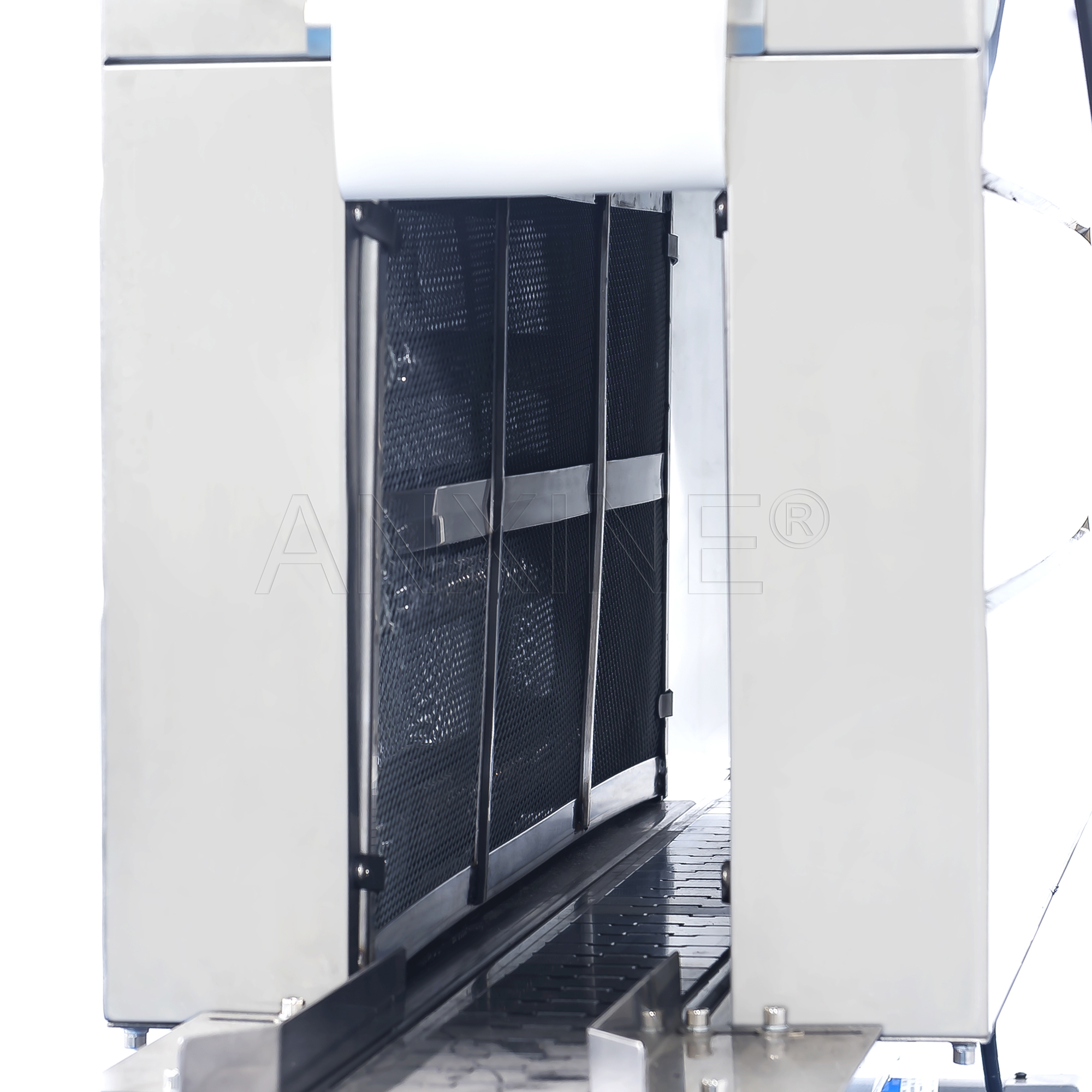

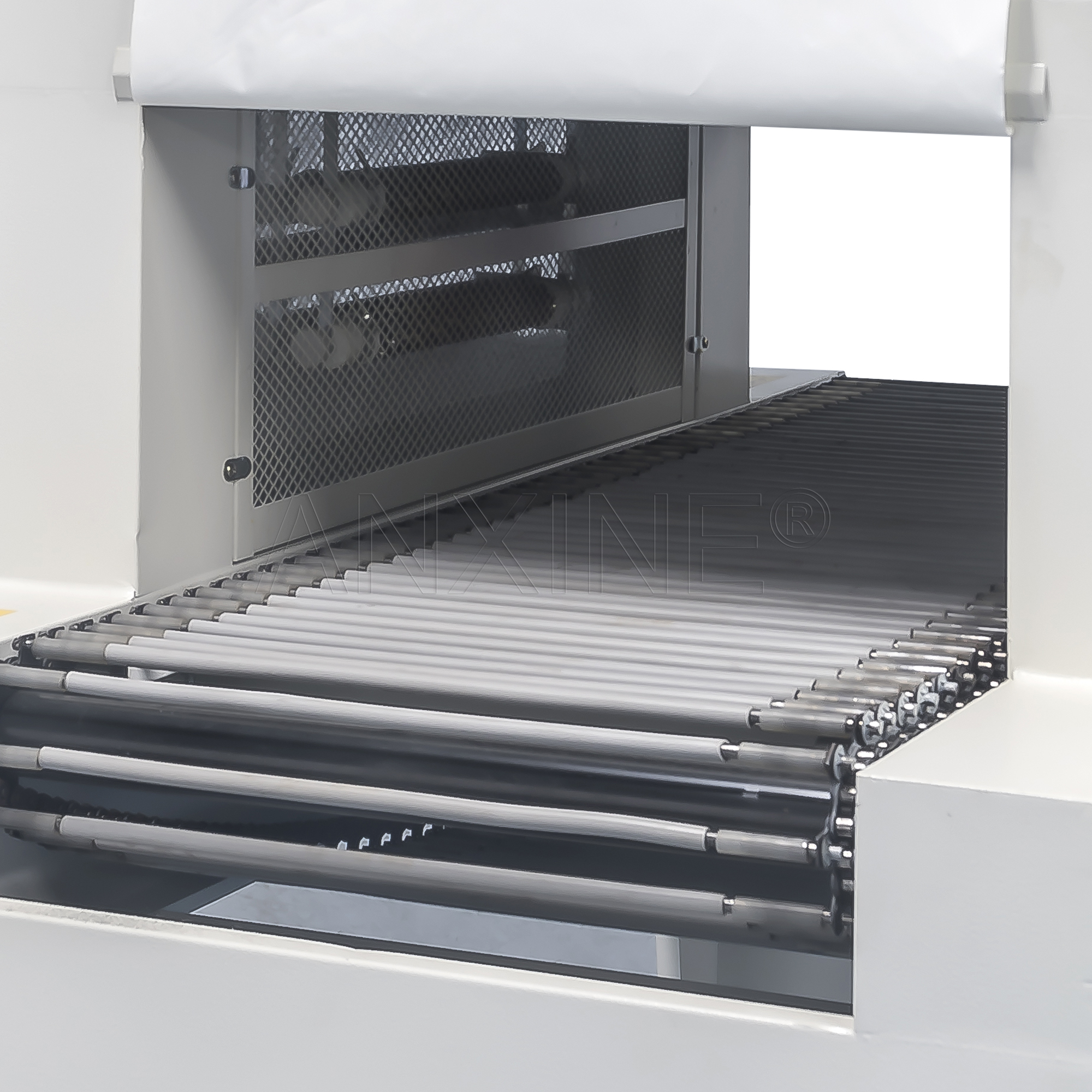

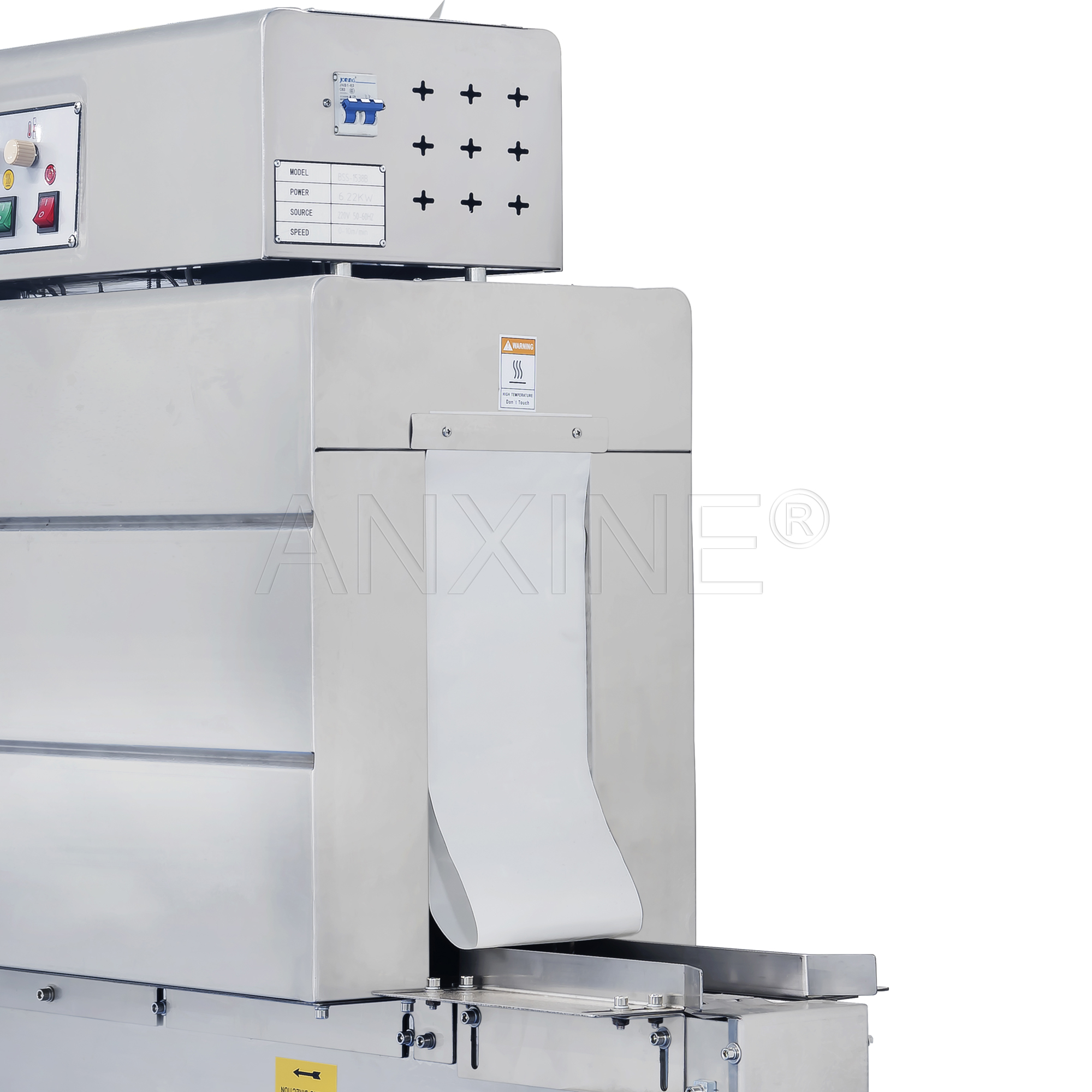

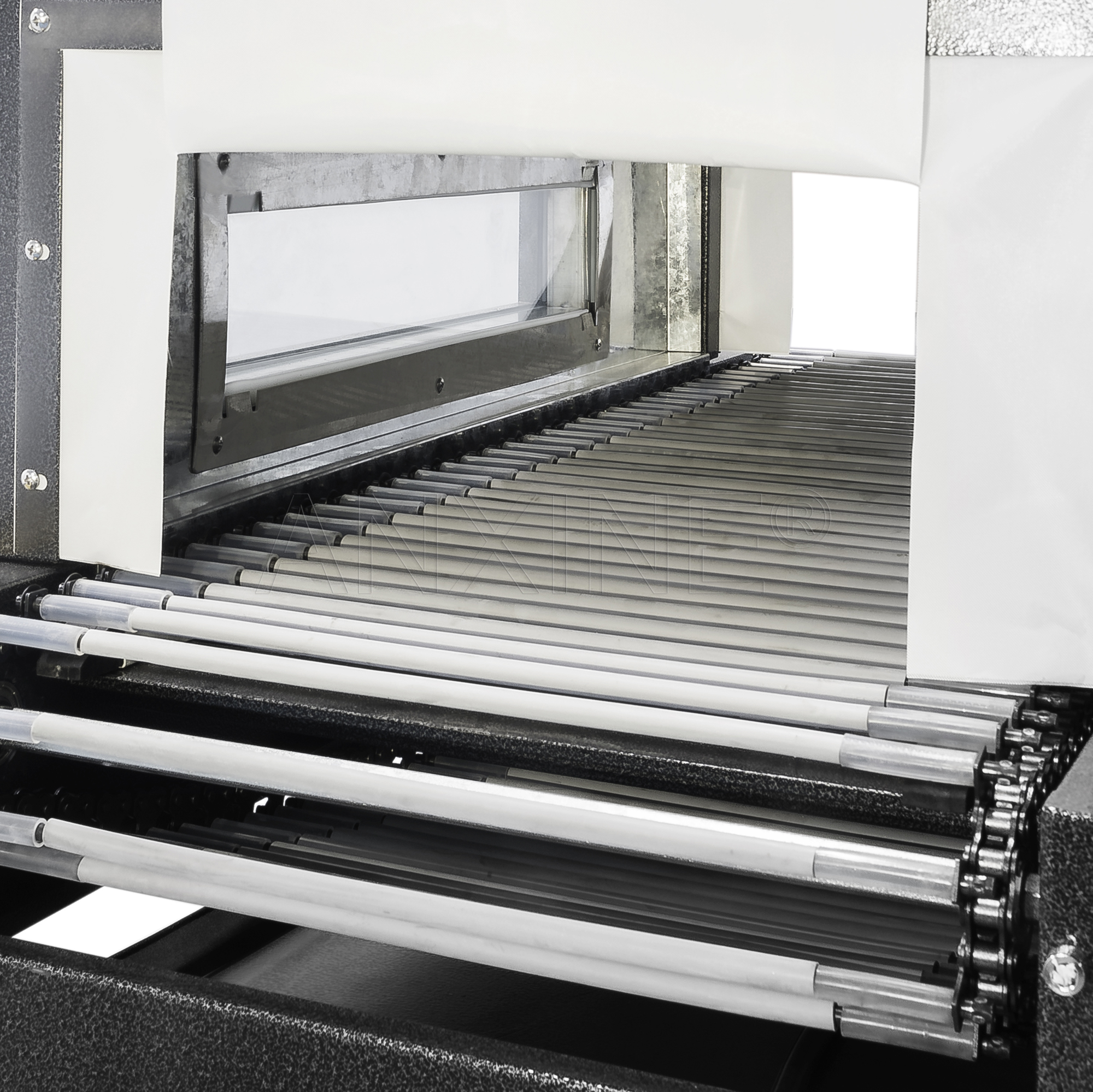

Infrared Heat Shrink Tunnel DS-H400

Built for reliable shrink performance and simple adjustments across product types and sizes. Delivers fast, even tamper-evident sealing with low energy use.

Heat Shrink Tunnel Machine CBS-450

Infrared heating and smooth conveyor movement deliver reliable shrinking for cartons, sleeves, and bundled goods in a simple, space-saving design.

Heat Tunnel for Shrink Sleeves CSS-1538B

Flexible shrink tunnel for labels on bottles, jars, and containers—perfect for tamper-evident bands or full-wrap sleeves across various industries.

Shrink Band Heat Tunnel CBS-1538C

An advanced shrink band tunnel that wraps your products cleanly and securely. Ideal for tamper-evident packaging requirements.

Semi-Automatic L Bar Sealer FQL-450A

Easy sealing and trimming for shrink packaging. Works with most films. Perfect for pairing with shrink tunnels in high-speed production.

Why Choose Anxine Shrink Wrapping Equipment

Did you ever end up with bubbles or wrinkles when shrink wrapping your bottles? Anxine heat shrink systems are designed with practical features that help solve your daily packaging challenges.

Closed Loop Thermal Precision

Perform precise localized shrinking automatically using integrated hot air components that provide stepless airflow and heating controls.

Winkle-Free Label Presentation

Deliver 360-degree heat distribution without adhesives to achieve perfectly contoured, clean container labels.

Seamless Inline Processing

All heat shrink tunnels are compatible with automated sealers or configured as part of continuous shrink sleeve labeling lines.

Tamper Evident Cushioning

Use solid-state voltage heating to produce a tight, impact-resistant film barrier around sensitive and fragile products.

Specifications Overview

Model	DS-H400	CSS-1538B	CBS-1538C	CBS-450	FQL-450A	CGP-100
Machine Category	Shrink Tunnel	Shrink Tunnel	Shrink Tunnel	Shrink Tunnel	L-Bar Sealer	Shrink Sleeve Labeler
Compatible Film	PE, POF, PVC	PE, POF, PVC	PE, POF, PVC	POF, PVC	POF, PVC	PVC, PETG, LDPE
Speed	Conveyor: 0-12 m/min	Conveyor: 0-10 m/min	Conveyor: 0-10 m/min	Conveyor: 0-10 m/min	Operator Dependent	100 bpm
Applicable Size / Capacity	–	Φ: 105 mm H: 350 mm	Φ: 105 mm H: 350 mm	–	L: 500 mm W: 450 mm	Φ: 30-100 mm

Find Your Perfect Shrink Wrapping Machine

Feel overwhelmed to choose the right equipment? Do not worry. The selection matrix below can show you the way to the perfect shrink wrapper.

Selection Factor	Packaging Requirement	Recommended Model(s)	Why It Fits
Packaging Purpose	Full enclosure wrapping	FQL-450A + CBS-450 / DS-H400	The L-bar sealer cuts and seals. The heat tunnels shrink the film tightly
	Bottle neck banding or sleeving	CSS-1538B / CBS-1538C	360-degree heating for even shrinking and contouring
	High-speed inline sleeve labeling	CGP-100	Features premium hot air systems reaching up to 800°C for targeted heating
Automation Level	Requiring operators to place shrink wraps or labels	DS-H400 / CBS-450 / CSS-1538B / CBS-1538C	Semi-automatic systems suitable for small to medium batches
	Continuous output with minimal operator intervention	CGP-100	Automatically feeds and shrinks labels at high speeds
Product Dimensions	Wrapping smaller standard solid items	DS-H400	A compact tunnel of 700×260×150 mm
	Wrapping larger or wider items	CBS-450	An expanded tunnel of 830×450×250 mm
	Shrink labeling standard bottles	CSS-1538B / CBS-1538C / CGP-100	Handles container diameters up to 105 mm and heights up to 350 mm

How Industrial Shrink Wrap Systems Operate

Depending on your packaging goals, these machines can be divided into two distinct thermal processes.

1. Full Wrapping, Sealing, and Shrinking

Step 1: The product is manually placed into folded thermoplastic film layers. An operator uses a heated L-bar sealer to cut and weld the film around the product.

Step 2: A continuous conveyor takes the sealed item through an enclosed tunnel. Circulating hot air forces the plastic film to shrink into a physical protective layer.

2. Container Sleeve Labeling

Step 1: High-speed servo motors separate and shoot a sleeve label directly over the upright bottle.

Step 2: The sleeved bottle passes through a heat tunnel, where the label shrinks tightly to the contours of the bottle neck or full container body.

FAQs about Shrink Wrap Machines

Q: What type of shrink wrap do these machines use?

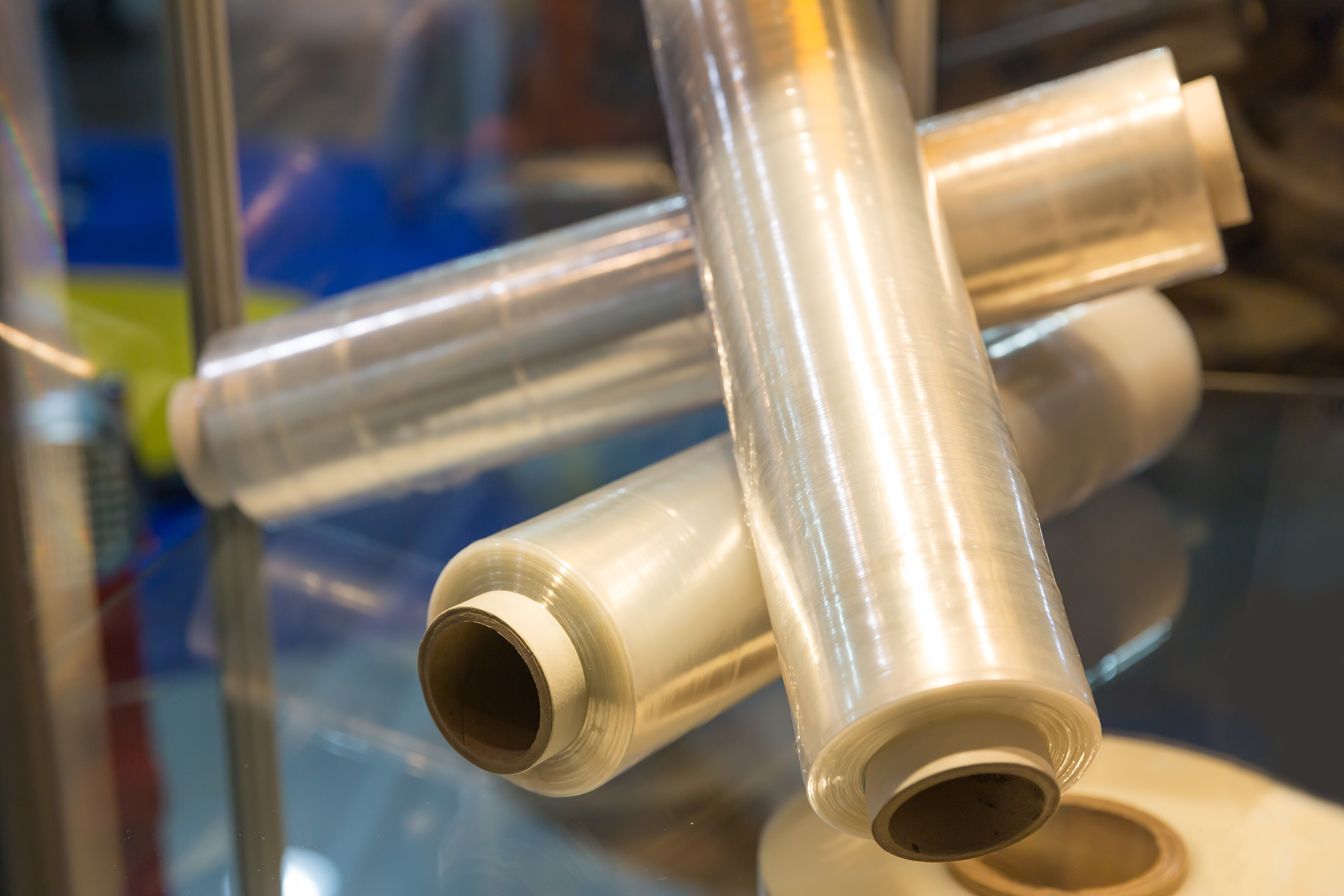

Most shrink wrap machines are compatible with POF, PVC, and PE films. POF is incredibly popular for retail packaging because it’s crystal clear, flexible, and 100% food-safe. Thicker PE is commonly used for bundling multipacks and heavy loads.

Q: Do I need a sealer before using a heat shrink tunnel?

Yes, unless you are using pre-cut sleeve labels. For full shrink wrapping, you need devices like an L-bar sealer to first cut and seal the loose film around the item, then pass it through the heat tunnel.

Q: How do I fix wrinkles on my shrink-wrapped products?

Shrink wrap wrinkles are often caused by insufficient heat, uneven airflow, or oversized film. You can raise the tunnel temperature, reduce conveyor speed, or use a better-fitting film size to achieve smoother shrink results.

Q: What are the limitations of shrink wrapping systems?

Because shrink film contracts under heat, structurally weak products can become warped or distorted during the process. High heat in the shrink tunnel can also damage products like chocolate and temperature-sensitive pharmaceuticals.
