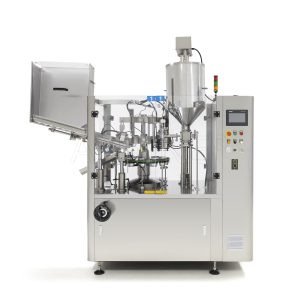

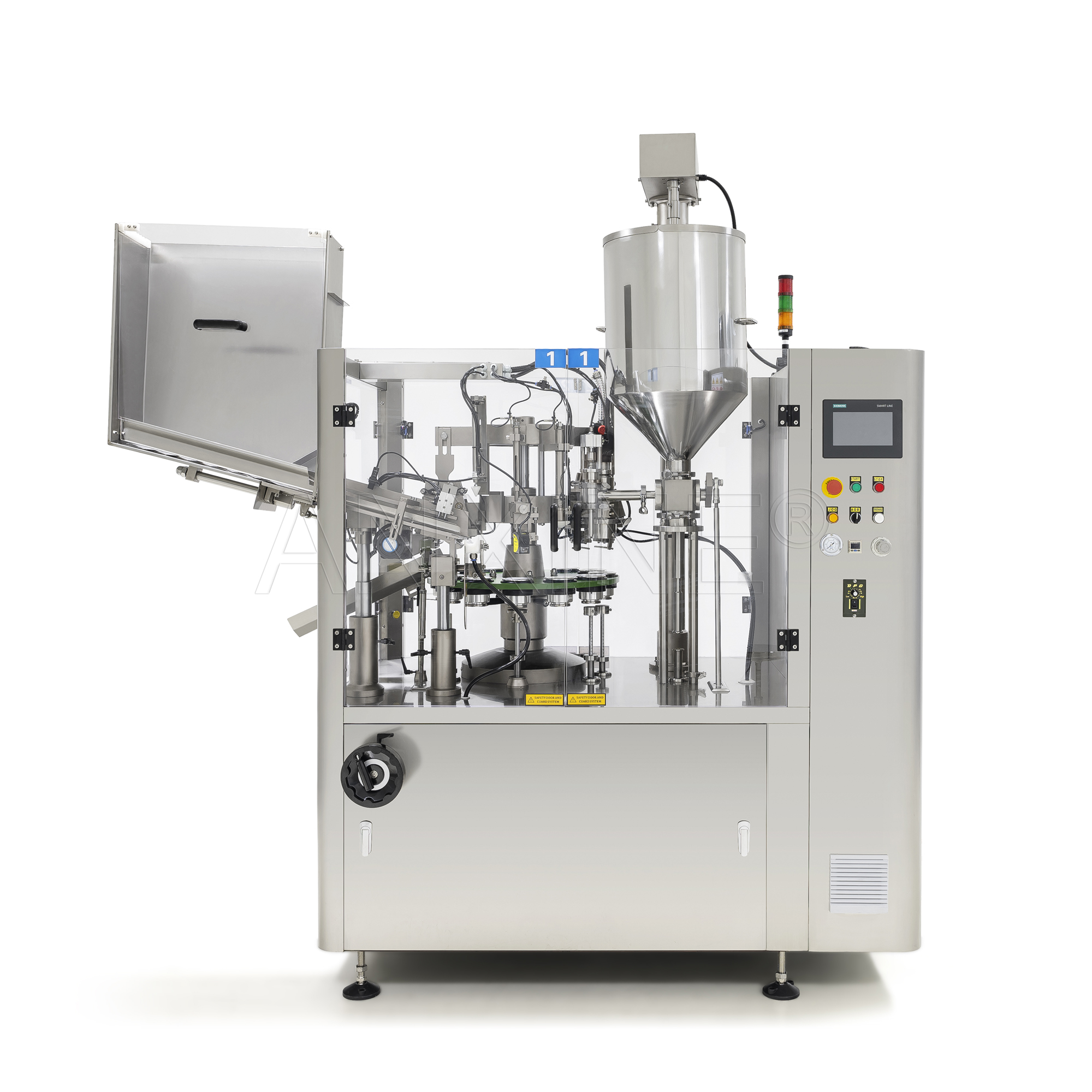

Automatic Plastic Tube Filling Sealing Machine CNF-80A
Automatic Plastic Tube Filling Sealing Machine CNF-80A
The CNF-80A automatic hose filling and sealing machine is a highly efficient automated equipment designed for the pharmaceutical, cosmetics and food industries. The machine can realize the automatic filling and sealing of plastic tubes, composite tubes and aluminum-plastic tubes, and has automatic batch coding and finished product output functions, ensuring the ease of operation and production efficiency.
The CNF-80A automatic hose filling and sealing machine adopts advanced design concepts and technical standards, fully complying with the regulatory requirements and GMP specifications of the pharmaceutical machinery industry. It is equipped with a built-in counter, which will automatically shut down after reaching the preset number; it also has functions such as no tube alarm and overload protection. In addition, the machine supports automatic tube loading, automatic color marking alignment, and tail cutting and blowing after filling of viscous materials, making the whole process highly automated. The drive assembly is located under the platform to ensure safety and a pollution-free environment; while the filling and sealing parts are installed in a semi-enclosed and visual cover for easy observation and operation. The machine has a smooth surface, no dead corners, and is easy to clean and maintain, making it very suitable for applications in the pharmaceutical, food and daily chemical industries.
The CNF-80A Automatic Tube Filling and Sealing Machine is the perfect solution for handling plastic tubes, composite tubes, and aluminum-plastic tubes. With high production speeds of 50-80 tubes per minute, a filling range of 3-250 ml, and an impressive filling accuracy of ≤±1%, the CNF-80A champions precision workmanship. Constructed with high-grade stainless steel and 316L stainless steel, the machine adheres to pharmaceutical machinery industry standards, making it a reliable investment for industries requiring stringent quality parameters.
Highlighted Features
- High production speed: can reach high-speed production capacity of 50 to 80 pieces/minute.
- Wide applicability: suitable for hoses of different diameters (13.5-50mm) and lengths (maximum 220mm).
- Accurate filling control: filling accuracy ≤±1%, ensuring dosage consistency for each product.
- Intelligent safety system: including multiple safety measures such as emergency stop button, door interlock device, pipeless alarm device, overload limit device, etc.
- Environmentally friendly design: all parts in contact with materials are made of 316L stainless steel, which is corrosion-resistant and can work stably in weak acid and alkali environment; the machine surface is smooth, non-toxic and odorless, non-polluting and easy to clean.
- User-friendly interface: intuitive operation panel, simple and easy-to-understand operation process, convenient for users to quickly get started.
- Additional functions: optional insulation barrel and hybrid power options are provided to meet special process needs.
| Model | CNF-80A |
|---|---|
| Production Speed | 50-80 tubes/minute |
| Filling Range | 3-250 ml/tube |
| Filling Accuracy | ≤±1% |
| Recommended Room Temperature | 18-26℃ |
| Matching Motor | 1.5 KW |
| Dimensions | 2,400×1,100×2,400 mm |
| Weight | 1500 kg |
