Tube Filling & Sealing Machine

Automate the precise filling and sealing of tubes for pastes and creams in pharmaceutical, cosmetic, and food packaging lines.

Precision Tube Filler and Sealer for Pastes & Creams

A tube filling machine is designed to automatically fill and seal viscous and semi-viscous products into plastic, aluminum, or laminated tubes. It is widely used across many industries and is commonly referred to as a cosmetic, toothpaste, or ointment tube filling machine.

Anxine tube fillers combine precise dosing, flexible sealing, and hygienic design. Pneumatic blow-off nozzles ensure accuracy within ±1%, while output reaches 20-80 tubes per minute. With quick-release 316L stainless steel parts, our machines enable fast cleaning and reduce the risk of cross-contamination.

Request a Quote Get Catalog

The Anxine Laminated and Aluminum Tube Sealer Solutions

Browse our semi-automatic and fully automatic tube sealers. These rotary systems provide accurate filling and versatile sealing for pastes and ointments.

Semi-Auto Plastic Tube Filling Sealing Machine CNF-30A

The CNF-30A semi-automatic tube filler and sealer can help you streamline your packaging process. This system is built for precision and versatility, making it great for filling and sealing small to medium batches.

Automatic Plastic Tube Filling Sealing Machine CNF-80A

Discover the new world of efficient packaging with the CNF-80A automatic plastic tube filling machine. It was designed for high-volume, continuous production. It is precise and reliable for filling and sealing tubes.

Automatic Aluminum Tube Filling Sealing Machine NF-60Z

Elevate your aluminum tube packaging with the automatic aluminum tube filler and sealer NF-60Z. Designed for fully automated operation, this system delivers precision filling and impeccably secure seals for your metal tubes.

Why Choose Our Tube Filling Machines

Optimize your tube packaging efficiency with Anxine. Our tube filling and sealing machines are compatible with various fills and tube materials. Each system delivers stable filling performance and clean, reliable sealing.

Flexible Sealing Technologies

Easily switch between internal heating with water-cooled trimming for plastic tube seams and multi-fold mechanical crimping for aluminum closures.

End-to-End Automation

The centralized PLC controls and coordinates automatic loading, filling, sealing, coding, and ejection, with stepless speed regulation.

Comprehensive Safety Systems

Active safety doors, low-pressure alarms, and overload protection automatically stop the machine to protect both equipment and operators.

Rapid Format Changeover

Adjust to different tube lengths quickly using handwheel controls. Optional jacketed mixing hoppers are available for smooth filling of varying viscous materials.

Technical Specifications

Model	CNF-30A	CNF-80A	NF-60Z
Production Capacity	Up to 20 tubes/min	50-80 tubes/min	30-50 tubes/min
Filling Volume Range	Up to 250 ml	3-250 ml	3-150 ml
Filling Accuracy	±1%	≤ ±1%	≤ ±1%
Tube Diameter	(Customized)	13.5-50 mm	13-35 mm
Tube Length	(Customized)	Max. 220 mm (including cap)	Max. 185 mm
Pneumatic Requirement	> 0.4 MPa	0.5-0.7 MPa	0.5-0.7 MPa
Dimensions (L×W×H)	1200×800×1450 mm	2400×1100×2400 mm	1900×850×1900 mm

Find Your Ideal Flexible Tube Filling Systems

Cross-reference your tube material, target output, and fill volume with the Anxine models below to choose the best-fit solution for your production floor.

(☆ Highly Recommended | ○ Suitable | × Not Recommended)

Production Scenario	CNF-30A	CNF-80A	NF-60Z
*1. Tube Material*
Plastic and laminated tubes	☆	☆	×
Metal and aluminum tubes	×	×	☆
*2. Automation & Target Output*
High-speed production (50+ BPM)	×	☆	×
Standard throughput (20-50 BPM)	×	☆	○
Small batch runs (up to 20 BPM)	☆	○	○
Fully automatic workflow	×	☆	☆
*3. Fill Volume & Tube Dimensions*
Large volume and wide diameters	○	☆	☆
Slender profiles with medium capacities	○	○	☆
*4. Special Requirements*
High-viscosity products require temperature control	○	○	○
Plastic and laminate tubes need rapid cooling down	○	☆	×

Applications & Industries

Flexible tubes are highly popular packaging for a wide spectrum of viscosities, from thin lotions to heavy pastes. This makes the tube filler and sealer an indispensable part of modern packaging lines across multiple sectors.

Pharmaceuticals & Medical

Medicinal ointments, burn creams, topical pain relief creams, eye ointments, oral gels

Cosmetics & Personal Care

Toothpastes, facial cleansers, hand creams, body lotions, sunscreen creams, shaving creams

Chemicals & Industrial

Adhesives, super glues, silicone sealants, industrial greases, shoe polish, leather care pastes

Food & Beverage

Cake icing, condensed milk, chocolate pastes, wasabi, mayonnaise, ketchup, honey

Upgrades for Your Tube Packaging Machine

CUSTOM UPGRADE 01 | Ultrasonic Sealing Module

Equip your tube filler with an ultrasonic sealer for temperature-sensitive materials. It provides instant, heat-free seals that never damage the product.

Available for: CNF-30A

CUSTOM UPGRADE 02 | Dual-Heating Sealing System

This system uses both inner hot-air blowers and external heated sealing jaws to achieve neat and secure seals.

Available for: CNF-30A

CUSTOM UPGRADE 03 | Thermal Jacketed Hoppers

Add a thermal water-jacket to the hopper for highly viscous or poor-flowing materials.

Available for: All Models

CUSTOM UPGRADE 04 | Motorized Hopper Agitators

The component creates stirring to prevent heavy pastes and creams from separating or heating unevenly.

Available for: CNF-80A

CUSTOM UPGRADE 05 | Precision Piston Cylinders

Scale from specialized 23mm cylinders (for precise 2-35ml doses) up to massive 80mm cylinders (for 50-400ml fills).

Available for: CNF-80A

CUSTOM UPGRADE 06 | Custom Machined Nozzles

We customize filling nozzles based on the product viscosity and tube opening dimensions to avoid splashing and perfect cut-offs.

Available for: All Models

CUSTOM UPGRADE 07 | Robotic Aluminum Crimping

Robotic manipulators switch between 2-fold, 3-fold, or complex saddle-fold crimping styles for metal and aluminum tubes.

Available for: NF-60Z

CUSTOM UPGRADE 08 | Swappable Tube Holders

These jigs are removable to accommodate new tube diameters and lengths.

Available for: All Models

CUSTOM UPGRADE 09 | Industrial Power Configurations

Standard 220V and heavy-duty 380V industrial power supplies are both available for your facility’s electrical infrastructure.

Available for: NF-60Z

Need more customization options? Talk to our engineering team.

How It Works: Rotary Filling and Closing

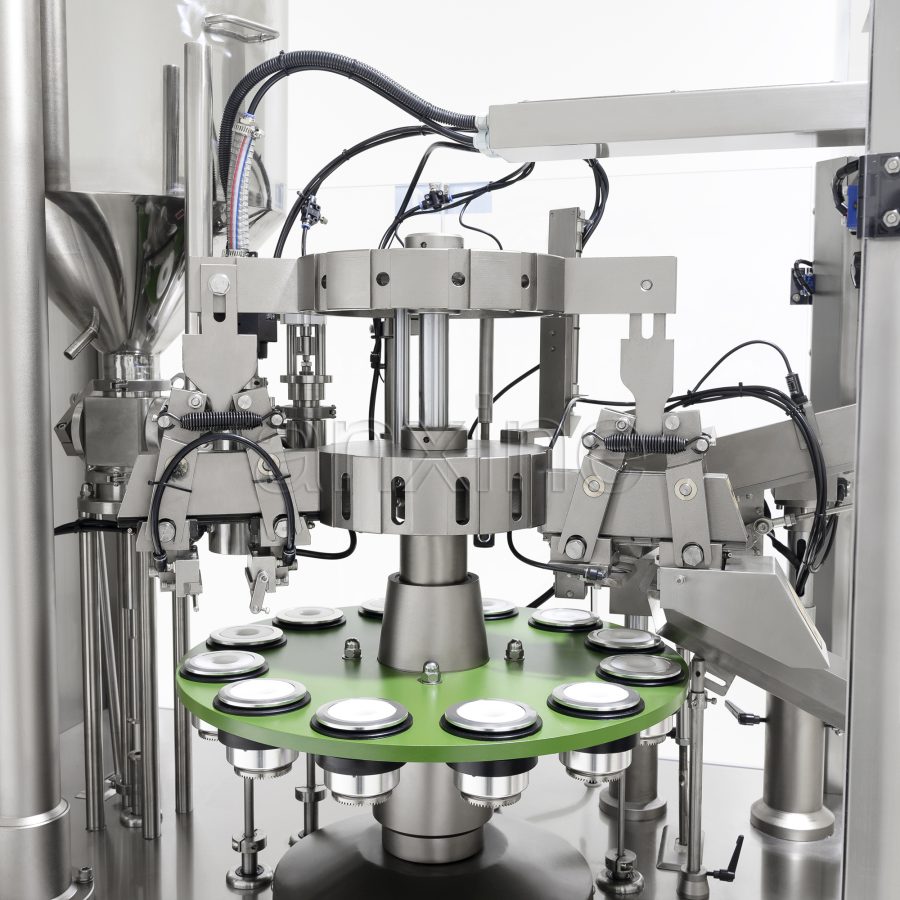

A tube packaging machine operates on a rotary indexing system. It intermittently moves empty tubes through stations for filling, sealing, trimming, and coding. Its core process is:

Step 1: Empty tubes are loaded into individual holders on the rotating carousel.

Step 2: A photoelectric sensor detects the tube seam or color mark to align the tube to the correct position.

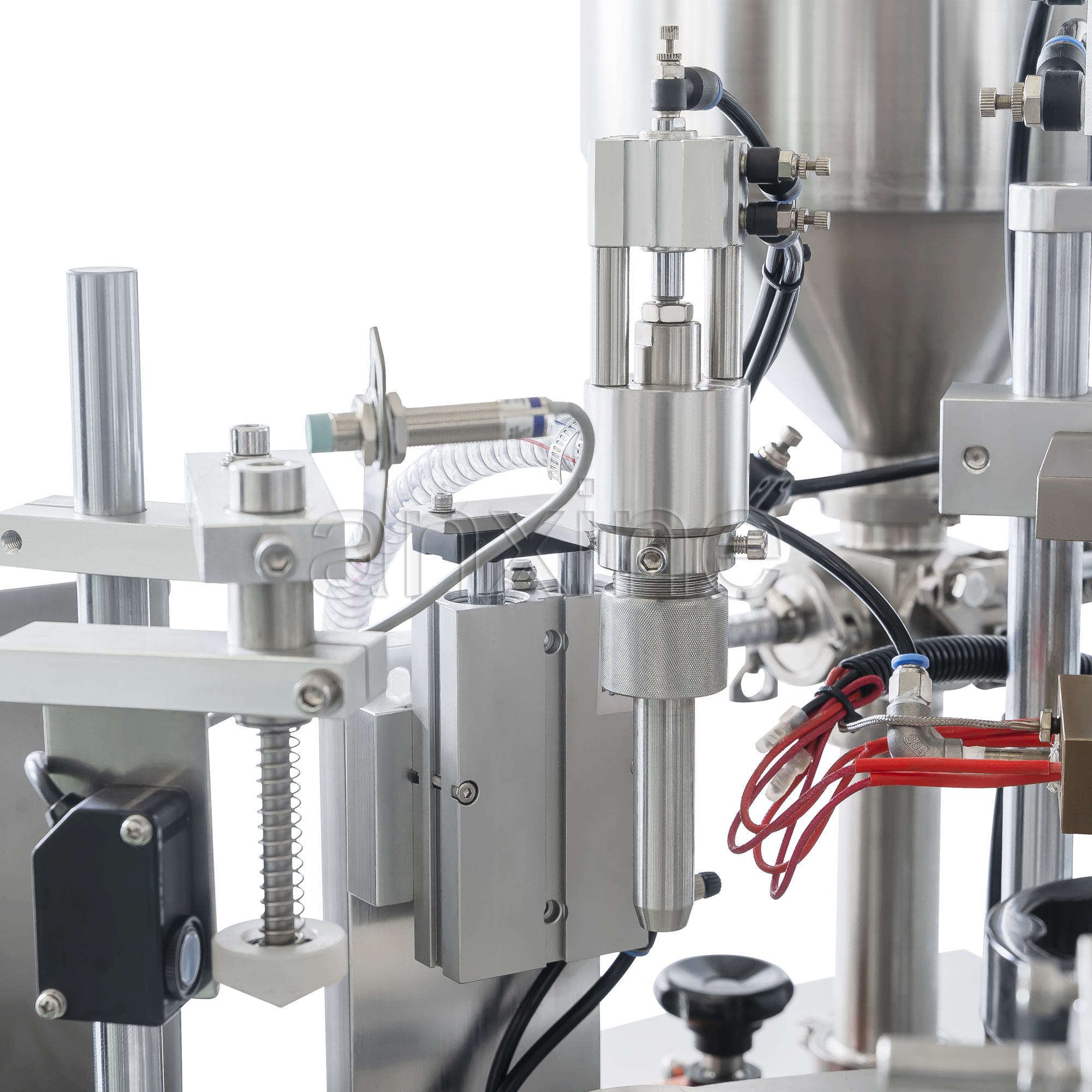

Step 3: A nozzle dives into the tube, where a precise amount of viscous material is pumped in.

Step 4: Heating, ultrasonic, or folding methods are then used to close the tube ends.

Step 5: Batch numbers or expiry dates are embossed onto the seal area.

Step 6: Excess material on the sealed tube ends is trimmed for a uniform look.

Step 7: The finished tubes are finally ejected from the carousel into a collection container.

Compatible Upstream & Downstream Equipment

Combine our tube fillers with these high-performance systems for a complete automated tube packaging line.

Labeling & Code Printing Machine

Label your bottles and packs using our flexible label applicators with code printing, featuring wrap-around, flat-surface, and front & back labeling options.

Liquid Filling Machine

Precision equipment engineered to accurately dispense liquids, pastes, creams, and gels for efficient pharmaceutical, cosmetic, and chemical production lines.

Shrink Tunnel Machine

As a trusted shrink tunnel machine manufacturer, we provide competitive shrink tunnel machine prices and custom solutions to meet all your packaging needs.

Cartoning Machine

Creates an extra protective layer for your product and makes shipping easier. Accurately inserts bottles, blister packs, pouches, and tubes into boxes for pharmaceutical, cosmetic, and food packaging.

FAQs About Tube Filling and Sealing

Q: What is a tube filling machine used for?

It automatically dispenses high-viscosity products like pastes, creams, gels, and ointments into flexible tubes and securely seals the ends. They are the essential packaging equipment for the pharmaceutical, food, cosmetic, and chemical industries.

Q: What is the best way to seal a flexible tube?

The optimal method depends on the tube material or product. Hot-air sealing is the standard for plastic and laminated tubes. Ultrasonic sealing is ideal for temperature-sensitive contents. Aluminum tubes require mechanical multi-folding to ensure a secure closure.

Q: Can one machine seal both plastic and aluminum tubes?

Generally, no. Plastic and aluminum tubes use different sealing principles. Some machines may allow interchangeable sealing units, but the process can be time-consuming and costly. We recommend checking with your supplier for details.

Q: How accurate is your tube filler?

Highly accurate. We use precision-machined piston cylinders that achieve a volumetric accuracy of ±1%. And the specialized diving nozzles eliminate air pockets and material stringing.

Q: Do I need an external air compressor for these tube fillers?

Yes. Compressed air is required to drive mechanical actions, including piston pump filling, automated tube tail cutting, and the final ejection.
