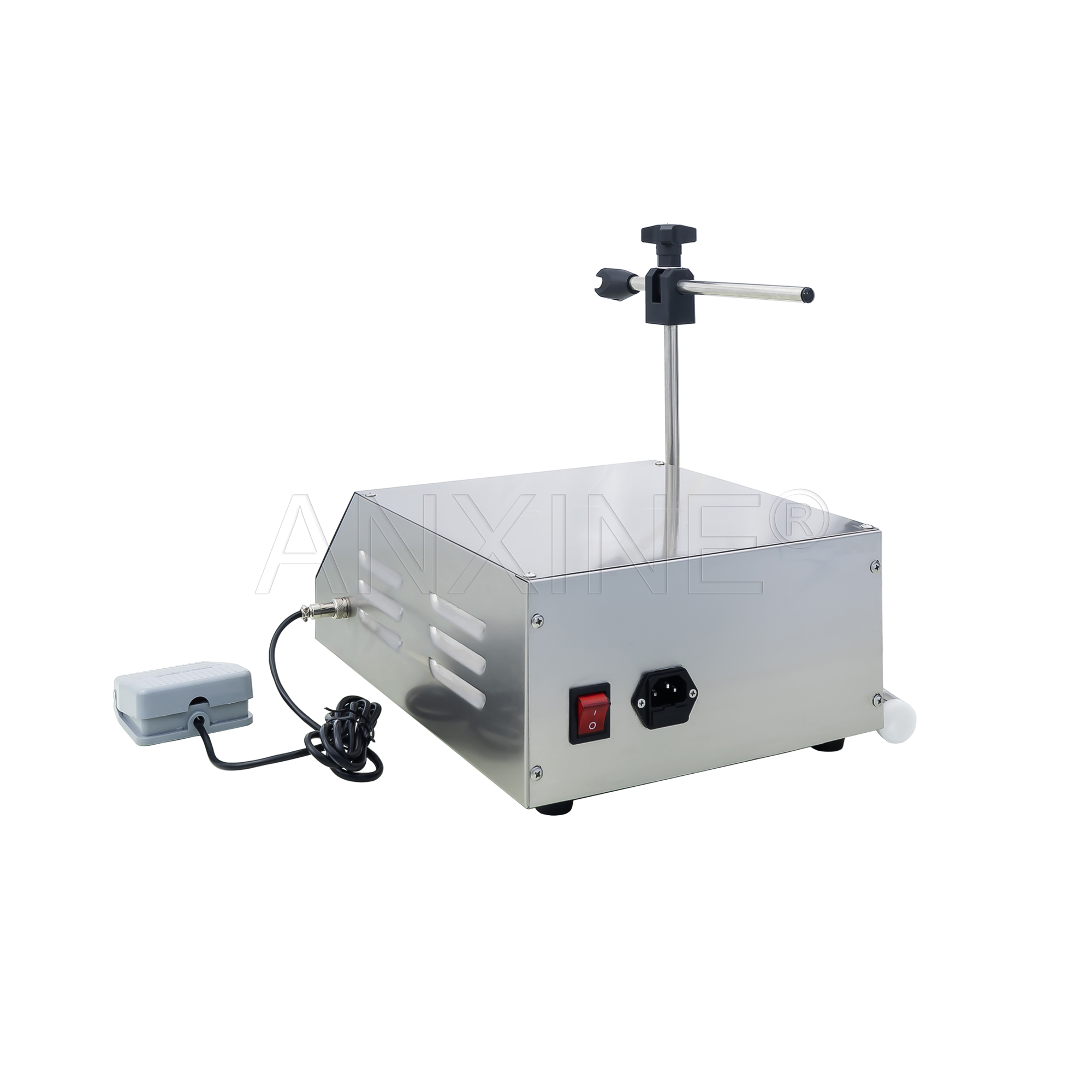

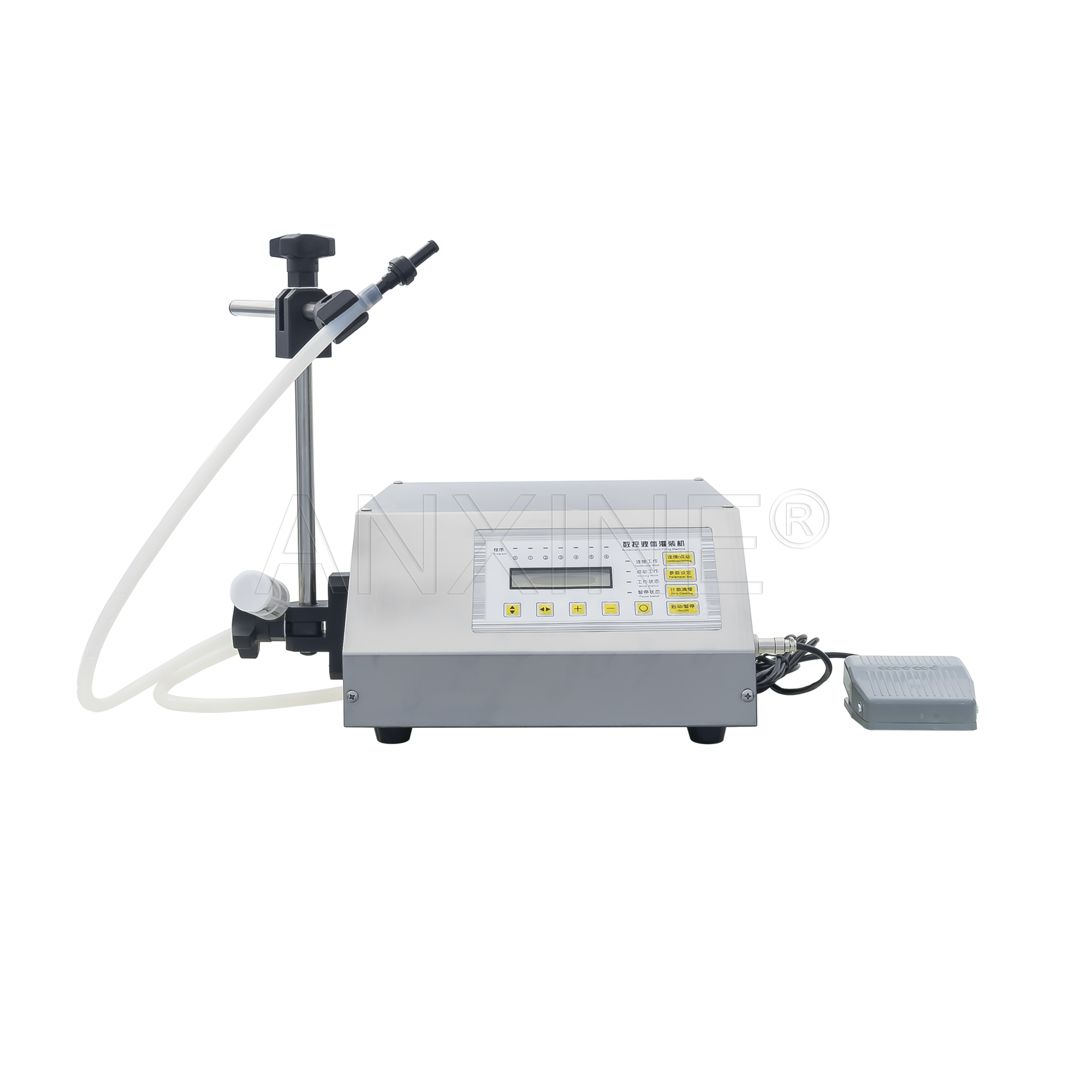

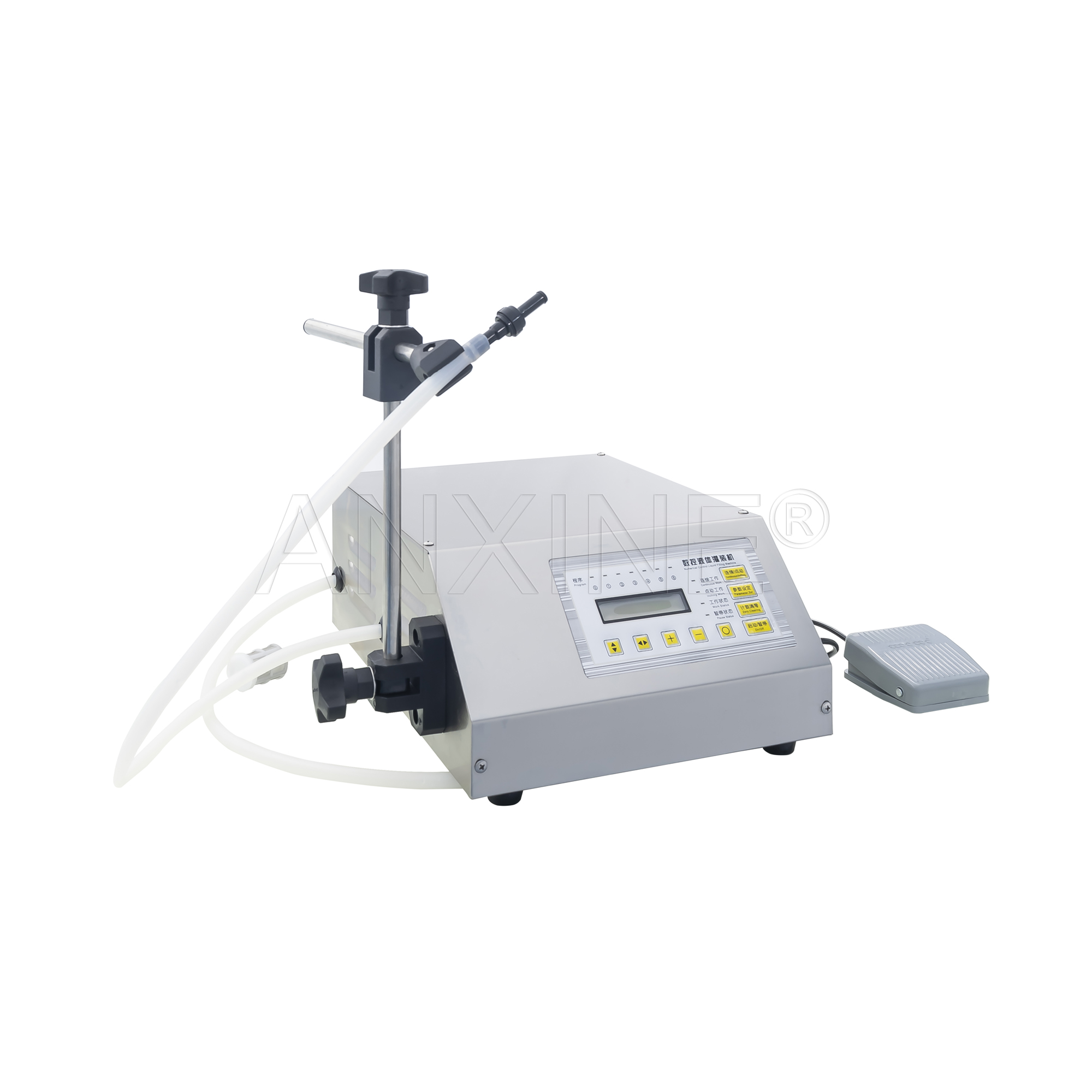

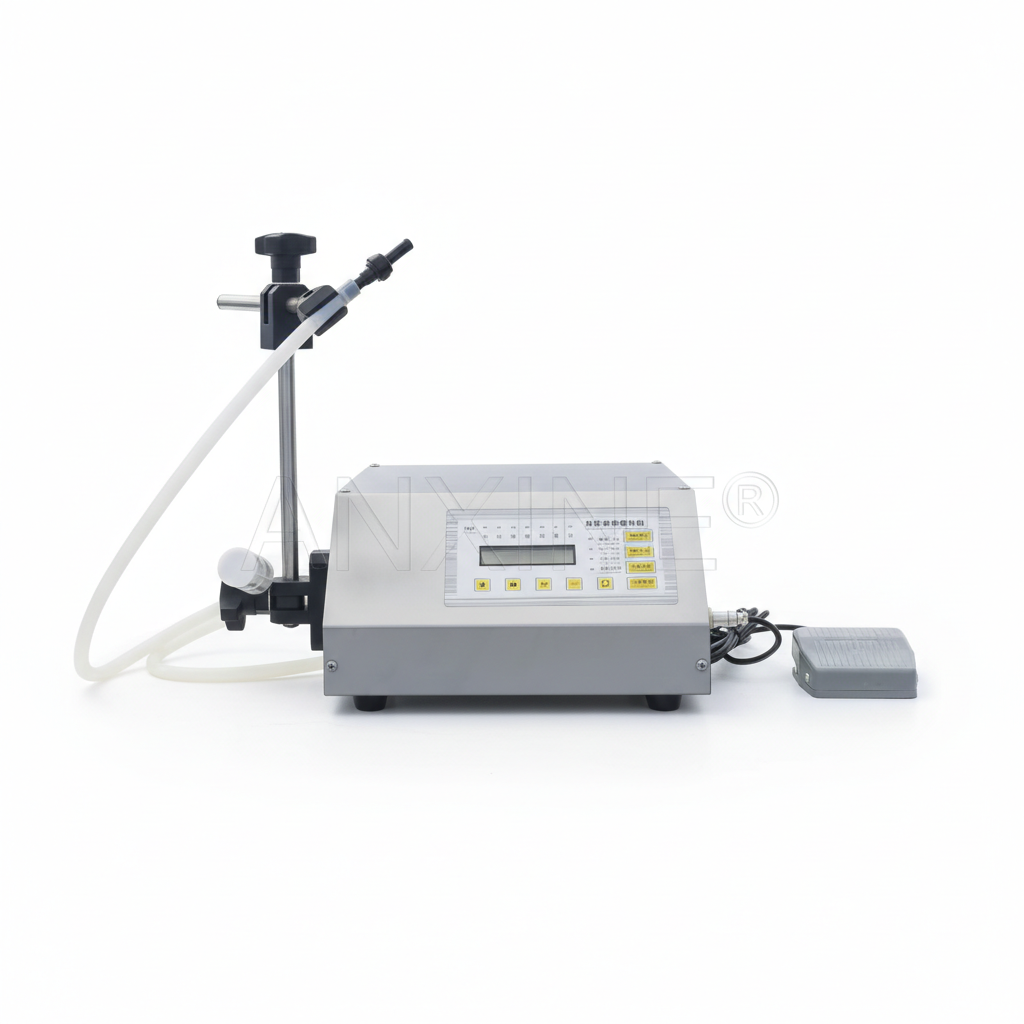

Desktop Digital Liquid Filling Machine GFK-160

Compact, durable, and easy to clean, the GFK-160 filling machine is perfect for medicine, cosmetics, beverages, and chemicals.

Best Liquid Filling Machine for Small Business – GFK-160

The GFK-160 is a compact digital liquid filling machine for bottles. It is designed for small-scale production for industries such as pharmaceuticals, food, cosmetics, and chemicals. This filling equipment uses a microcomputer to precisely control filling time and motor speed. The filling range is from 2–3500 ml, and the maximum speed supports 40 bottles per minute. The GFK-160 is ideal for low-viscosity and non-granular liquids.

The GFK-160 bottle filling machine supports both inching and automatic filling modes. It stores up to six programs for different filling needs. This bottle filling equipment also includes a memory function that retains settings after power loss. It reduces the need for reconfiguration and improves production efficiency.

Description

The GFK-160 is simple to operate, hygienic, and stable in performance. Easy setup and cleaning make it practical for labs and small production lines.

Highlighted Features

  • High precision control. It uses a microcomputer to adjust filling time and motor speed with an error of less than 0.5%.

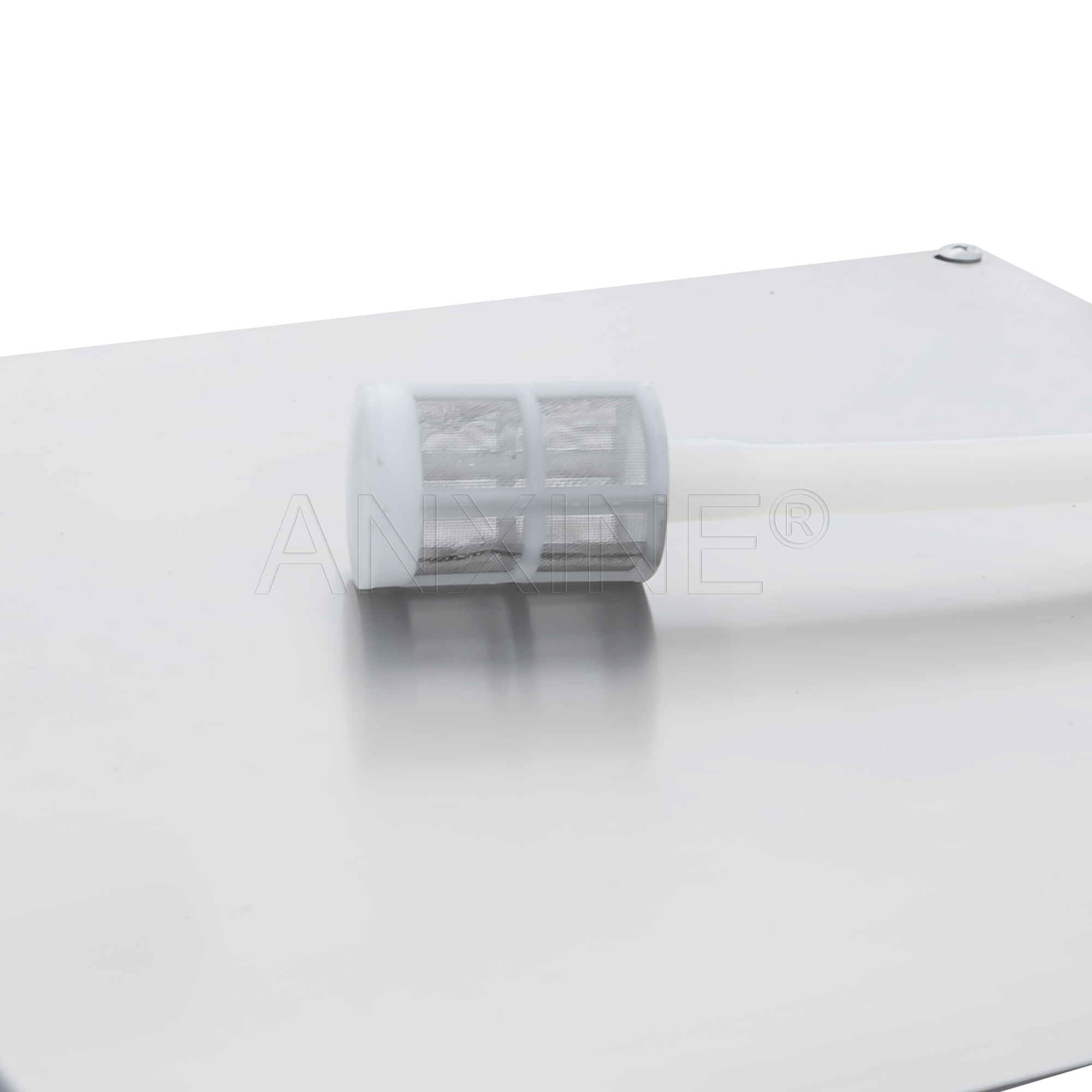

  • Self-priming pump. It can run dry for long periods and supports continuous operation without wear.
  • Dual operation modes. The bottler filler offers both manual operation and automatic filling modes for flexibility.

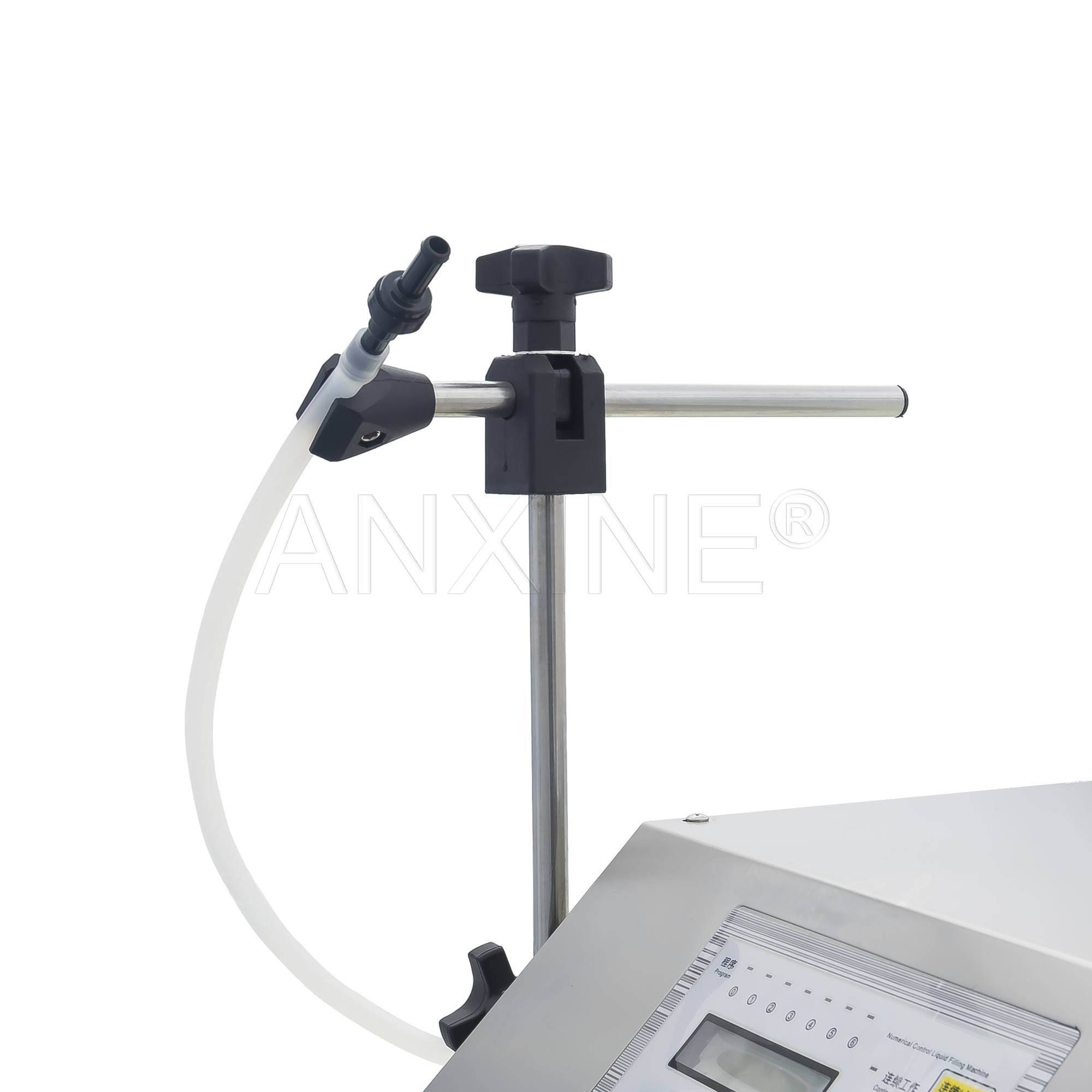

  • Anti-drip nozzle. It is equipped with a check-valve filling head to prevent dripping and maintain cleanliness.
  • User-friendly interface. An LCD display is used for multiple program slots for easy operation and quick setup.
  • Safe and durable build. The stainless steel body is corrosion-resistant and wear-resistant, suitable for hygienic use.

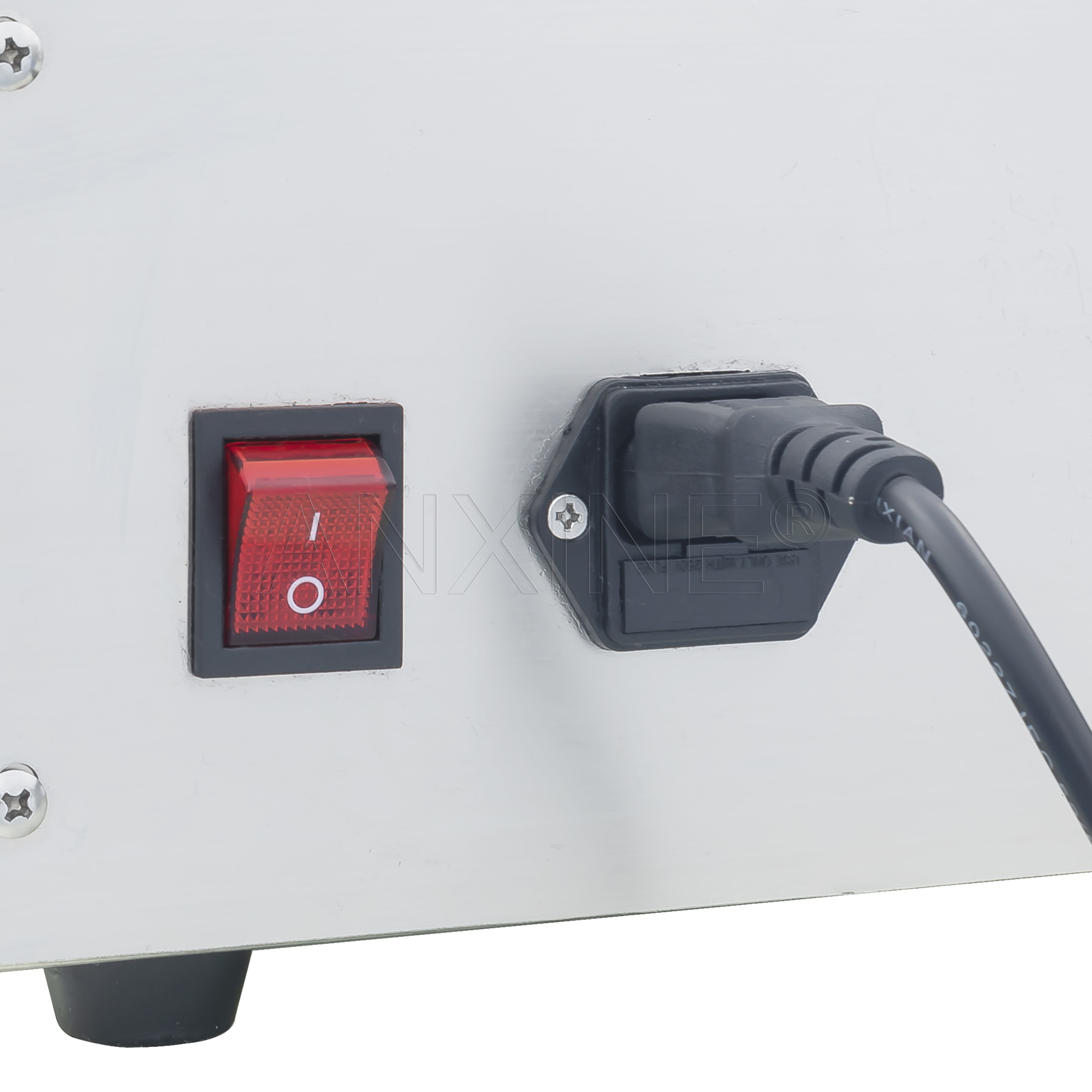

  • Wide voltage compatibility. It operates in a voltage range of AC180V–260V.
  • Compact and lightweight. It weighs only 4 kg and fits well in limited workspaces.

Specifications

Model GFK-160
Max Filling Capacity 3.2L/min
Max Pump Suction Lift 2m
Filling Range 2-3500ml
Repeatability Error <0.5%
Anti-Dripping Function Yes
Power Failure Memory Yes
Power Supply AC180V-260V
Power 30W
Dimensions 345 x 340 x 145 mm
Weight 4kg

Also Offer

Explore cutting-edge pharmaceutical and packaging machinery with Anxine. Our offerings include state-of-the-art equipment for capsule filling and blister packing, supported by expert custom solutions and a robust global service network.
