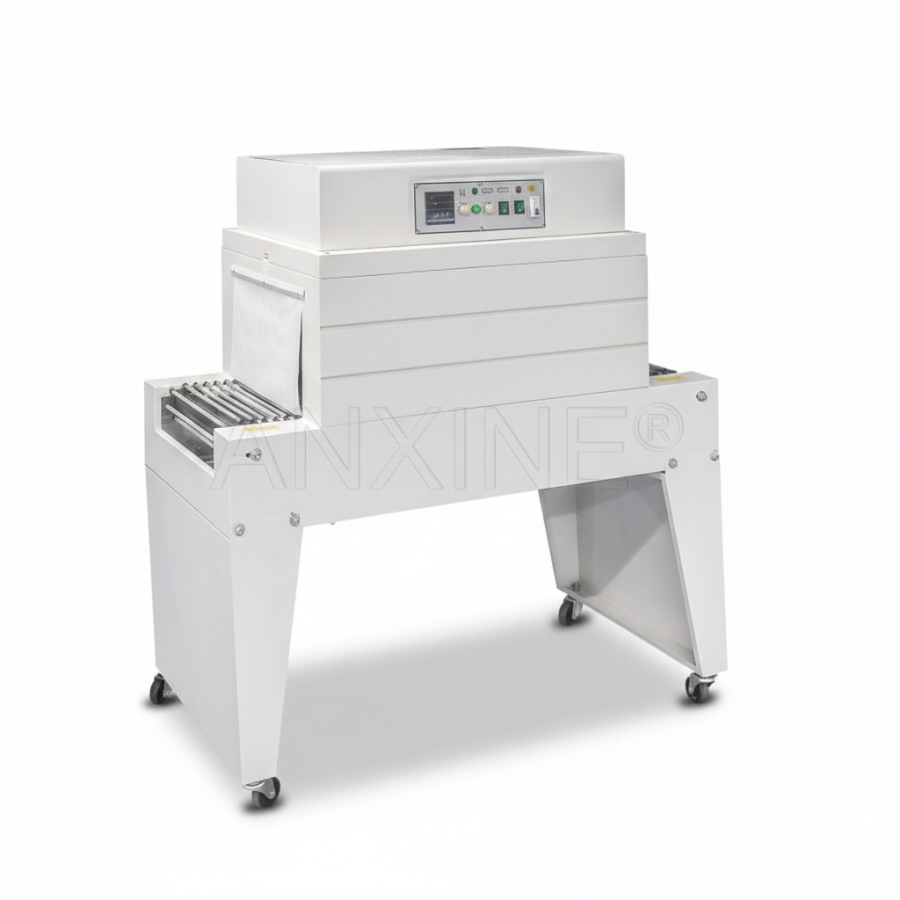

Heat Shrink Tunnel Machine CBS-450

Infrared heating and smooth conveyor movement deliver reliable shrinking for cartons, sleeves, and bundled goods in a simple, space-saving design.

CBS-450 Heat Shrink Tunnel for Light-duty Packaging Applications

Ideal for short-run packaging lines and light materials, the CBS-450 offers reliable shrink results in a movable shrink tunnel format. It features smart temperature regulation, a stepless speed control system, and a low-noise conveyor. This model is perfect for sealing sleeves, boxes, or multi-pack units.

It’s worth mentioning that the CBS-450 is designed to work well with an L-bar sealer. The sealer cuts and seals a shrink film to loosely wrap the product. Then, the shrink tunnel machine heats it evenly to create a clean finish. The CBS-450 is a dependable shrink tunnel option that gets daily shrink jobs done quietly and efficiently.

Request for Quote

Description

Highlighted Features

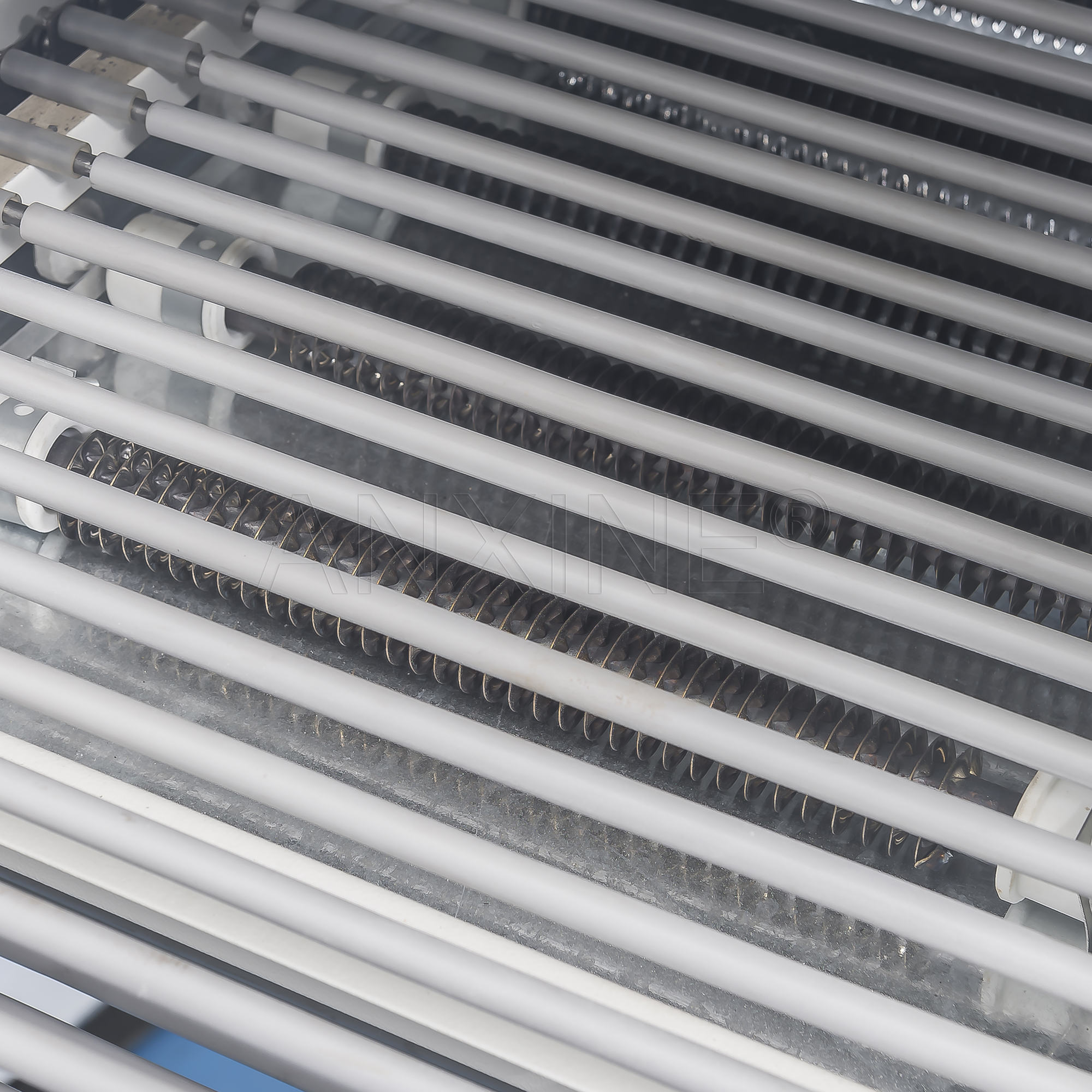

  • Fast Heating: High-efficiency heat pipes get the target temperature quickly.

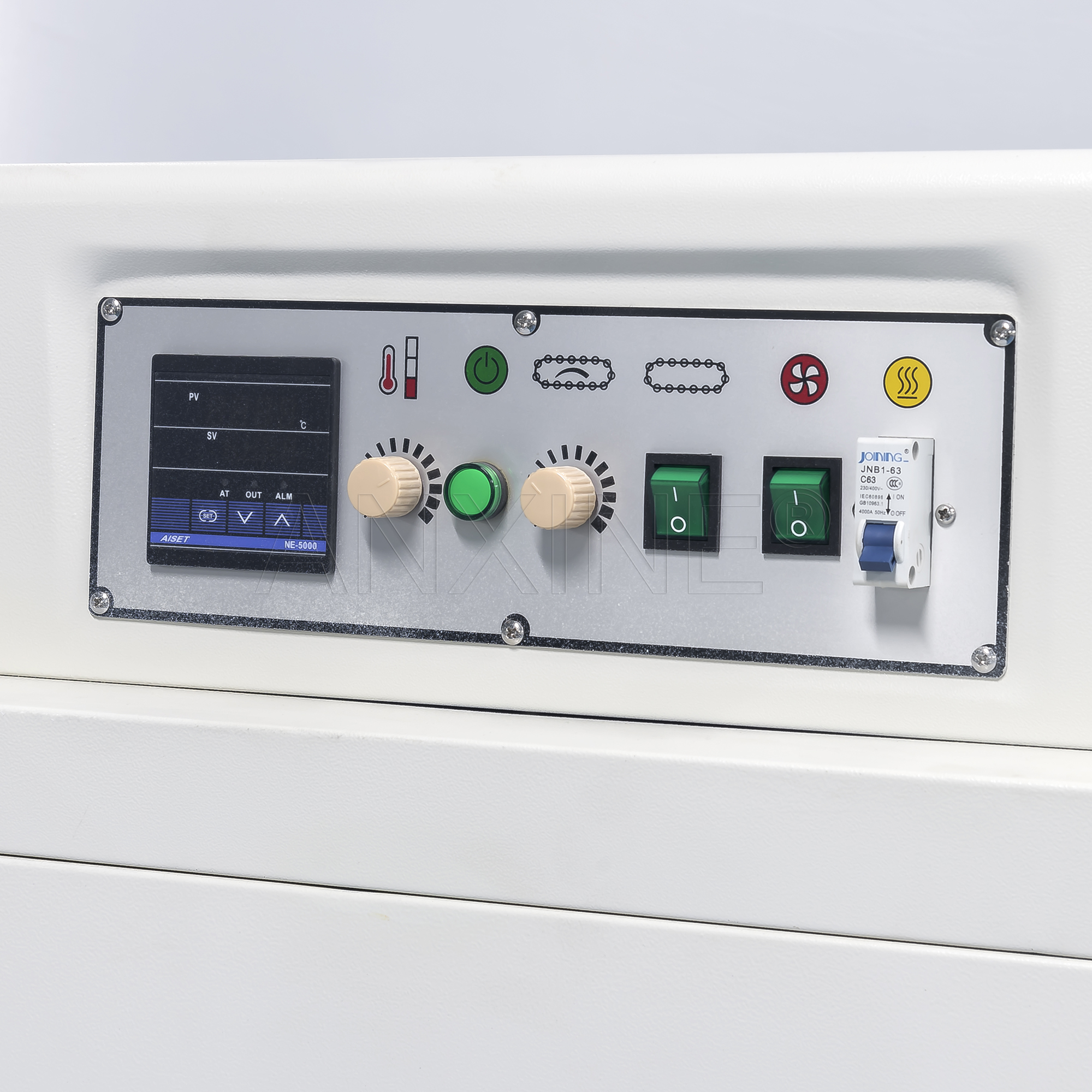

  • Accurate Temperature Control: Features a digital temperature controller for precise heat output.

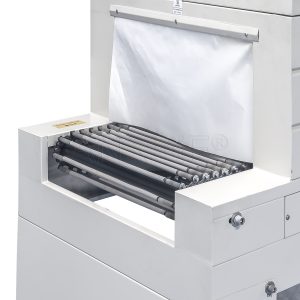

  • Easy Speed Adjustment: Equipped with stepless conveyor speed control.
  • Low-Maintenance Design: Easy access to quick cleaning and effortless maintenance.
  • Easy Integration: Built to easily link with shrink wrap sealers.
  • Flexible Location: Can be easily positioned anywhere with flexible swivel wheels.

Specifications

Model CBS-450
Conveying speed 0-10m/min
Shrinker size 830 x 450 x 250
Conveying load 5kg
Voltage 220/380V 50/60Hz
Power 5.7kW
Machine Size high platform: 1,230 x 656 x 1,260 mm
low platform: 1,230 x 656 x 850 mm
