Semi-Automatic Label Shrinking Machine CSS-1538B

Efficiently shrinks labels on bottles, cups, and barrels. Versatile for full or middle labeling on various shapes.

Semi-Automatic Label Shrinking Machine CSS-1538B

The CSS-1538B semi-automatic label shrinking machine is an efficient, flexible and easy-to-operate packaging equipment carefully developed and manufactured by Anxine Pharmaceuticals. It is particularly suitable for companies that require high-quality label shrinking. The machine combines advanced heating technology and intelligent control systems to provide stable and reliable performance while maintaining high precision. It is suitable for product packaging needs in multiple industries such as food, medicine, cosmetics, pesticides, etc. It can not only handle containers of various shapes and materials, such as glass bottles, plastic bottles and paper cups, but also shrink labels on the top, middle, bottom or full wrap to ensure that each product can present the best appearance.

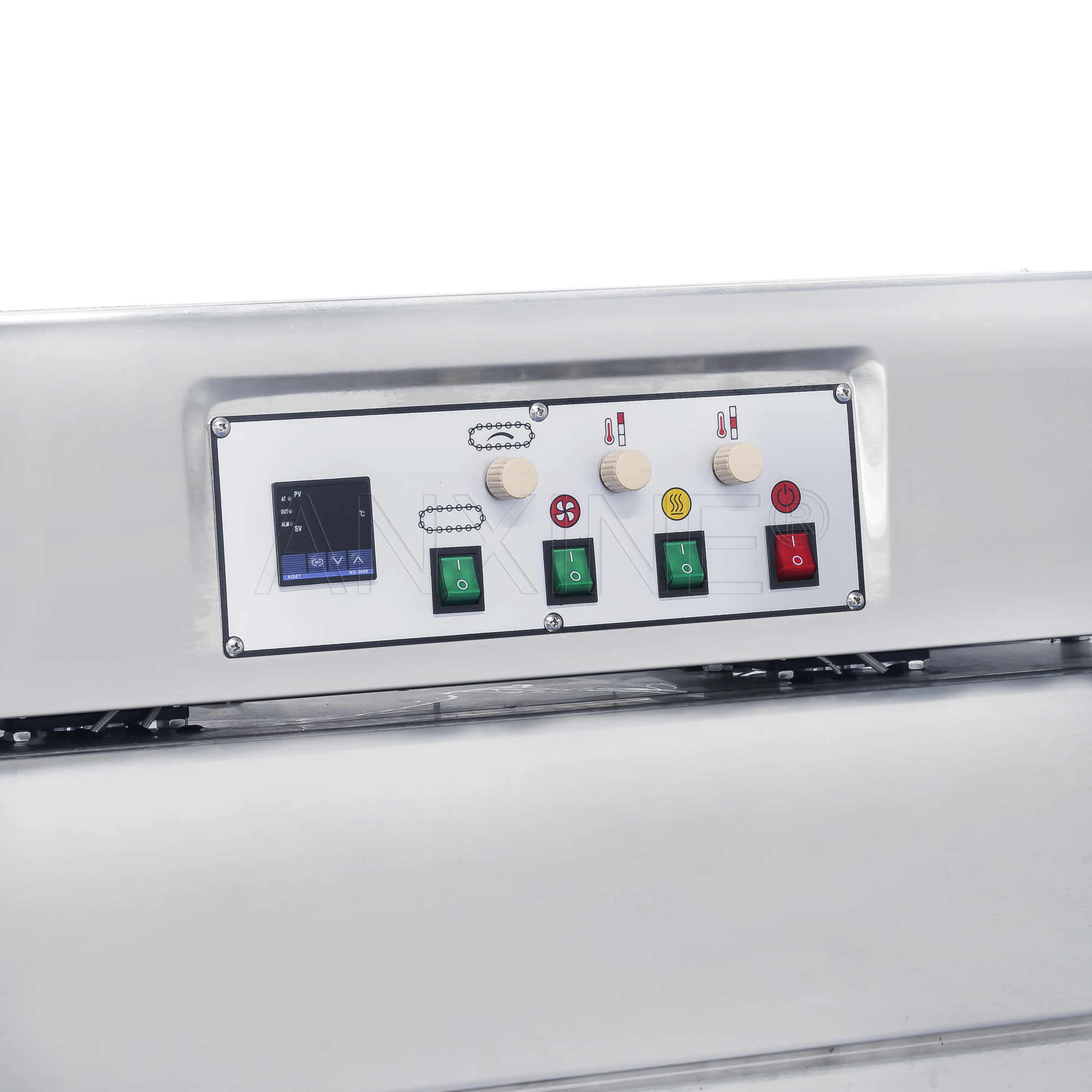

The CSS-1538B semi-automatic label shrinking machine adopts an efficient heat pipe heating system to ensure fast and even heat transfer, so that the label fits tightly to the product surface while avoiding damage caused by overheating. It has a compact design, a stable structure, low noise during operation, and all adjustments are simple and easy, which is convenient for users to quickly set according to actual needs. The built-in intelligent temperature control system can automatically adjust the optimal working temperature according to products of different materials and sizes to ensure the consistency and stability of the shrinking effect each time. In addition, the machine is equipped with an intuitive operation panel, allowing operators to easily master the various functions of the equipment and optimize the packaging process through a simple control system. In order to ensure long-term stable operation, the CSS-1538B was designed with easy cleaning and maintenance in mind, thus reducing the workload of daily maintenance and extending the service life of the equipment.

The Label Shrinking Machine CSS-1538B is designed for shrinking labels on products of various shapes, including bottles, cups, and barrels. This versatile machine can efficiently shrink labels on the entire bottle or just in the middle.

Highlighted Features

  • High-precision shrinkage: Utilizes an efficient heat pipe heating system to ensure that the label fits tightly to the product surface while protecting the product from overheating damage.
  • Wide applicability: Applicable to containers of various shapes and materials, including glass bottles, plastic bottles and paper cups, etc., to meet the packaging needs of different industries.
  • Versatile application: The label can be shrunk at the top, middle, bottom or full wrap to meet different packaging requirements.
  • Intelligent control: Built-in intelligent temperature control system automatically adjusts the optimal working temperature to ensure the consistency and stability of the shrinking effect.
  • Easy operation: Humanized design and intuitive operation interface simplify the user’s use process and improve work efficiency.
  • Reliable performance: The rugged design and application of high-quality components ensure the long-term stable working state of the equipment.
  • Convenient maintenance: The simple internal structure is easy to clean, and key components are easy to replace, reducing maintenance costs and time.

Model CSS-1538B
Tunnel Size 1,000×150×380 mm
Max Packing Size Φ105×350H mm

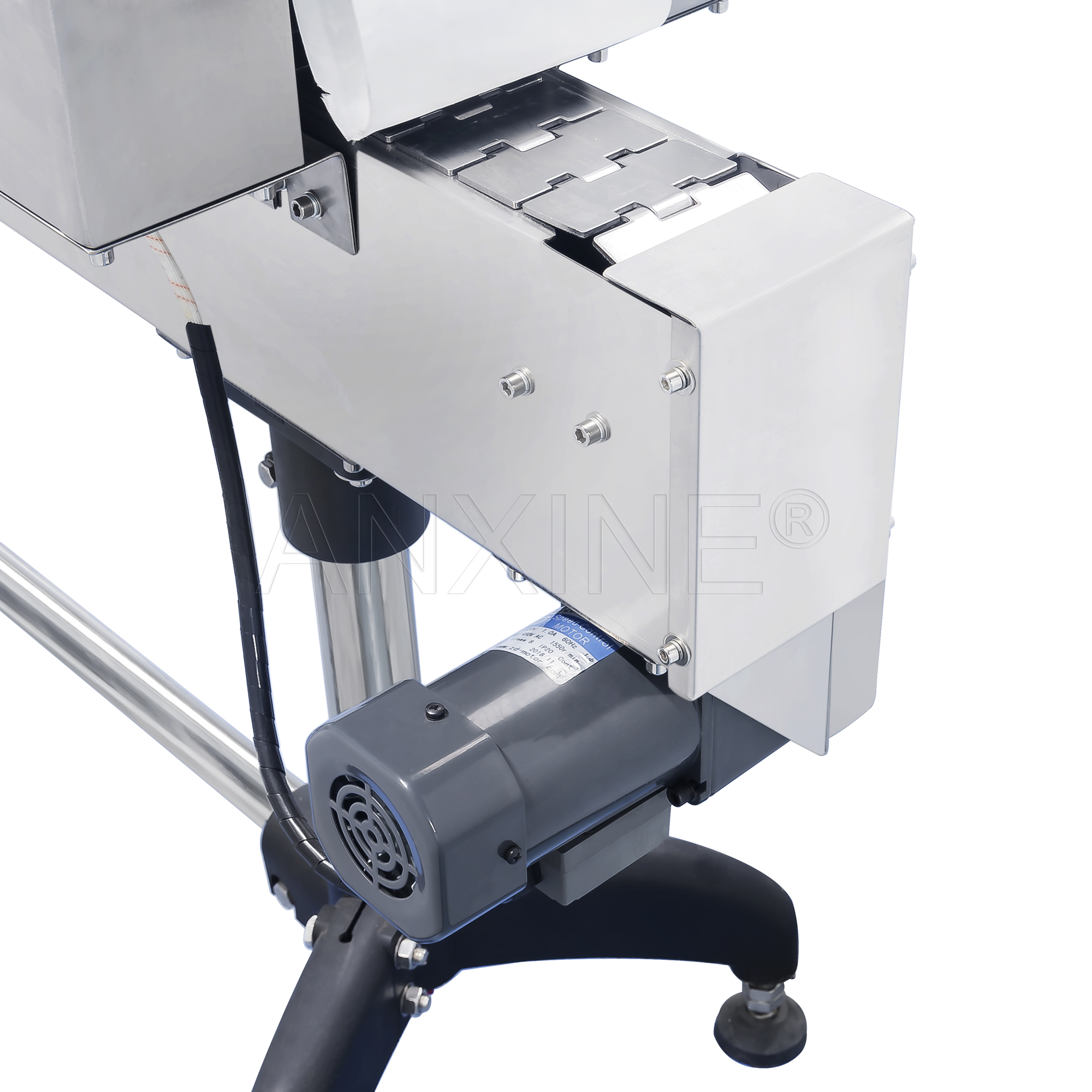

Conveyor Motor AC90W/220V
Conveyor Speed  0-10 m/min
Max Loading 15 kgs
Shrink Film POF, PVC, PP, PE
Power 9 kW
Power Supply 220V/50Hz
Dimension 1,500 x 350 x 1,500 mm
Weight 96 kgs
