A liquid filler plays an important role in many supplement, food, and cosmetic factories. It fills each container with the right amount of product, like syrup. Liquid filling machines are necessary for liquid medicine manufacturers. If you want to buy one for your business, a clear understanding is a must.
What is a liquid filling equipment?
The main purpose of this equipment is into fill the exact amount of liquid to different types of containers. It supports filling water, syrup, oils, and extracts into bottles, vials or tubes. The machine draws the liquid from a tank, measures the required volume, and sends it into each container at a steady speed. Many models also control the flow rate, and keep the fill level consistent from one container to the next.
Advantages of liquid fillers
A liquid filling machine provides many advantages in production. It fills the liquid steadily and accurately, so the product amount does not vary from batch to batch. This makes the bottles keep a stable quality level and avoid customer complaints. The machine also reduces manual work. It lowers labor costs and improves production efficiency.
Many models could handle different container sizes, so you can change from small bottles to larger ones easily. Liquid fillers also keep the production area cleaner because the valves and nozzles control the flow and limit spills.
Eight common types of liquid filling equipment
There are many types of liquid fillers on the market. Each has its features and applications. Here are some popular types you should know.

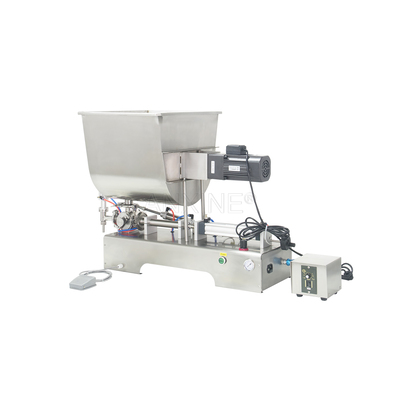

Semi-automatic liquid filling machines
A semi-automatic liquid filler combines human effort and machine work. The operator places the bottle under the nozzle, and the machine measures and sends the liquid into the container. It features a simple structure, clear control and easy-clean parts. This model suits oils, syrups, creams, extracts, and many other liquids. It is suitable for small factories, labs, and start-up companies.

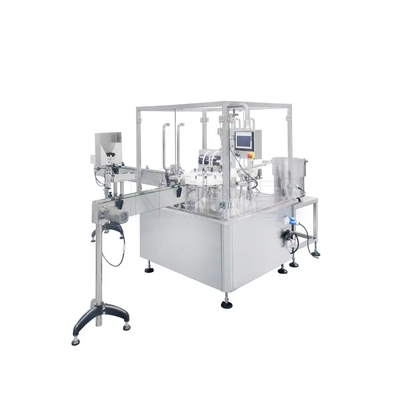

Fully automatic liquid filling equipment
An automatic liquid filling machine fills bottles on its own without manual effort. It moves the bottles along a conveyor, positions them under the nozzles, measures the liquid, and completes the filling process stably. The model works well with oils, syrups, extracts, and cosmetic liquids. Sensors help control the flow and prevent spills for accurate filling.
There are two common types of automatic liquid filling machines on the market. They include
- Inline filling systems to fill the bottles in a straight line. Their main advantages are flexibility and easy integration into an existing production line.
- Monobloc filling systems. They combine filling, capping, and sealing on one rotating platform. This type takes up little space and runs at high speed. However, they are less flexible than inline systems.
Fully automatic types fit medium and large factories that need higher output. It supports different bottle sizes and connects smoothly with capping and labeling machines. However, it has a high price.
The two types above are separated based on different automation levels. The higher the automation level, the higher the price and efficiency. The following three types are divided according to various filling principles.

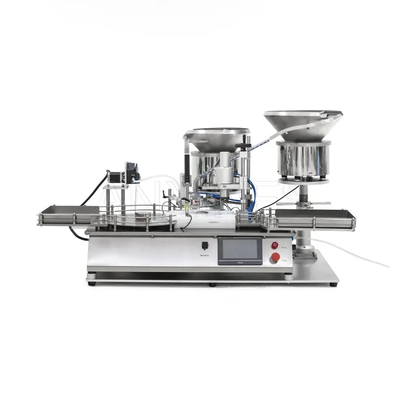

Pump liquid fillers
This type depends on a pump to fill the containers. The pump pushes the liquid forward in a steady flow. It works well with thin and medium-thick products such as water-based liquids, essential oils, and light creams. A pump filler also handles foamy or easy-to-oxidize liquids better than other types. In addition, a peristaltic pump model allows the liquid path to be replaced in minutes. This keeps the product area clean and reduces cross-contamination.

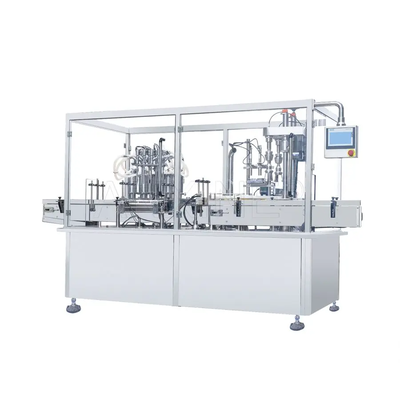

Piston filling equipment
This machine uses a cylinder and a piston for filling. The design offers high accuracy, especially for thicker products such as honey, sauces, and dense syrups. The machine also handles viscous materials better than pump fillers, since the piston provides a strong force during the fill. Its structure is simple and easy to maintain. Fewer parts require frequent replacement. Piston liquid fillers works well for both semi-automatic and fully automatic lines.
Volumatic fillers
This type measures liquid by a set volume. It uses a fixed chamber, cup, or cylinder to get a precise amount of liquid. Volumatic fillers work well with many liquid types, from thin products like water and juice to medium-thick materials such as lotions and syrups. Compared with other liquid filling equipment, a volumatic filler offers better control and less variation between bottles. It is a good choice for factories that want consistent volume, reliable accuracy, and low maintenance.
In addition, there are other types with different designs. Here are 3 examples for your reference.

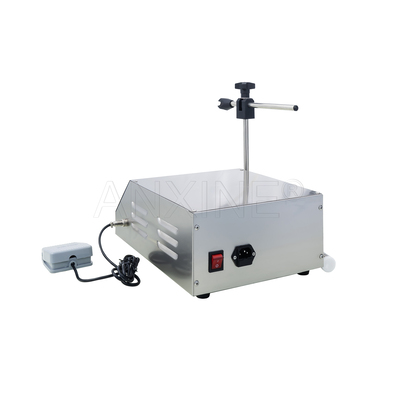

Time-based digital liquid fillers
This model uses a microcomputer to control filling time and pump speed. It depends on a self-priming pump to complete filling. The pump does not have metal friction parts, so it can run for long periods without wear. It could handle products such as water-based solutions, alcohol, extracts, fragrances, and other thin liquids without particles.
The machine has a clear LCD screen that shows filling time, speed, and counting. You can set different programs for different products, and the machine saves the settings even after the power is off. It has two working modes. One is an automatic mode for continuous filling, and the other is foot-pedal mode for single filling. This compact model is suitable for small workshops, start-ups, labs, and test batches.

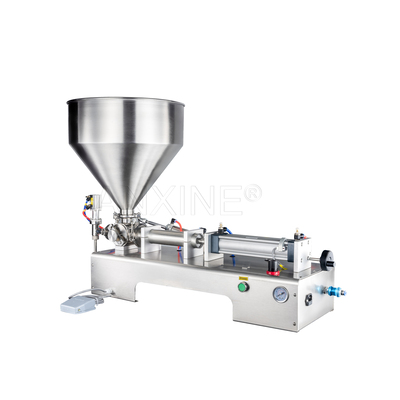

Single-head liquid filling machines
This type features one nozzle that fills liquid into each container at a time. It suits products like oils, syrups, creams, and other fluid materials. The machine has one filling head and a moderate speed. It is also simple to use and easy to clean. So it is a common choice for businesses with limited space or a tighter budget.

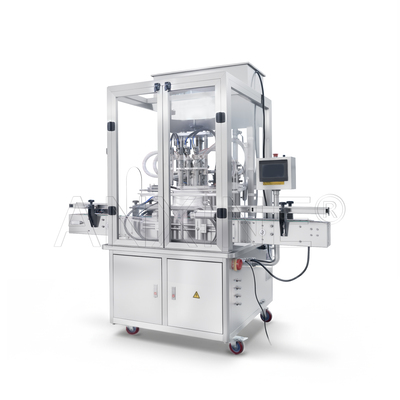

Multiple-head liquid filling equipment
This type has several nozzles that fill many bottles at the same time. The working principle is similar to that of single-head liquid fillers. But multi-head models feature more efficiency. The structure often supports 2, 4, 6, 8, or more heads. Each head can be adjusted to match the bottle size and fill volume. This type of machine fits large-scale businesses that require speed and high production volume.
How to choose a suitable machine for your liquid business?
A good machine selection depends on many factors. You’d better choose one according to your production requirements. The following table compares common liquid fillers in the market, and you may find what suits you best.
| Machine type | speed | Product viscosity | Output | Advantages | Maintenance requirements | Typical users |
|---|---|---|---|---|---|---|
| Multiple-head liquid filling equipment | Fast | Thin to medium | Medium to very high | Fill bottles at once, ideal for large orders. | More parts to clean and regular nozzle checks. | Growing factories, and high-demand production lines. |
| Single-head liquid filling machine | Slow to medium | Thin to thick | Low | Simple design, low cost, and steady performance. | Easy cleaning and low maintenance. | Start-ups, labs, and small workshops. |
| Time-based digital liquid fillers | Medium | Thin liquids only | Low to medium | Low cost, and simple time control. | Very easy, mainly tubing checks | Factories that handle a large volume of water-like liquids. |
| Volumatic fillers | Medium | Thin to medium | Low to medium | Fixed-volume chamber offers stable fills. | Chambers and valves need regular washing. | Small to medium production. |
| Piston filling equipment | Medium | Medium to very thick | Low to medium | Strong force, best choice for creams and pastes. | More cleaning is needed, and piston seals need replacement. | Cosmetic, food, and pharma production lines. |
| Pump liquid fillers | Medium to fast | Thin to medium-thick | Medium | Flexible, fast changeover, and it can handle many liquids. | Easy. Pump heads or tubing are replaced when needed. | Brands with many SKUs or frequent changeover. |
| Fully automatic liquid filling equipment | Fastest | Thin to thick | Medium to very high | High-speed line. | Routine line checks and more sensors & moving parts. | Medium and large factories. |
| Semi-automatic liquid filling Machines | Slow to medium | Thin to thick | Low | Affordable, and simple operation | Low maintenance and basic cleaning. | Small businesses and start-ups. |
Cooperate with Anxine to get high-quality liquid filling equipment
As a leading machine manufacturer in China, Anxine offers a wide range of liquid filling equipment. They include different automation levels or filling systems to meet your production needs. We also have a professional technical team to design or improve the function as required.
In addition, we provide a 1-year warranty on all our machines. You can enjoy free replacement parts without a shipping fee, and free on-site service. Our technicians can assist you directly at your factory to optimize your machinery performance.
