If you run a pharmaceutical or nutraceutical business, understanding the capsule filling machine working principle isn’t just “good to know.” It helps you:
- Pick the right equipment
- Troubleshoot production issues
- Improve capsule quality
- Avoid wasting product, time, and money
But if you’ve ever tried to figure out how capsule filling machines work, you’ve probably noticed that most explanations are packed with technical jargon and feel confusing.
No worries. We can help! Whether you’re using a manual capsule filler or a fully automatic model, the core idea is the same. In this post, we’ll explain the principle behind these machines in much simpler language. Let’s begin!
What Capsule Filling Machines Actually Do

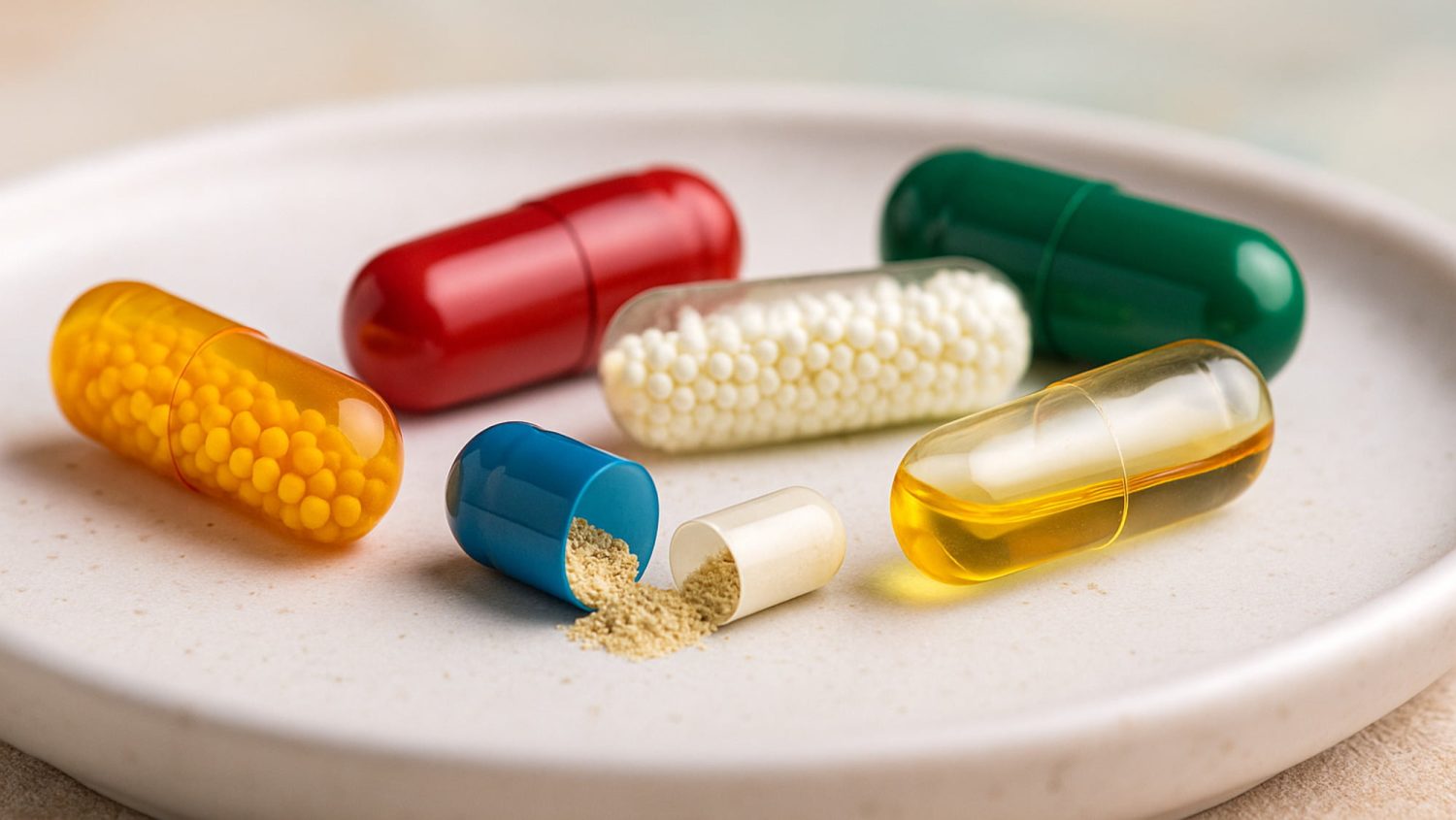

Before we get into the machine, let’s look at the target it deals with: capsules. An empty capsule is made of two connected parts: a short cap and a long body. It can be packed with formulations like powders, granules, pellets, liquids, or even mini-tablets.
And a capsule filling machine does one job. It takes these empty capsules, separates the cap and body, fills the body with your formulation, and seals them again. Once its job is complete, you can have capsule products with consistent weight and quality
Now, if you ask how many capsules the machine can fill? Frankly, there’s no single capsule filler for every situation. That’s why we have manual, semi-automatic, or fully automatic machines to choose from. They share the same the goal, only the speed and output change.
How Does a Capsule Filling Machine Work?
Even though we mentioned that capsule filling machines come in different automation levels, their working still follows the same logic:
- Feed empty capsules into the machine
- Orient the capsules
- Open the capsule halves
- Fill the capsule body with product
- Compact or tamp the product to achieve a consistent dose
- Rejoin the cap and the body
- Reject damaged capsules
- Eject the finished capsules
Whether you’re using a small hand-operated filler or a large automatic encapsulator, this basic workflow doesn’t change.
Additionally, you might find it helpful to know that modern automatic capsule filling machines typically operate on one of the two major filling principles: dosator or the dosing disc (tamping pin).

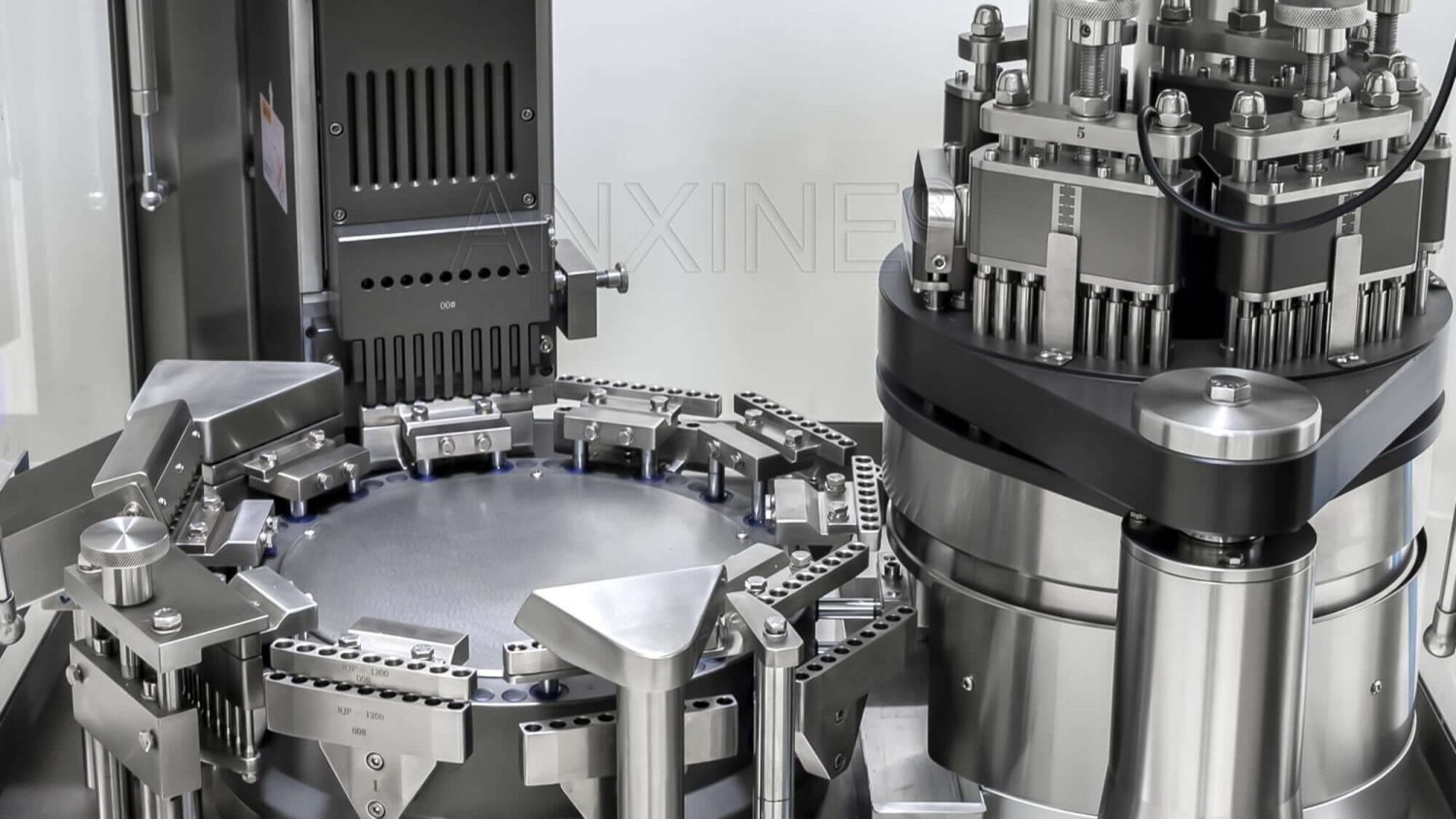

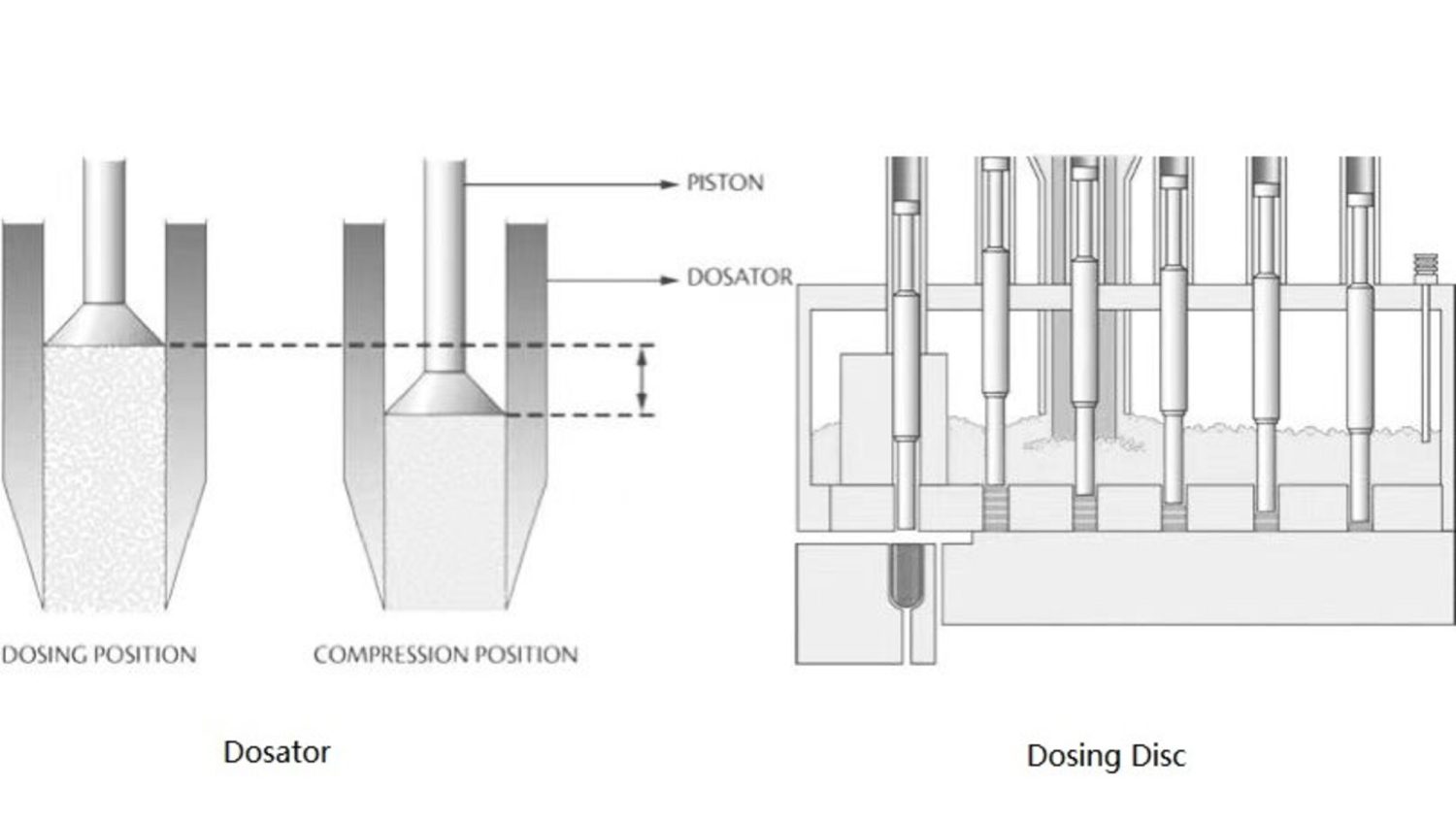

- Dosator principle: Uses a piston inside a small tube (dosator) to collect and pre-compress a specific amount of powder, then deposits that powder “plug” into the capsule body.
- Dosing disc (tamping pin) principle: Uses a rotating disc with cavities and a series of pins to gradually compress powder into a solid slug, which is then ejected into the capsule body.
Despite these different methods, the overall working principle of capsule filling machines is consistent. Next, we go through the capsule filling process step by step to see how each stage works.
The Complete Step-by-Step Capsule Filling Process
Both the manual and the semi automatic capsule filling machine are quite straightforward, so in this section, we’ll look at what happens inside a fully automatic capsule filling machine.
Step 1: Capsule Feeding and Orientation

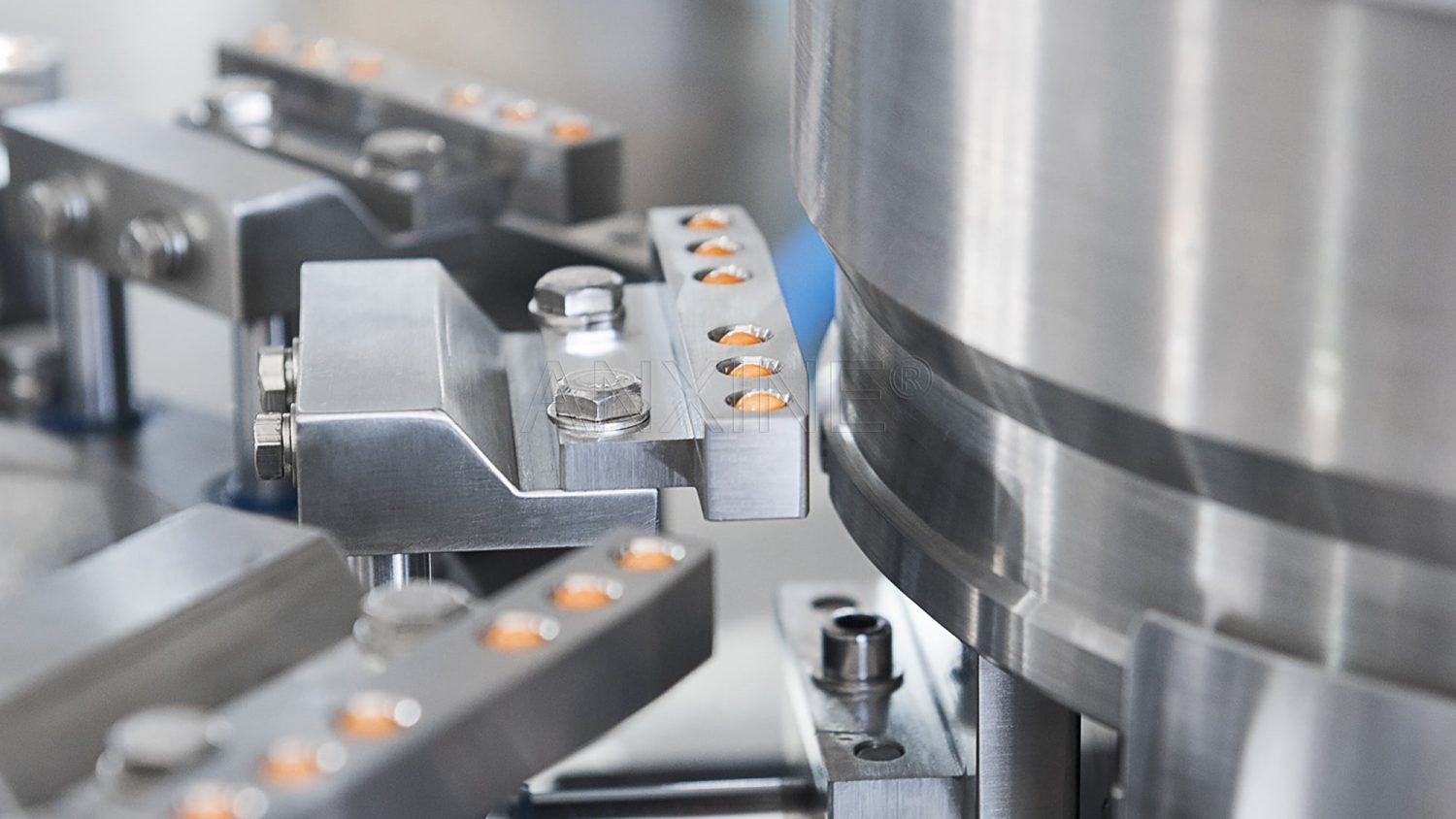

Empty capsules are fed from a hopper into a magazine, which guides them into the orientation unit. This unit orients each capsule with the cap on top and the body below. Once positioned, capsules are nudged into segment bores for the next step.
Step 2: Capsule Separation
The automatic capsule filling machine gently pulls the capsule segments apart using enough vacuum suction. Capsules are thereby opened and separated. Their caps stay in the upper segment bores, and the bodies are left in the lower ones. After that, both the upper and lower segments move to the filling station.
Step 3: Dosing and Filling
This is the heart of the capsule filling process. Suppose the product is powder. The powder flows into the dosing mechanism. Depending on the machine design, this could be a dosator system or a tamping pin disc. This mechanism measures and fills a precise dose of powder into each capsule body.
Step 4: Capsule Closing
The filled bodies are then transferred to the closing station. Here, the previously separated upper and lower segments are aligned and combined. The machine uses pins to push the bodies up into the caps to lock the capsule.
Step 5: Ejection and Discharge
Finally, the closed capsules move above a set of ejector pins. They’re pushed out of the segment bores and discharged from the machine.
Capsule Filling Machine Problems and Solutions
Knowing how a capsule filling machine works also helps with troubleshooting. Below are some common capsule filling issues and how to solve them based on the working principles you just learned:
| Problem | Cause | Solution |
| The capsule body and cap fail to separate. | – The capsule is not correctly oriented before falling into the segment bore. – The suction used to pull the capsule halves apart is not enough. | ⦁ Check whether the orientation unit is working correctly. ⦁ Adjust the vacuum. |
| Capsules are packed too tightly or not filled enough. | – The powder is not flowing smoothly, so the dosing system fails to pick up the same amount. – The tamping or dosator depth is wrong. | ⦁ Stir the hopper to ensure the powder is flowing freely into the dosing system. ⦁ Increase or decrease the tamping pin height, dosator depth, compression force, or the machine’s speed. |
| Capsules are not locking properly. | – The upper segment (containing caps) fails to align correctly with the lower segment (including filled bodies) during the closing stage. – The pins fail to lift the capsule bodies with enough force. | ⦁ Calibrate and align the segments precisely. ⦁ Fine-tune the upward pressure from the pins at the closing station. |
| Capsules are cracked, split, or dented. | – Capsules are not oriented incorrectly or the halves are misaligned. – Tamping pins or dosator dives too deep. – The machine applies too much upward pressure when closing the capsule.- Too much force is applied to knock capsules out. | ⦁ Adjust the machine settings or tooling. ⦁ Ensure all mechanisms and parts in the machine are clean. |
| The finished capsules are coated with powder or a mess of powder inside the machine. | – The capsule body fits too much powder, so it gets pinched out. – Capsules are not fully locked. – Fine powder dust flies around during filling. | ⦁ Use the correct dosing disc depending on the powder’s nature. ⦁ Adjust the height of the locking pins and tweak the pushing force. ⦁ Slow the machine a bit to ensure each cap-body pair has time to click in. ⦁ Check if the built-in dust extraction ports or vacuum systems are on and not clogged. ⦁ Include a cleaning station after capsule closing or consider a separate capsule polisher. |
Wrap It Up
As you can see, the working principle of capsule filling machines is not as complex as it first seems.
Every machine follows the same core steps:
Feed → Separate → Fill → Compact → Close → Eject
Once you understand these steps and the dosing principles, choosing the right machine becomes much easier. Troubleshooting becomes faster. Production becomes more predictable.
