NOTICE
- The following procedures are intended for Anxine equipment only. For other brands, refer to the original manufacturer’s instructions.
- Always disconnect the power supply before performing maintenance, cleaning, or mold changeover.
- Only trained and authorized persons are permitted to work on the equipment.
- Your equipment may vary from images or videos due to ongoing upgrades.
- If any part of this guide is unclear, contact Anxine for technical support before proceeding.
If you need to grind different materials into fine powders, the WF series is your good partner. It can pulverize the Chinese medicinal herb, drug, mineral, chemical raw materials, etc. The series could be used in the pharma, food and chemical industries.
In this series, there are many models to choose from. Each has a different rotary speed and processing capacity. The dimensions and material sizes are also various. You can select the best powder grinder machine according to your production needs. When operating the machine, some notices you should know.
Instruction Before Use
- Before use, please check if the driving section parts are loose or have other abnormal conditions. Also, you need to check if the running direction is the same as the direction of the arrow.
- When using the machine, let the machine run without materials for 1-2 minutes. If all is normal, then you can start the operation.
How to Operate the WF Series Machines for Powder Grinding?

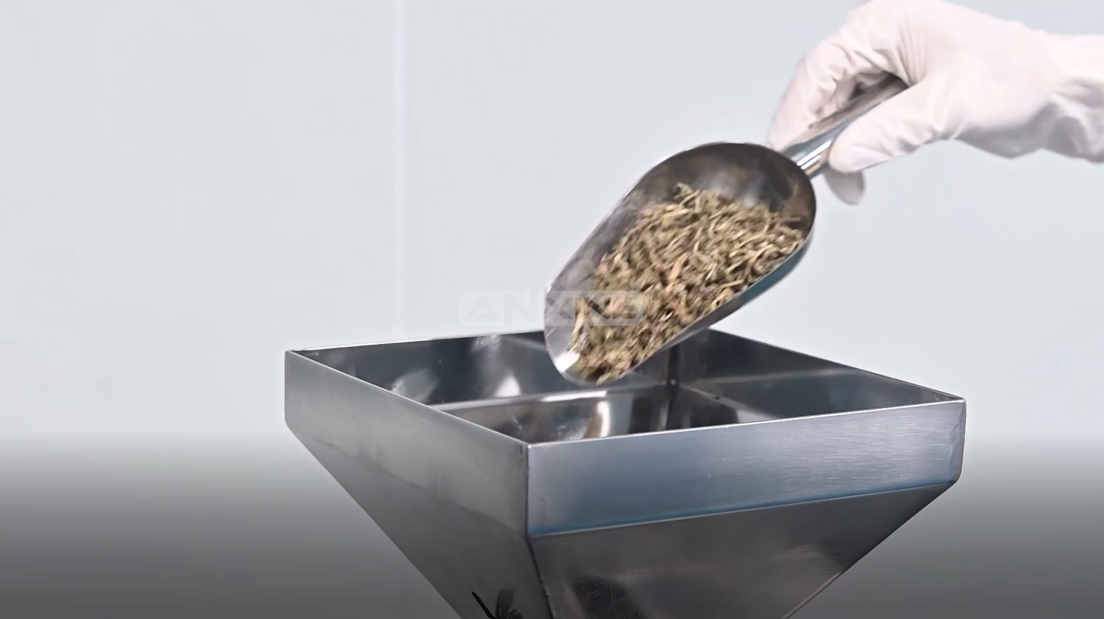

Step 1: Gradually pour the materials that need to be ground into the hopper. You should observe the motor power supply and whether the machine runs well.

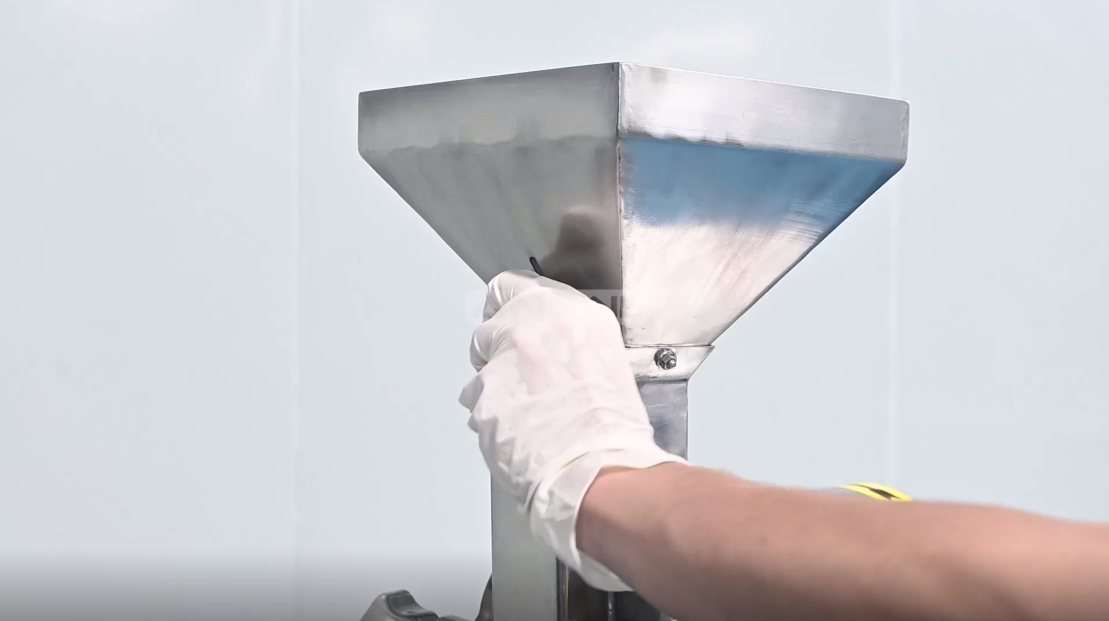

Step 2: If everything is normal, fix the discharging gate firmly.

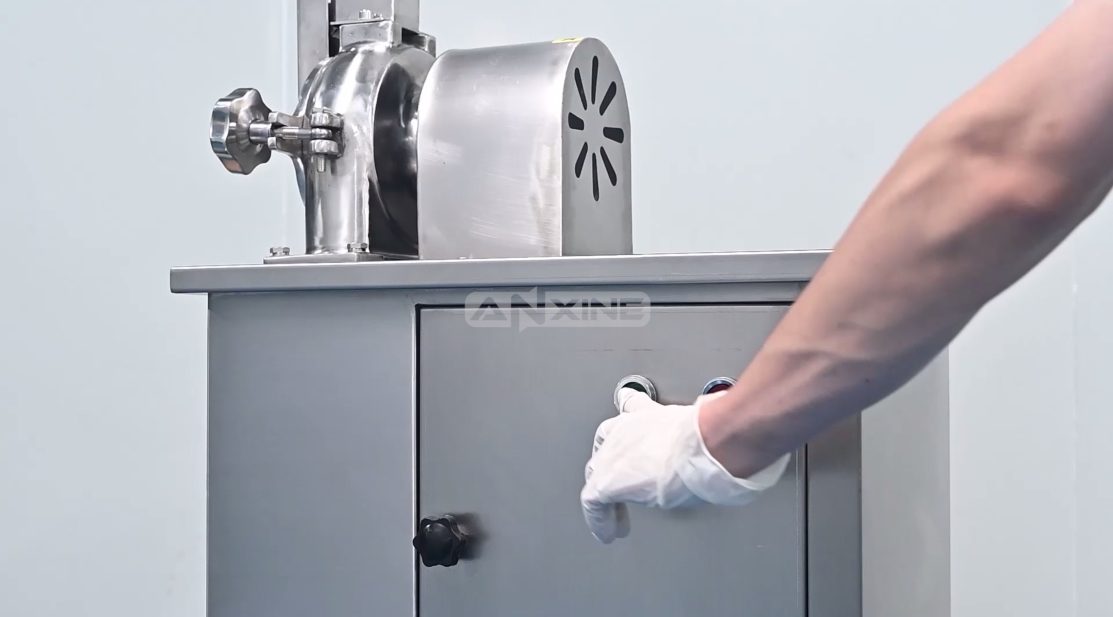

Step 3: Press the button to start the machine.

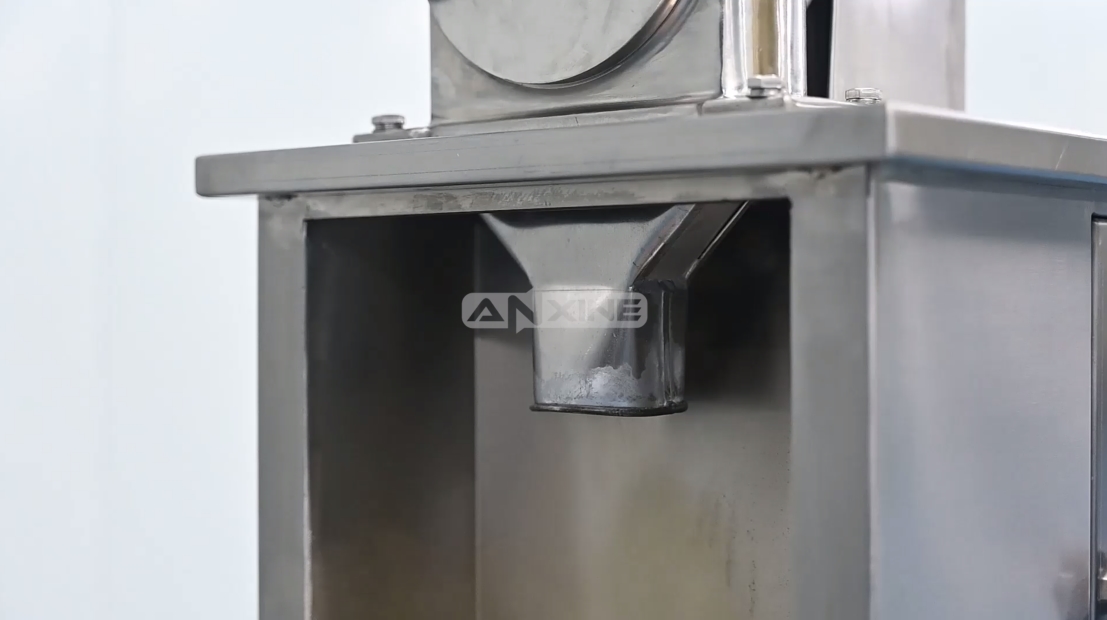

Step 4: The materials are ground into powders and flow out from the machine.
Here is a video for you to check the operation details.
How to replace the screen mesh?
Screen mesh controls the powder particle size. Material can discharge only after passing through the mesh openings. Smaller openings produce finer powder, while larger openings produce coarser powder. The screen mesh also blocks oversized particles, which helps keep the final particle size stable.
However, after a long time of high-speed impact, the mesh openings may become larger or irregular, and particle size control becomes worse.
The screen mesh may also become clogged or develop cracks. In this case, a new screen mesh is required to maintain production efficiency. Here is a video about how to change it for your reference.

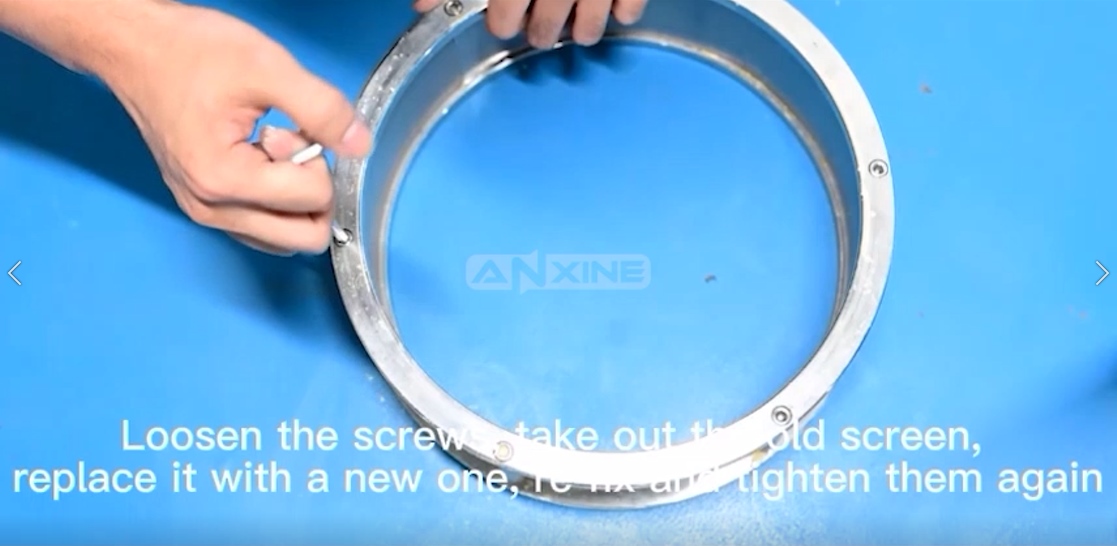

Step 1: Loosen all the screws around the part.

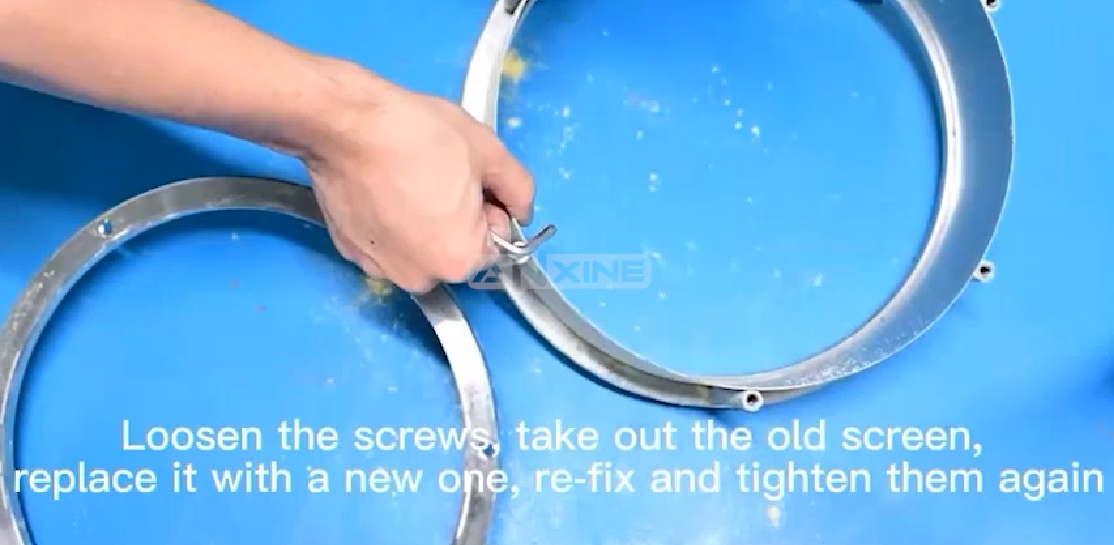

Step 2: Take out the old screen mesh.

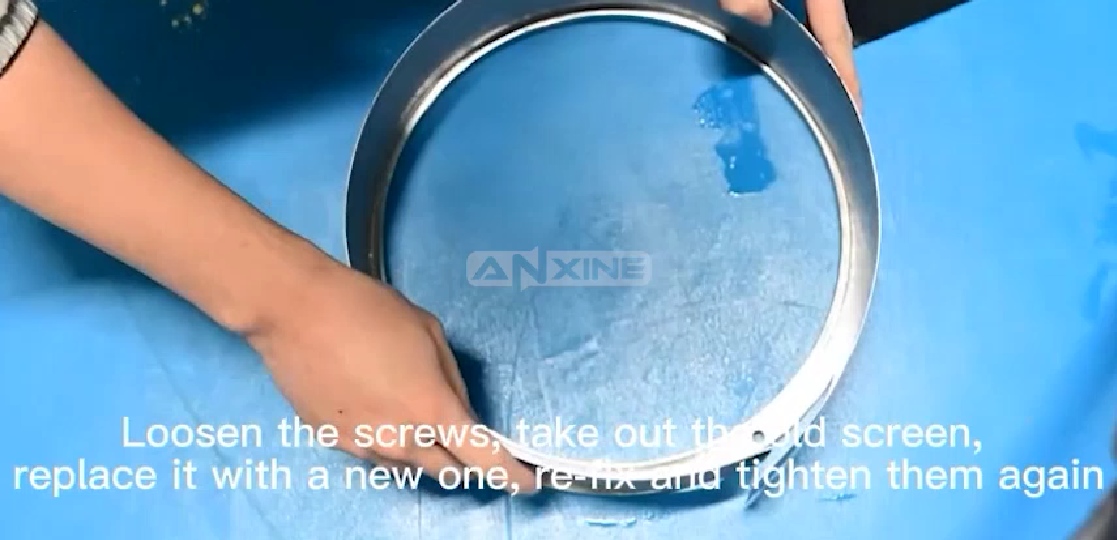

Step 3: Place the new screen mesh and refix it.
Step 4: Tighten all screws.
How to Clean the Powder Grinding?
Step 1: Loosen the fastening handle to open the door.
Step 2: Remove the seal ring.
Step 3: Take out the grinding assembly.
Step 4: Clean the residual powder with a brush.
Step 5: Blow out the remaining powder with compressed air.
Step 6: Spray cleaning fluid.
Step 7: Wipe the surface with a dustless cloth.
Step 8: Clean the inside of the door.
Step 9: Clean the discharge outlet area.
For more detailed information please click to watch the video below.
