NOTICE
- The following procedures are intended for Anxine equipment only. For other brands, refer to the original manufacturer’s instructions.
- Always disconnect the power supply before performing maintenance, cleaning, or mold changeover.
- Only trained and authorized persons are permitted to work on the equipment.
- Your equipment may vary from images or videos due to ongoing upgrades.
- If any part of this guide is unclear, contact Anxine for technical support before proceeding.
How to Operate the SF-40B to Grind Materials into Fine Powders?
This model is used to grind various types of materials into fine powder at a high speed. It separates finished powder and dust through a screen. The dust could be collected with a suction system to reduce material loss. This powder grinder machine features stable operation with low noise, easy operation and maintenance. Here is the detailed operation process for your reference.

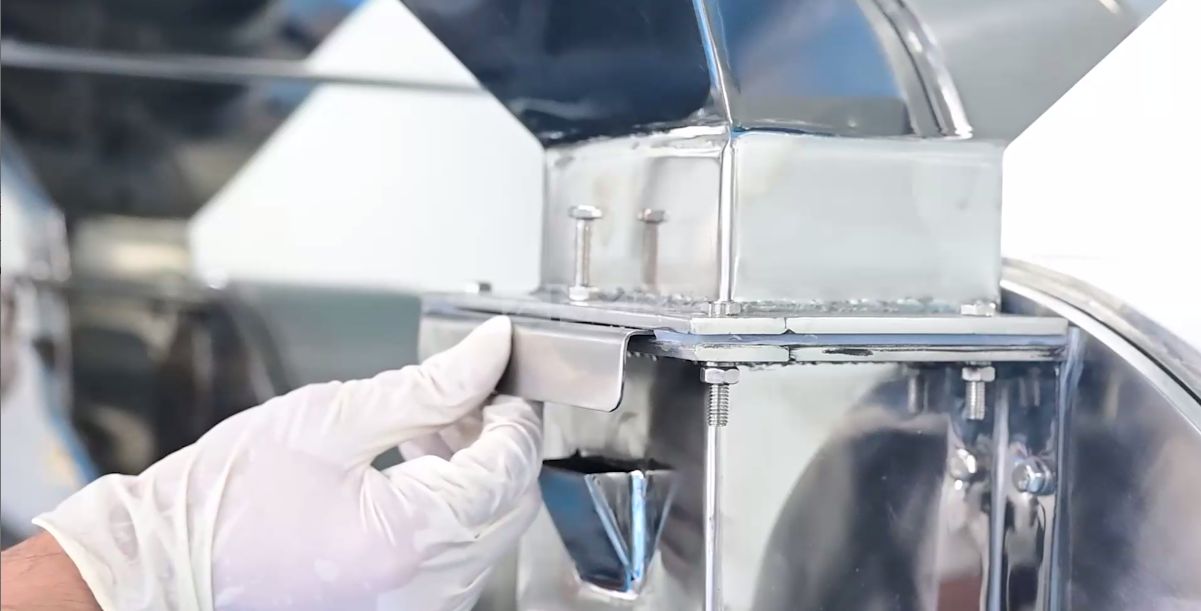

Step 1: Close the material baffle to prevent the powders from flowing out.

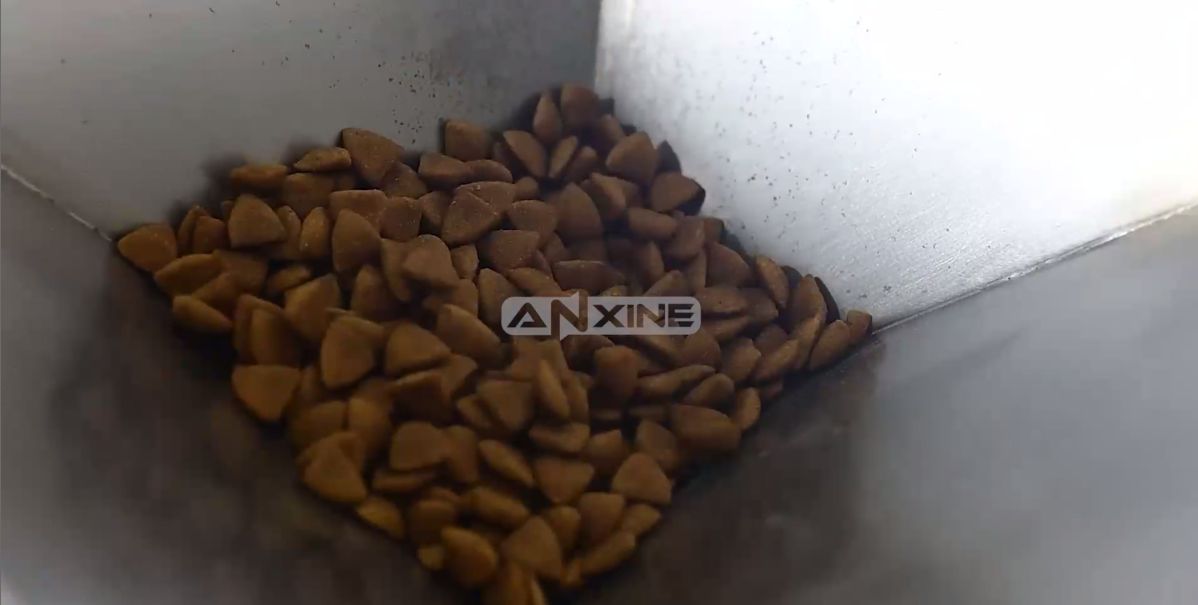

Step 2: Pour the materials into the hopper.

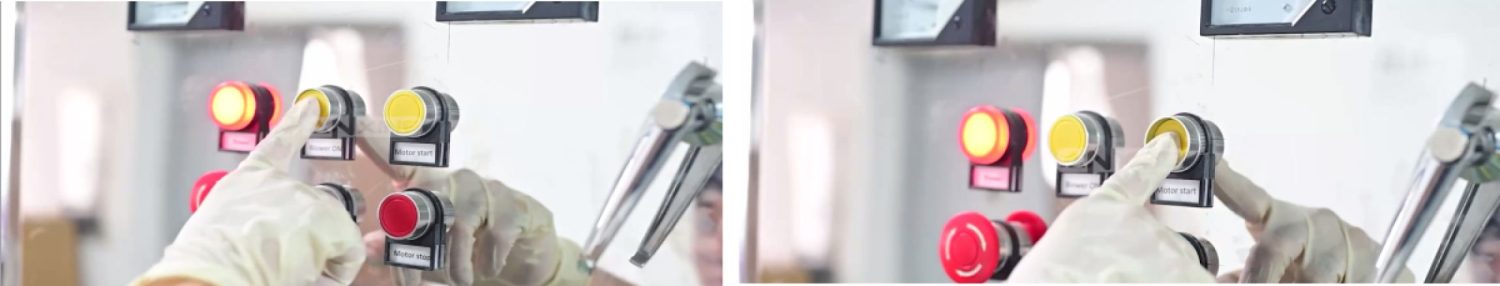

Step 3: Turn on the main power switch and the dust suction switch.

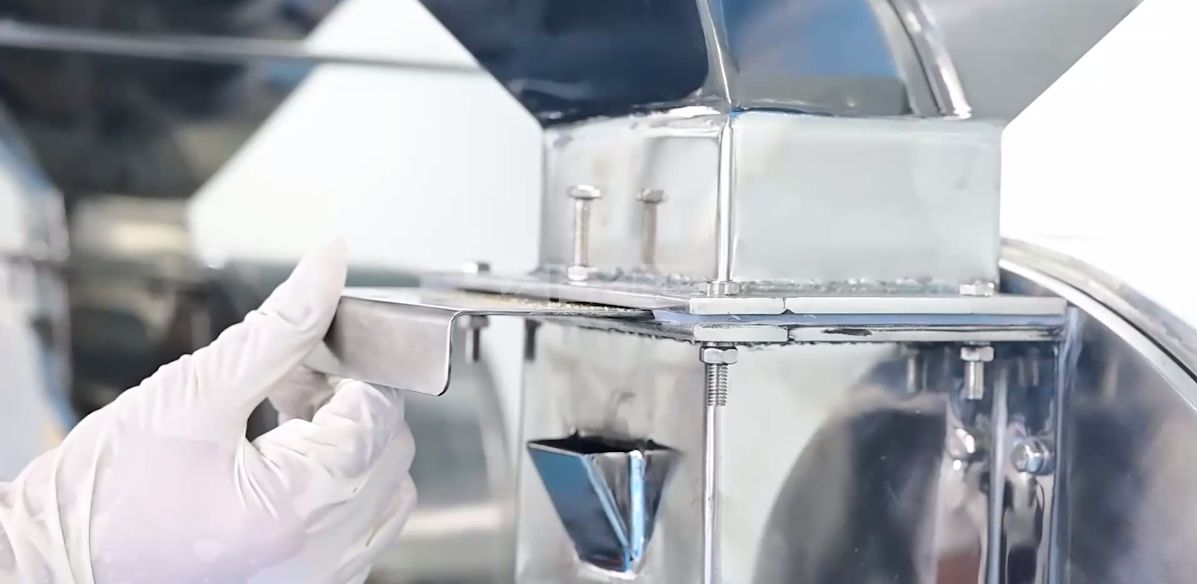

Step 4: Slowly open the material baffle, so the material enters the grinding chamber at a steady rate.

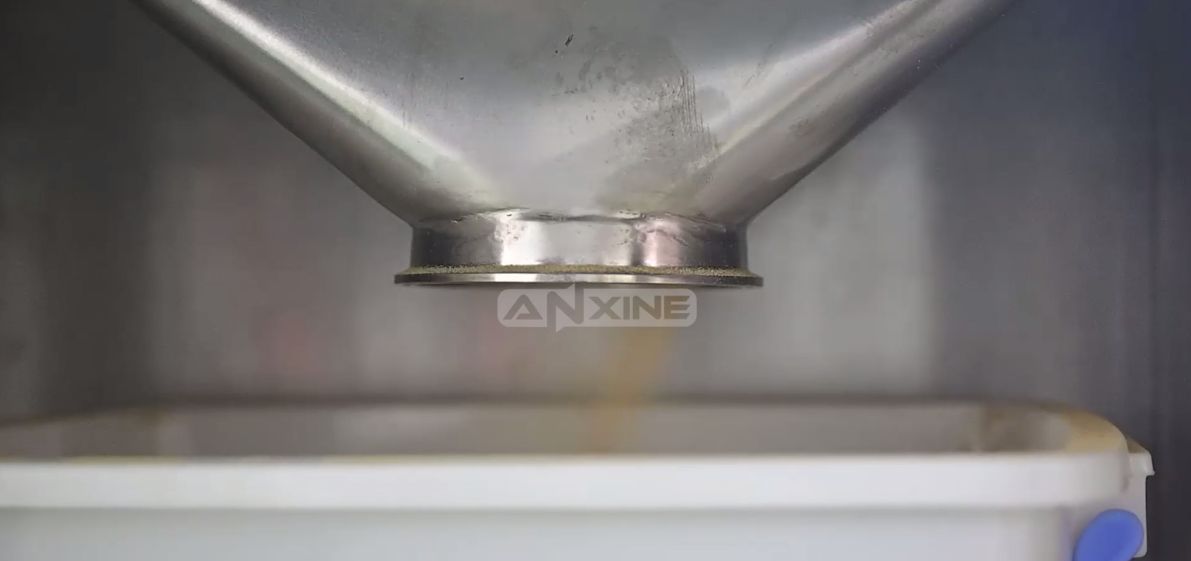

Step 5: The material is pulverized and the finished powder falls into the material collecting box.
You can check the video to see it more clearly.
How to Maintain the SF-40B Grinder?
Step 1: After finishing work, clean the hopper, hammer, mesh sieve and collecting boxes with alcohol and a soft cloth. If there is any position out of reach, use compressed air.
Step 2: If the SF-40B grinder is to be idle for a long time, clean it entirely and cover it with a cloth.
Step 3: Regularly check the bearing and replace high-speed bearing grease to ensure the normal operation of the machine. Besides, check the easily damaged parts frequently and replace them in time if there is serious wear.
Installation and Debugging Procedures
Step 1: Place the machine on level and reliable ground.
Step 2: Before starting the machine, check whether any drive parts are loose or abnormal.
Step 3: Start the machine without materials and observe whether the motor runs in the same direction as the indicating arrow.
Step 4: Run the machine for 5 minutes without materials. If there is no abnormality, pour some materials for a test run.
